* Processor: Rockchip RK3399, Dual 64-bit Cortex-A72 + Quad Cortex-A53 @ 1.8GHz
* RAM: 4GB LPDDR4
* Storage: 8GB

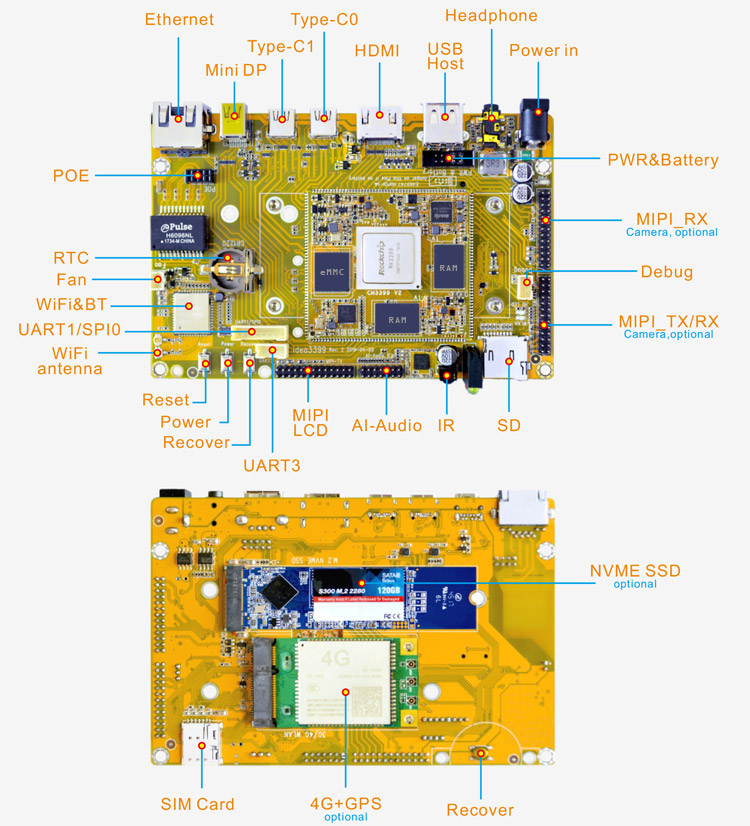

* Interfaces: GbE, mDP, 2x Type-C, HDMI, USB2.0 Host, Audio, PWR&Battery, 3x MIPI(LCD, 2x Camera), 3x UARTs, SPI, POE, Micro SD, PCI-E(4G), M.2 slot(SSD), SIM slot, etc.
* Operating system: Android 11, Android7.1.2, Debian 10, buildroot
* Board size: 135mm x 90mm

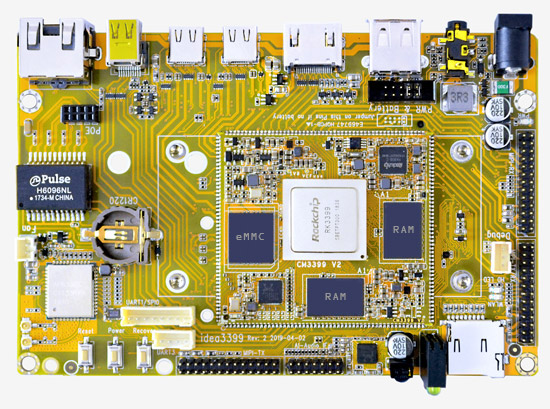

Idea3399 is a single board computer equipped with RK3399 Cortex-A72 + Quad Cortex-A53 processor coupled with 4GB RAM, 8GB eMMC, an mPCIe slot for cellular connectivity, and other interactive interfaces geared towards to AI and IoT Applications.
Display features include a mDP port, HDMI and MIPI LCD. Idea3399 adopts ALC5651 dual I2S interface audio codec that supports analog/digital input. The 2x USB3.0 Type C can be converted to HDMI/USB3.0/USB2.0. In addition, Type C0 also can be used for debugging.
The board is available with a WiFi/BT module with dual-band 802.11ac/a/b/g/n and Bluetooth 4.1 connectivity.
The Idea3399 SBC is equipped with a 4G model(optional) that delivers 100Mbps downlink and 50Mbps uplink data rates, and GSM/GPRS networks to ensure that it can connect even in remote areas devoid of 4G or 3G coverage. The model also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity positioning GPS+GLONASS receiver.

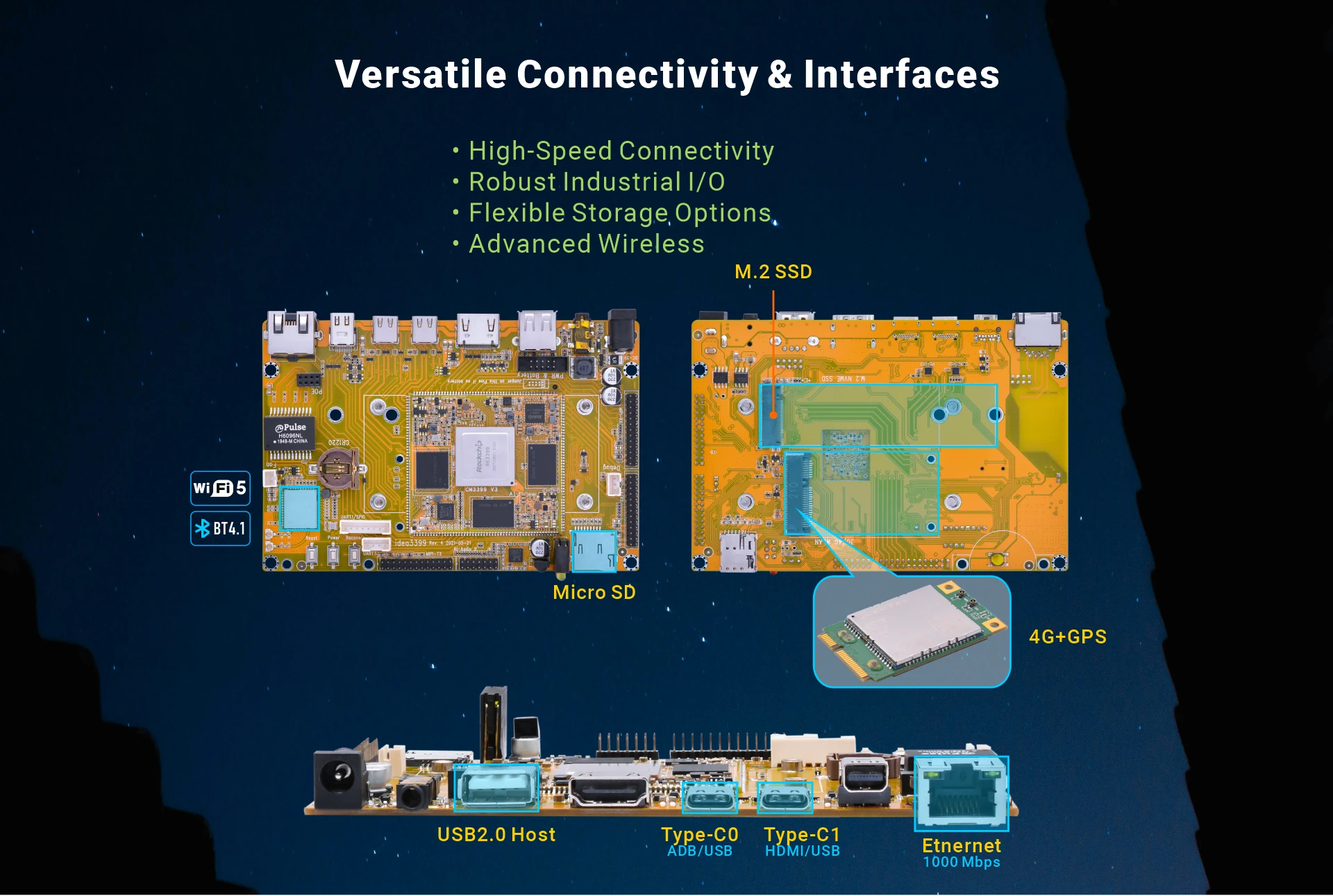

Other expansion features include a M.2 slot, 2x MIPI Cameras, MIC Array, 8-pin PoE connector, IR in, etc.
Specifications | |
---|---|
CPU | · Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU · 28nm HKMG process · 1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster |
GPU | · ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc. · Supports AFBC (ARM Frame Buffer Compression) |
Memory | 4GB LPDDR4 |
Storage | 8GB eMMC |
Power | DC 5V/3A or 3.6V~12.8V Li-Battery |
Ethernet | 1000M High performance Ethernet (RTL8211E), RJ45 interface |
MINI DP | 1x mini Display Port |
USB | 1x USB2.0 Host, 2x USB3.0 Type C |
HDMI | HDMI 1.4 and 2.0, support 4K, 1080P, 720P, 480P resolution |
Audio | Realtek ALC5651 Audio CODEC. 3.5mm jack for headphone; 14-pin header for MIC Array. |
PWR&Battery | 2x5pin connector. 3.7V Li-Battery |
MIPI | 3x 26-pin headers. MIPI RX for camera1, 13 Megapixels; MIPI RX/TX for camera2, 13 Megapixels; MIPI TX for MIPI LCD. |
Micro SD | 1x Micro SD Card slot |
IR | Support IR in |
UART | 4-wire UART1(Multiplexed signal with Ethernet), 1x 8pin connector (J13); 3-wire UART2, 1x 3pin connector. For debug; 4-wire UART3(Multiplexed signal with Ethernet), 1x 4pin connector |
SPI | 1x 8pin connector (J13) |
Buttons | 3x Buttons for Recover, Power and Reset |
RTC | 3V battery, CR1220 |
POE | 2x4pin connector |
4G | 52pins MINI PCI-E Socket. Support 4G module |

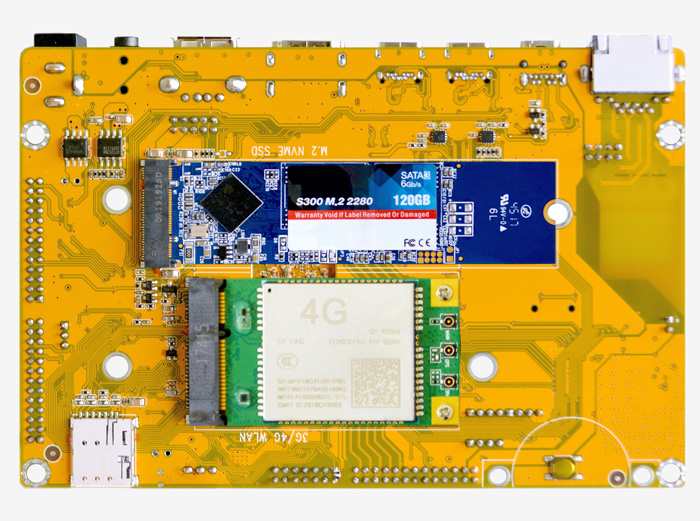

SSD (optional) | NVME SSD PCI.E X2 |
Camera (optional) | 13 Megapixels, OV13850 model |
WiFi&BT | Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac. Bluetooth 4.1 |
Dimension | 135mm x 90mm |

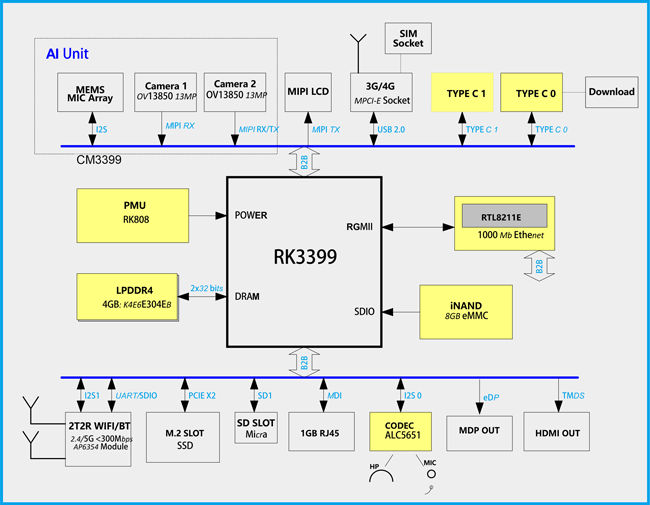

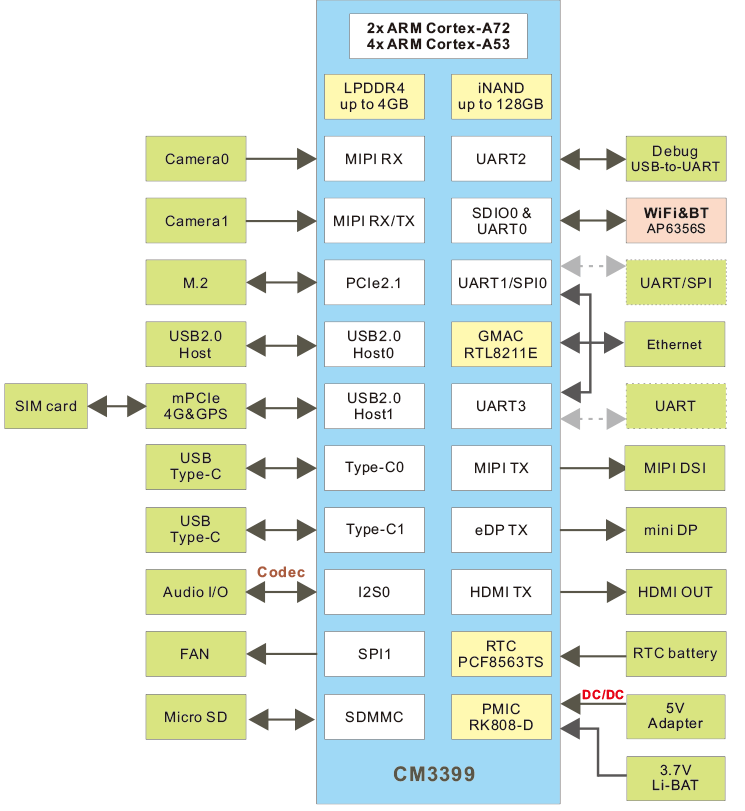

Block Diagram

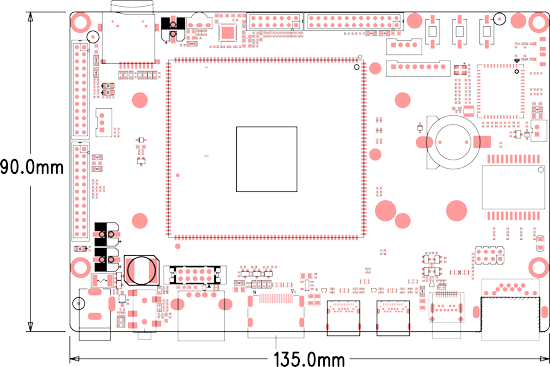

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android7.1.2 | Boot | uboot 2014.10 | rk3399_loader_v1.17.115.bin |
Kernel | Version | Linux 4.4.126 | |
Drivers | HDMI | Support 4K, 1080P, 720P, 480P resolution | |
Audio | Audio in/out | ||
SD card | Micro SD card | ||
USB | USB mouse, USB keyboard, USB storage etc. | ||
Ethernet | 10/100/1000 Mbit/s Ethernet | ||
mDP | Support | ||
Camera | 13 Megapixels, OV13850 model | ||
WiFi | Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.1, AP6356 module | ||
Serial Port | Debug serial | ||
PCI-E | Support SSD | ||
GPU | Support AFBC | ||
eMMC | Support eMMC 5.1 | ||
4G | EC20 LTE | ||
GPS | EC20 | ||
Type-c *2 | convert to HDMI/USB3.0/USB2.0. | ||
IR | IR in | ||
LCD | 10.1-inch MIPI LCD with touch screen | ||
Embedded GUI | Android7.1.2 | Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc. | |
Cross-compiler Environment | ubuntu-16.04, java-8-openjdk-amd64.tar.bz2 | ||
Debug Tools | SecureCRT, AndroidTool.exe, ADB |
OS | Item | Feature | Description |
---|---|---|---|
Buildroot | Boot | U-Boot 2017.09 | rk3399_loader_v1.24.126.bin |
Kernel | Version | Linux 4.19.193 | |
Drivers | HDMI OUT | Support up to 4K@60Hz | |
MIPI DSI | Support up to 1080@60Hz | ||
Audio | headphone(in/out) | ||
USB2.0 | Support | ||
TYPE_Cx2 | Support convert to HDMI/USB | ||
Ethernet | Gigabit Ethernet | ||
SD card | Micro SD card | ||
WiFi | Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac | ||
Camera | OV13850 model | ||
PCIE | PCIE NVME SSD | ||
FAN | Support | ||
Serial Port | Debug serial | ||
RTC | PCF8563TS | ||
Embedded GUI | QT | qfm, qplayer, qsetting, multivideoplayer, qcamera | |
Cross-compiler Environment | ubuntu-18.04 | ||
Debug Tools | SecureCRT, AndroidTool.exe, ADB |
Datasheet |
|
|
Reference Manual |
|
Tools |
|
|
|
|
|
|
Expansion Module | Module Detail | Android | Debian | Buildroot |
---|---|---|---|---|
4G&GPS | Quectel EC20 Mini PCIe Multi-mode LTE Module | √ | √ | - |

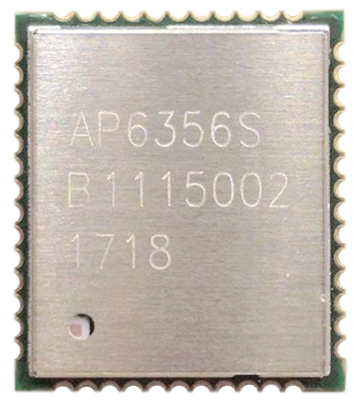

WiFi&Bluetooth | AP6356S Module. 2.4/5G WiFi + Bluetooth 4.1 | √ | √ | √ |
Camera | OV13850 module, 13-Megapixel | √ | √ | - |
MIPI LCD | 10.1-inch Capacitive Touch Screen,1280 x 800 | √ | √ | √ |
All Technologic Systems products come with:
* 6~12months full warranty
* Technical support
* Computers have pre-installed OS
* Free system software
* Complete documentation, updates through website
Please configure your product using the table below and then add it to your cart. If you have any questions, please contact us for assistance.
Product | Item | Price(Qty1) | Buy Now |
---|---|---|---|
Idea3399 | Idea3399 (4GB RAM, 8GB eMMC) | USD170.00 | Add to cart |
4G Module (WCDMA, with GPS) | USD30.00 | Add to cart | |
10.1'' LCD with capacitive touch (MIPI) | USD85.00 | Add to cart |
