* Processor: Rockchip RK3562. Quad-core Cortex-A53, up to 2.0 GHz
* NPU: 1 TOPS
* RAM: 4GB
* Storage: 8GB
* Interfaces: 2x UART, Debug, RS485, 3x USB2.0 Host, USB2.0 OTG, MIPI DSI/LVDS, 8x AHD(Camera), Gigabit Ethernet, M.2, Micro SD, mPCIe, Audio I/O, ADC, GPIO, IR, RTC, etc.
* Operating system: Debian, Buildroot
* Board size: 160 x 115 mm
* Expansion Module: 4G, Camera, WiFi, 10.1-inch LCD

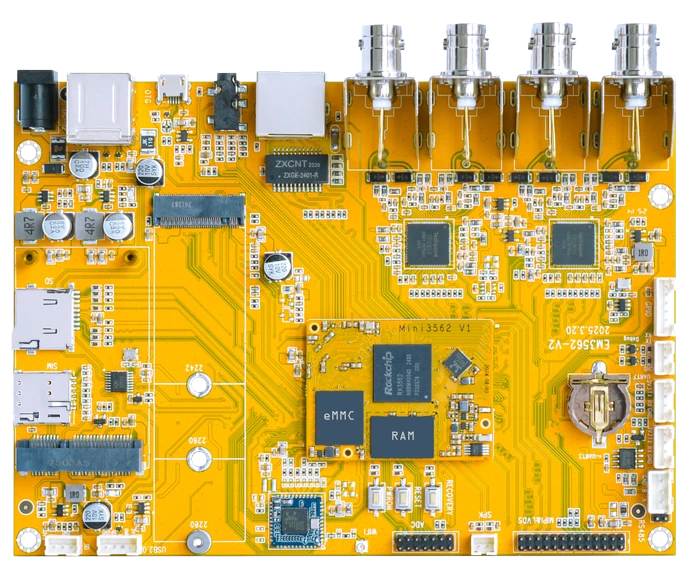

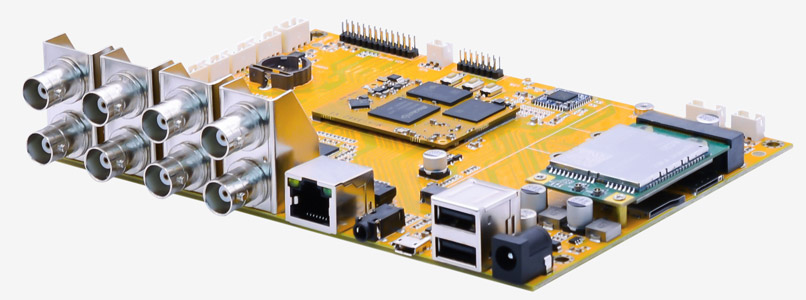

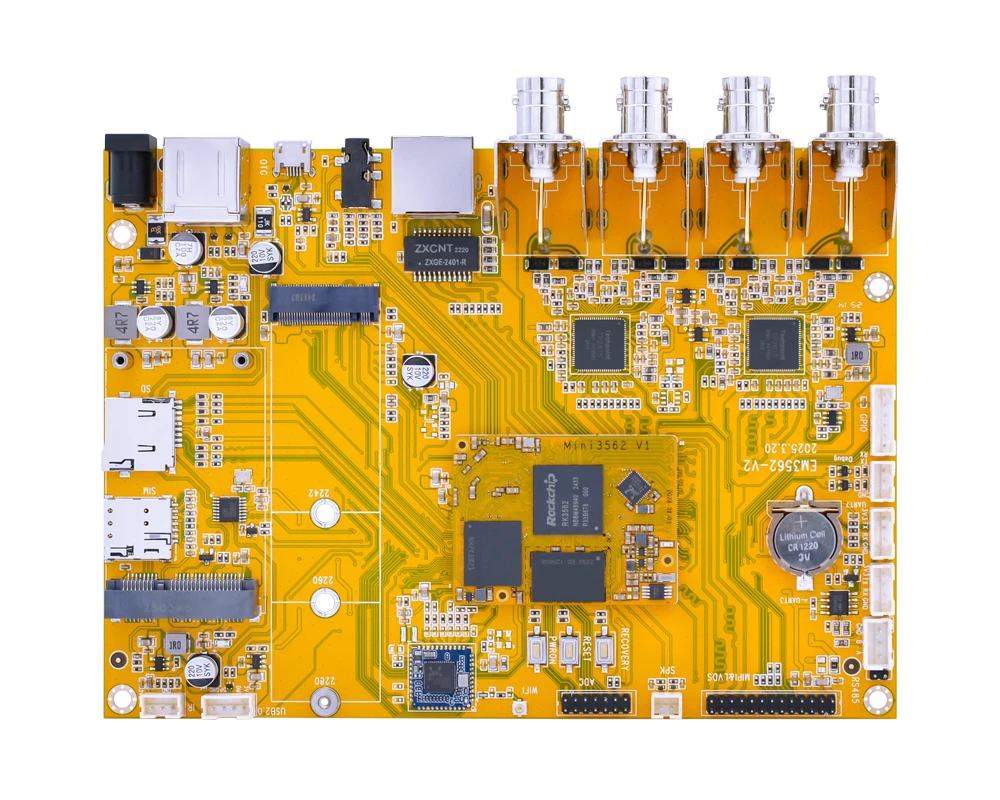

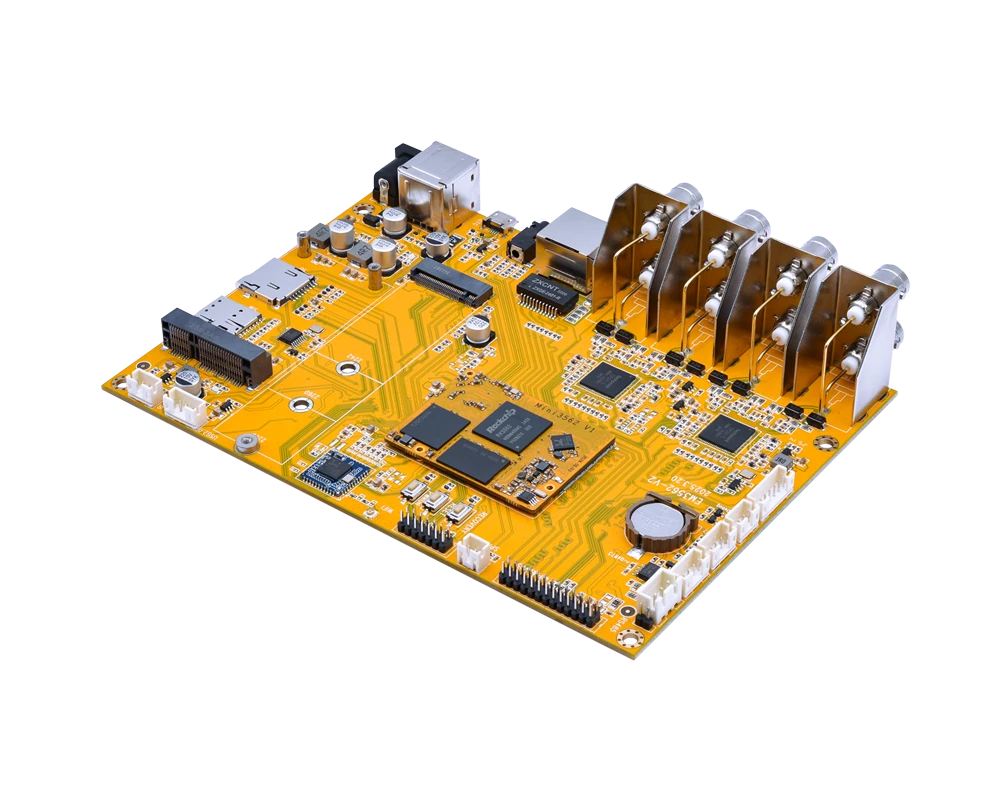

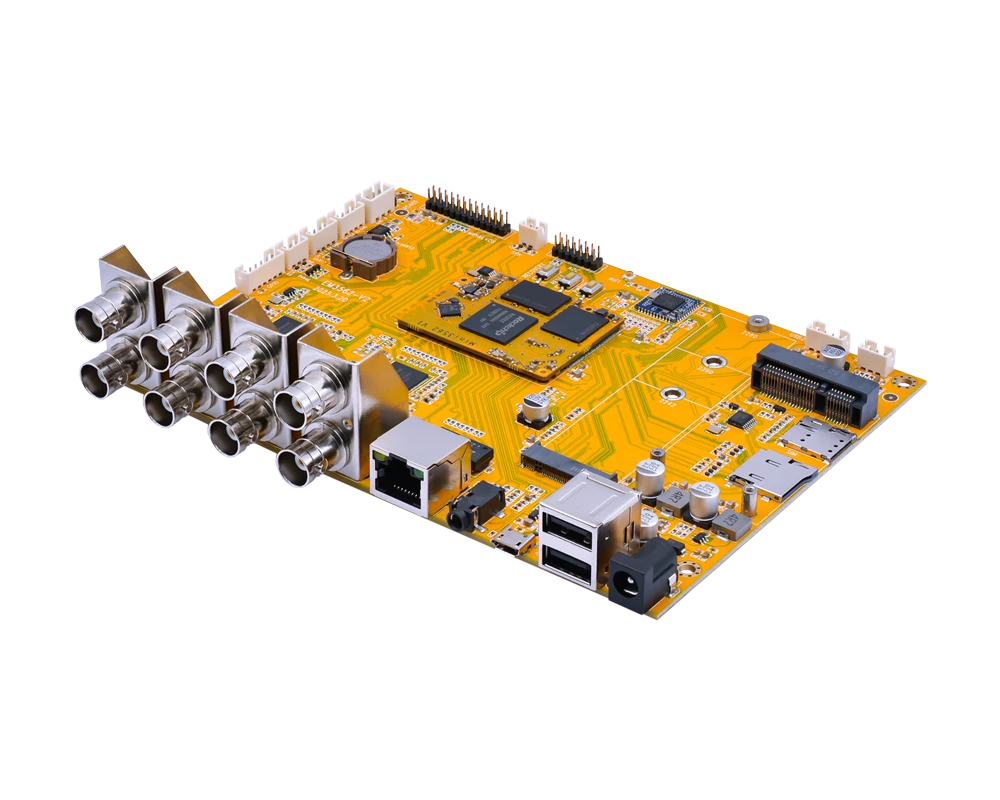

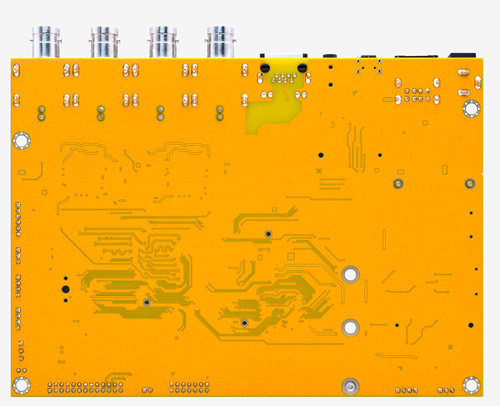

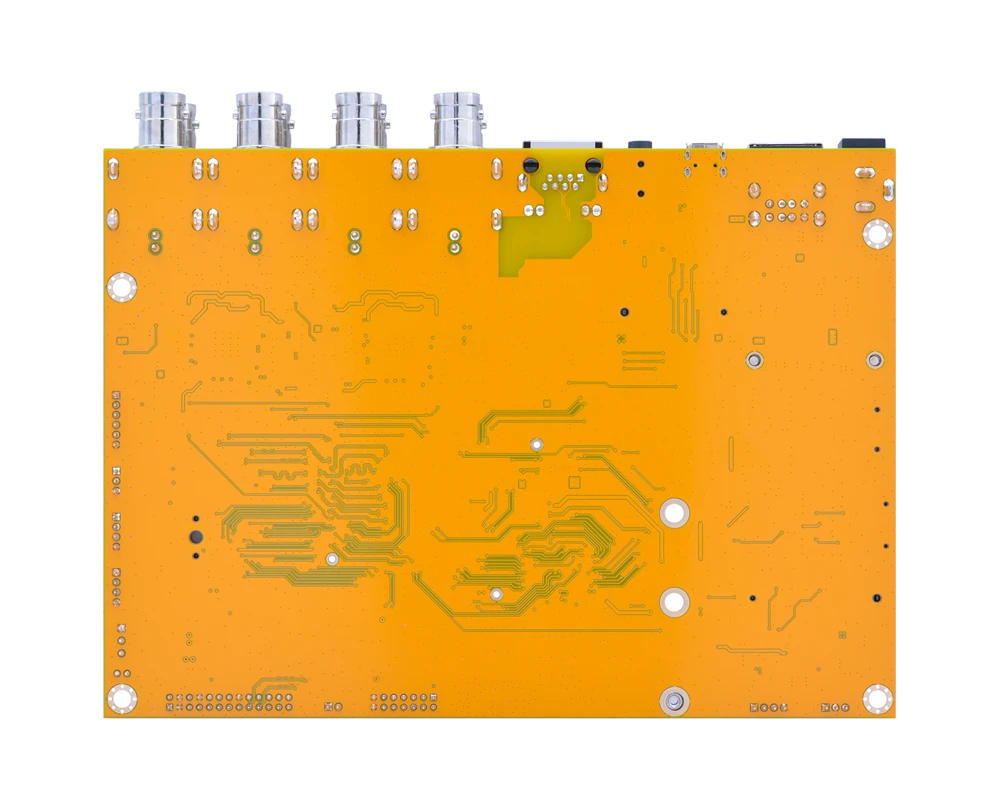

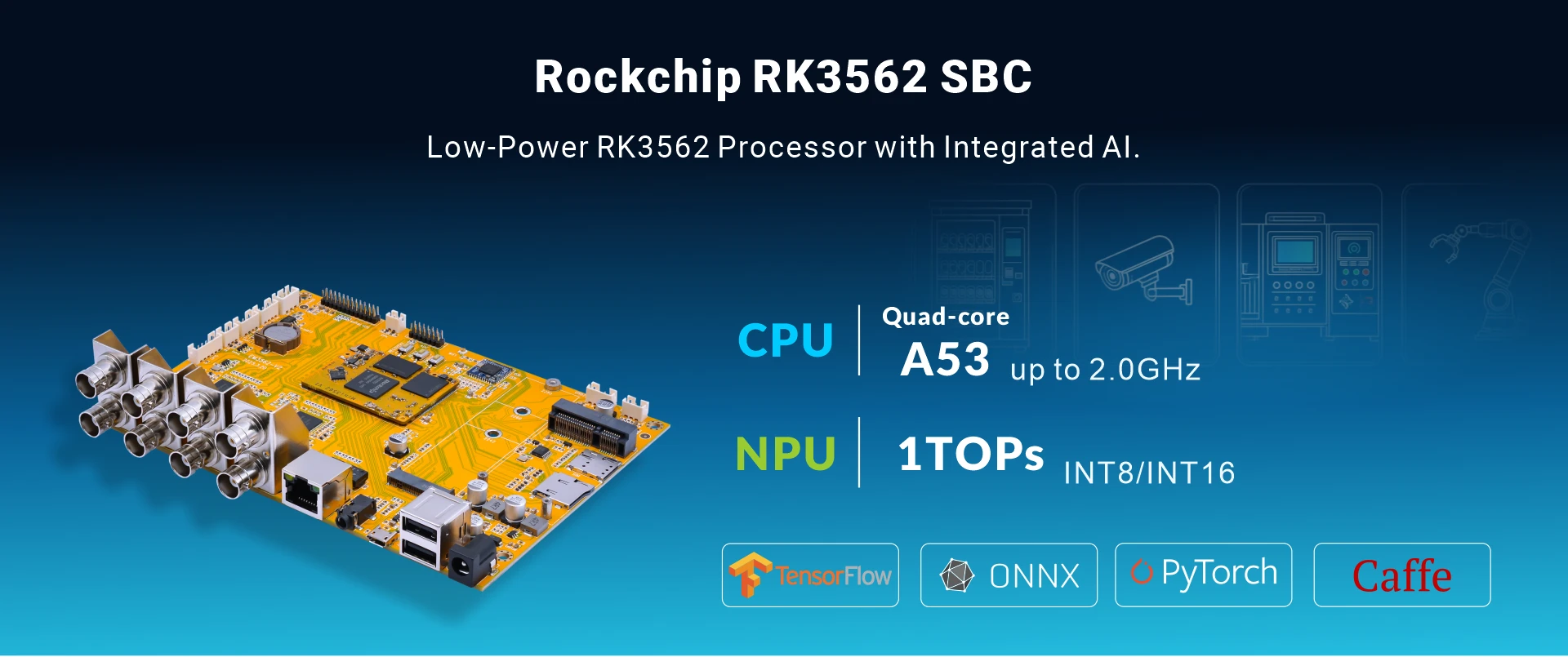

Boardcon EM3562 is a cost-optimized multicamera solution with the ability to connect up to 8-channel AHD cameras to a single developer kit. It is powered by Rockchip RK3562 processor with quad-core Cortex-A53 CPU, Mali G52 GPU, 1 TOPS NPU and 13-Megapixel ISP.
As the development platform for MINI3562 SOM, the EM3562 is built for Security Surveillance and tracking & identification applications, complete with a variety of interfaces for ease of development by embedded software/hardware developers. The EM3576 is equipped with 4GB (up to 8GB) RAM, 8GB (up to 128GB) storage, M.2/Micro SD expansion storage interface, gigabit Ethernet port and 2.4G WiFi, which can provide stable high-speed data transmission for the control center. The SBC provides designers a flexible and scalable option for their product while shortening their up time to market. Through a development kit and a production-ready SOM, a designer can accelerate time to market with reduced risk.

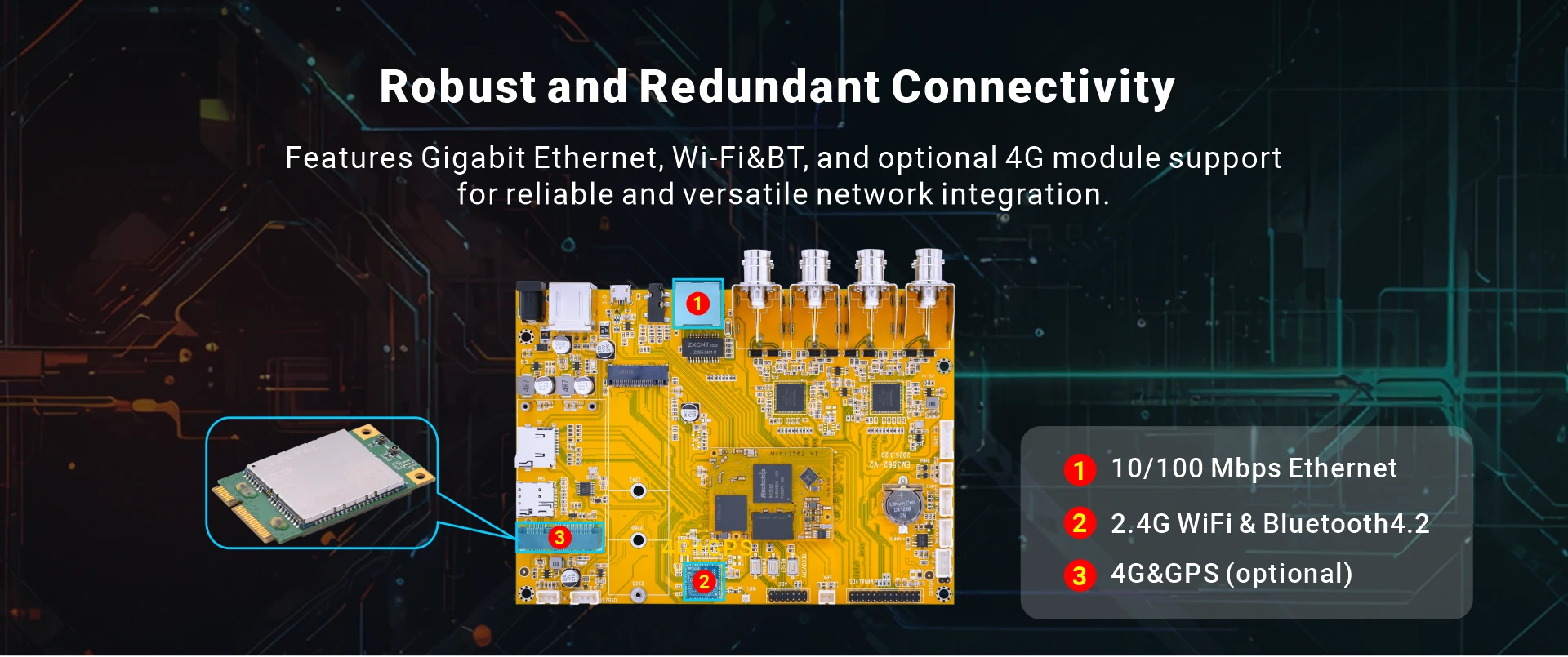

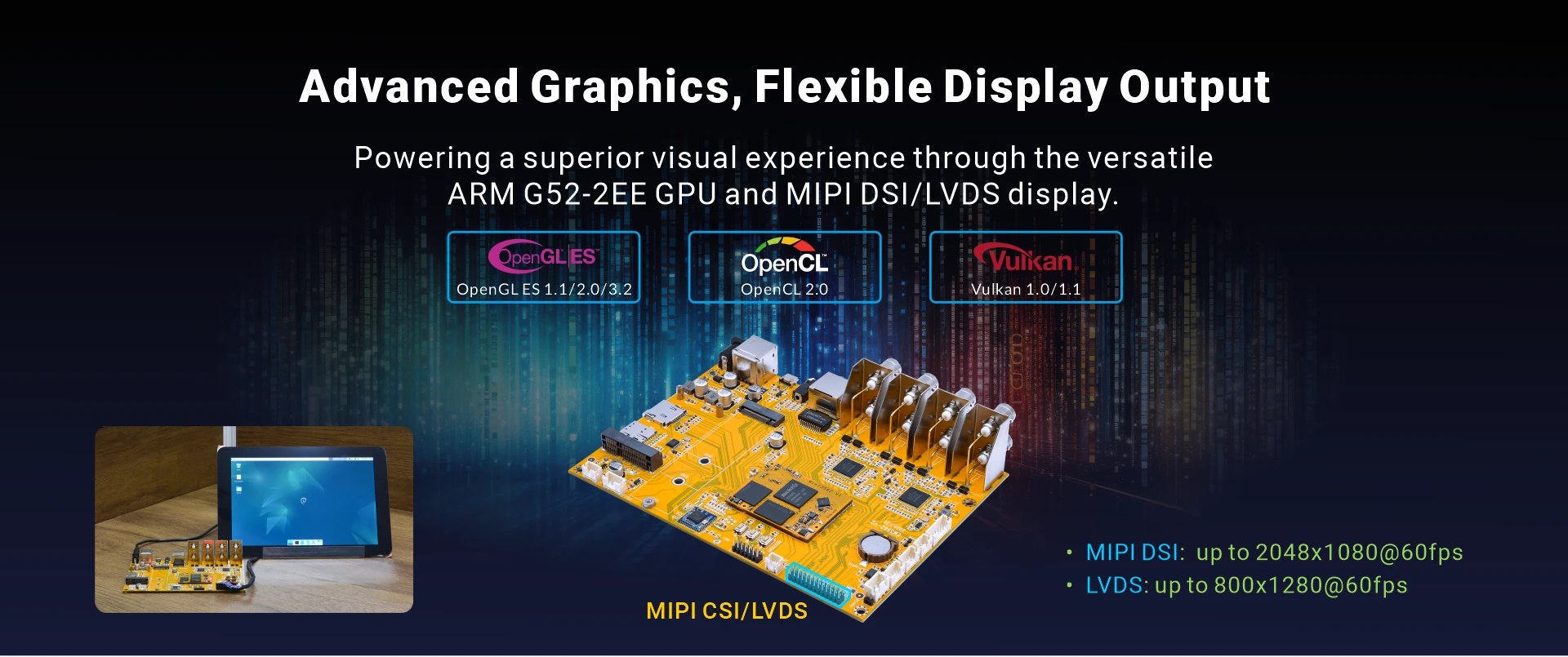

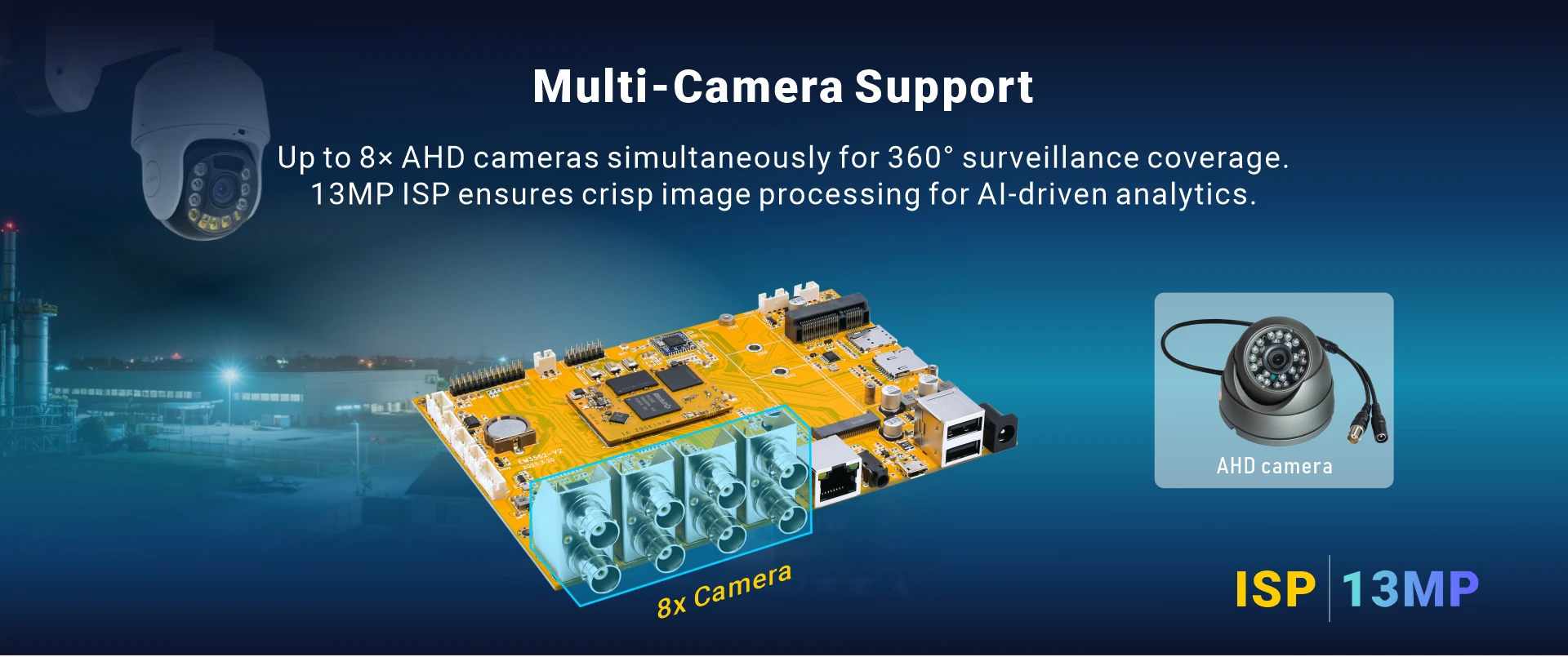

| Specifications | |
|---|---|
| SoC | Rockchip RK3562 processor. 4x Cortex-A53 cores up to 2.0GHz |
| NPU | 1 TOPS |
| GPU | ARM G52 2EE with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| Memory | 4GB (up to 8GB) |
| Storage | 8GB (up to 128GB) Micro SD slot M.2 socket |
| Power Supply | 12V/3A DC input jack |
| USB | 3x USB2.0 Host, Dual-USB and 4-pin connector 1x USB2.0 OTG, Micro USB |
| Connectivity | 1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller 2.4G WiFi(802.11b/g/n) with Bluetooth 4.2 mPCIe socket with Nano SIM card port to support 4G&GPS module |
| Serial Port | 2x UART, 4-pin connector 1x Debug, 3-pin connector 1x RS485, 3-pin connector or 2-pin header |
| Display | 4-lane MIPI DSI, up to 2048 x 1080 @ 60Hz or LVDS, up to 800 x 1280 @ 60Hz |
| Audio | 1x 3.5mm audio I/O jack 1x Speaker, 2-pin connector |
| Camera | 8x AHD Camera, BNC connector |
| Keys | Recovery, Reset, Power |
| Other features | RTC with battery connector, IR, ADC(8x ADC, 1x I2C), GPIO(3x GPIO) |
| Dimension | Based board – 160 x 115 mm; CPU module – 45 x 34 mm |

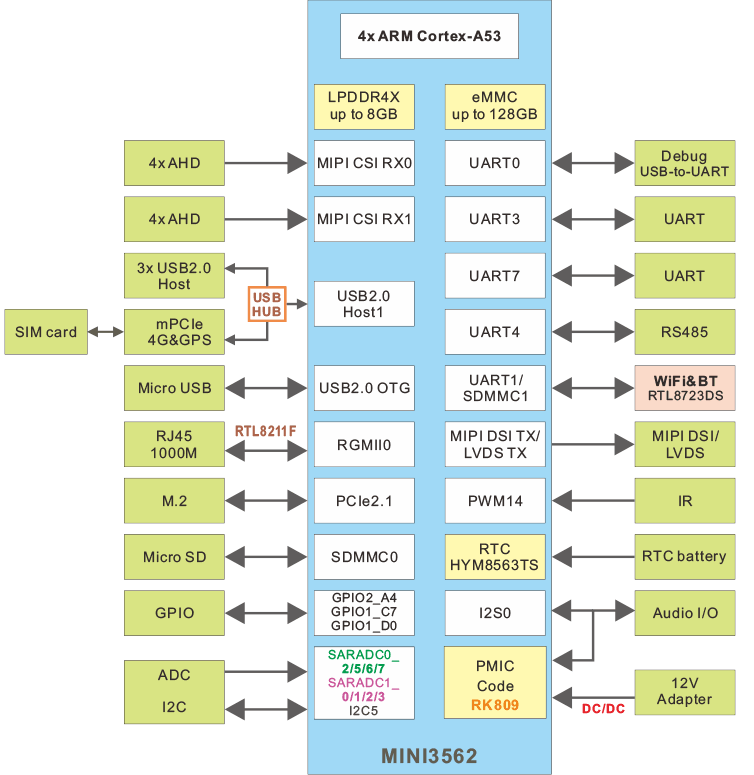

Block Diagram

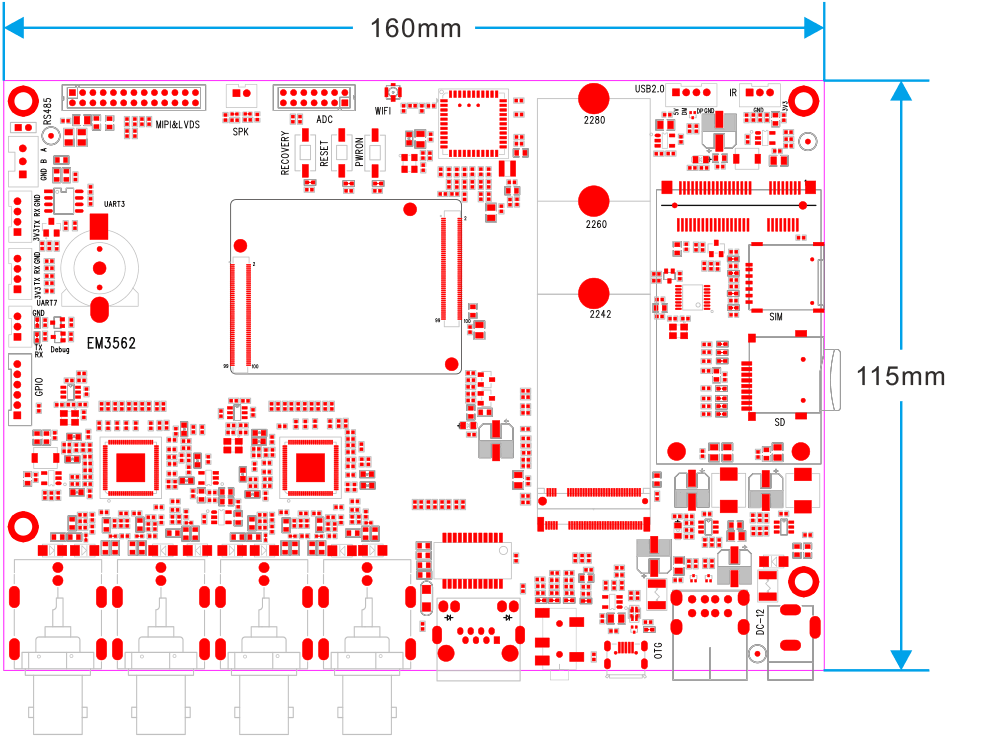

PCB Dimension
| OS | Item | Feature | Description |
|---|---|---|---|
| Debian | Boot | U-Boot 2017.09 | u-boot.bin |
| Kernel | Version | Linux 5.10 | |
| Drivers | eMMC | eMMC5.1 | |
| LCD | 10.1-inch MIPI LCD, 1280 x 800 | ||
| Audio | Headphone out, MIC, Speaker | ||
| USB Host | 3x USB 2.0 Host | ||
| USB OTG | USB 2.0 OTG | ||
| Ethernet | 10/100/1000 Mbit/s Ethernet | ||
| Camera | 8x AHD Camera | ||
| 4G&GPS | EC20 | ||
| WiFi | 802.11 b/g/n | ||
| Bluetooth | Bluetooth4.2 | ||
| SD | Micro SD | ||
| Serial Port | Debug, TTL 2x UART, TTL |
||
| RS485 | support | ||
| ADC | support | ||
| M.2 | support | ||
| IR | PWM IR | ||
| RTC | support | ||
| Keys | Reset, Sleep/wake-up, power | ||
| Embedded GUI | Debian11 | Trash, File, Home | |
| Cross-compiler Environment | ubuntu-18.04 | ||
| Tools | Debug | SecureCRT, ADB | |
| Upgrade | RKDevTool | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Buildroot | Boot | U-Boot 2017.09 | u-boot.bin |
| Kernel | Version | Linux 5.10 | |
| Drivers | eMMC | eMMC5.1 | |
| LCD | 10.1-inch MIPI LCD, 1280 x 800 | ||
| Audio | Headphone out, MIC, Speaker | ||
| USB Host | 3x USB 2.0 Host | ||
| USB OTG | USB 2.0 OTG | ||
| Ethernet | 10/100/1000 Mbit/s Ethernet | ||
| Camera | 8x AHD Camera | ||
| 4G&GPS | EC20 | ||
| WiFi | 802.11 b/g/n | ||
| Bluetooth | Bluetooth4.2 | ||
| SD | Micro SD | ||
| Serial Port | Debug, TTL 2x UART, TTL |
||
| RS485 | support | ||
| ADC | support | ||
| M.2 | support | ||
| IR | PWM IR | ||
| RTC | support | ||
| Keys | Reset, Sleep/wake-up, power | ||
| Embedded GUI | QT | qfm, qplayer, qsetting, chromium browser, multivideoplayer, qcamera, Qt V4L2 test Utility | |
| Cross-compiler Environment | ubuntu-18.04 | ||
| Tools | Debug | SecureCRT, ADB | |
| Upgrade | RKDevTool | ||
| Datasheet |
|
|
|
|
| Tools |
|
|
| Expansion Module | Module Detail | Debian | Buildroot |
|---|---|---|---|
 4G |
Quectel EC20 Mini PCIe Multi-mode LTE Module | √ | √ |
| WiFi&Bluetooth |
BL-M8723DS1 module. 2.4G WiFi + Bluetooth 4.2 | √ | √ |
| Camera |
SW-MA1024HP model, 1-Megapixel | √ | √ |

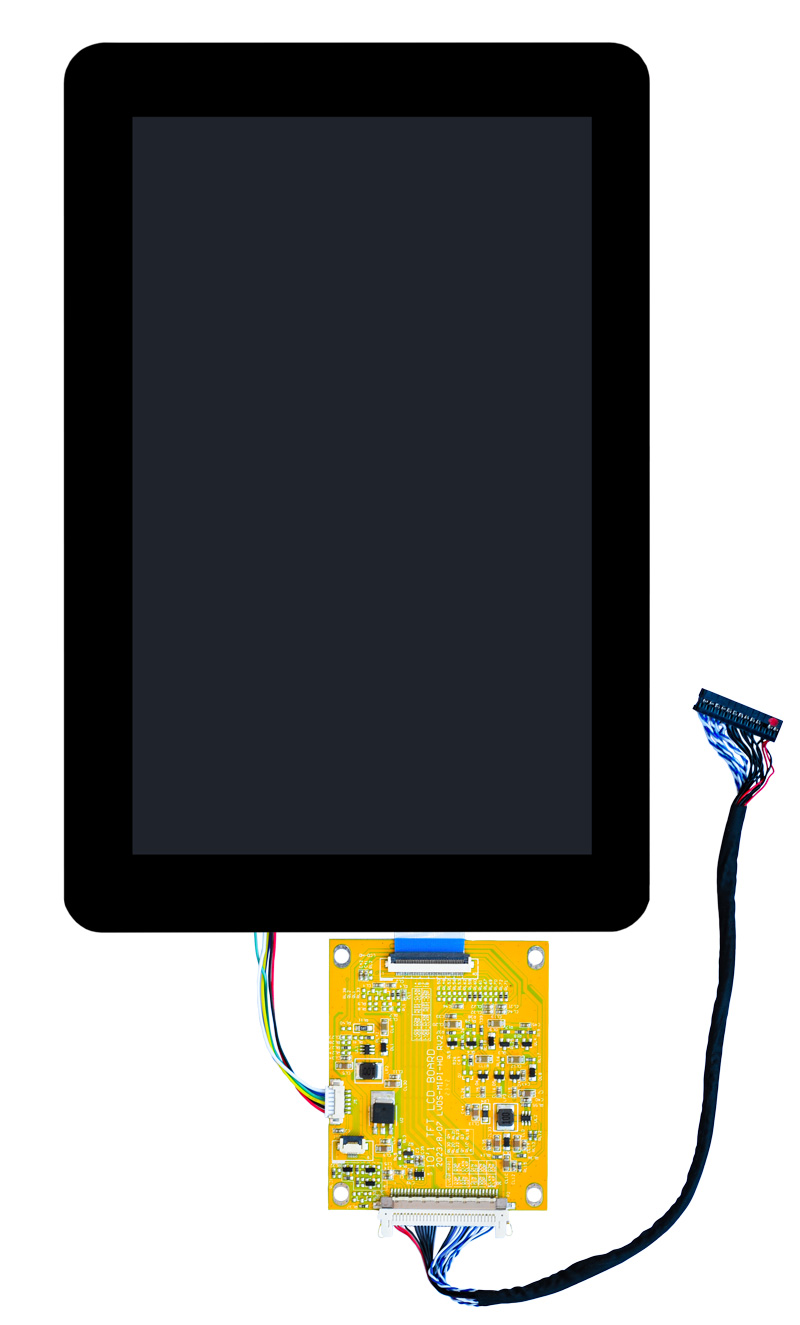

| 10.1-inch LCD |
1280 * 800 Pixels. MIPI interface | √ | √ |
If you order the SBC or any question, please feel free to contact us at market@armdesigner.com
