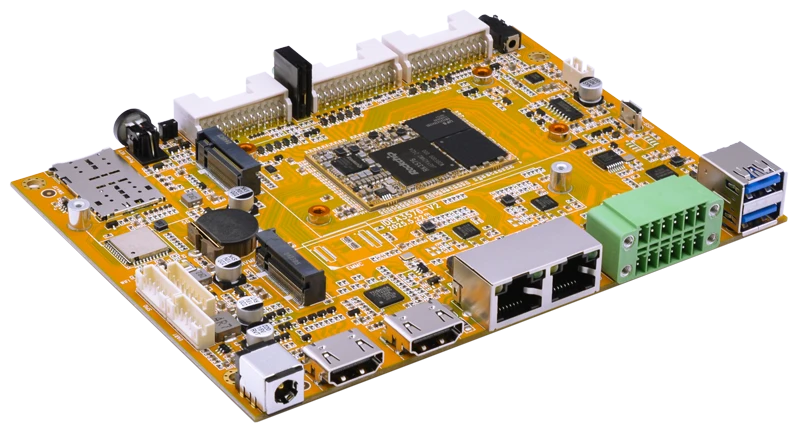

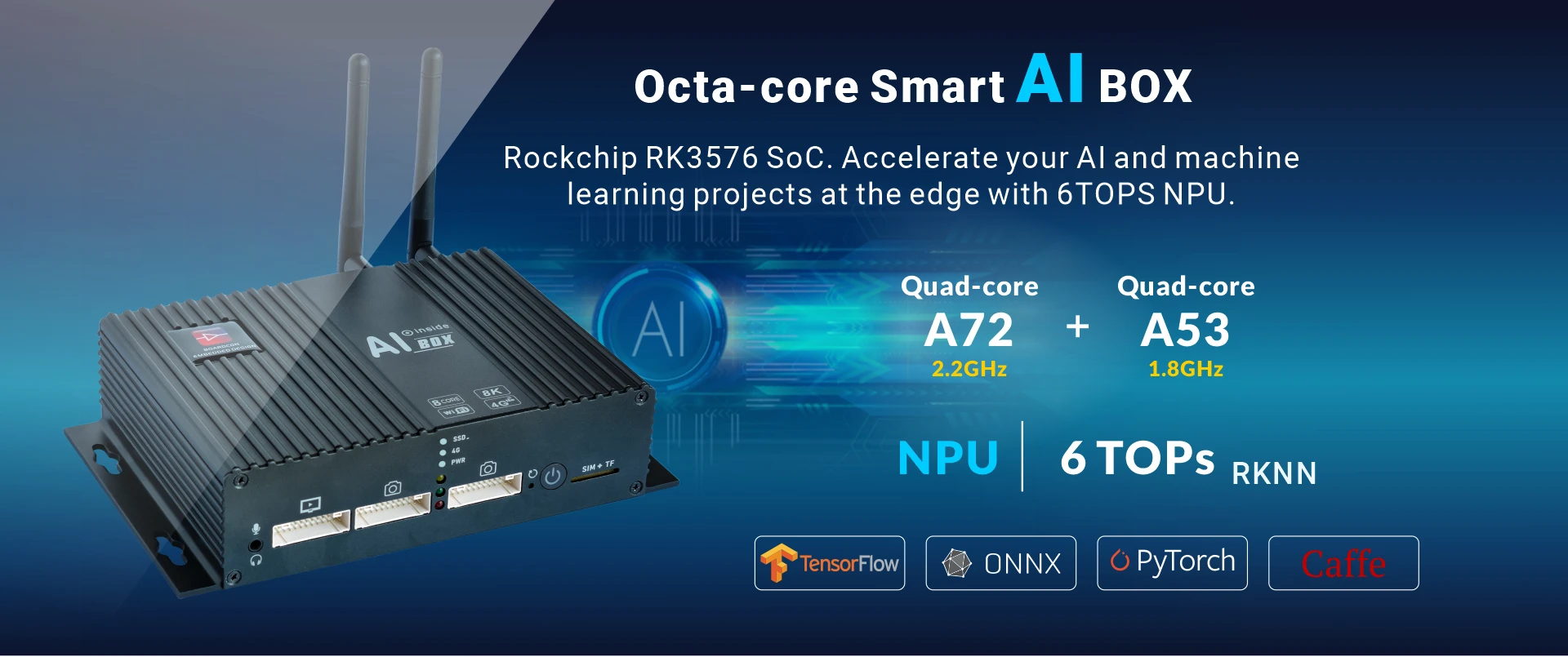

The Idea3576 is a powerful single-board computer (SBC) built around Rockchip’s RK3576 processor, designed for advanced edge computing, AI-driven applications, and multimedia-intensive tasks. Combining a hybrid octa-core CPU (4x Cortex-A72 @ 2.2GHz + 4x Cortex-A53 @ 1.8GHz) with a 6 TOPS NPU, it delivers exceptional processing power for machine learning, computer vision, and automation workflows.

Key Features:
• AI & Graphics: 6 TOPS neural processing unit (NPU) and ARM Mali-G52 GPU for accelerated AI inference and OpenGL/Vulkan graphics rendering.
• 4K Multimedia: Advanced VPU supports 4K@120fps AV1/H.265/VP9 decoding and 4K@60fps H.264/H.265 encoding, ideal for digital signage and video analytics.

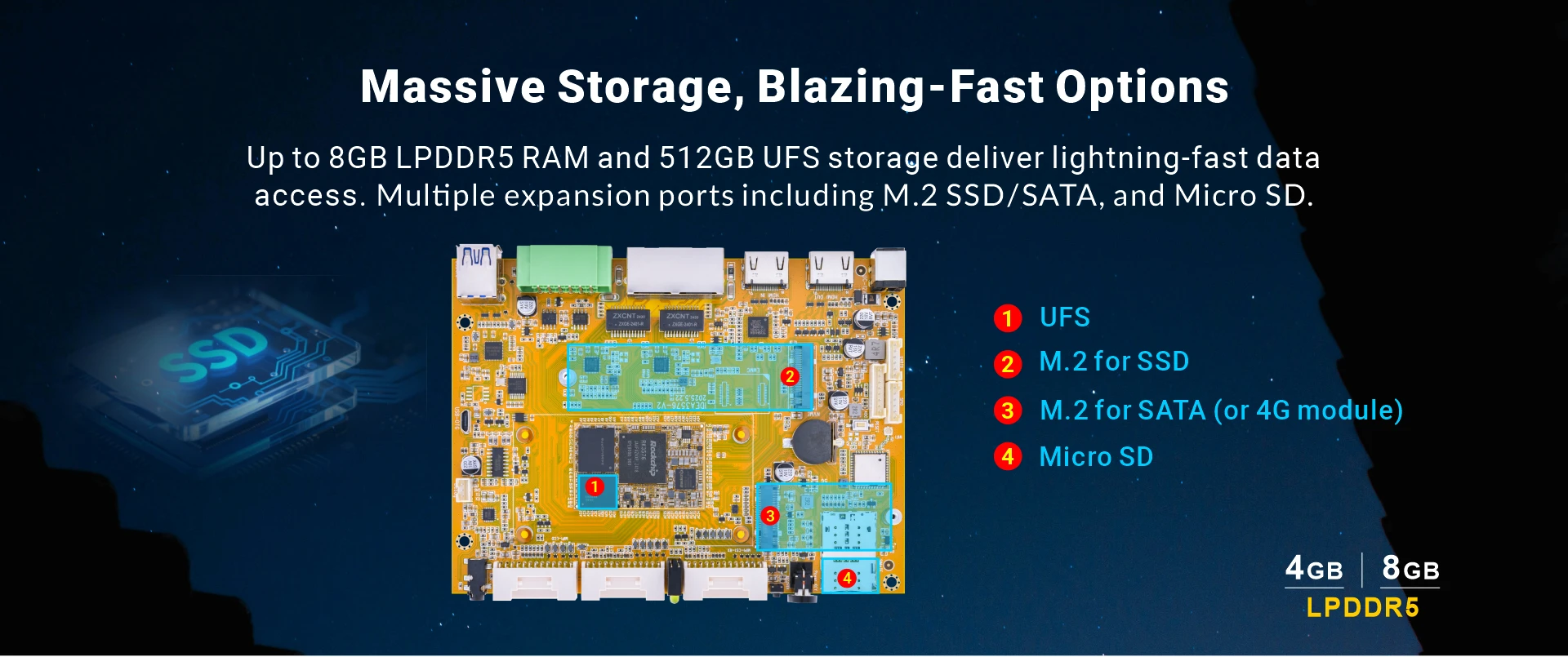

• Expandable Memory: Configurable up to 8GB LPDDR5 RAM and 512GB UFS storage, with NVMe SSD support for high-speed data access.

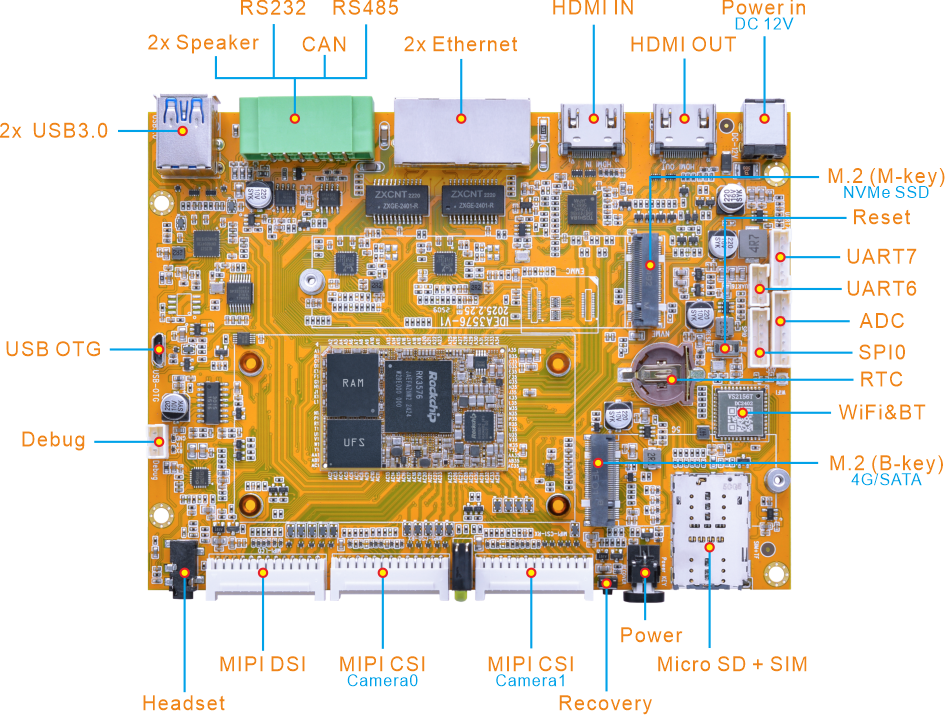

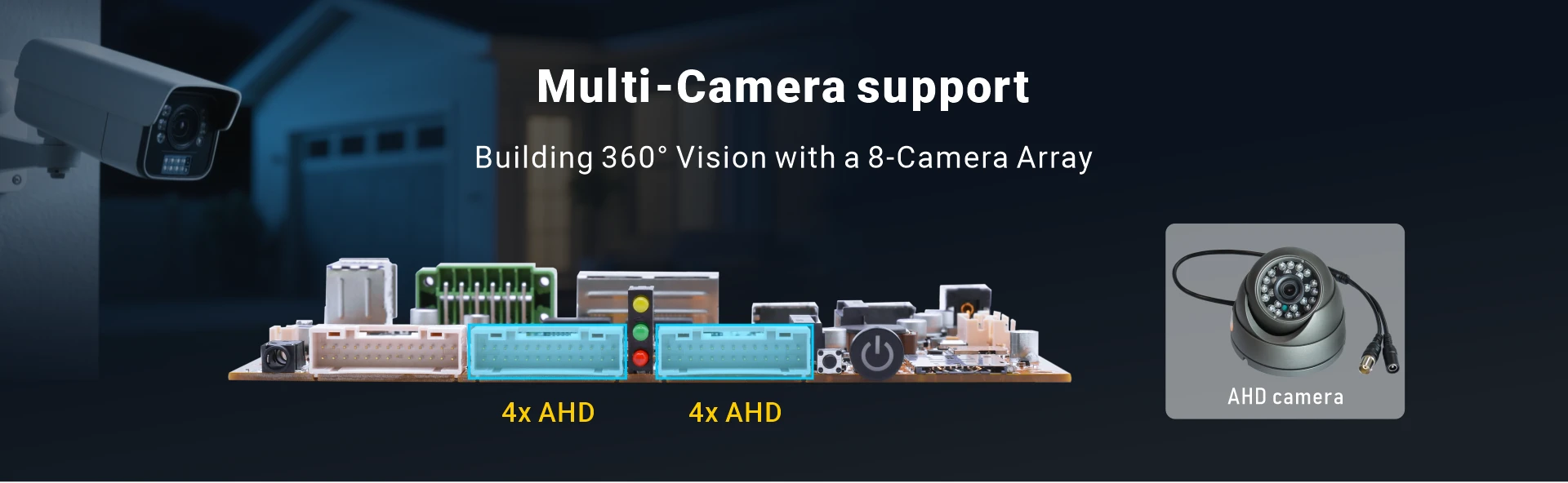

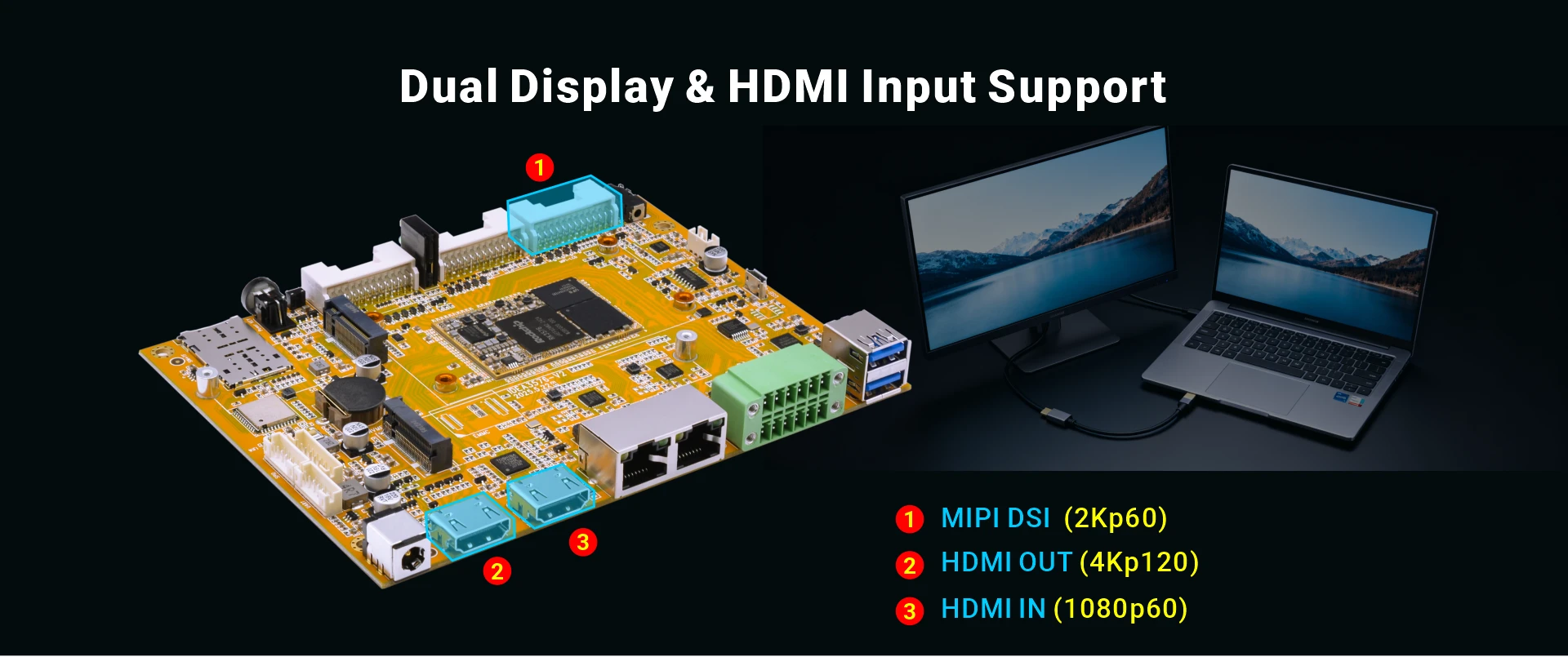

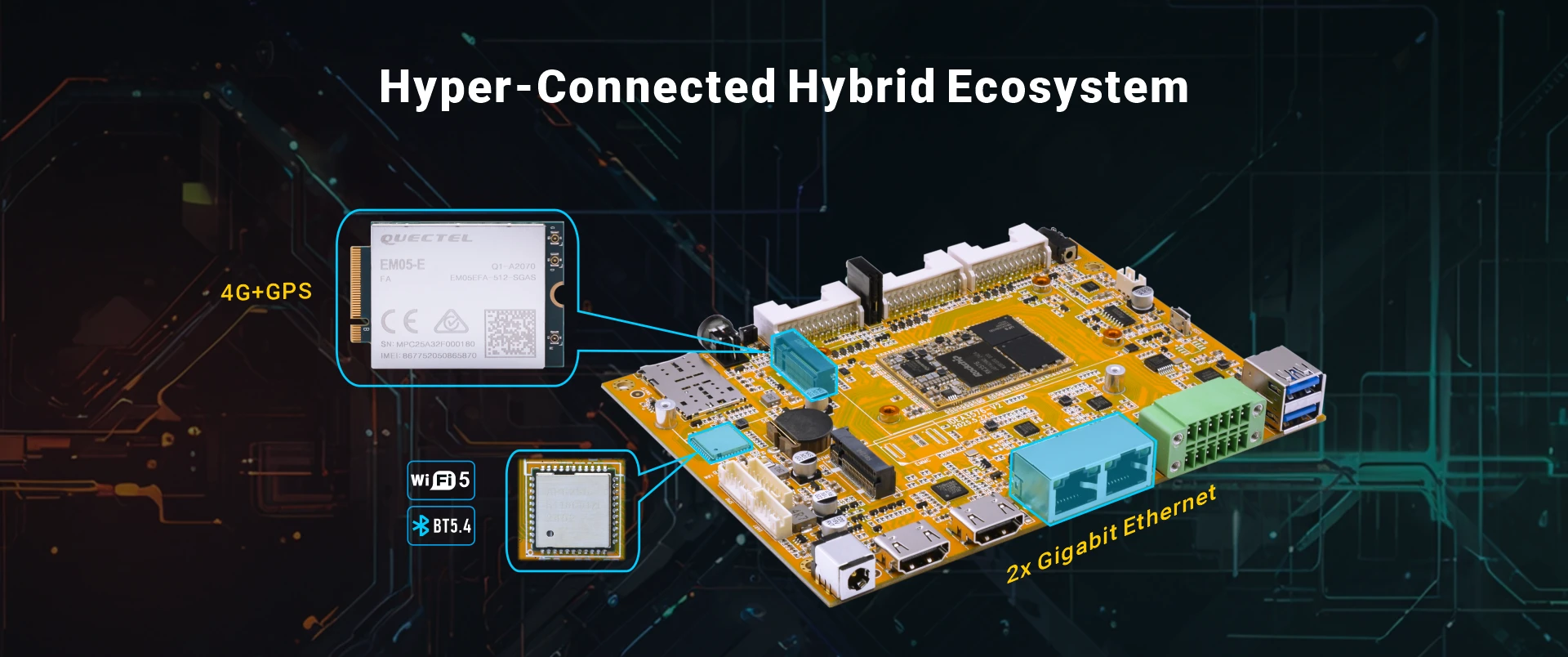

• Rich Connectivity: Dual Ethernet, 4G module, Wi-Fi 5, Bluetooth 5.2, dual MIPI-CSI cameras, HDMI IN/OUT, and MIPI-DSI for displays.
• Industrial-Grade I/O: RS485, CAN bus, 5x ADC, SPI, UART, and USB 3.0 ports for seamless integration into automation, robotics, and IoT systems.

Compact & Flexible:
Measuring 155 x 115mm, the Idea3576 balances performance and space efficiency. Preloaded with Debian or Buildroot, it supports rapid deployment across diverse scenarios, including smart retail, industrial control, AI vision systems, and smart home hubs.

Ideal For: Edge AI, embedded vision, 4K media gateways, and multi-interface industrial applications demanding reliability and scalability.

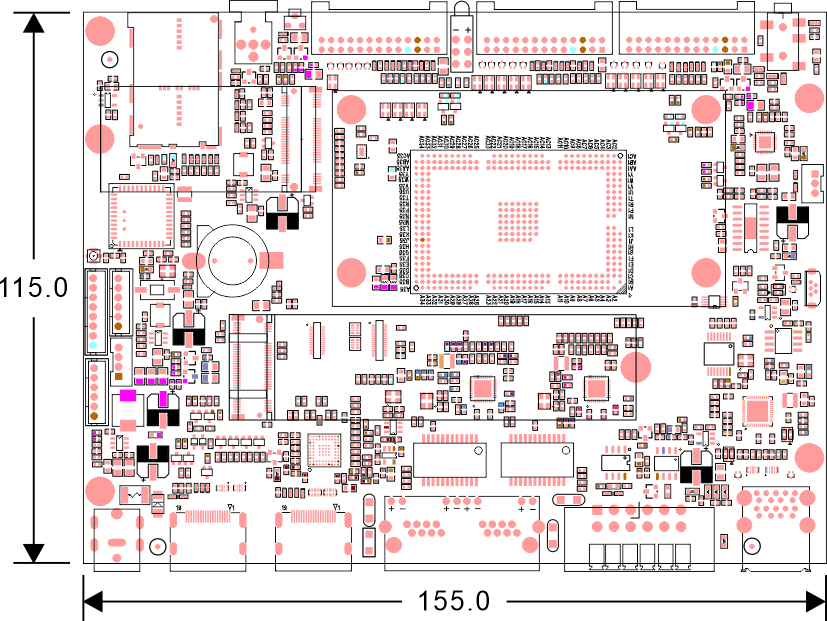

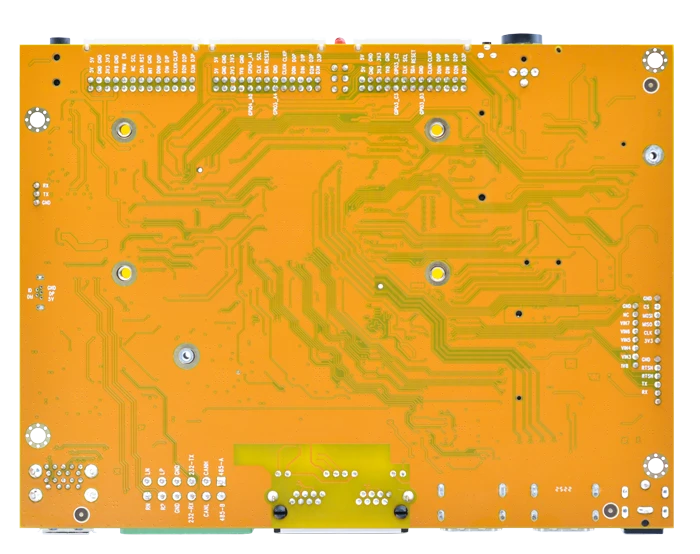

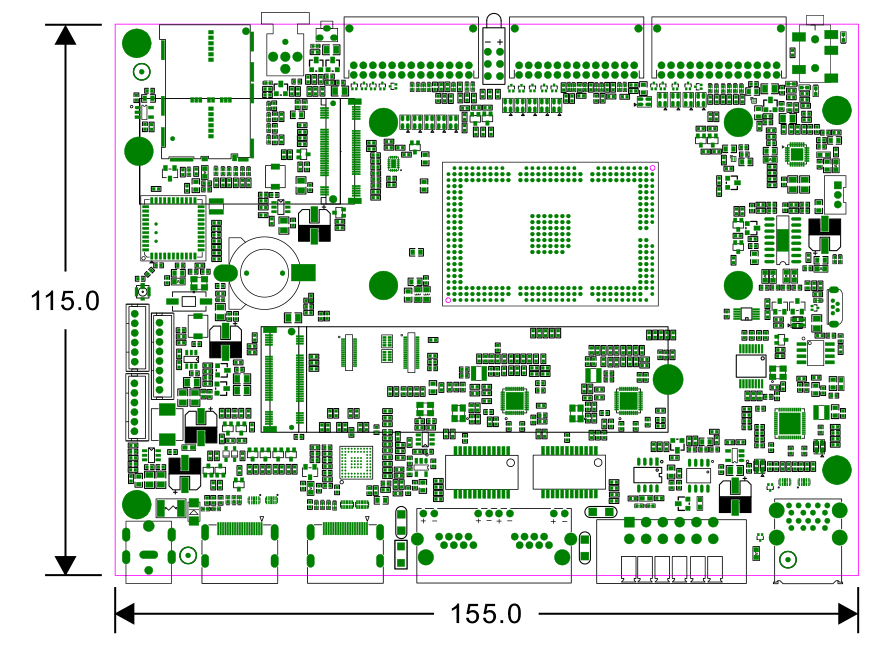

 PCB Dimension

If you order the SBC or any question, please feel free to contact us at market@armdesigner.com
