Idea3588S

* Processor: Rockchip RK3588S octa-core processor, 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
* NPU: 6 TOPS
* RAM: 8GB
* Storage: 32GB

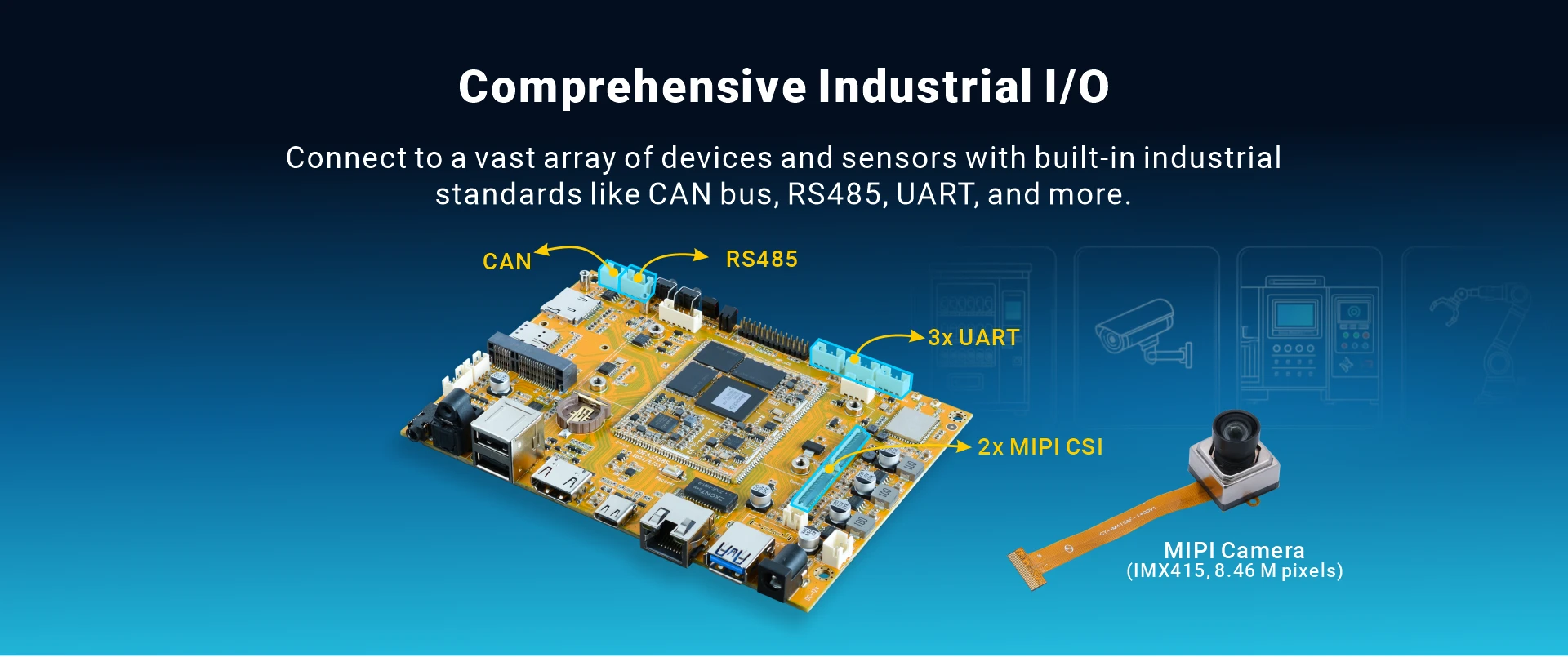

* Interfaces: 3x UART, 1x Debug, USB3.0 Host, 3x USB2.0 Host, Type-C, 2x MIPI CSI, MIPI DSI, HDMI, PCIe, SD, CAN, RS485, Audio I/O, etc.
* Operating system: Android 12, Debian 12, Buildroot, Ubuntu 20.04
* Dimensions: 145 x 105 mm
* Expansion Module: 4G model, WiFi, Camera, 10.1-inch LCD
html Idea3588S Manual

     RK3588S system-on-module

Idea3588S is a single board computer based on the Rockchip RK3588S octa-core processor with a 6 TOPS NPU and specially designed for 8K TV box or recorder, VI devices, intelligent interactive devices, personal computers and robots.

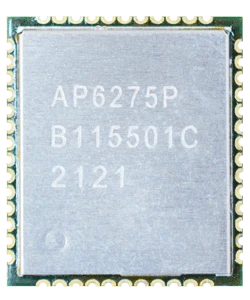

The Idea3588S SBC is equipped with 8GB RAM, 32GB eMMC storage, supports 8K video output with HDMI 2.1, and comes with a MIPI DSI, two MIPI CSI, four USB 3.2/2.0 ports, four UART (include a debug), and a 3.5mm audio jack, a microSD card socket for storage. Network connectivity includes a GbE port, WiFi 6 and Bluetooth 5.1, and optional 4G cellular module.

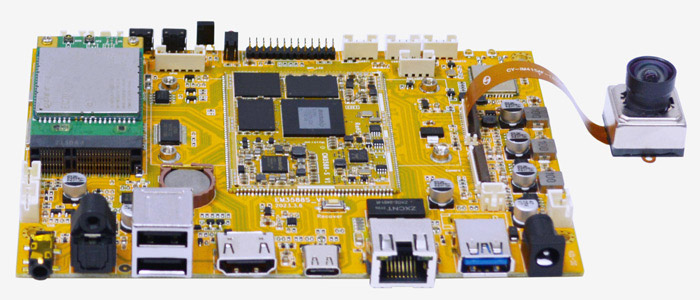

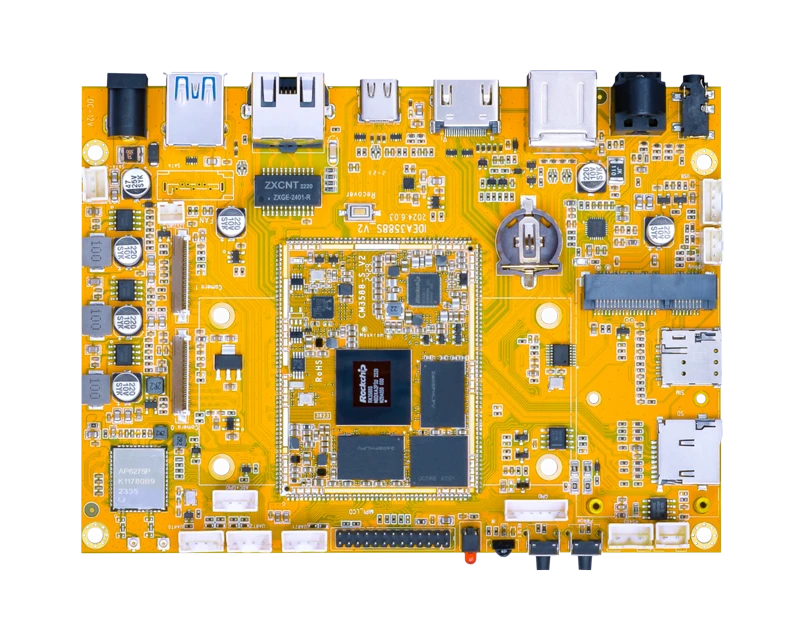

Rockchip RK3588S SBC

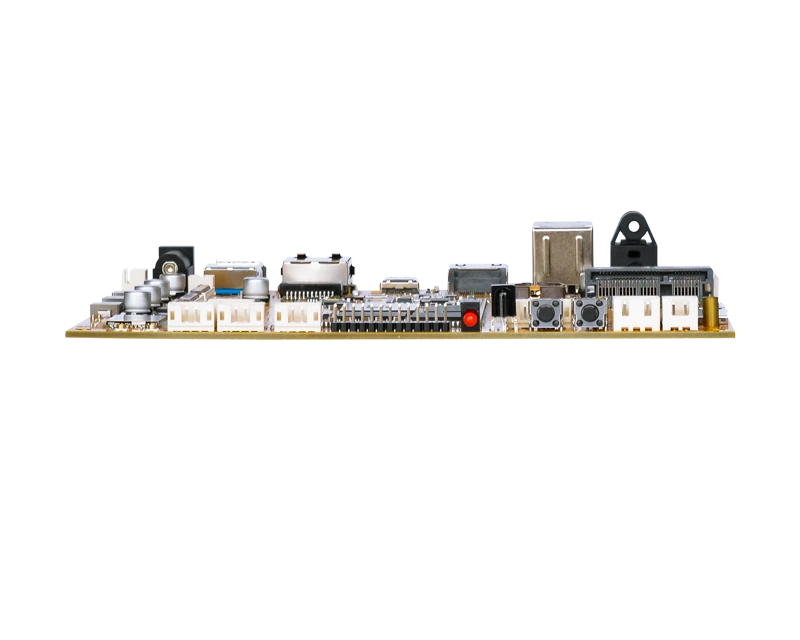

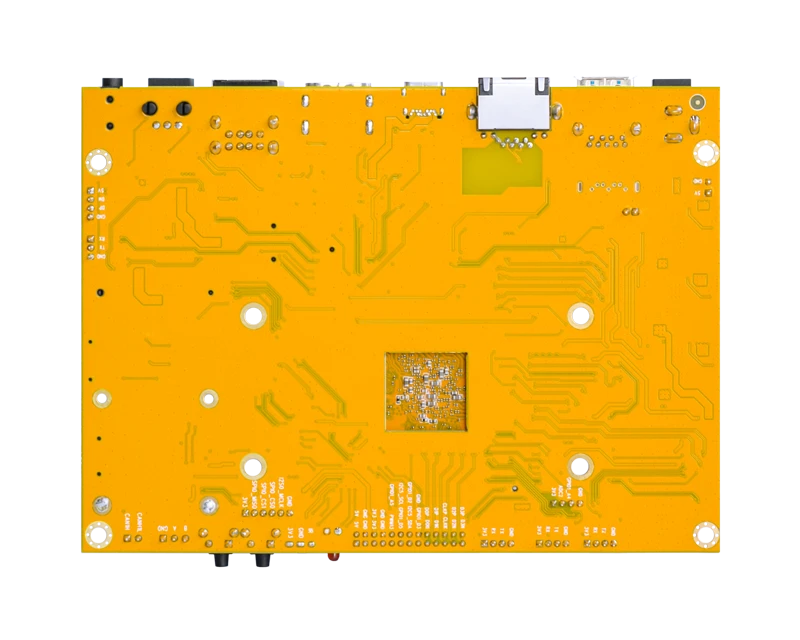

Idea3588S_rear

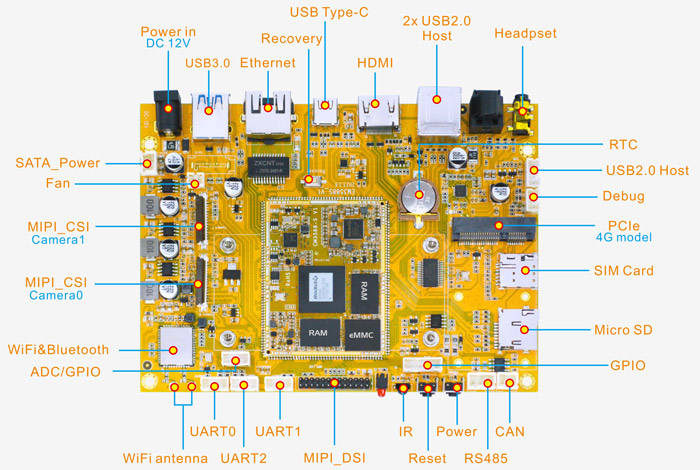

Idea3588S_IO
