Boardcon launches Allwinner T527 Octa-core SBC and SOM
Author: Boardcon Embedded Design Date: 2024-06-05Boardcon has just launched the IdeaT527 SBC and CMT527 SOM powered by Allwinner T527 and designed for Industrial automation and robotics, Smart displays, Surveillance systems, etc.

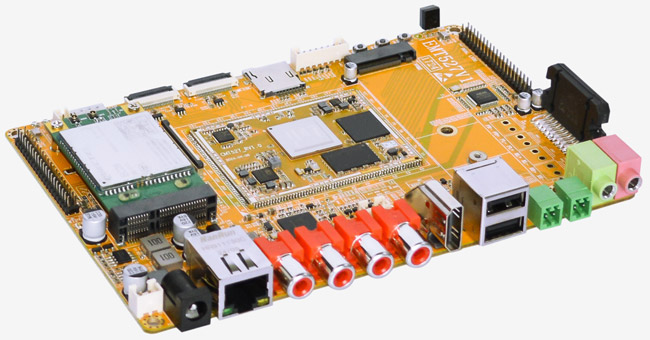

IdeaT527 SBC specification
Processor – Allwinner T527. Octa-core ARM Cortex-A55 processor with RISC-V core
NPU(optional)– 2 TOPS
GPU – ARM Mali-G57 MC1
Memory – 2GB/4GB
Storage
- 32GB/64GB/128GB eMMC
- MicroSD card slot
- M.2 socket
Display
- 2x Dual-LVDS (0&1, 2&3), 40-pin header
- 1x RGB (multiplexed with LVDS 2&3), 40-pin FPC connector
- 1x HDMI 2.0
Camera I/F – 2x MIPI CSI, 4x AHD
Audio
- 2x 3.5mm audio jack for line in and stereo output
- 2x MIC
- 4x Speaker
Connectivity
- 1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller
- 2.4G WiFi(802.11b/g/n) with Bluetooth 4.2
- Mini PCIe socket with Nano SIM card port to support 4G LTE Modem
USB – 2x USB2.0 Host
Serial Port
- 2x Serial port for debug
- 1x RS485
- 2x CAN BUS
Keys – Power, Reset, FEL, USB mode select
Other – RTC with battery connector, IR, ADC
In addition, Boardcon has released EMT113, a dual-core single board computer based on Allwinner T113-S3. More details can be found on the product page: IdeaT527 SBC, CMT527 SOM, EMT113 SBC, CMT113 SOM
