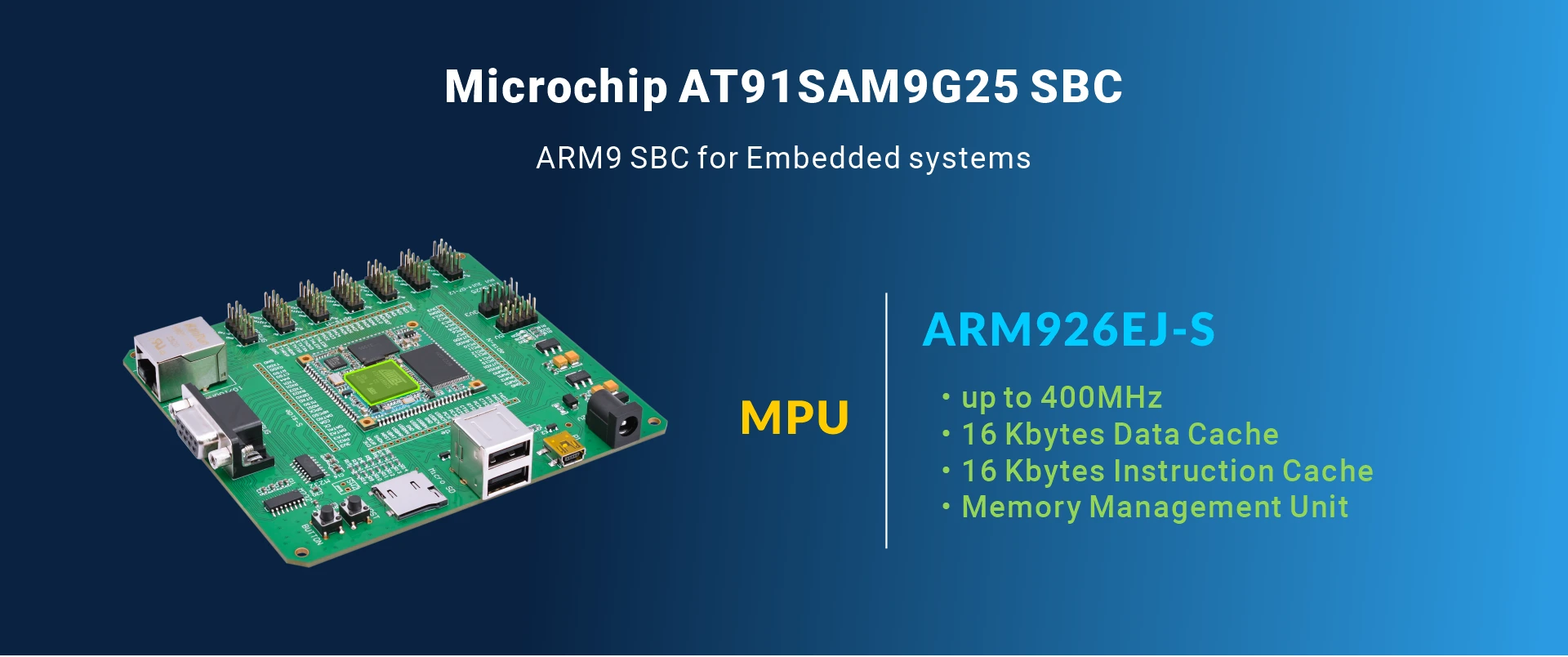

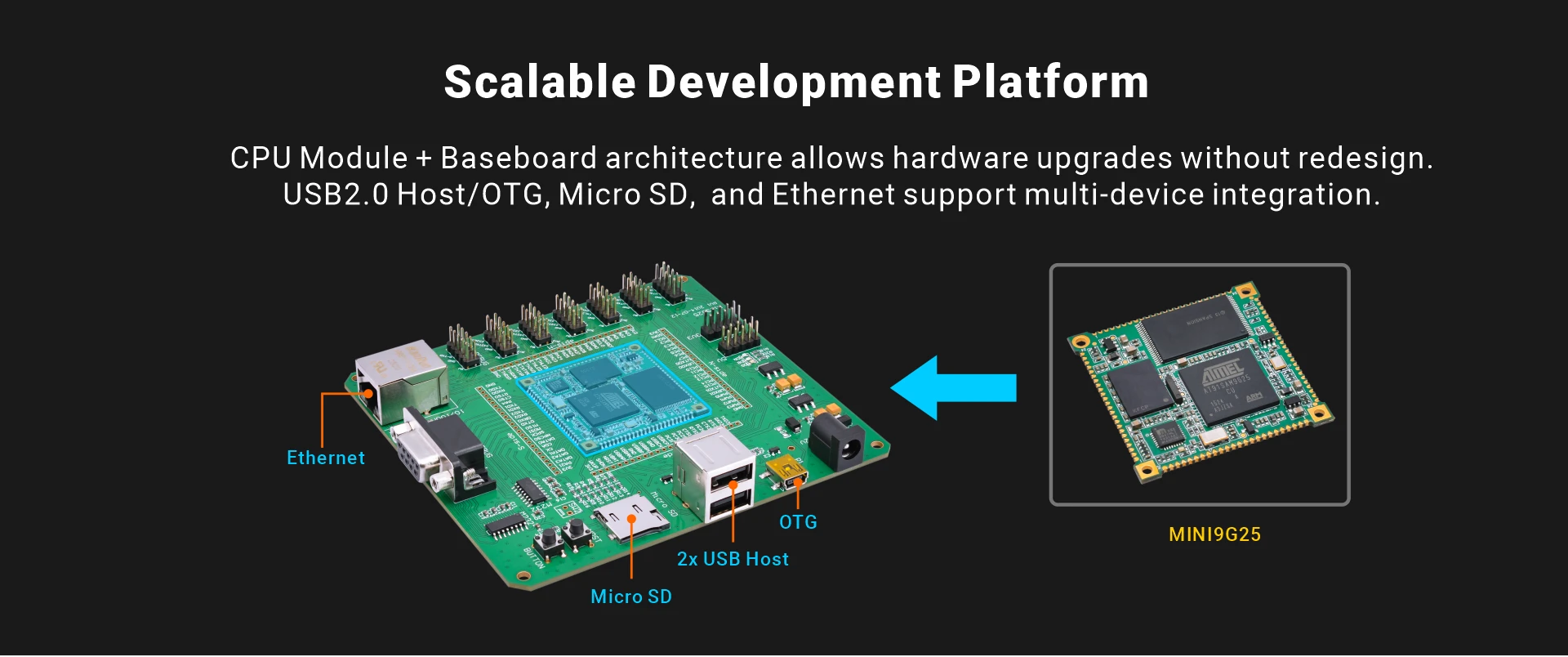

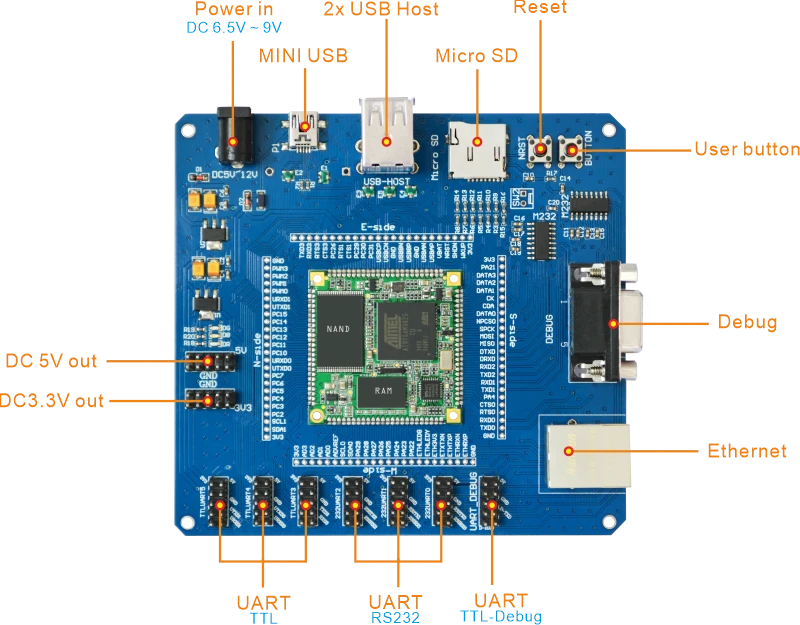

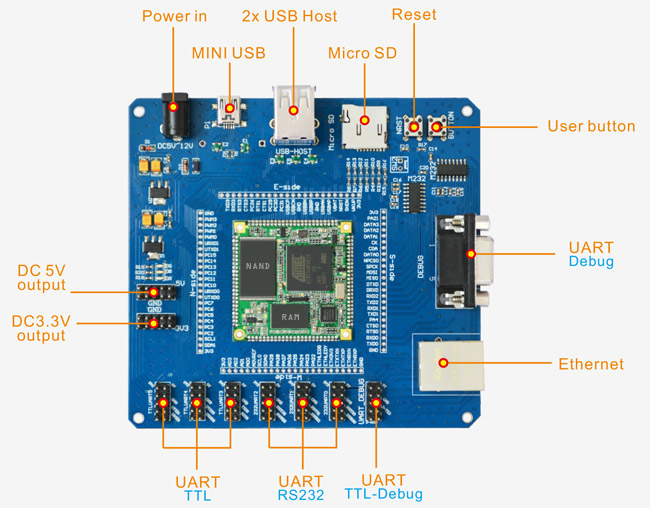

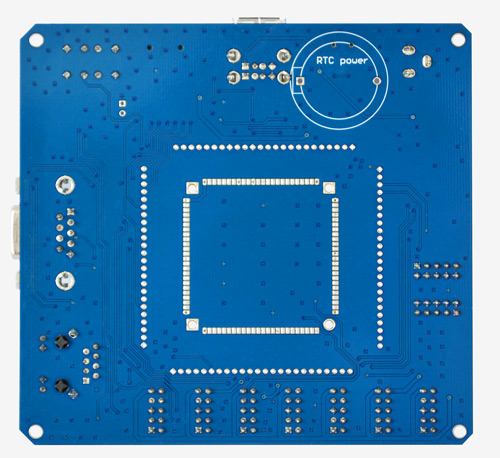

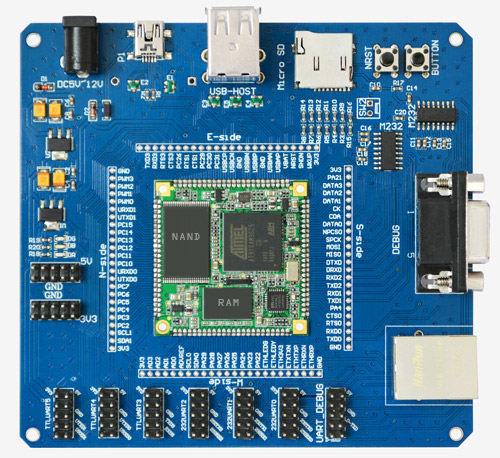

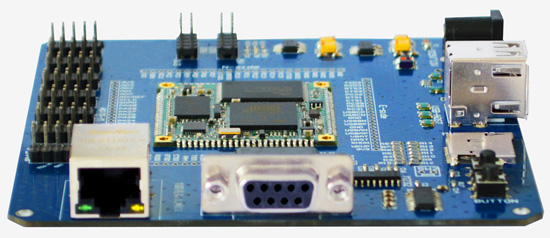

The KIT9G25 consists of the base board and processor card with an Atmel AT91SAM9G25 processor operating at 400 MHz with 128MB Nand Flash(optional), 128MB DDR2, 4MB Data Flash, and 64KB Serial EEPROM. It supports Linux(kernel version: Linux 3.6.9). The board features connectivity peripherals, including mini USB, 2x USB host, 10/100M Ethernet interface, UART ports(RS232/TTL), and micro SD card interface.
Measuring only 118mm x 109.9mm, low power and low-cost, making KIT9G25 an optimized solution for industrial applications.

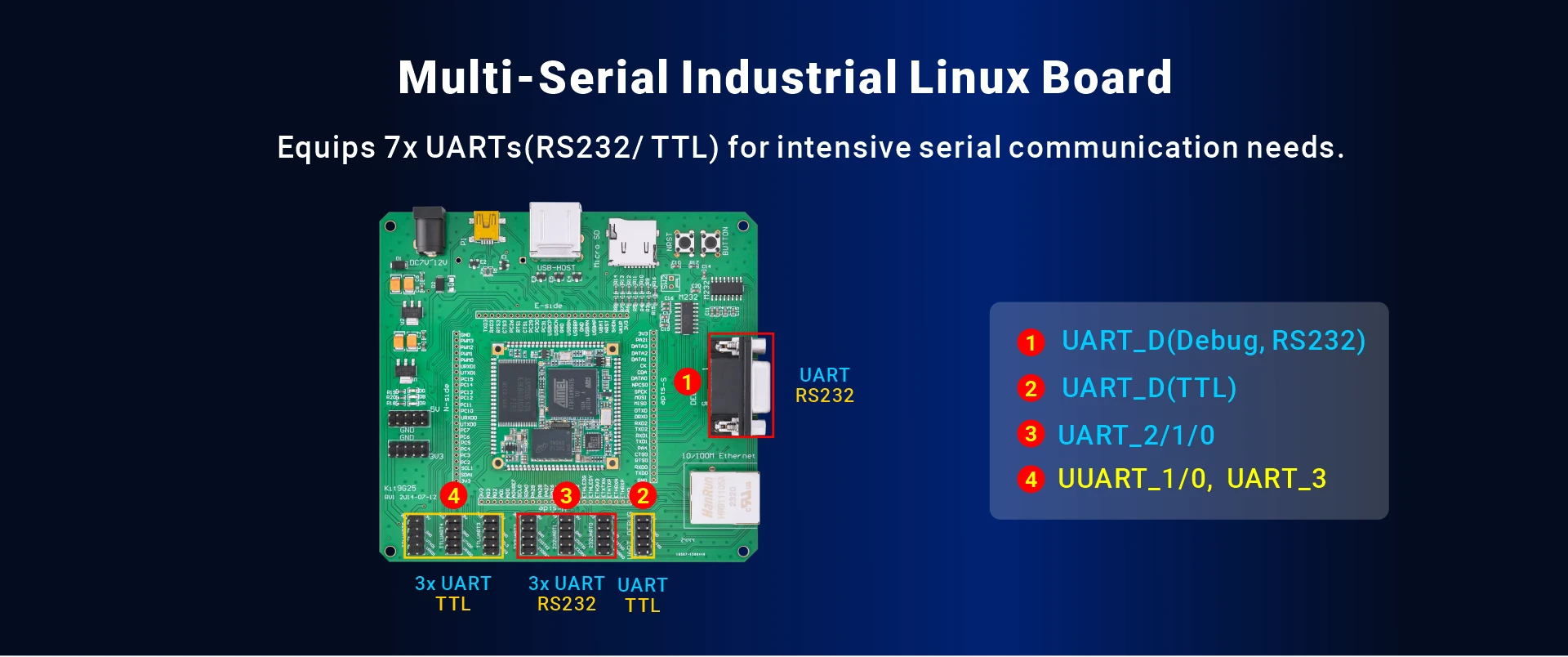

Specifications | |
---|---|
CPU | ARM9 @ 400Mhz on Atmel AT91SAM9G25-CU |
Memory | 128MB DDR2 |
Storage | 128MB Nand Flash (optional) |
Power in | DC 6.5V ~ 9V |
USB | 2x USB Host2.0, 1x mini USB2.0 |
UART | 3x UART(TTL), 2*5pin connector; 3x UART(RS232), 2*5pin connector;; 1x UART(TTL-Debug), 2*5pin connector; 1x UART(Debug), DB9 |
Ethernet | 100Mb Ethernet, RJ45 interface.KSZ8041NL controller |
SD card | 1x Micro SD card slot |
DC output | DC 3.3&5V output, 2*5pin connector |
Button | Reset, user button |
Dimension | Carrier board - 118 x 109.9mm; CPU board - 40mm x 40mm |

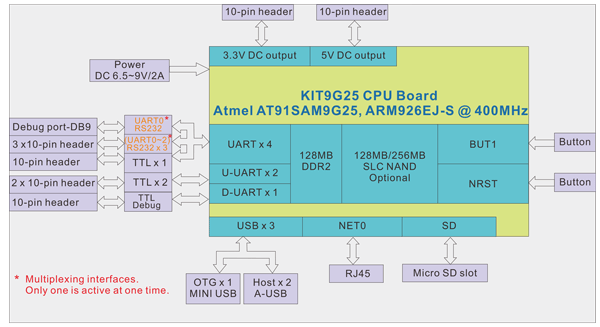

Block Diagram

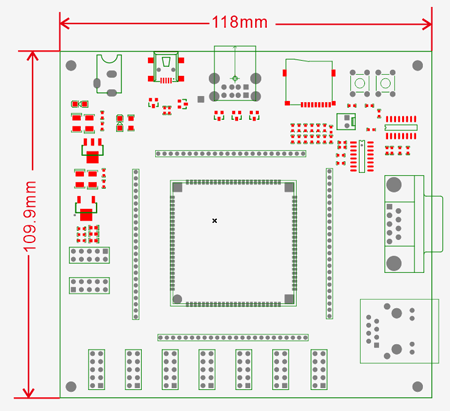

PCB Dimension
Software Feature
* Bootloader support (Support update the system via TF Card, USB Disk and Ethernet)
* Linux kernel version: Linux 3.6.9
* Buildroot rootfs provided (pre-install in the Nand Flash)
DHCP, SSH, Telnet, Test Demo Support
The Expand interface demo provide
Fully open source firmware, software environments and toolchains available from Atmel sites
* Debian system provided(Need boot from SD/TF card)
Thousands of Open Source applications available from the Debian repositories
Almost all programming language available
C, Python, Perl and PHP already installed on the factory default micro SD for in-board development
* All the Bootloader/Linux Kernel Source code and system images provide
Datasheet |
Atmel AT91SAM9G25 datasheet (3.45MB) |
KSZ8041NL datasheet.pdf (672KB) |
Reference Manual |
MINI9G25 Hardware Guide (1.67MB) |
MINI9G25 Pin Definition (319KB) |
Tools |
DNW.zip (23KB) |
SecureCRT (6.94MB) |
If you order the kit or any question, please feel free to contact us at market@armdesigner.com
