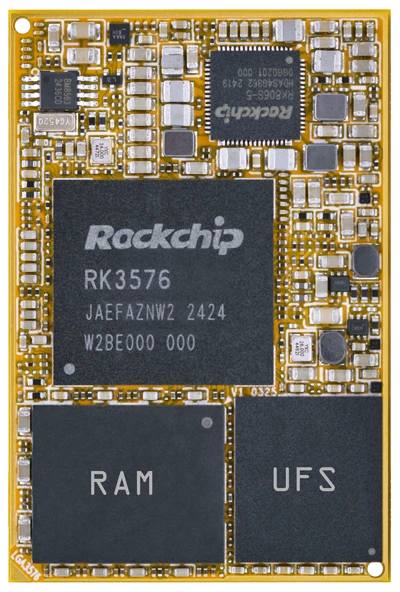

The LGA3576 is a cutting-edge embedded system-on-module designed around Rockchip’s RK3576 processor, combining robust computing power with AI acceleration and multimedia excellence. With a hybrid CPU architecture (4x Cortex-A72 @ 2.2GHz + 4x Cortex-A53 @ 1.8GHz), it ensures seamless multitasking for demanding applications while maintaining energy efficiency.

AI & Multimedia Capabilities
Equipped with a dedicated 6 TOPS NPU, the LGA3576 excels in real-time AI inference for edge devices, from object detection to voice recognition. Its ARM Mali-G52 GPU and advanced VPU support 8K@30fps or 4K@120fps video decoding (H.265/AV1/VP9) and 4K@60fps encoding, making it ideal for 4K surveillance, digital signage, and AV processing systems.

High-Speed Memory & Storage
The SOM integrates 4GB LPDDR5 RAM (up to 8GB) and 32GB UFS storage (up to 512GB), ensuring rapid data access and reliable operation in industrial environments.

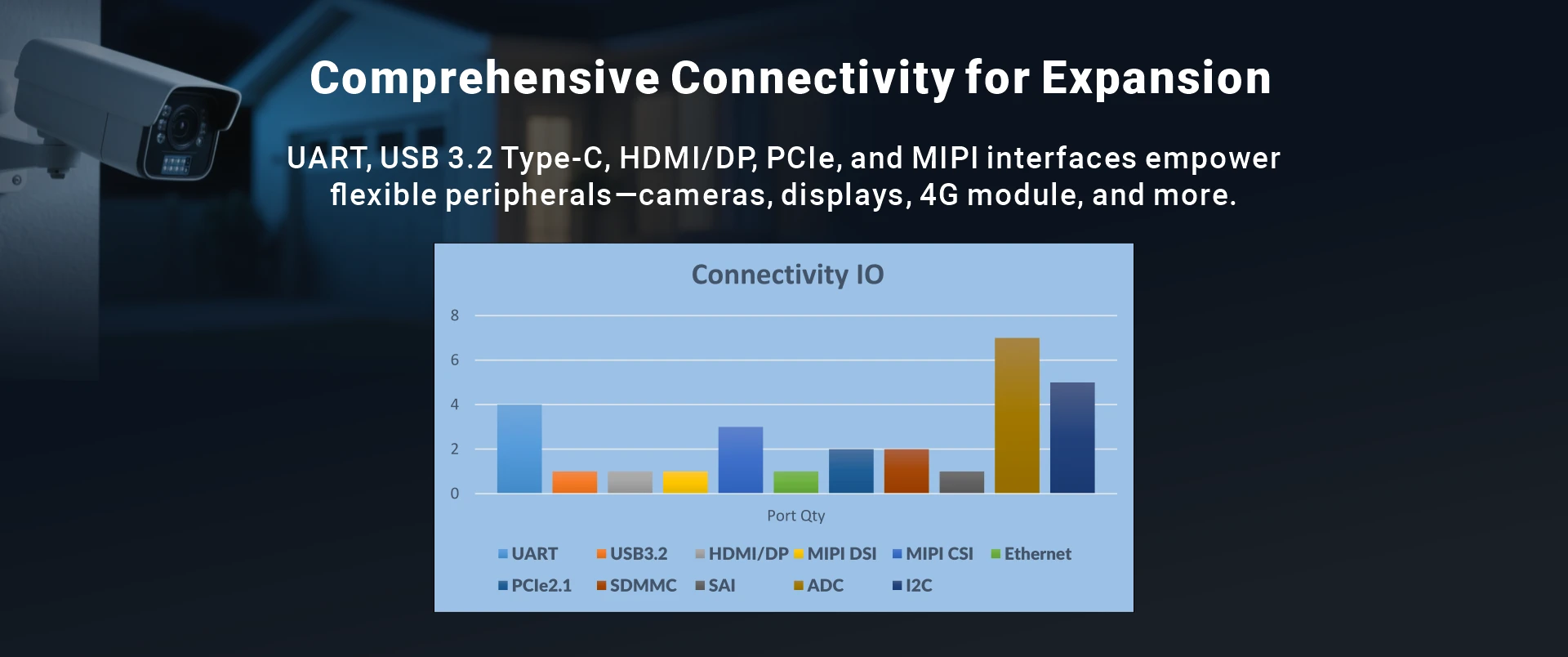

Rich Connectivity & Expandability
With a comprehensive I/O suite including 4x UART, USB 3.2 Type-C, HDMI/DP, dual PCIe, MIPI CSI/DSI, and GPIO, the LGA3576 supports flexible expansions for cameras, displays, network modules, and peripherals. Its dual SDMMC and GMAC interfaces further enhance storage and networking options.

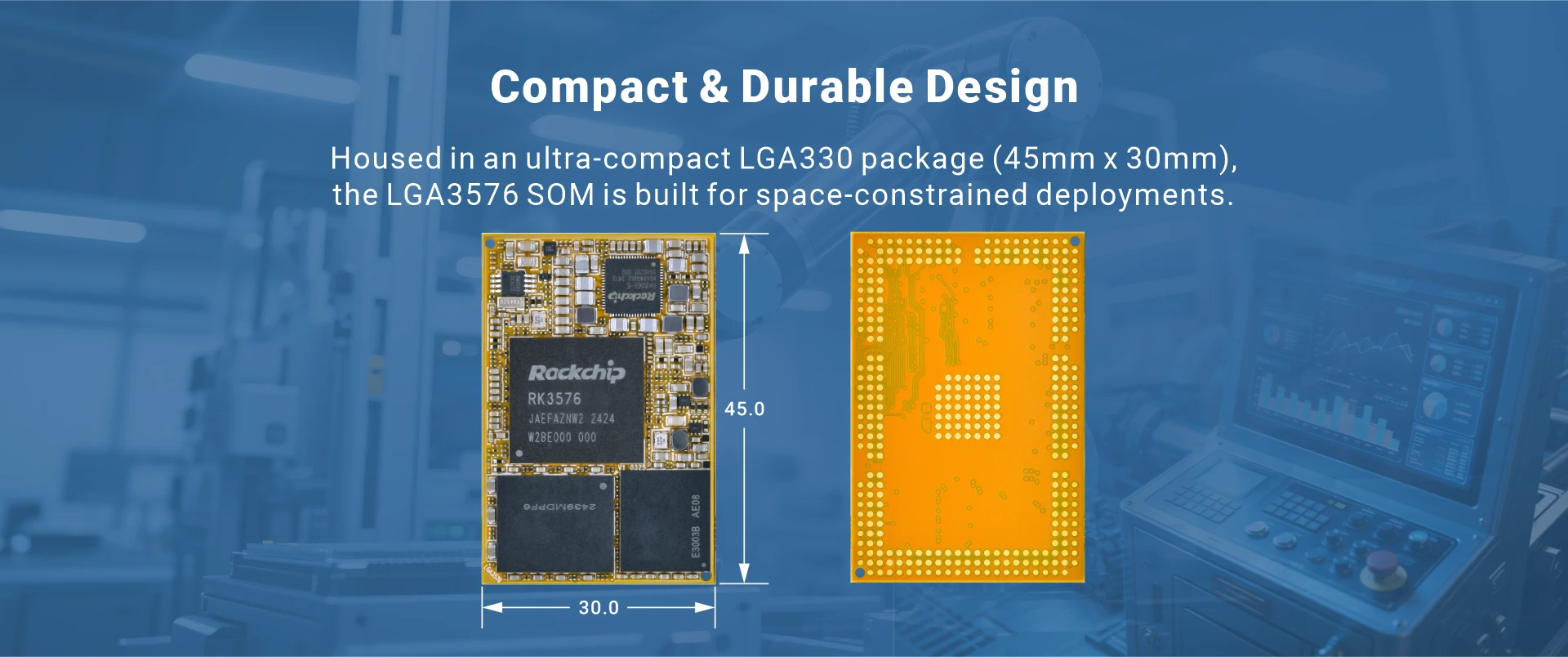

Compact & Durable Design
Housed in an ultra-compact LGA330 package (45mm x 30mm), the module is built for space-constrained deployments. The industrial-grade design ensures stable operation across extended temperature ranges.

OS Support & Applications
Pre-installed with Debian 12 or Buildroot, the LGA3576 accelerates development for:

• 4K/8K video surveillance and analytics
• AIoT edge devices (smart retail, robotics)
• Interactive kiosks and industrial PCs
• Portable computing and automation systems

 PCB Dimension

 Pin Definition

<
