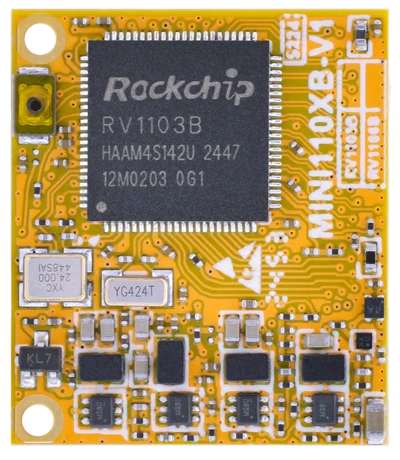

The MINI1103B system-on-module (SoM) is an ultra-compact embedded solution built around the Rockchip RV1103B processor, measuring just 22 mm x 19 mm and weighing a mere 2.4 grams. The RV1103B integrates a single-core ARM Cortex-A7 CPU with NEON/FPU support and a dedicated 0.5 TOPS NPU for lightweight AI inference, compatible with TensorFlow, PyTorch, Caffe, and other frameworks.

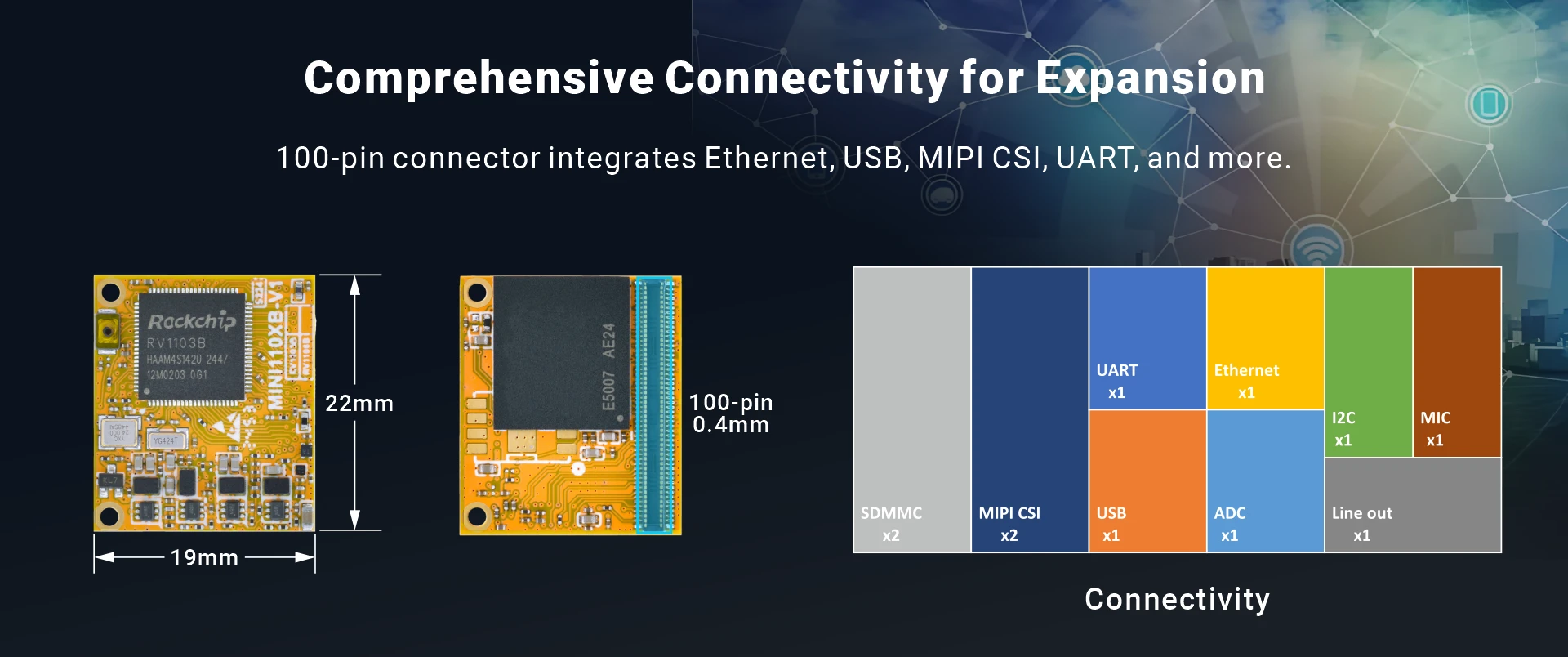

Designed for smart access control systems and IP cameras (IPC), the MINI1103B includes a 4-lane MIPI-CSI (supporting 2-lane dual-camera input) and a hardware-accelerated 8MP ISP with advanced imaging algorithms (HDR, 3DNR, 3A, dehaze). The module enables multi-stream H.265/H.264 encoding for simultaneous local high-resolution storage and cloud-optimized video transmission. With integrated DDR2/DDR3L memory, RTC, audio codec, Ethernet, and rich I/O, it delivers a low-power, all-in-one platform for edge AI vision and IoT security applications.

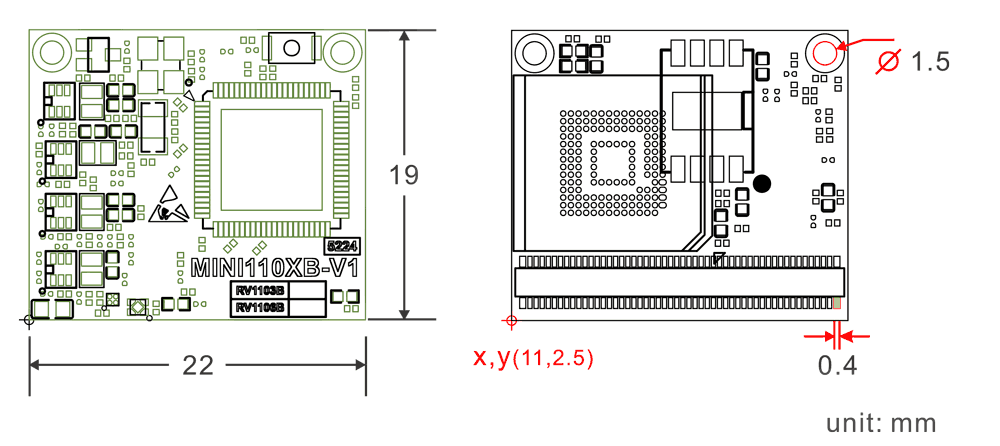

 PCB Dimension

 Pin Definition

 Linux 5.10.209

If you order the SOM or any question, please feel free to contact us at market@armdesigner.com
