* Processor: Samsung S5P4418, Cortex-A9 Quad-Core, 1.4GHz
* RAM: 512MB/1GB DDR3
* Storage: 4/8/16/32GB eMMC
* Pin out: 5x UART, USB2.0 Host, USB2.0 OTG, HDMI, RGB, LVDS/MIPI DSI, CIF, CVBS, GbE, 2x SDMMC, I2S, ADC, PWM, I2C, SPI, JTAG, IR, SPDIF, GPIO, etc.
* Operating system: Android4.4.2
* Board size: 70mm x 58mm
* Connectors: 1.27mm pitch, 2x50pins Female Pin Header

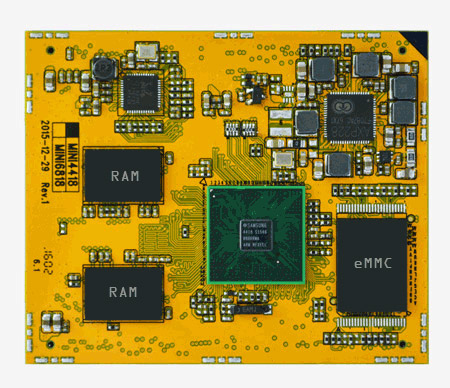

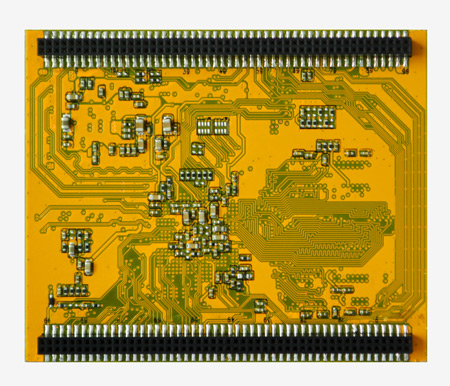

The MINI4418 is a 70 x 58mm Compact computer-on-module Boardcon released that runs Android on EM3288 Development board. The module has the same size, pin expansion and power as the MINI3288.
The MINI4418 clocks its four Cortex-A9 cores to 1.4GHz and ships with 1GB of DDR3 RAM and 4GB eMMC flash. The module has an RTL8211E GbE (Gigabit Ethernet) controller. It can enable carrier boards with three USB 2.0 host ports, 1x USB2.0 OTG port, a single COM port, and LCD (TFT/LVDS/MIPI) interfaces. Other features include I2S, CIF, HDMI, GPIO, ADC, PWM, I2C, Audio, SPI and HSMMC/SD.
With the customized carrier board, MINI4418 can provide cost - effective of embedded solutions for the automotive, medical, telecommunications, consumer electronics, and other industries.
Features Exynos 4412 VS S5P4418 | ||
---|---|---|
Processor model | Exynos 4412 | S5P4418 |
Marketing time | 2012 | 2014 |
Process | 32 nm | 28 nm |
Speed | 1.4 GHz | 1.4 GHz |
CPU | ARM Cortex-A9 Quad-Core | ARM Cortex-A9 Quad-Core |
Arm core series | Cortex-A9 quad-core | Cortex-A9 quad-core |
Cache | I/D 32KB*4 L1 cache, 1MB L2 cache | I/D 32KB*4 L1 cache, 1MB L2 cache |
Memory | Dual-channel DDR3 | Single-channel DDR3 |
EMMC | 4GB(Default)/8GB/16GB EMMC | 4GB/8GB(Default)/16GB EMMC |
Multi-media decode | H.263, H.264, MPEG2, MPEG4, VC1 | H.263, H.264, MPEG1, MPEG2, MPEG4, VC1, VP8, Theora, AVS, RV8/9/10, MJPEG |
Multi-media codec | H.263, H.264, MPEG4 | H.263, H.264, MPEG4, MJPEG |
UART | 4 | 6 |
Display interface | RGB, MIPI | RGB, MIPI, LVDS |
Max resolution | 1920*1200 | 2048*1280 |
GPIO voltage | 1.8V | 3.3V |
I/O | Some I/O built-in interrupt | All I/O built-in interrupt |
Ethernet | Through bus address extension | Integrate gigabit Ethernet controller. Less hardware cost |
ADC | 4 channel 12 bit 0~1.8V | 8 channel 12 bit 0~1.8V |
USB Interface | 1 channel HSIC,1 channel OTG | 1 channel HSIC, 1 channel HSIC, 1 channel OTG |
Chip unique ID | No | 128BIT unique ID |
GPS | Support | Not Support |
C2C Interface | Support(For cell phones) | Not Support |
Slim bus | Support | Not Support |
ISP | Support | Not Support |
Specifications | |
---|---|
CPU | Samsung S5P4418, Cortex-A9 Quad-Core, 1.4GHz |
Memory | 512MB/1GB DDR3 |
Storage | 4/8/16/32GB eMMC |
Supply Voltage | DC 5V |
Pin out | 5x UART, USB2.0 Host, USB2.0 OTG, HDMI, RGB, LVDS/MIPI DSI, CIF, CVBS, GbE, 2x SDMMC, 2x I2S, 3x ADC IN, 2x PWM, 3x I2C, 2x SPI, JTAG, IR, SPDIF TX/RX, GPIO, etc. |
PCB Layer | 8 |
Dimensions | 70 x 58 mm |
Weight | 21.1 gram |
Connectors | 2 x 100-pin, 1.27mm pitch |
Application | MID, multimedia advertising, intelligent control terminals, smart instrumentation, etc. |
Development Board | EM4418 |

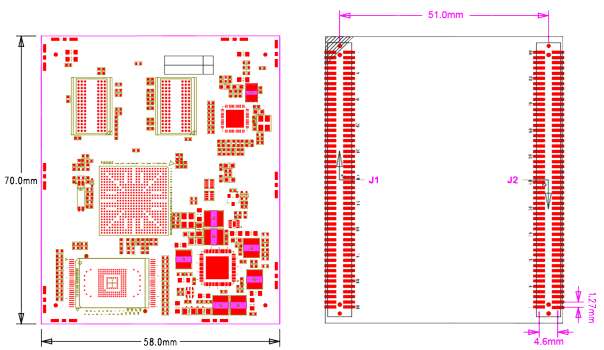

PCB Dimension
Pin Definition
Pin (J1) |
Signal | Pin (J1) |
Signal | Pin (J2) |
Signal | Pin (J2) |
Signal |
---|---|---|---|---|---|---|---|
1 | TX_C- | 51 | Y2P | 1 | DCIN | 51 | MCU_UART4_RX |
2 | TX_0- | 52 | Y1P | 2 | GND | 52 | MCU_UART4_TX |
3 | TX_C+ | 53 | Y3P | 3 | DCIN | 53 | GND |
4 | TX_0+ | 54 | GND | 4 | GND | 54 | NC |
5 | GND | 55 | Y3M | 5 | MCU_NRESETOUT | 55 | NC |
6 | GND | 56 | MCU_PWREN_SYS | 6 | MDI0+ | 56 | GPIOC26 |
7 | TX_1- | 57 | HSIC_STROBE | 7 | MDI1+ | 57 | MCU_UART2_RX |
8 | TX_2- | 58 | HSIC_DATA | 8 | MDI0- | 58 | MCU_UART2_TX |
9 | TX_1+ | 59 | GND | 9 | MDI1- | 59 | GPIOC0 |
10 | TX_2+ | 60 | CIF_D1 | 10 | PWM0 | 60 | GPIOC1 |
11 | HDMI_HPD | 61 | CIF_D0 | 11 | MDI2+ | 61 | GPIOC2 |
12 | HDMI_CEC | 62 | CIF_D3 | 12 | MDI3+ | 62 | GPIOB8 |
13 | MCU_SDA_0 | 63 | CIF_D2 | 13 | MDI2- | 63 | SDMMC_CLK |
14 | MCU_SCL_0 | 64 | CIF_D5 | 14 | MDI3- | 64 | GND |
15 | GND | 65 | CIF_D4 | 15 | GND | 65 | SDMMC_D0 |
16 | LCD_VSYNC | 66 | CIF_D7 | 16 | MCU_NRESETIN | 66 | SDMMC_CMD |
17 | LCD_HSYNC | 67 | CIF_D6 | 17 | MCU_SD1_CMD | 67 | SDMMC_D2 |
18 | LCD_CLK | 68 | GPIOB24 | 18 | MCU_SD1_D0 | 68 | SDMMC_D1 |
19 | LCD_DEN | 69 | GPIOB25 | 19 | MCU_SD1_D1 | 69 | SDMMC_DET |
20 | LCD_B0 | 70 | GPIOB26 | 20 | MCU_SD1_D2 | 70 | SDMMC_D3 |
21 | LCD_B1 | 71 | GPIOB27 | 21 | MCU_SD1_D3 | 71 | SPDIF_RX |
22 | LCD_B2 | 72 | CIF_HREF | 22 | MCU_SD1_CLK | 72 | MCU_I2S_MCLK1 |
23 | LCD_B3 | 73 | CIF_VSYNC | 23 | GPIOB31 | 73 | GND |
24 | LCD_B4 | 74 | CIF_CLKOUT | 24 | GPIOB30 | 74 | MCU_I2S_LRCK1 |
25 | LCD_B5 | 75 | CIF_CLKIN | 25 | GPIOC28 | 75 | MCU_I2S_SDIN |
26 | LCD_B6 | 76 | JTAG_TCLK | 26 | GPIOC8 | 76 | MCU_I2S_MCLK |
27 | LCD_B7 | 77 | JTAG_TDI | 27 | GPIOC7 | 77 | MCU_I2S_BCK |
28 | LCD_G0 | 78 | GND | 28 | GPIOC4 | 78 | MCU_I2S_LRCK |
29 | LCD_G1 | 79 | JTAG_TDO | 29 | MCU_SPICLK0 | 79 | MCU_I2S_LRCK |
30 | LCD_G2 | 80 | JTAG_NTRST | 30 | MCU_SPIFRM0 | 80 | MCU_I2S_SDOUT |
31 | LCD_G3 | 81 | JTAG_TMS | 31 | MCU_SPIRXD0 | 81 | MCU_I2S_SDIN1 |
32 | LCD_G4 | 82 | IR_INT | 32 | MCU_SPITXD0 | 82 | MCU_I2S_BCK1 |
33 | LCD_G5 | 83 | LED0_AD0 | 33 | MCU_OTG_PWRON | 83 | MCU_I2S_SDOUT1 |
34 | LCD_G6 | 84 | LED1_AD1 | 34 | GPIOE30 | 84 | SPDIF_TX |
35 | LCD_G7 | 85 | VCC_LAN | 35 | MCU_UART1_RX | 85 | MCU_SDA_2 |
36 | LCD_R0 | 86 | VBAT | 36 | MCU_UART1_TX | 86 | GND |
37 | LCD_R1 | 87 | VBAT | 37 | GND | 87 | GPIOB2 |
38 | LCD_R2 | 88 | ADC0_IN | 38 | MCU_UART1_CTS | 88 | MCU_SCL_2 |
39 | LCD_R3 | 89 | GPIOC17 | 39 | MCU_USB- | 89 | MCU_SDA_1 |
40 | LCD_R4 | 90 | MODE_SET | 40 | MCU_UART1_RTS | 90 | GPIOB4 |
41 | LCD_R5 | 91 | VCC3P3_SYS | 41 | MCU_USB+ | 91 | MCU_UART0_RX |
42 | LCD_R6 | 92 | ADC3_IN | 42 | MCU_USB_ID | 92 | MCU_SCL_1 |
43 | LCD_R7 | 93 | VCC1P8_SYS | 43 | MCU_USB_HOST_D- | 93 | MCU_UART3_RX |
44 | GND | 94 | VCC3P3 | 44 | DC5V_OTG | 94 | MCU_UART0_TX |
45 | CLKM | 95 | VCC1P8 | 45 | MCU_USB_HOST_D+ | 95 | GPIOE31 |
46 | Y0P | 96 | VCC_RTC | 46 | MCU_SPITXD2 | 96 | MCU_UART3_TX |
47 | CLKP | 97 | VCC3P3_SYS | 47 | MCU_SPIFRM2 | 97 | PWM2 |
48 | Y0M | 98 | GND | 48 | MCU_SPIRXD2 | 98 | GPIOB10_U |
49 | Y2M | 99 | VCC3P3_SYS | 49 | MCU_SPICLK2 | 99 | MCU_PWRKEY |
50 | Y1M | 100 | GND | 50 | GND | 100 | GPIOE12 |
OS | Item | Feature | Description |
---|---|---|---|
Android4.4 | Bootloader | version | Uboot-2014.07 |
Main functions | 1.Supporting iNand erase/write/read 2.Supporting USB download Image 3.Supporting print, set, save Environment Variables 4.Supporting bootm, bootargs setting |
||
Image update | Support updating image from SD card or USB,sd0boot.vhd | ||
Kernel and drivers | version | Linux 3.4.39 | |
Serial ports | Support | ||
RTC | Support | ||
LCD | 7/ 10.1 inch LCD including Touch Screen | ||
SD card | Support | ||
USB Host | Support | ||
USB OTG | Support | ||
LEDs | Support | ||
PWM | Support | ||
IIC | Support | ||
SPI | Support | ||
MFC | Support | ||
TVOUT | Support | ||
HDMI | Support | ||
JPEG | Support | ||
WIFI | Support | ||
WCDMA | Support | ||
GPS | Support | ||
Network | Support | ||
3G | Support | ||
SATA | Support | ||
VGA | Support | ||
Audio | Support | ||
File System | File System | ext4File System | |
Embedded GUI | Android4.4 | ||
Protocol | Network Protocol | TCP/IP protocol, Telnet, FTP Client/server, boa web server | |
Application | Alarm Clock | A clock that wakes sleeper at preset time | |
Browser | Used to view documents | ||
Gallery | Gallery | ||
Calculator | An expert at calculation | ||
Camera | Equipment for taking photographs | ||
Phone | Telephone set | ||
Electronic communication | |||
Maps | A diagrammatic representation of the earth's surface | ||
ES File Explorer | ES File Explorer | ||
Mediaplayer | private MediaPlayer mPlayer | ||
Music | Musical activity | ||
Cross compiler Environment | JDK1.6 | ||
Debug Tools | DNW, VMware7.0 |
Datasheet |
S5P4418 datasheet.rar (9.42MB) |
RTL8211e(g)-vb(vl)-cg datasheet (1.86MB) |
