4. Images Operation

4.1 Pack Image

Step 1, unzip AndroidTool.rar on Windows, and copy the firmware files in Android directory rockdev/Image to be packaged to AndroidTool_Release_v2.43/rockdev/Image

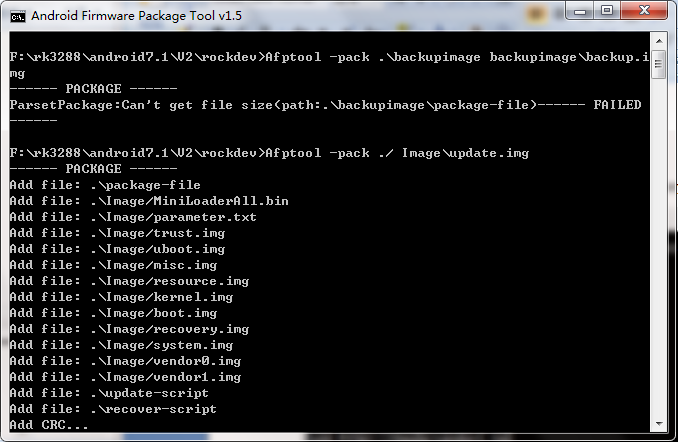

Step 2, enter AndroidTool_Release_v2.43/rockdev/, double-click to run mkupdate.bat

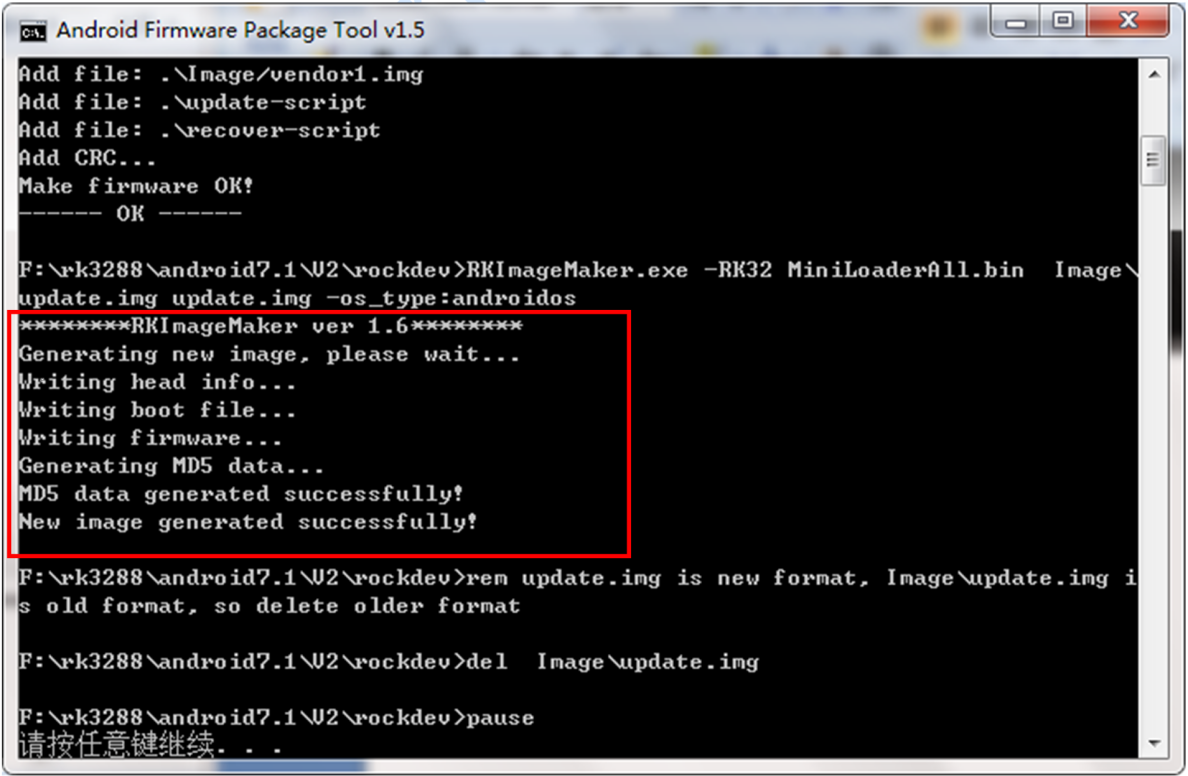

_images/mkupdate.png _images/pack_ok.png

update.img will be generated in rockdev/ directory.

4.2 Unzip Firmware

Step 1, copy update.img to the android source directory RKTools/linux/Linux_Pack_Firmware/rockdev/

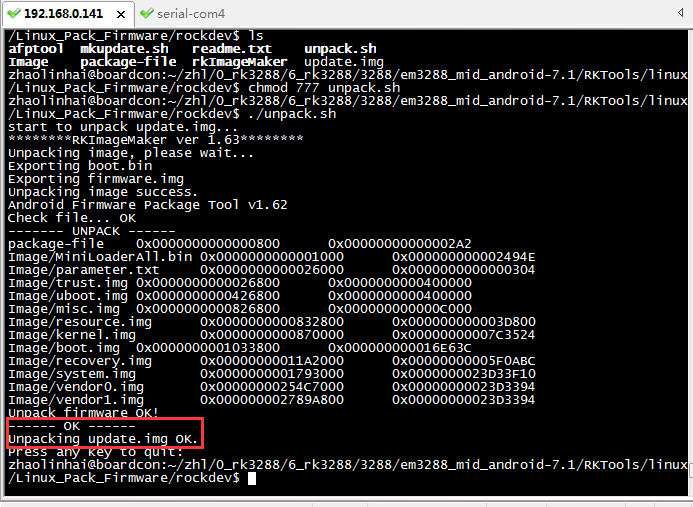

Step 2, execute commands

cd RKTools/linux/Linux_Pack_Firmware/rockdev/
chmod 777 unpack.sh
./unpack.sh
ls output/
ls output/Image/
_images/output.png

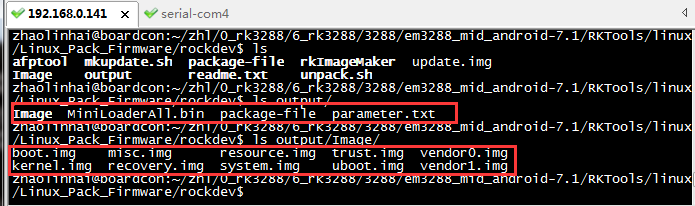

The unzip files will be generated in output directory

_images/output-1.png
