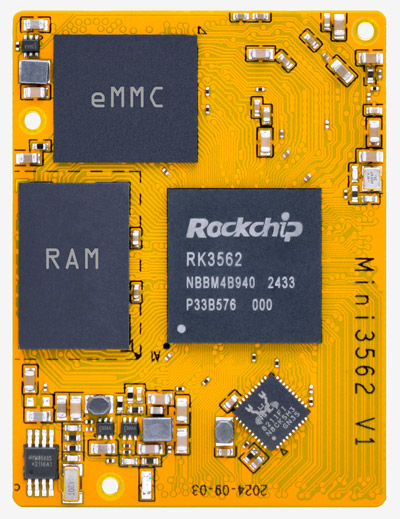

The MINI3562 is a cost-optimized SOM powered by Rockchip RK3562 processor with quad-core Cortex-A53 CPU and ARM G52 2EE GPU, 1 TOPS NPU. This RK3562 SOM offers a smaller form factor and power efficiency for a wide range of target applications such as security surveillance and Traffic Management.

Performance Optimized Processor

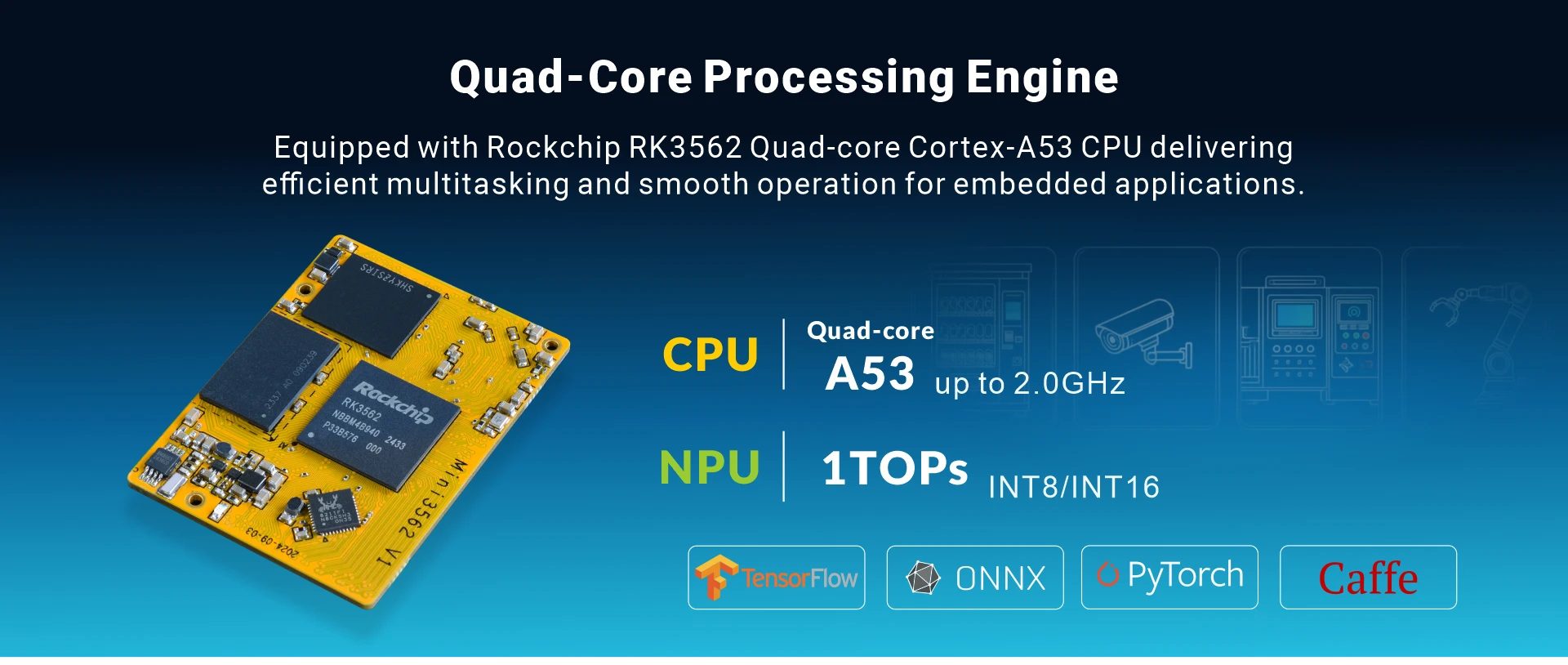

Quad-core 64-bit Cortex-A53 architecture, clocked at up to 2.0GHz, RK3562 features several embedded hardware engines to optimize performance for high end applications. It supports H.265 decoding at 4K@30fps, and H.264 encoding at 1080p@60fps.

High-Resolution Graphics and Multi-Camera support

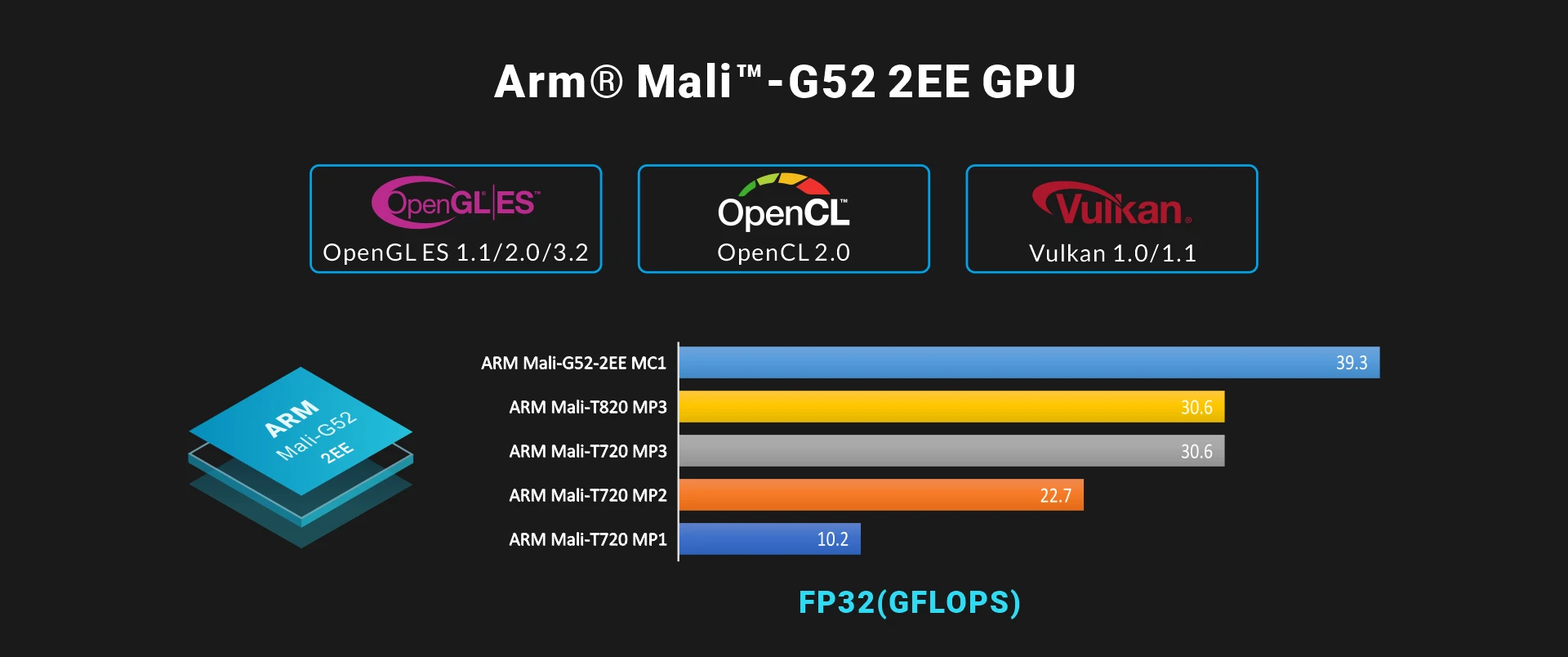

The MINI3562 SoM offers an ARM G52 2EE GPU, enabling rich, high-resolution graphical experiences with hardware acceleration. The SOM supports 2x 4-lane MIPI CSI, 2.5Gbps maximum data rate per lane. The solution can connect up to eight cameras for an extended field-of-view for building 360° surround-view systems through the extension.

Cost-effective

The MINI3562 SoM is an affordable approach to the RK3562 SoC, enabling your product to leverage this powerful chip without losing performance and speed, while keeping costs to a minimum.

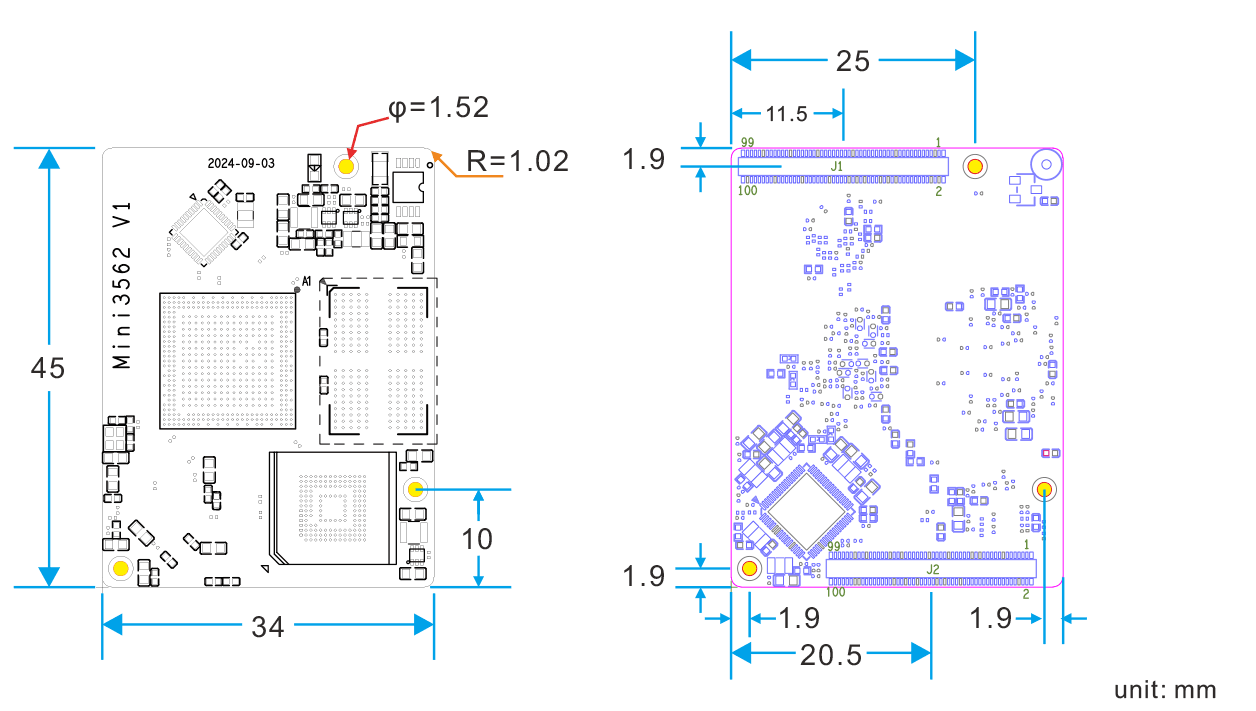

 PCB Dimension

 Pin Definition

If you order the SOM or any question, please feel free to contact us at market@armdesigner.com
