SBC3588

* Processor: Rockchip RK3588 octa-core processor, 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
* NPU: 6 TOPS
* RAM: 8GB
* Storage: 32GB

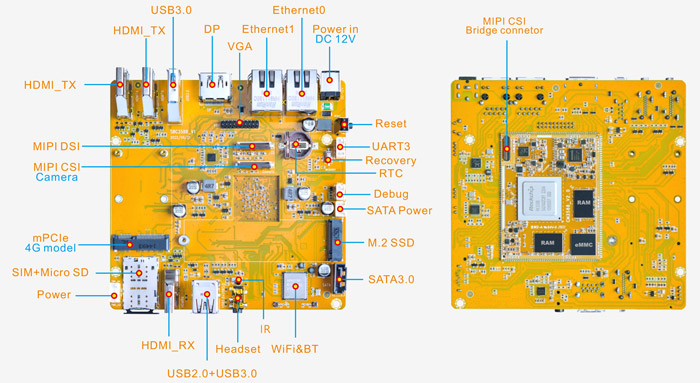

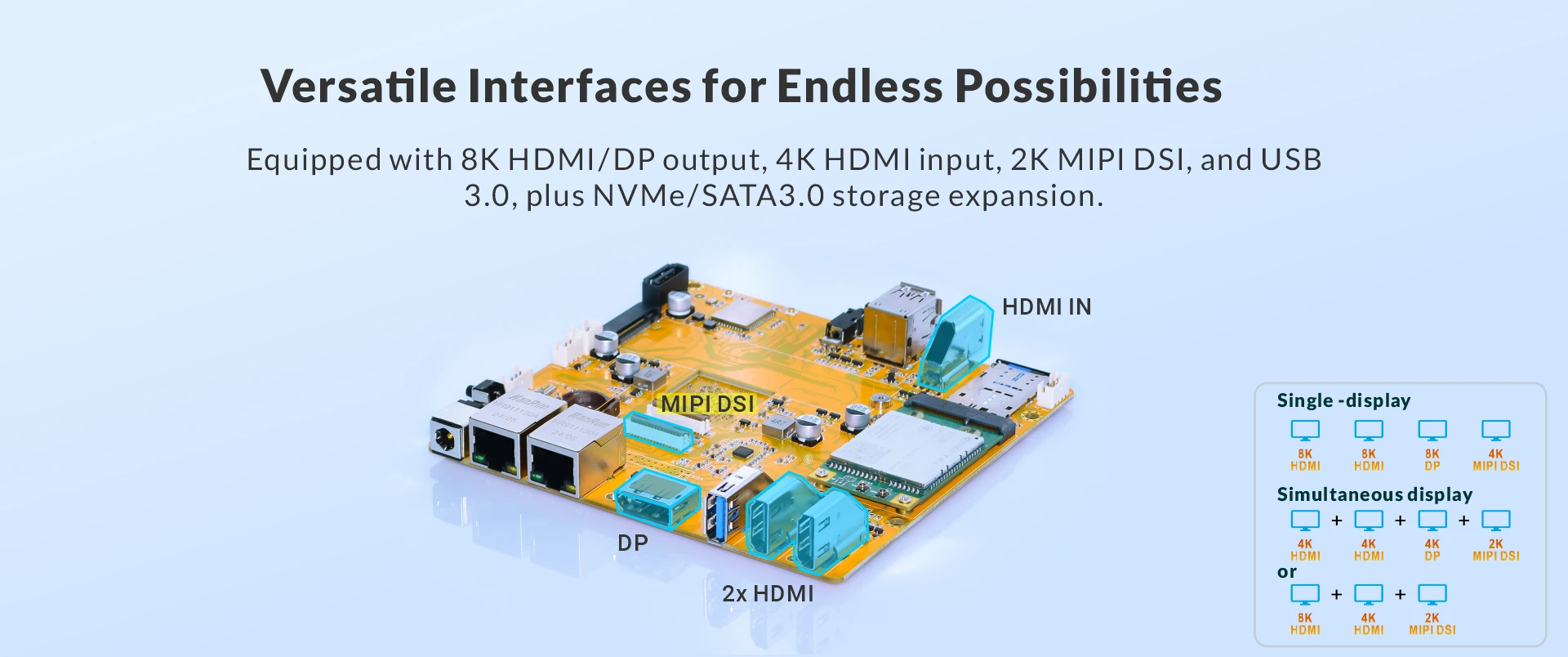

* Interfaces: 2x HDMI OUT, 1x HDMI in, DP, MIPI CSI, MIPI DSI, M.2 SSD, SATA3.0, Micro SD, mPCIe, 2x USB3.0, 2x GbE, UART, Audio I/O, etc.
* Operating system: Android 12, Debian 11, Buildroot

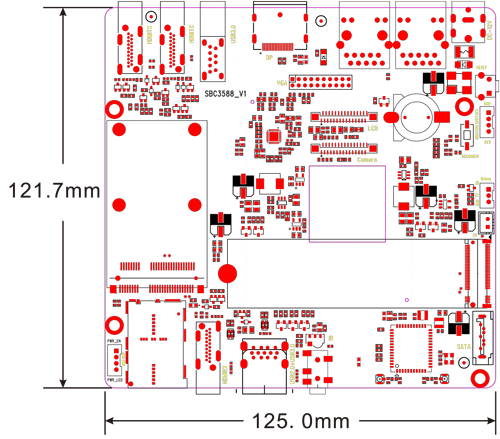

* Dimensions: 125.0 x 121.7 mm

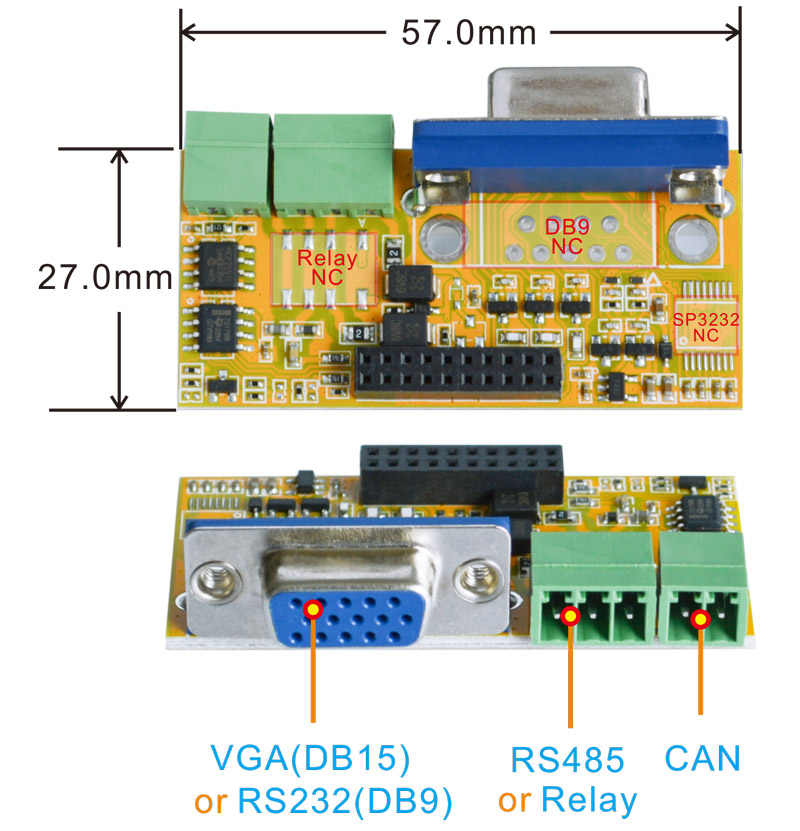

* Expansion Module: 4G model, WiFi, Camera, VGA
pdf icon CEFCCRoHS

     RK3588 module

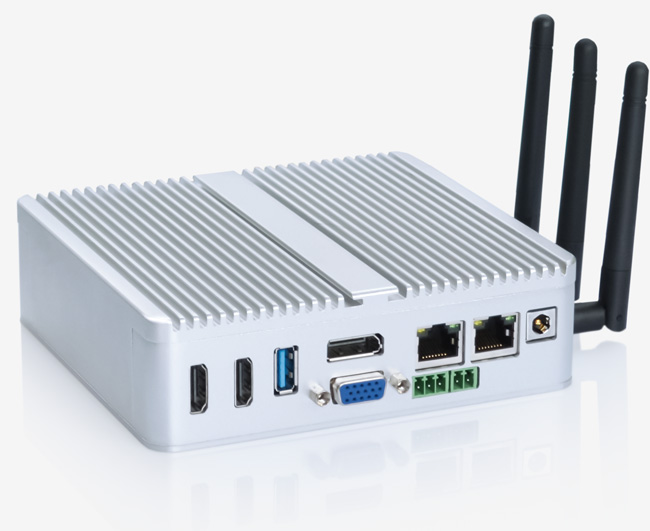

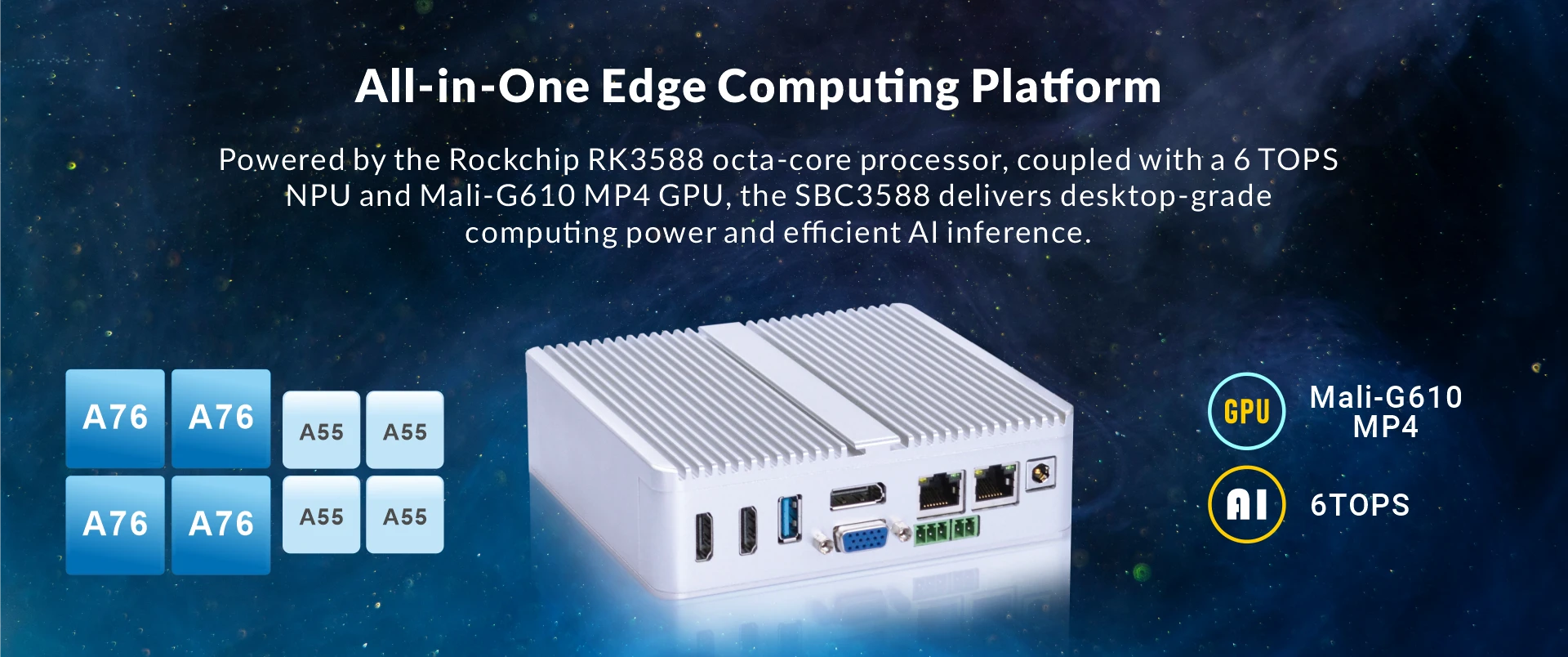

 Rockchip RK3588 BOX

Boardcon SBC3588 is an octa-core single board computer powered by the 8 nm Rockchip RK3588 processor with 6 TOPS NPU accelerator and a Mali-G610 MP4 GPU.

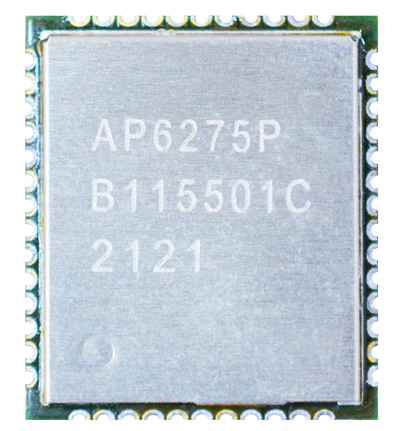

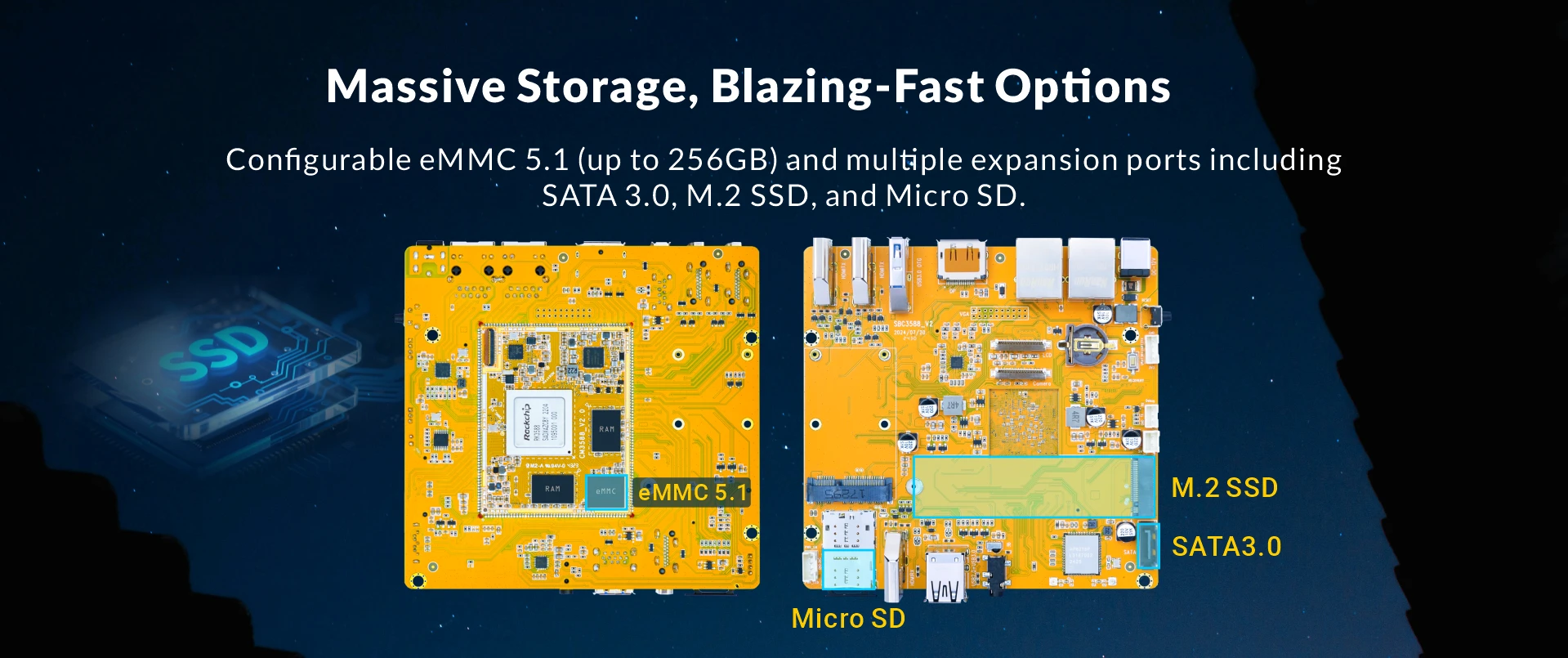

The RK3588 board features up to 16GB RAM and 128GB Storage, comes with dual band Wi-Fi 6 and Bluetooth 5.1, built-in mPCIe for 4G cellular model (optional). Wired connectivity is also supported via dual Gigabit Ethernet ports. With its powerful GPU and AI capabilities, plenty of ports such as 8K capable HDMI and DisplayPort video output, 4K HDMI input, NVMe and SATA storage, as well as an expansion VGA module, this RK3588 SBC completes an attractive full reference kit, which can be used for customers' end-product mass production. It may have different use cases, especially suitable as TV box, AIoT gateway, industrial PC, video analytics server, digital signage, and other embedded applications.

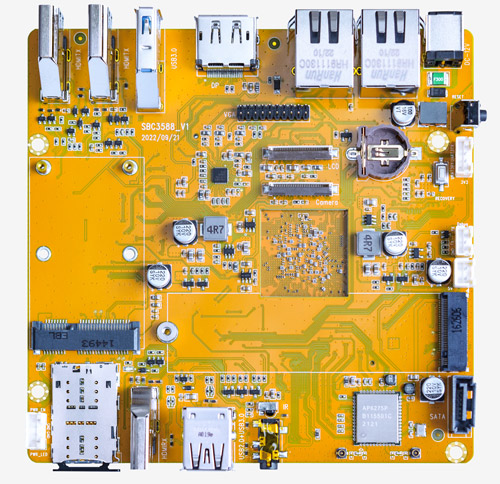

SBC3588_front

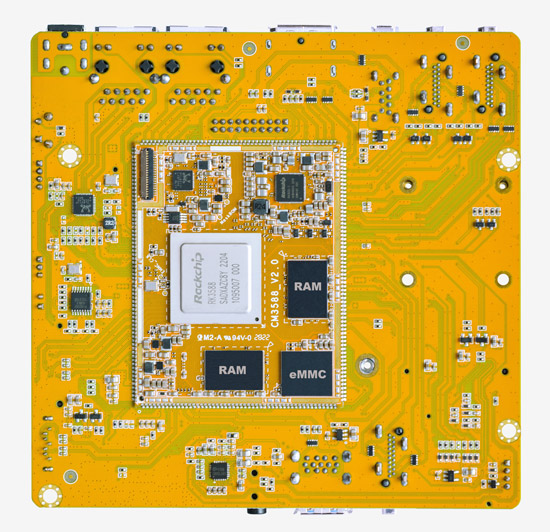

SBC3588_rear

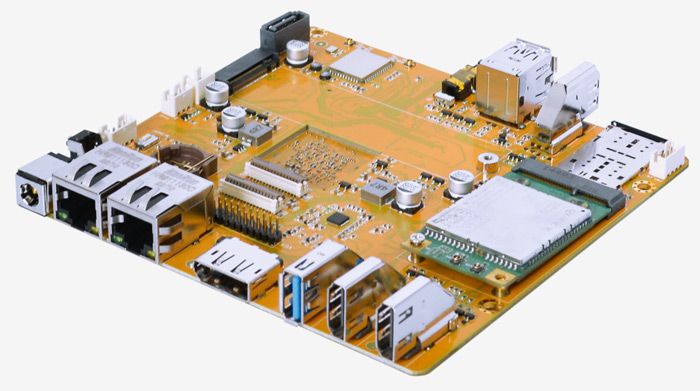

SBC3588_angle

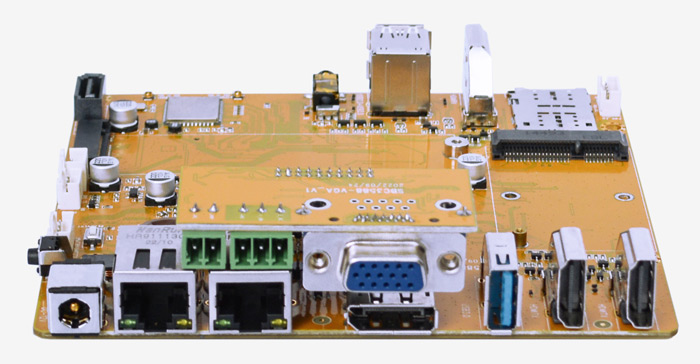

SBC3588_angle
