CM3588

* 处理器: Rockchip RK3588. Quad-core Cortex-A76 @ 2.4GHz + Quad-core Cortex-A55 @ 1.8GHz
* NPU: 6 TOPS
* 内存: 8GB/16GB
* 存储: 32GB/64GB/128GB/256GB
* 引出信号: 5x UART, USB3.0 HOST, 2x USB2.0 HOST, 2x Type-C, 2x MIPI CSI, MIPI DSI, MIPI DPHY, 2x HDMI TX, HDMI RX, DP, GbE, PCIe3.0/2.1, SATA, SDMMC, SDIO, PWM, SPI, CAN, SPDIF, ADC, I2C, I2S, PDM, GPIO, etc.
* 操作系统: Android 14, Debian 12, Buildroot
* 尺寸: 67 x 53 mm
* 连接方式: 230-pin, 1.0mm间距邮票孔, 板载39-pin摄像头桥接接口(FPC)
pdf icon CE, FCC, RoHS
Idea3588 用户手册（EN）

产品简介
硬件
软件
下载
订购
常见问题


CM3588核心板基于瑞芯微八核处理器 RK3588设计，主频高达2.4GHz；集成ARM Mali-G610 MP4四核GPU，具有 6 TOPS的AI算力和最大4800万像素ISP，支持8K@60fps H.265/VP9视频解码和8K@30fps H.265/H.264视频编码，专为AR/VR、边缘IoT、AIoT和计算机视觉应用而设计。该RK3588核心板标配8GB（最高可达16GB）RAM和32GB（最高可达256GB）存储，板载RTL8211F-CG千兆以太网IC，以及摄像头桥接接口（FPC）。
CM3588可提供商业级和工业级定制，满足客户的不同场景需求。

CM3588核心板已通过 CE, FCC和 RoHS认证。

RK3588-system-on-module RK3588-SOM

规格参数
SoC	Rockchip RK3588, 4x Cortex-A76 cores @ 2.4GHz, 4x Cortex-A55 cores @ 1.8GHz
GPU	ARM Mali G610 MP4. 支持 OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2
NPU	6 TOPS
内存	8GB/16GB LPDDR4X
存储	32GB/64GB/128GB/256GB
工作电压	DC 4V

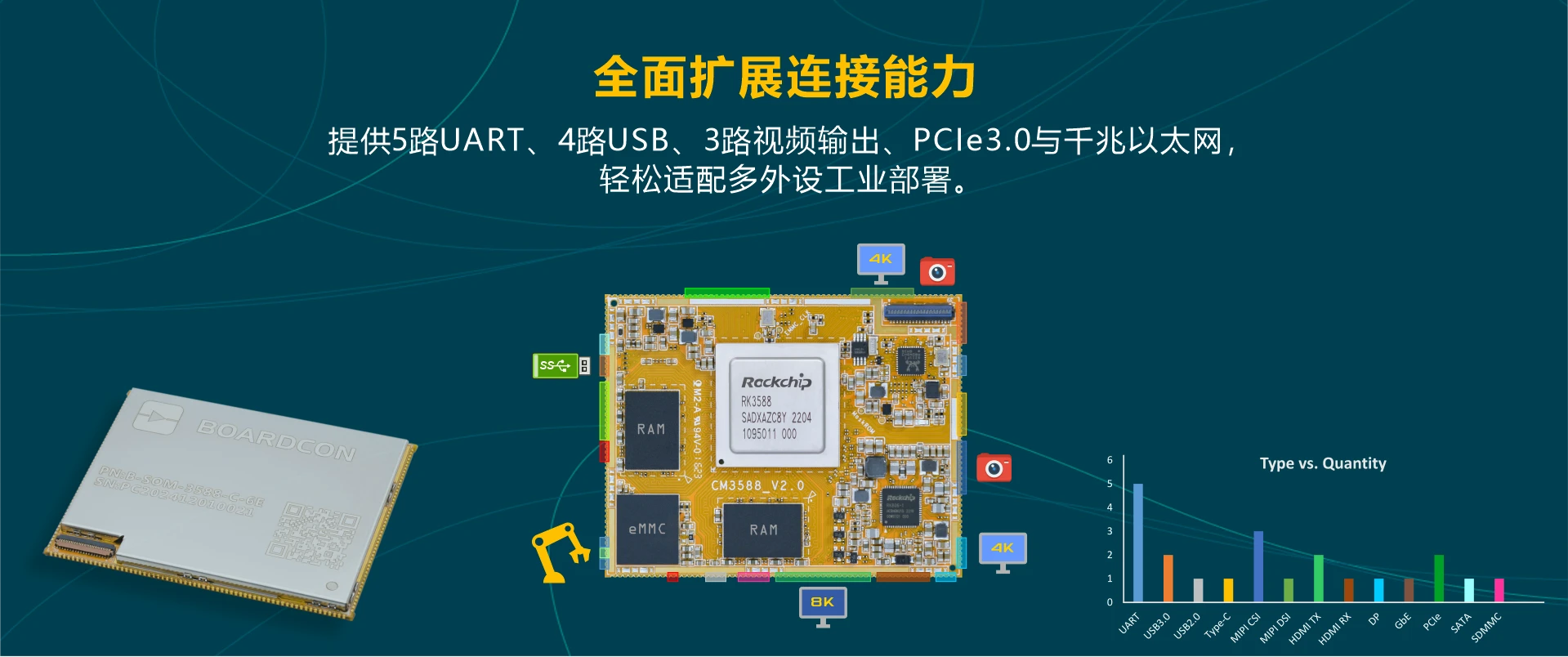

引出信号	7x UART, USB3.0 Host, 2x USB2.0 Host, Type-C, MIPI CSI, MIPI DPHY, HDMI/eDP, GbE, 2x PCIe2.1, SATA3.0, SDMMC, CAN, 3x I2C, SPI, 3x PWM, 3x ADC, PDM, I2S, GPIO, etc.
Ethernet	1-ch Gigabit PHY + 1-ch RGMII/RMII
PCB板层	10
尺寸	67 x 53 mm
重量	16.9g
封装	230-pin, 1.0mm间距邮票孔, 及39-pin摄像头桥接接口(FPC)
应用	AR/VR、边缘物联网、AIoT和计算机视觉应用
开发板	Idea3588, SBC3588

PCB尺寸图

CM3588-pcb-dimension

引脚定义 (V2)

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	GPIO4_B0_d	51	GND	116	DP1_TX2N	166	PHY1_LED2/CFG_LDO1
2	DP1_HPDIN_M0	52	HDMITX0_SCL_M0	117	DP1_TX2P	167	PHY1_LED1/CFG_LDO0
3	I2C6_SDA_M0	53	SATA1_ACT_LED_M0	118	DP1_TX3P	168	GND
4	I2C6_SCL_M0	54	SATA0_ACT_LED_M0	119	DP1_TX3N	169	RECOVERY_SARADC_VIN1
5	GPIO3_D4_d	55	HDMITX0_SDA_M0	120	DP1_AUXP	170	SARADC_VIN5
6	VCC_1V8	56	PCIE30X4_WAKEn_M2_L	121	DP1_AUXN	171	VCC_RTC
7	SATA30_0_RXN	57	PCIE30X4_PERSTn_M2_L	122	GND	172	RTC32KOUT_WIFI
8	SATA30_0_RXP	58	PCIE30X4_CLKREQn_M2_L	123	TYPEC0_USB20_OTG_DP	173	SDMMC_DET_1V8*
9	SATA30_0_TXN	59	HDMI_RX_SDA_M1	124	TYPEC0_USB20_OTG_DM	174	MIPI_CSI0_RX_CLK1P
10	SATA30_0_TXP	60	HDMI_RX_SCL_M1	125	TYPEC0_SBU1/DP0_AUXP	175	MIPI_CSI0_RX_CLK1N
11	USB30_2_SSRXP	61	HDMI_RX_CEC	126	TYPEC0_SBU2/DP0_AUXN	176	MIPI_CSI0_RX_D3P
12	USB30_2_SSRXN	62	I2C5_SDA_M0	127	PWR_EN	177	MIPI_CSI0_RX_D3N
13	USB30_2_SSTXP	63	I2C5_SCL_M0	128	TYPEC0_USB20_OTG_ID	178	MIPI_CSI0_RX_D2P
14	USB30_2_SSTXN	64	HDMITX0_CEC_M0	129	TYPEC0_USB20_VBUSDET	179	MIPI_CSI0_RX_D2N
15	GND	65	GPIO4_B2_U	130	MIPI_DPHY1_TX_D0P	180	MIPI_CSI0_RX_CLK0P
16	I2S0_SDO2_SDI3_1V8	66	PWM15_IR_M1	131	MIPI_DPHY1_TX_D0N	181	MIPI_CSI0_RX_CLK0N
17	I2S0_SDO3_SDI2_1V8	67	USB_OTG_PWREN_H_GPIO4_A7	132	MIPI_DPHY1_TX_D1P	182	MIPI_CSI0_RX_D1P
18	I2S0_SDI1_1V8	68	GND	133	MIPI_DPHY1_TX_D1N	183	MIPI_CSI0_RX_D1N
19	I2S0_SDI0_1V8	69	USB20_HOST0_DM	134	MIPI_DPHY1_TX_CLKP	184	MIPI_CSI0_RX_D0P
20	I2S0_MCLK_1V8	70	USB20_HOST0_DP	135	MIPI_DPHY1_TX_CLKN	185	MIPI_CSI0_RX_D0N
21	I2S0_SCLK_TX_1V8	71	USB20_HOST1_DM	136	MIPI_DPHY1_TX_D2P	186	GND
22	I2S0_SCLK_RX_1V8	72	USB20_HOST1_DP	137	MIPI_DPHY1_TX_D2N	187	I2S2_SDO_M0_GMAC0-MCK_1V8
23	I2S0_LRCK_TX_1V8	73	TYPEC1_USB20_OTG_DM	138	MIPI_DPHY1_TX_D3P	188	SDIO_CLK_M0_GMAC0-TCK_1V8
24	I2S0_LRCK_RX_1V8	74	TYPEC1_USB20_OTG_DP	139	MIPI_DPHY1_TX_D3N	189	I2S2_LRCK_M0_GMAC0-TE_1V8
25	I2S0_SDO1_1V8	75	SDMMC0_CMD	140	GND	190	GMAC0-TD0_1V8
26	I2S0_SDO0_1V8	76	SDMMC0_D3	141	TYPEC0_SSRX1N	191	I2S2_SCLK_M0_GMAC0-TD1_1V8
27	I2C4_SDA_M3_1V8	77	SDMMC0_D2	142	TYPEC0_SSRX1P	192	SDIO_D3_M0_GMAC0-TD2_1V8
28	I2C4_SCL_M3_1V8	78	SDMMC0_D1	143	TYPEC0_SSTX1P	193	SDIO_CMD_M0_GMAC0-TD3_1V8
29	I2C2_SDA_M4_1V8	79	SDMMC0_D0	144	TYPEC0_SSTX1N	194	SDIO_D2_M0_GMAC0-RCK_1V8
30	I2C2_SCL_M4_1V8	80	SDMMC0_CLK	145	TYPEC0_SSRX2N	195	GMAC0-RV_1V8
31	MIPI_CAM2_CLKO_M0_1V8	81	GND	146	TYPEC0_SSRX2P	196	GMAC0-RD0_1V8
32	GND	82	HDMI_RX_CLKP	147	TYPEC0_SSTX2P	197	UART9_TX_M0_GMAC0-RD1_1V8
33	PDM1_CLK0_M1_1V8	83	HDMI_RX_CLKN	148	TYPEC0_SSTX2N	198	SDIO_D0_M0_GMAC0-RD2_1V8
34	PDM1_SDI3_M1_1V8	84	HDMI_RX_D0N	149	GND	199	SDIO_D1_M0_GMAC0-RD3_1V8
35	PDM1_SDI2_M1_1V8	85	HDMI_RX_D0P	150	SPDIF0_TX_M1	200	GND
36	PDM1_SDI1_M1_1V8	86	HDMI_RX_D2N	151	PCIE30X1_1_PERSTn_M1_L	201	PCIE20_1_TXP/SATA30_1_TXP
37	PDM1_SDI0_M1_1V8	87	HDMI_RX_D2P	152	UART3_RX_M2	202	PCIE20_1_TXN/SATA30_1_TXN
38	PDM1_CLK1_M1_1V8	88	HDMI_RX_D1N	153	UART3_TX_M2	203	PCIE20_1_RXP/SATA30_1_RXP
39	HDMIIRX_HPDOUT_M2_1V8	89	HDMI_RX_D1P	154	UART0_RX_M2	204	PCIE20_1_RXN/SATA30_1_RXN
40	HDMITX1_HPDIN_M0_1V8	90	HDMI0_TX_SBDP/eDP0_TX_AUXP	155	UART0_TX_M2	205	PCIE20_1_REFCLKP
41	HDMITX0_HPDIN_M0_1V8	91	HDMI0_TX_SBDN/eDP0_TX_AUXN	156	PCIE30x1_1_CLKREQn_M1_L	206	PCIE20_1_REFCLKN
42	TYPEC0_SBU2_DC	92	HDMI0_TX3P	157	PCIE30X1_1_WAKEn_M1_L	207	PCIE30_PORT0_RX0P
43	TYPEC0_SBU1_DC	93	HDMI0_TX3N	158	PHY1_MDI0+	208	PCIE30_PORT0_RX0N
44	PWM2_M0	94	HDMI0_TX2P	159	PHY1_MDI0-	209	PCIE30_PORT0_RX1P
45	UART2_TX_M0_DEBUG	95	HDMI0_TX2N	160	PHY1_MDI1+	210	PCIE30_PORT0_RX1N
46	UART2_RX_M0_DEBUG	96	HDMI0_TX1P	161	PHY1_MDI1-	211	PCIE30_PORT0_REFCLKP_IN
47	CAN0_RX_M0	97	HDMI0_TX1N	162	PHY1_MDI2+	212	PCIE30_PORT0_REFCLKN_IN
48	CAN0_TX_M0	98	HDMI0_TX0P	163	PHY1_MDI2-	213	PCIE30_PORT0_TX0P
49	UART7_TX_M1	99	HDMI0_TX0N	164	PHY1_MDI3+	214	PCIE30_PORT0_TX0N
50	UART7_RX_M1	100	VCC_3V3	165	PHY1_MDI3-	215	PCIE30_PORT0_TX1P
		101	HDMI1_TX_SBDP/eDP1_TX_AUXP			216	PCIE30_PORT0_TX1N
		102	HDMI1_TX_SBDN/eDP1_TX_AUXN			217	GND
		103	HDMI1_TX3P			218	UART9_RX_M0_1V8
		104	HDMI1_TX3N			219	UART9_CTSn_M0_GMAC0-MDI_1V8
		105	HDMI1_TX0N			220	UART9_RTSn_M0_GMAC0-MDC_1V8
		106	HDMI1_TX0P			221	SPI3_CLK_MO_1V8
		107	HDMI1_TX1N			222	I2S2_SDI_M0_1V8
		108	HDMI1_TX1P			223	I2C3_SDA_M0_1V8
		109	HDMI1_TX2N			224	I2C3_SCL_M0_1V8
		110	HDMI1_TX2P			225	RESET_L
		111	GND			226	GND
		112	DP1_TX0N			227	VCC_SYS
		113	DP1_TX0P			228	VCC_SYS
		114	DP1_TX1N			229	VCC_SYS
		115	DP1_TX1P			230	VCC_SYS
FPC连接器引脚定义 (J1)
Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	MIPI_CAM4_CLKO_M0_1V8	11	GND	21	MIPI_CSI1_RX_CLK1N	31	MIPI_DPHY1_RX_CLKN
2	GND	12	MIPI_CSI1_RX_CLK0N	22	MIPI_CSI1_RX_CLK1P	32	MIPI_DPHY1_RX_CLKP
3	MIPI_CAM3_CLKO_M0_1V8	13	MIPI_CSI1_RX_CLK0P	23	GND	33	GND
4	GND	14	GND	24	GND	34	MIPI_DPHY1_RX_D1N
5	GND	15	MIPI_CSI1_RX_D2N	25	MIPI_DPHY1_RX_D3N	35	MIPI_DPHY1_RX_D1P
6	MIPI_CSI1_RX_D0N	16	MIPI_CSI1_RX_D2P	26	MIPI_DPHY1_RX_D3P	36	GND
7	MIPI_CSI1_RX_D0P	17	GND	27	GND	37	MIPI_DPHY1_RX_D0N
8	GND	18	MIPI_CSI1_RX_D3N	28	MIPI_DPHY1_RX_D2N	38	MIPI_DPHY1_RX_D0P
9	MIPI_CSI1_RX_D1N	19	MIPI_CSI1_RX_D3P	29	MIPI_DPHY1_RX_D2P	39	GND
10	MIPI_CSI1_RX_D1P	20	GND	30	GND

* pin173: V1 = GND, V2 = SDMMC_DET_1V8

操作系统	类别	功能	描述
Android 14	Boot	U-Boot 2017.09	rk3588_spl_loader_v1.18.113.bin
	Kernel	Version	Linux 6.1.99
	Drivers	HDMI OUT	支持 8K, 4K, 1080P, 720P, 480P 分辨率
		HDMI IN	HDMI 2.0 RX PHY. 4 lanes 支持 4K, 1080P, 720P, 480P分辨率
		DP	DP1. 支持 8K, 4K, 1080P, 720P, 480P 分辨率
		Audio	耳机输入、输出
		SD card	Micro SD card
		USB2.0	4x USB2.0
		USB3.0	USB3.0 or SATA3.0
		Type-C	USB3.1 Type-C. 支持 ADB, Type-C to USB3.0/ HDMI/ DP(DP0)
		Ethernet	10/100/1000 Mbps Ethernet
		Camera	3x Camera 支持 single sensor 或 multi-sensor (最多 5x sensors) 默认支持 8-Megapixel IMX415 single sensor
		WiFi	802.11a/b/g/n/ac/ax, RTL8852BS
		Bluetooth	Bluetooth 5.2, RTL8852BS
		4G&GPS	EC20 LTE
		Serial Port	Debug
		eMMC	Support eMMC 5.1
		SATA	SATA3.0
		LCD&TP	1920 x 1200. eDP LCD with GT928 TP
		CAN	支持
		RTC	HYM8563TS
		UART	2x UART
		SSD	NVME SSD
		FAN	GPIO control
		IR	PWM IR
		RS485	支持
	交叉编译环境	Ubuntu 22.04/openjdk11.0.4
	调试工具	SecureCRT, AndroidTool.exe, ADB

操作系统	类别	功能	描述
Debian12 Buildroot (Linux 6.1)	Boot	U-Boot 2017.09	rk3588_spl_loader_v1.17.113.bin
	Kernel	Version	Linux 6.1.75
	Drivers	HDMI OUT	支持 8K, 4K, 1080P, 720P, 480P 分辨率
		HDMI IN	HDMI 2.0 RX PHY. 4 lanes 支持 4K, 1080P, 720P, 480P分辨率
		DP	DP1. 支持 8K, 4K, 1080P, 720P, 480P 分辨率
		Audio	耳机输入、输出
		SD card	Micro SD card
		USB2.0	USB x4
		USB3.0	USB3.0 x1
		Type-C	USB3.1 Type-C. 支持ADB, type-C to USB3.0/ HDMI/ DP(DP0)
		Ethernet	10/100/1000 Mbps Ethernet
		Camera	3x Camera (IMX415). 支持2个camera同时工作.
		Serial Port	Debug
		4G&GPS	EC20 LTE
		WiFi	802.11a/b/g/n/ac/ax
		Bluetooth	Bluetooth 5.2
		SATA	SATA3.0
		LCD	1920 x 1200. eDP LCD with GT928 TP
		CAN	支持
		RTC	HYM8563
		UART	2x UART
		PCIE	PCIE NVME SSD
		FAN	GPIO control
		IR	PWM IR
		RS485	支持
	交叉编译环境	Ubuntu 22.04
	调试工具	SecureCRT, AndroidTool.exe, ADB

操作系统	类别	功能	描述
Debian11 Buildroot (Linux 5.1)	Boot	U-Boot 2017.09	rk3588_spl_loader_v1.11.112.bin
	Kernel	Version	Linux5.10.160
	Drivers	HDMI OUT	支持 8K, 4K, 1080P, 720P, 480P 分辨率
		DP	DP1. 支持 8K, 4K, 1080P, 720P, 480P 分辨率
		Audio	耳机输入、输出
		SD card	Micro SD card
		USB2.0	USB x4
		USB3.0	USB3.0 x1
		Type-C	USB3.1 Type-C. 支持 ADB, type-C to USB3.0/ HDMI/ DP(DP0)
		Ethernet	10/100/1000 Mbps Ethernet
		Camera	3x Camera (IMX415). 支持2个camera 同时工作
		Serial Port	Debug
		4G&GPS	EC20 LTE
		WiFi	802.11a/b/g/n/ac/ax
		Bluetooth	Bluetooth 5.2
		SATA	SATA3.0
		LCD&TP	1920 x 1200. eDP LCD with GT928 TP
		CAN	支持
		RTC	HYM8563
		UART	2x UART
		PCIE	PCIE NVME SSD
		FAN	GPIO control
		IR	PWM IR
		RS485	支持
	交叉编译环境	Ubuntu 22.04
	调试工具	SecureCRT, AndroidTool.exe, ADB
