1. Overview
1.1 Summary
Idea3588S is based on the Rockchip RK3588S octa-core processor with 6 TOPS NPU, ARM Mali-G610 MP4 GPU, 48-Megapixel ISP, supports 8K decoder/encoder. Specially designed for ARM-based PC and Edge Computing device, personal mobile internet device and other digital multimedia applications.
1.2 Product Parameters
Specifications |
|
|---|---|
CPU |
Quad-core Cortex-A76 + Quad-core Cortex-A55 |
GPU |
ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
NPU |
6 TOPS |
Memory |
8GB (up to 16GB) |
Storage |
32GB eMMC flash (up to 256GB) Micro SD card slot |
Power Supply |
12V/3A DC input jack |
USB |
1x USB3.1 Type-C 3x USB2.0 Host 2.0 1x USB3.0 Host |
Connectivity |
Gigabit Ethernet RJ45 portvia Realtek RTL8211F-CG controller 2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac/ax) with Bluetooth5.1 Mini PCIe socket with Nano SIM card port to support 4G LTE Module |
UART |
1x Serial port for debug, 3-pin connector 3x UART, 4-pin connectors 1x RS485 |
Video |
HDMI 2.1 up to 8Kp60 MIPI DSI, 4Kp60 (26-pin header) |
Audio |
3.5mm audio I/O jack 8-channel audio via HDMI |
Camera |
2x Cameras(Multiplexed with I2C), 30-pin FPC connector |
Keys |
Recovery, Reset, Power |
Other features |
RTC with battery connector, IR receiver, CAN, ADC, GPIO |
Dimension |
Based board - 145 x 105mm; CPU module - 57.5 x 45mm |

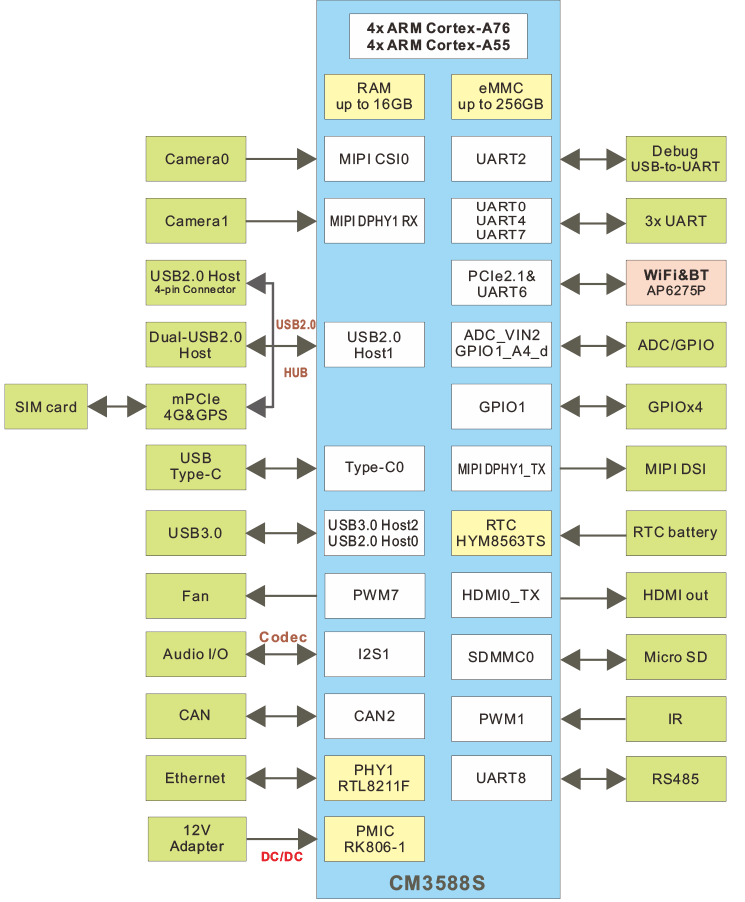

1.3 Idea3588S Block Diagram
