Boardcon Released RK3326-S SBC&SoM for Smart Audio Device

Author: Boardcon Embedded Design   Date: 2022-12-06

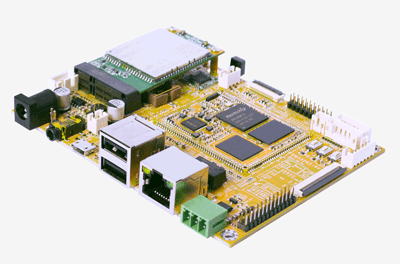

Boardcon announced the release of EM3326S Single board computer equipped with a Rockchip RK3326-S quad-core Cortex-A35 processor designed for smart audio device.

EM3326S specifications
CPU – Rockchip RK3326-S Quad-core Cortex-A35@1.5GHz
Memory- 1GB LPDDR4
– 8GB eMMC flash
– MicroSD slot
Power Supply – 5V/3A DC input jack, 4.2V Lion Battery connector
USB – 1x USB2.0 OTG, 2x USB2.0 Host
Audio – 3.5mm jack for Audio input/output, 2-pin connector for Speaker
Camera – 1x MIPI CSI, 1x DVP
Display – 26-pin header for MIPI DSI/LVDS, 40-pin FPC for RGB LCD
– 100M Ethernet port (RJ45) via Realtek RTL8152B
– 802.11b/g/n WiFi (2.4GHz) + Bluetooth 4.2
– Optional 4G module via PCIe socket + Nano SIM card slot.

More information may be found on the product page: EM3326S SBC, CM3326S SoM.
