1 Configuration List

Part

Description

EM3566

EM3566 SBC, built-in WIFI&BT module, without RTC battery and panel

Power adapter

12V/3A

Micro USB cable

Used for download

Serial adapter module

USB-to-UART

Ethernet cable

1.5M Ethernet crossover cable

WiFi Antenna

Flexible uFL 2.4GHz antenna

U-disk

User manuals, Schematics, Images, etc.

2 Accessories (optional)

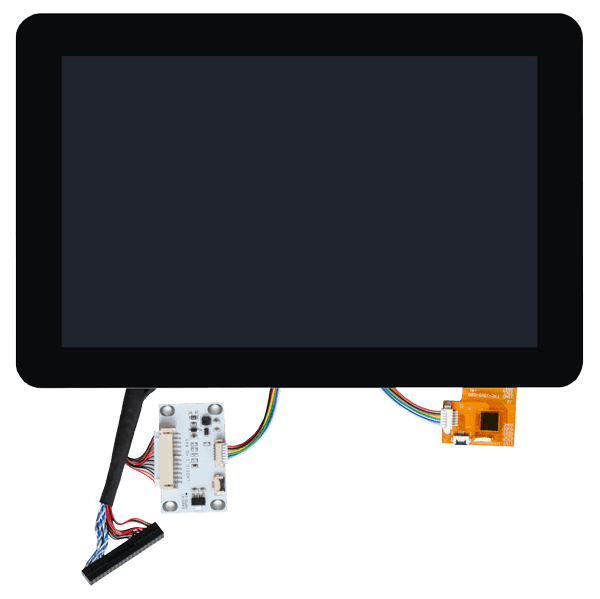

Panel

  • model: BP101WX1-206

  • Active Screen Size: 10.1 inches

  • resolution: 1280x800

  • display interface: LVDS

  • Number of colors: 16.7M

  • Display mode: Transmission mode. Normally Black

  • Pixel arrangement: Pixels RGB stripe arrangement

10.1-inch LVDS

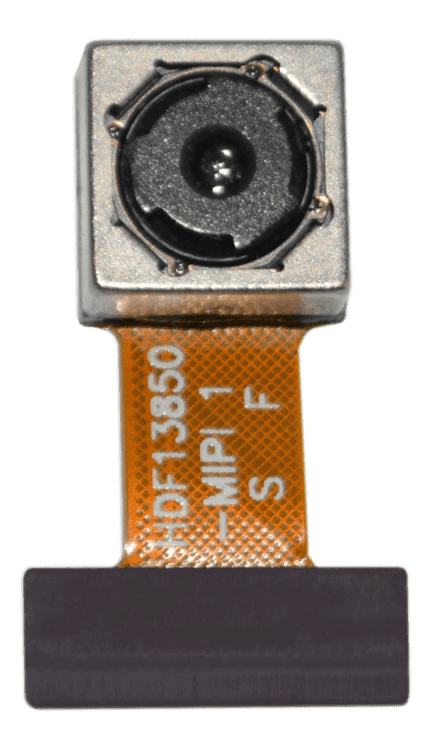

Camera

  • model: OV13850-G04A

  • Power supply: analog: 2.6 ~ 3.0V (2.8V nominal), core: 1.14 ~ 1.26V (1.2V nominal), I/O: 1.7 ~ 3.0V (1.8V or 2.8V nominal)

  • Output format: 10-bit RGB RAW

  • Interface: MIPI

  • Pixels: 13.2MP(4224x3136) at 30fps

OV13850-mipi

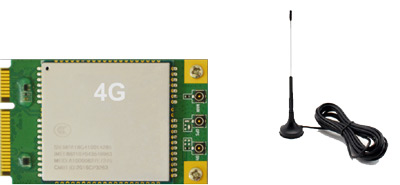

Wireless

  • model: EC20 – CE MINIPCIE-C

  • Supply voltage:  3.3V~ 3.6V, typical values: 3.3V

  • Working frequency band: TDD-LTE B38/B40/B41, FDD-LTE B1/B3/B8, WCDMA B1/B8, TD-SCDMA B34/B39, GSM 900/1800

  • Antenna interface: 3(main antenna, diversity antenna and GNSS antenna interface)

  • USIM: 1.8V/3V

  • Digital voice: 1 digital voice interface(optional)

  • Network indicator: 2, NET_STATUS and NET_MODE

  • Reset: low level

  • PWRKEY: low level

 EC20 sold on Boardcon official website supports GNSS.

4G model

Infrared controller

  • Power: 3V

  • Battery: CR2025

  • Description: 21 buttons remote control

ir-controller
