1 Configuration List
Part |
Description |
|---|---|
IdeaT527 |
IdeaT527 SBC, built-in WIFI&BT module, without RTC battery and panel |
Power adapter |
12V/3A |
USB Type-A cable |
Used to download |
Serial adapter module |
USB-to-UART |
Ethernet cable |
Ethernet crossover cable |
WiFi Antenna |
Flexible uFL 2.4GHz antenna |
U-disk |
User manuals, Schematics, Images, etc. |
2 Accessories (optional)
Panel
Item |
Parameter |
|---|---|
Model |
PY101BDGS40L50L |
Display interface |
LVDS |
Resolution |
1280 x 800 |
Number of colors |
16.7M |
Display mode |
Transmission mode. Normally Black |
Pixel arrangement |
Pixels RGB stripe arrangement |

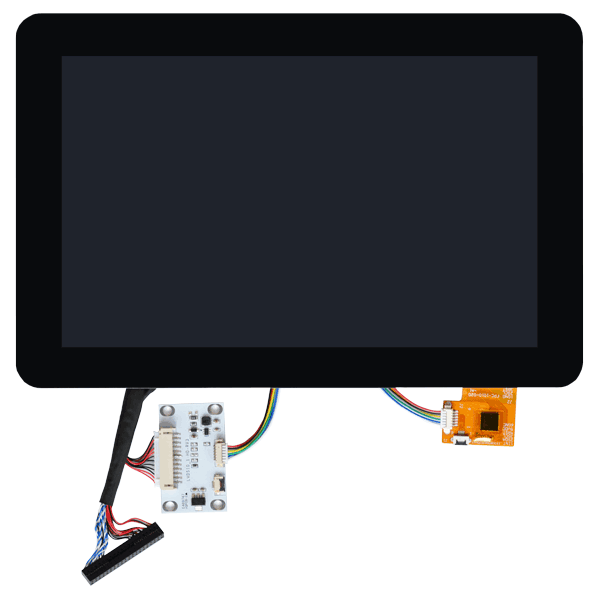

LVDS
Camera
Item |
Parameter |
|---|---|
Model |
SW-MA2024HP |
Sensor |
1/3” 2 Mega Pixels CMOS |
Power supply |
DC12V±10% |
Signal |
PAL/NTSC |
Interface |
BNC |
Pixels |
2 megapixel (1920 x 1080) |

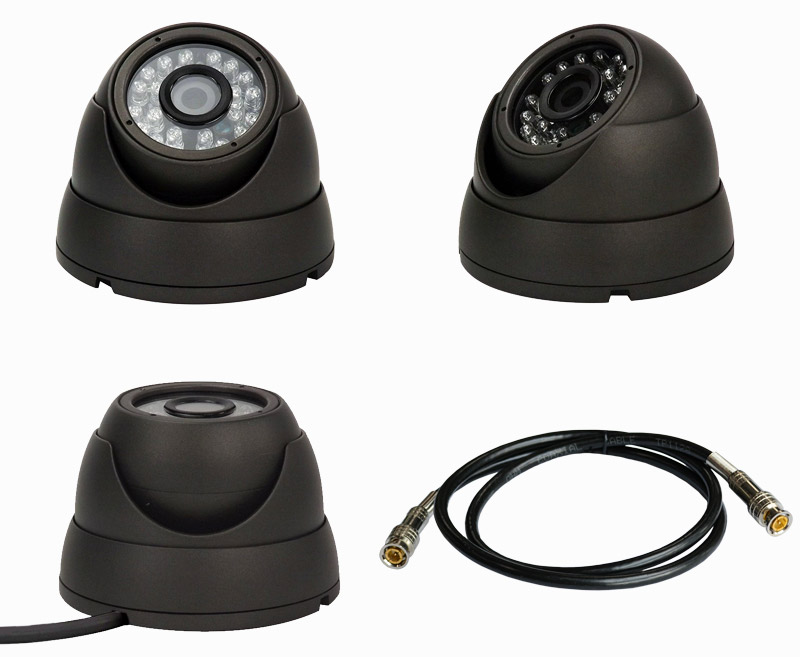

AHD Camera
Wireless
4G modules sold on Boardcon’s official website support GNSS.
Item |
Parameter |
|---|---|
Model |
EC20-CE |
Supply vlotage |
3.3V~ 3.6V, Typical values: 3.3V |
Working frequency band |
TDD-LTE B38/B40/B41, FDD-LTE B1/B3/B8, WCDMA B1/B8, TD-SCDMA B34/B39, GSM 900/1800 |
Antenna interface |
3 (Main/Diversity/GNSS) |
USIM |
1.8V/3V |
Digital voice |
1 digital voice interface(optional) |
Network indicator |
2, NET_STATUS and NET_MODE |
Reset |
low level |
PWRKEY |
low level |

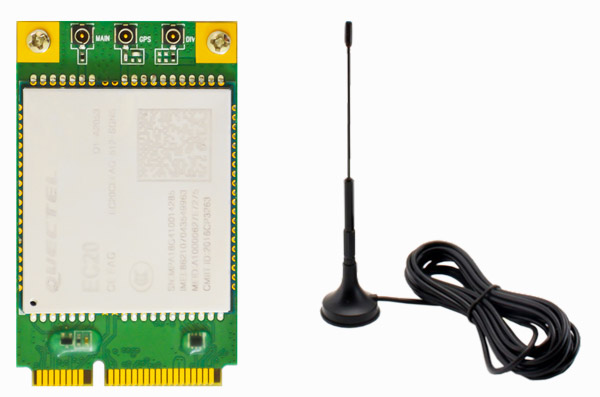

EC20 & Antenna
