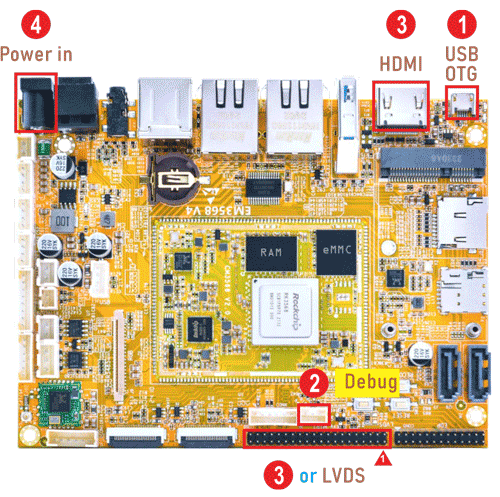

2. Quick Setup

❶ Connect Micro USB cable between host PC and EM3568 USB OTG port.

❷ Plug the USB-to-UART cable between PC and EM3568 debug connector.

On your host PC, start a terminal emulation program (such as SecureCRT) with the following serial port settings.

BaudRate	Data Bits	Stop Bits	Parity	Flow Control
1500000	8	1	None	None

❸ Connect HDMI or LVDS LCD to the board.

❹ Plug the 12V/3A power supply into the DC jack, EM3568 will turn on and boot into system.
