5. Flash Images

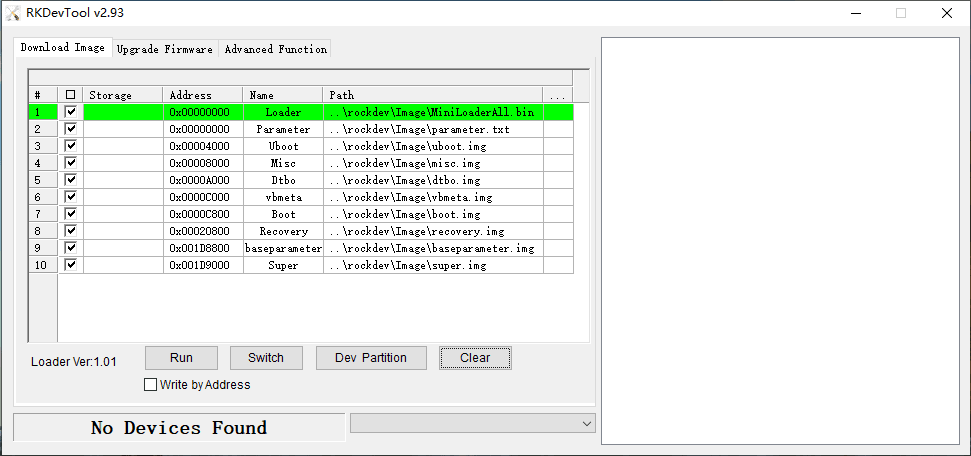

❶ open AndroidTool\RKDevTool_Release\RKDevTool.exe on Windows.

_images/image018.png

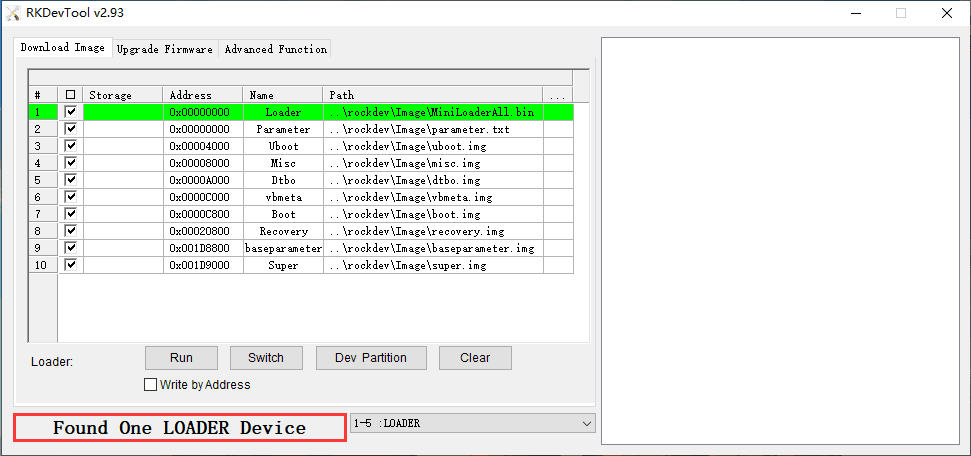

❷ connect PC and development board with Micro USB cable, keep pressing Recovery key and power up the board until the windows PC shows Found One LOADER Device, then release the key.

_images/compact3566_software_maskrom.jpg

Enter Loader Mode

_images/image020.png

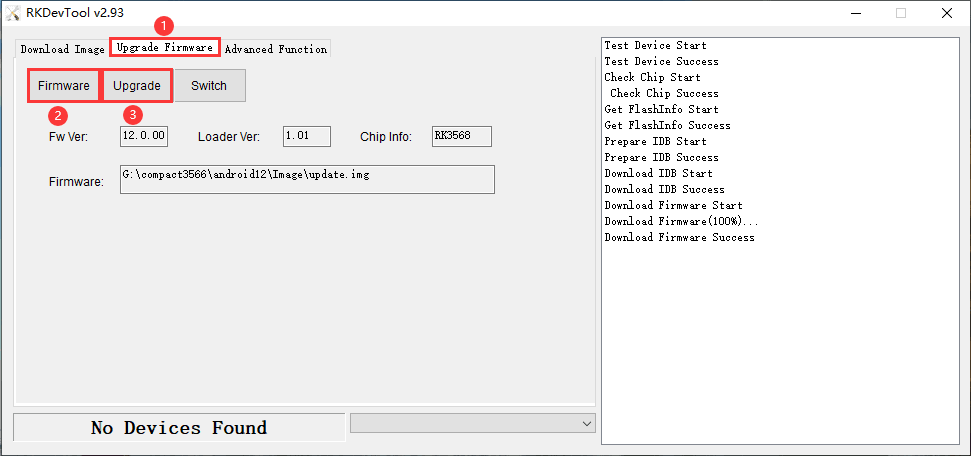

❸ click Upgrade Firmwar > Firmware select update.img, click Upgrade to flash.

_images/image040.png

User can also update the firmware separately.

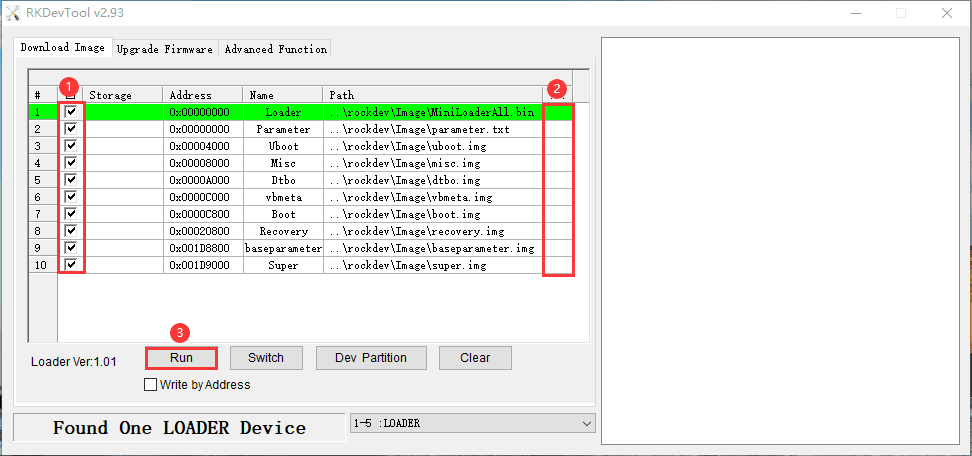

❶ select the checkbox on the left.

❷ click the column on the right side for the path of the file want to flash.

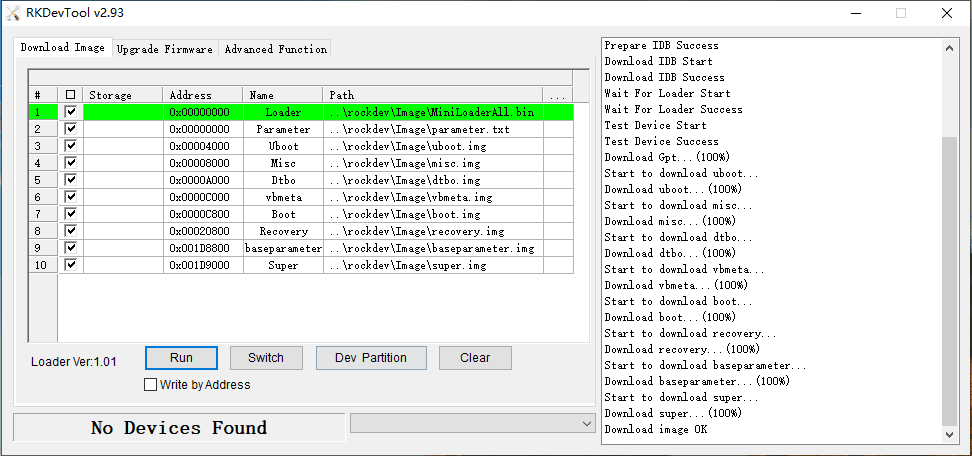

❸ click Run to flash the image.

_images/image042.png
_images/image043.png
