1 Configuration List
Part |
Description |
|---|---|
Compact3566 |
Compact3566 SBC, built-in WIFI&BT module, without RTC battery and panel |
Micro USB cable |
Used to debug/power |
USB Type-A cable |
Used to download |
Ethernet cable |
1.5M Ethernet crossover cable |
WiFi Antenna |
Flexible uFL 2.4GHz antenna |
U-disk |
User manuals, Schematics, Images, etc. |
2 Accessories (optional)

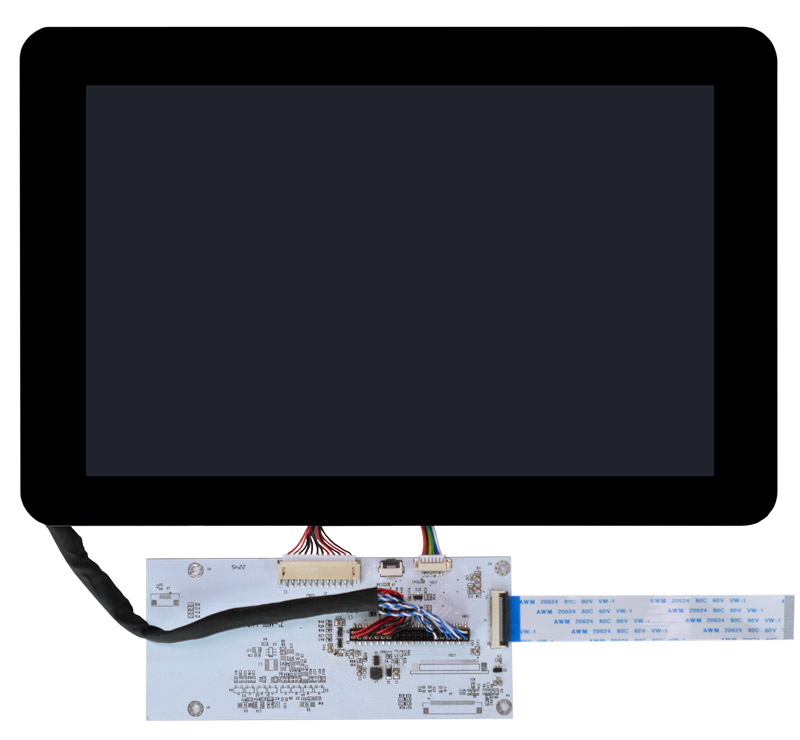

Panel
Item |
Parameter |
|---|---|
Model |
PY101BDGS40L50L |
Display interface |
LVDS |
Resolution |
1280 x 800 |
Number of colors |
16.7M |
Display mode |
Normally Black |
Pixel arrangement |
RGB Vertical stripe |

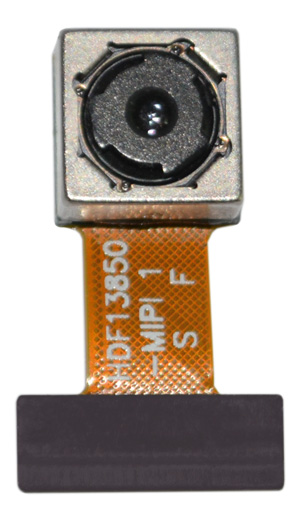

Camera
Item |
Parameter |
|---|---|
Model |
OV13850 |
Power supply |
analog: 2.6 ~ 3.0V (2.8V nominal), core: 1.14 ~ 1.26V(1.2V nominal), I/O: 1.7 ~ 3.0V (1.8V or 2.8V nominal) |
Output format |
10-bit RGB RAW |
Interface |
MIPI |
Pixels |
13 megapixel (4224 x 3136) |

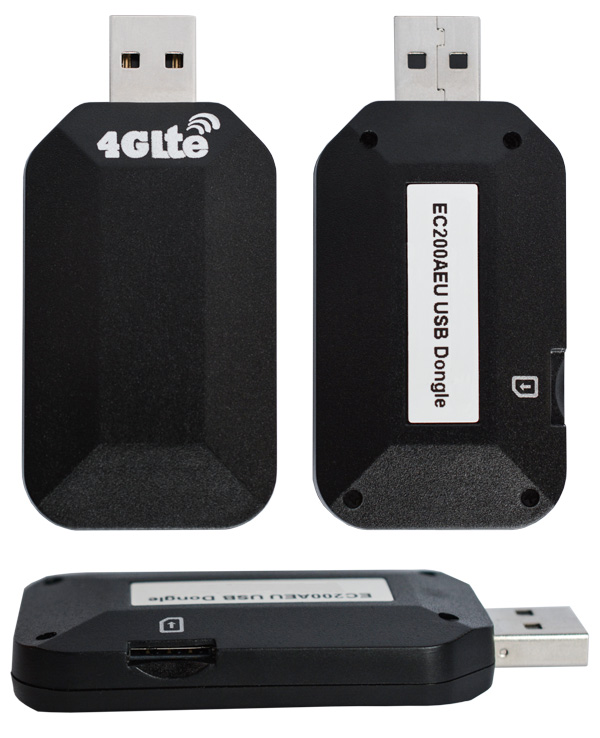

Wireless
Item |
Parameter |
|---|---|
Model |
Quectel EC200A-EU |
Interface |
USB2.0 |
Supply vlotage |
5V |
Working frequency band |
TDD-LTE B38/40/41, FDD-LTE B1/3/5/7/8/20/28, WCDMA B1/5/8, GSM/EDGE B3/8 |
Antenna interface |
3 (Main/Diversity/GNSS) |
USIM |
1.8V/3V |
Digital voice |
1 digital voice interface(optional) |
Network indicator |
2, NET_STATUS and NET_MODE |
Reset |
low level |
