1. Overview
1.1 Summary
Compact3566 is a credit card-sized single board computer (SBC) based on the Rockchip RK3566 Quad-core Cortex-A55 processor designed for IoT devices, such as home security system, Face Recognizing Robot, drones and HMI.

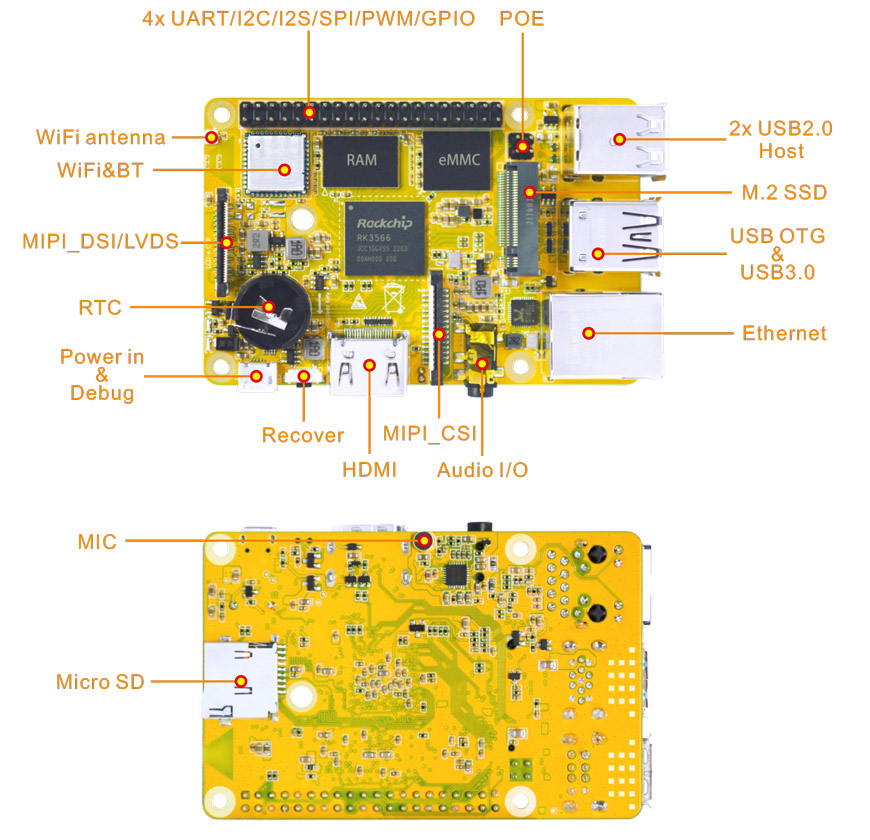

The small computing platform has a high-performance and low power processor with USB ports, Gigabit Ethernet, 2.4G/5G WiFi, M.2, micro-SD card slot, MIPI CSI camera connector, LVDS and HDMI port that support 4K monitors.
1.2 Product Parameters
Basic Parameters |
|
|---|---|
SoC |
Rockchip RK3566 |
CPU |
Quad-Core ARM Cortex-A55, 1.8 GHz |
GPU |
ARM Mali-G52 2EE GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
NPU |
1 TOPS |
Video |
Support 4K 60fps H.265/H.264/VP9 video decoding Support 1080P 60fps H.265/H.264 video encoding |
Memory |
2/4/8GB LPDDR4 or LPDDR4X RAM |
Storage |
8/16/32/64/128GB eMMC flash |
OS |
Android, Debian, Buildroot |
Electrical Parameters and Environmenta |
|
Power Supply |
5V/2A via Micro USB 5V DC via GPIO header PoE – enabled (requires separate PoE HAT) |
RTC |
3V |
Operating temperature |
0 to 70° |
Storage temperature |
-40° to 85° |
Mechanical Specifications |
|
Dimension |
85 x 56 x 19.5mm (Raspberry Pi 3-like form factor) |
PCB layer |
6 layers |
I/O and Network |
|
|---|---|
USB |
1x USB2.0 OTG (USB-AF) 2x USB2.0 Host 1x USB 3.0 |
Net working |
Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller 2.4G/5G WiFi(802.11 a/b/g/n/ac) with Bluetooth 4.2 |
Debug |
Micro USB |
Display |
MIPI DSI/LVDS, HDMI2.0 output |
Audio |
ES8388 audio codec. 1x HDMI audio output 1x 3.5mm audio I/O jack, 1x differential MIC |
Camera |
MIPI CSI Camera module(Optional), 15-pin FPC connector. |
M.2 |
M.2 PCIe 2.1 socket NVMe SSD |
SD |
Micro SD card slot |
PoE |
Power over Ethernet (requires separate PoE HAT) |
Expansion |
4x UART, SPI, I2C, PWM, SPDIF_TX and GPIO via 40-pin header |
Misc |
1x Recovery button, 2x LED, RTC |

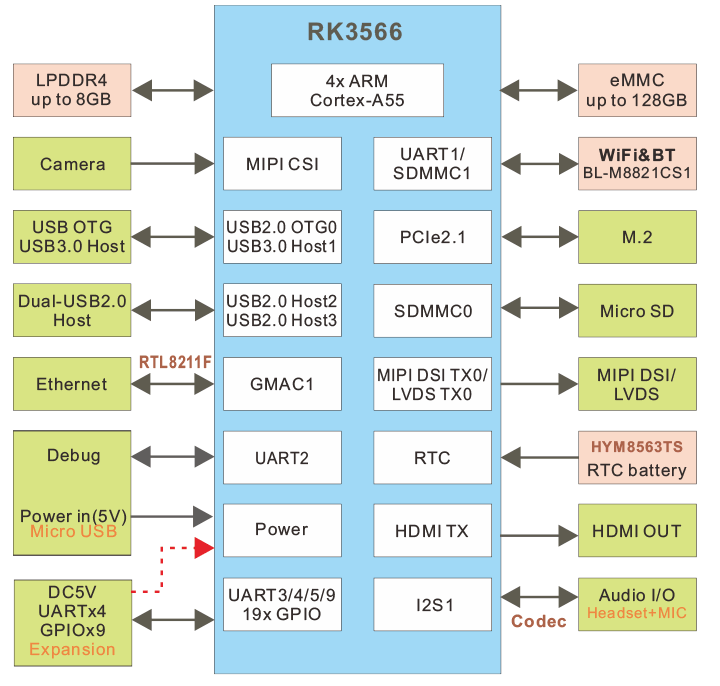

1.3 Compact3566 Block Diagram
