1. Install Rockchip Driver Assistant

If it is the first time to download firmware in Windows, you need to install Rockchip Driver DriverAssitant_v5.12/DriverInstall.exe

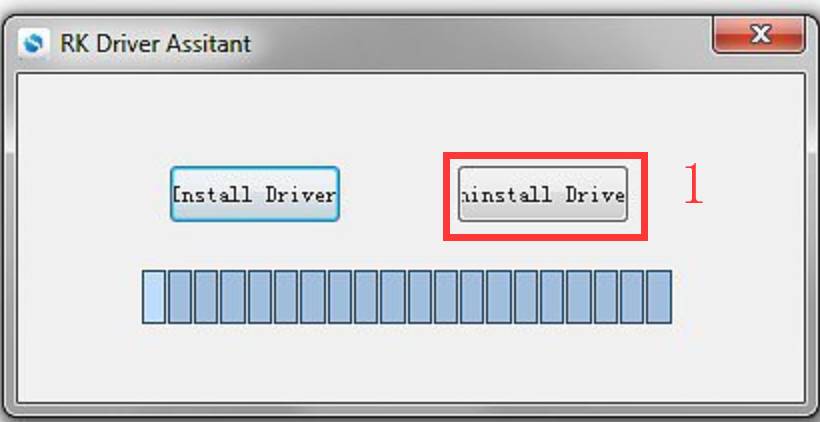

Click Uninstall Driver to uninstall the driver (Avoid driver conflict. The earlier drivers don’t detect RK3566 properly).

_images/image008.jpg

uninstall driver

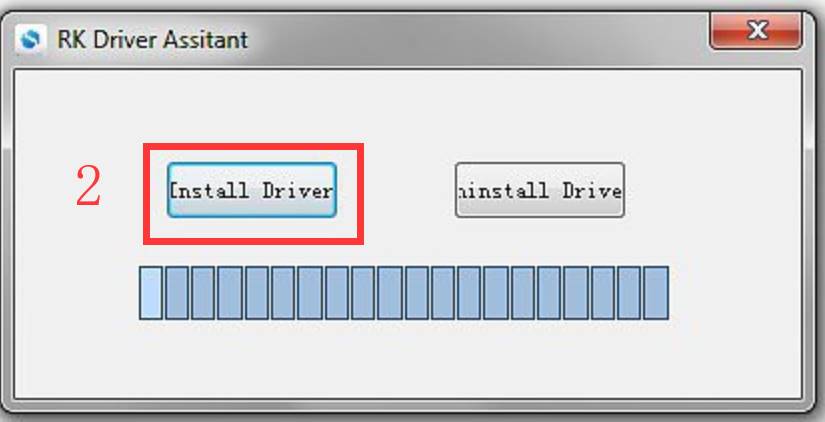

_images/image010.jpg

install driver

After the installation is complete, connect the board and PC with USB Type-A cable and press the Recovery key and hold then power the board, in Computer Management can see the USB driver was successfully installed.

_images/image013-1.png

If the device with a yellow triangle or exclamation mark, and the Window pop up found New Hardware Wizard dialog box, choose to install from the specified location, and then select \DriverAssitant_v5.12\ADBDriver to install.

_images/image011.png

After the installation is complete, in Computer Management can see the driver was successfully installed.

_images/image013.png
