1. Overview

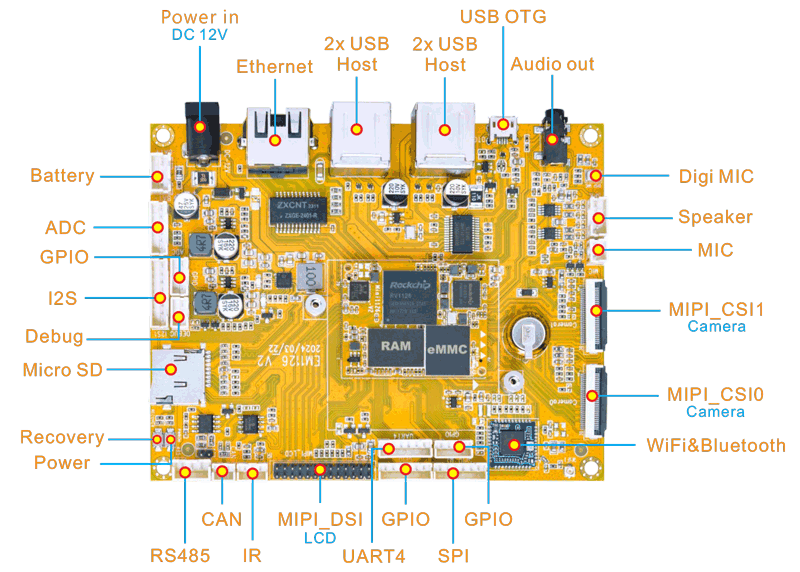

EM1126 is a single board computer (SBC) powered by Rockchip RV1126 SoC with a quad-core ARM Cortex-A7 and RISC-V MCU and a neural network acceleration with performance up to 2.0 TOPS. It is focus on applications related to video conference, video capture cards, Smart Home, and 4K wireless projectors.
Specifications |
|
|---|---|
CPU |
Rockchip RV1126 Quad-core Cortex-A7 @ 1.5 GHz + RISC-V MCU @ 400 MHz |
GPU |
2D graphics engine |
NPU |
2 TOPS |
Memory |
2GB (up to 4GB) |
Storage |
8GB eMMC flash (up to 32GB) Micro SD card slot |
Power Supply |
12V/3A DC input jack 7.4V Li-Battery |
USB |
1x USB2.0 OTG 4x USB2.0 Host 2.0 |
Connectivity |
Gigabit Ethernet RJ45 portvia Realtek RTL8211F-CGcontroller 2.4G WiFi (802.11b/g/n) with Bluetooth 4.2 |
Serial |
1x Serial port for debug, 3-pin connector 1x UART, 6-pin connector 1x RS485, 3-pin connector |
Display |
MIPI DSI, 26-pin header |
Audio |
Rockchip RK809-2 audio codec. 3.5mm audio I/O jack 2-channel Speaker (4-pin connector) 1x digital MEMS MIC, 1x differential MIC |
Camera |
2x MIPI Cameras, 24-pin FPC connector |
Keys |
Recovery, Power |
Other features |
RTC with battery connector, GPIO, SPI, I2S, ADC, CAN, IR |
Dimensions |
Based board – 120 x 95mm; CPU module - 38 x 30mm |
