1 Configuration List
Part |
Description |
|---|---|
EM1126 |
EM1126 SBC, built-in WIFI&BT module, without RTC battery and panel |
Power adapter |
12V/3A |
Micro USB cable |
Used to download |
Serial adapter module |
USB-to-UART |
Ethernet cable |
1.5M Ethernet crossover cable |
WiFi Antenna |
Flexible uFL 2.4GHz antenna |
U-disk |
User manuals, Schematics, Images, etc. |
2 Accessories (optional)
Panel
Item |
Parameter |
|---|---|
Model |
K101-IM2KYL02-L3 |
Display interface |
MIPI |
Resolution |
1280 x 800 |
Number of colors |
16.7M |
Display mode |
Normally Black |
Pixel arrangement |
RGB Vertical stripe |

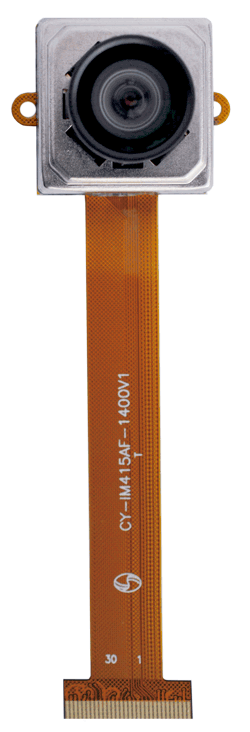

Camera
Item |
Parameter |
|---|---|
Model |
DC-IM415AF-1400V1 |
Power supply |
analog: 2.9V, digital: 1.1V, I/O: 1.8V |
Output format |
RAW10/RAW12 |
Interface |
MIPI |
Pixels |
8.29 megapixel (3840 x 2160) |
