1 Configuration List
Part |
Description |
|---|---|
Idea3588 |
Idea3588 SBC, built-in WIFI&BT module, without RTC battery and panel |
Power adapter |
12V/3A |
USB Type-C cable |
Used to download |
Serial adapter module |
USB-to-UART |
Ethernet cable |
1.5M Ethernet crossover cable |
WiFi Antenna |
Flexible uFL 2.4GHz antenna |
U-disk |
User manuals, Schematics, Images, etc. |
2 Accessories (optional)

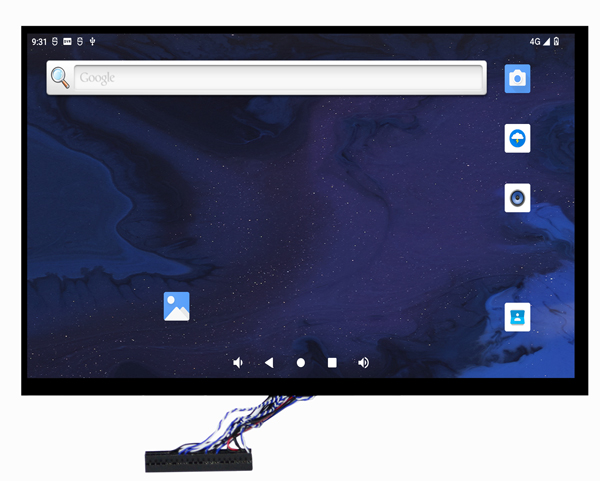

Panel
Item |
Parameter |
|---|---|
Model |
CLAA101FP07 |
Display interface |
eDP |
Resolution |
1920 x 1200 |
Number of colors |
16.7M |
Display mode |
HFFS |
Pixel arrangement |
RGB Vertical stripe |

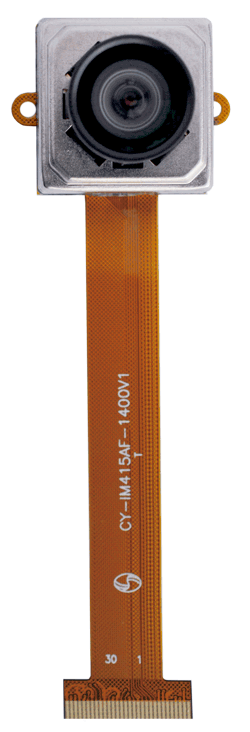

Camera
Item |
Parameter |
|---|---|
Model |
DC-IM415AF-1400V1 |
Power supply |
analog: 2.9V, digital: 1.1V, I/O: 1.8V |
Output format |
RAW10/RAW12 |
Interface |
MIPI |
Pixels |
8.29 megapixel (3840 x 2160) |

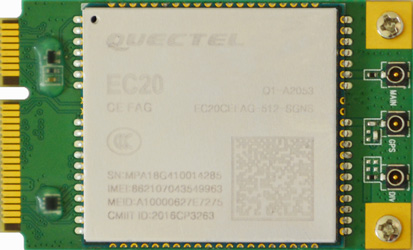

Wireless
4G modules sold on Boardcon’s official website support GNSS.
Item |
Parameter |
|---|---|
Model |
EC20-CE |
Supply vlotage |
3.3V~ 3.6V, Typical values: 3.3V |
Working frequency band |
TDD-LTE B38/B40/B41, FDD-LTE B1/B3/B8, WCDMA B1/B8, TD-SCDMA B34/B39, GSM 900/1800 |
Antenna interface |
3 (Main/Diversity/GNSS) |
USIM |
1.8V/3V |
Digital voice |
1 digital voice interface(optional) |
Network indicator |
2, NET_STATUS and NET_MODE |
Reset |
low level |
PWRKEY |
low level |

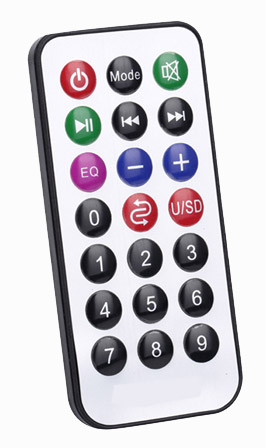

Infrared controller
Item |
Parameter |
|---|---|
Model |
Remote Control |
Power |
3V, CR2025 |
