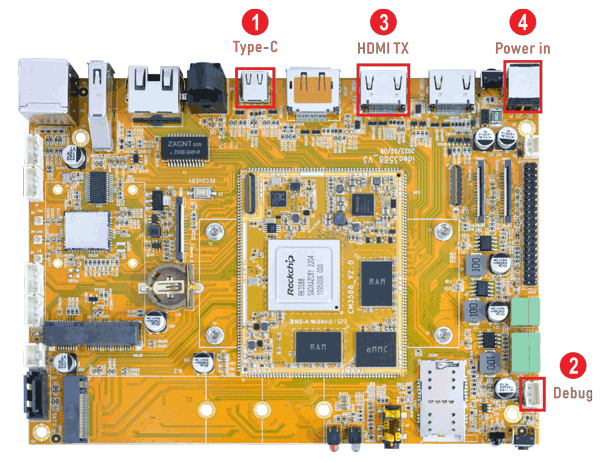

2. Quick Setup

❶ Connect USB Type-C cable between host PC and Idea3588 USB Type-C port.

❷ Plug the USB-to-UART cable between PC and Idea3588 console connector.

On the host PC, start a terminal emulation program (such as SecureCRT) with the following serial port settings:

BaudRate	Data Bits	Stop Bits	Parity	Flow Control
1500000	8	1	None	None

❸ Connect the board and monitor with a HDMI cable.

❹ Plug the 12V/3A power supply into the DC jack, Idea3588 will turn on and boot into system.
