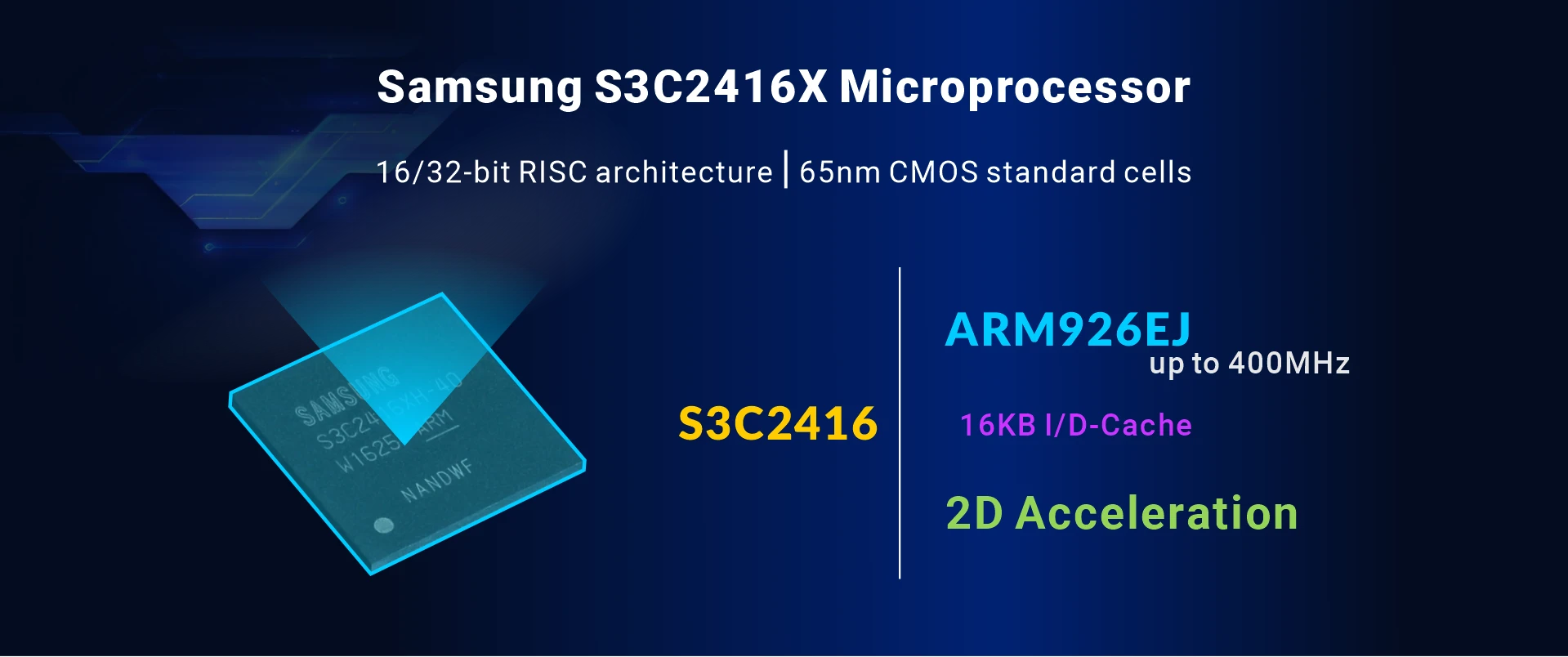

* Processor: Samsung ARM9 S3C2416X, 400MHz

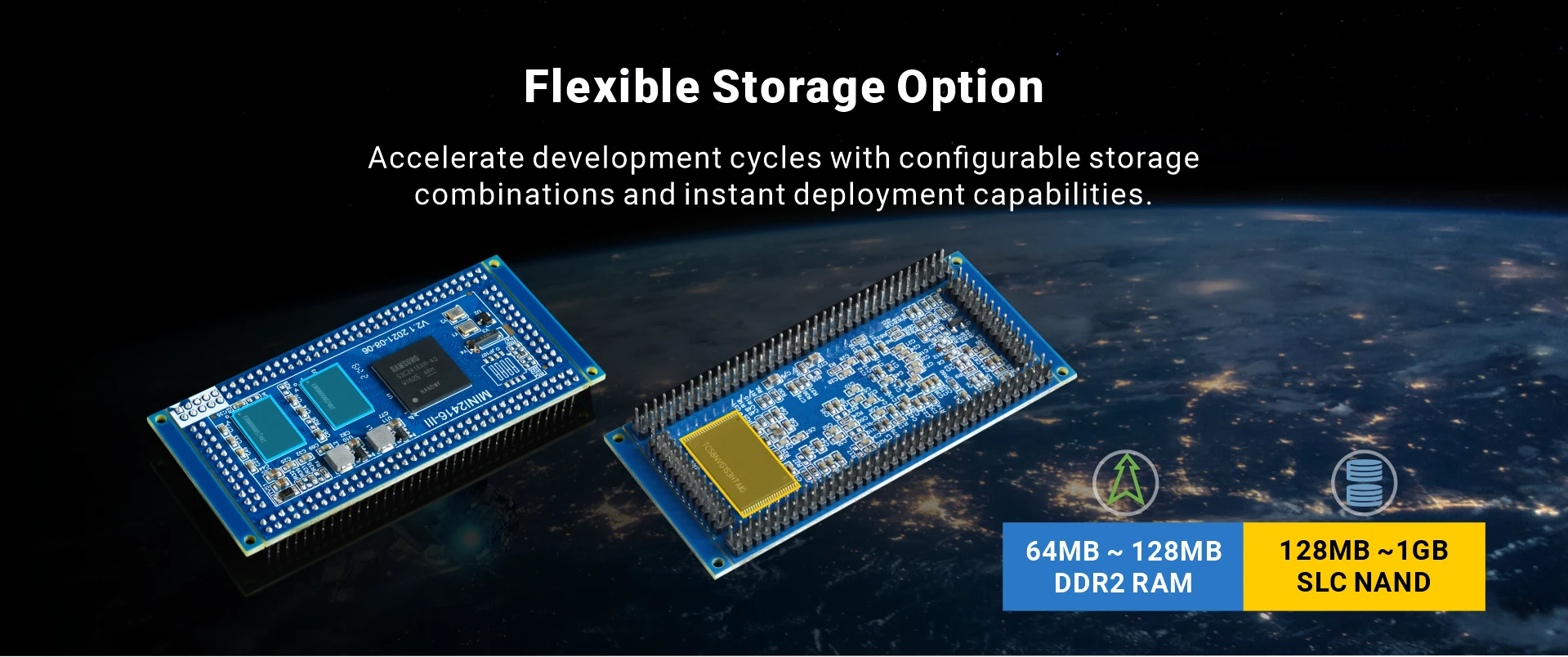

* RAM: 64MB/128MB
* Storage: 128MB/256MB/512MB/1GB

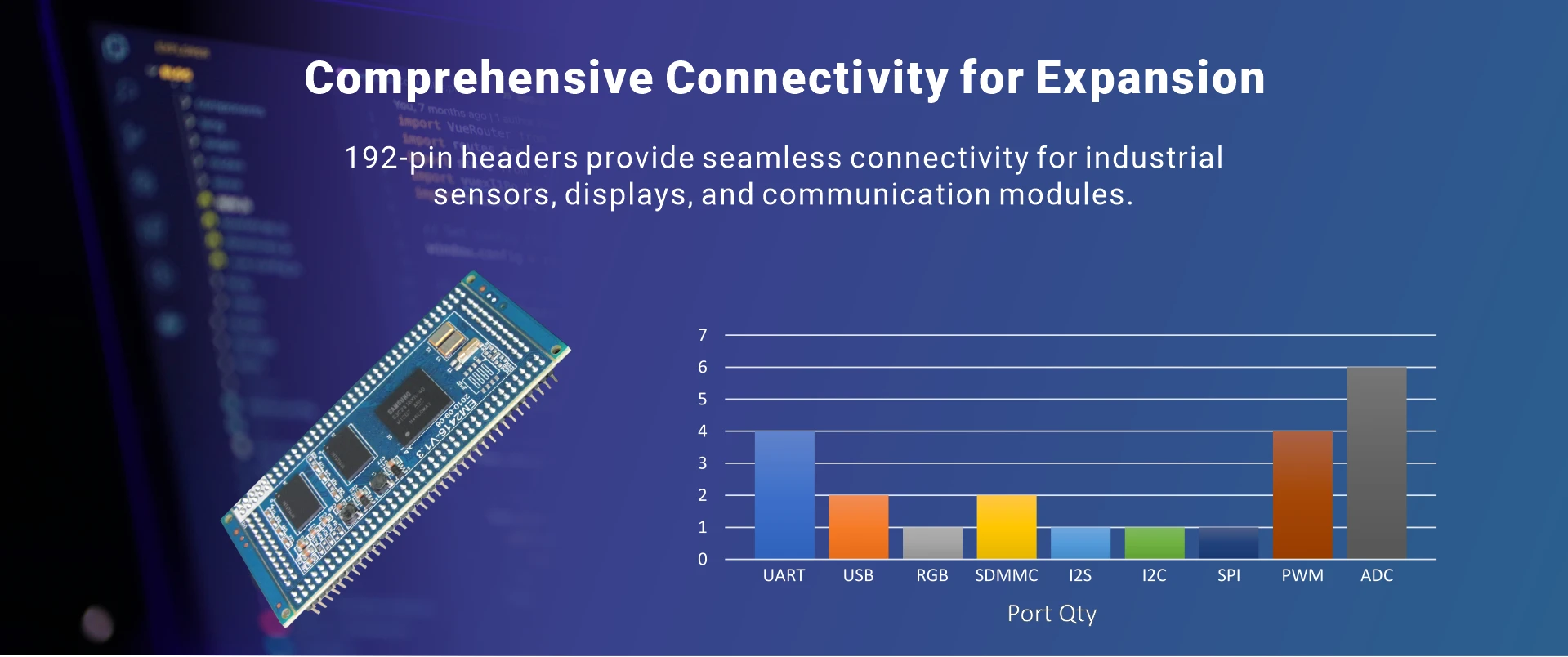

* Pin out: 4x UART, USB1.1 Host, USB2.0 Device, RGB, 2x SDMMC, I2S, I2C, SPI, PWM, ADC, GPIO, etc.
* Operating system: Linux 2.6.21, WinCE6.0
* Dimensions: 74 x 37 mm
* Compatible module: MINI2440, MINI210-III
* Connectors: 2x 72-pin + 2x 24-pin, 2.0mm pitch

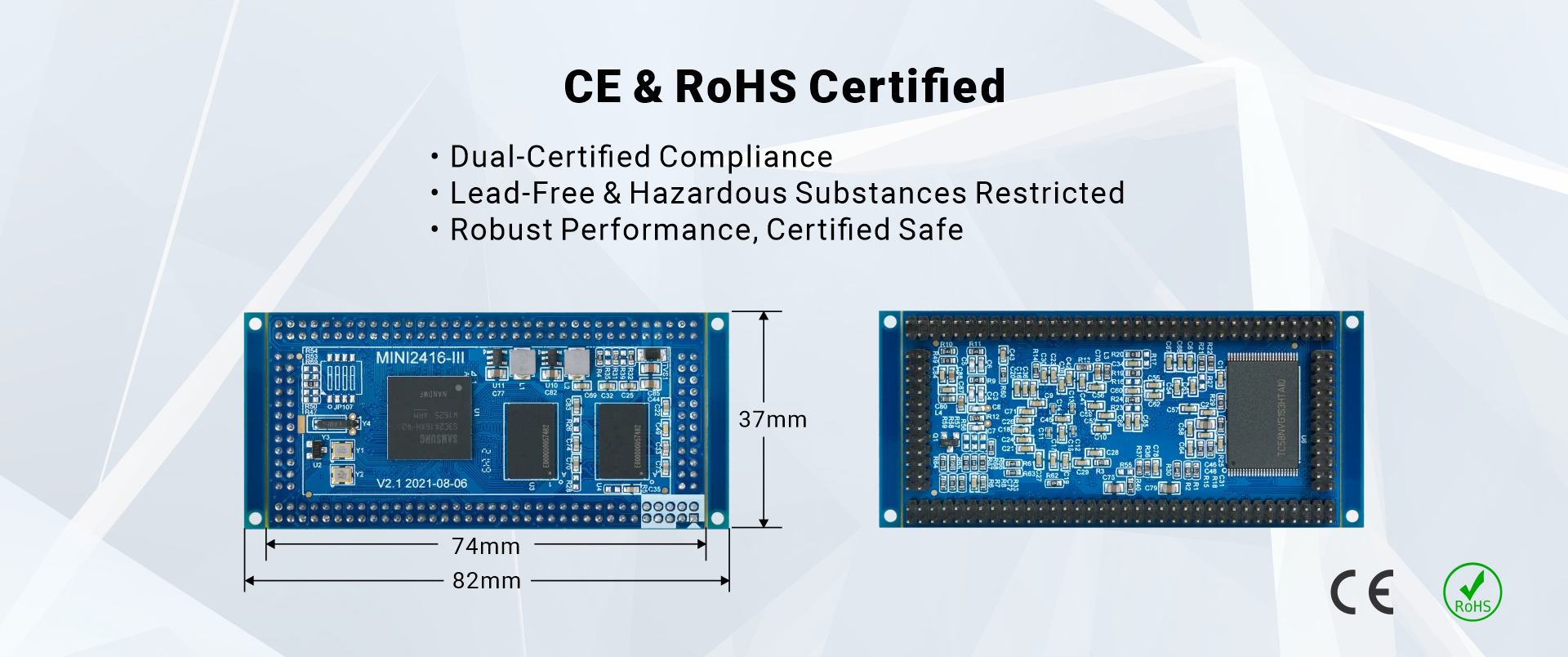

RoHS Certification, CE Certification, EMC Report

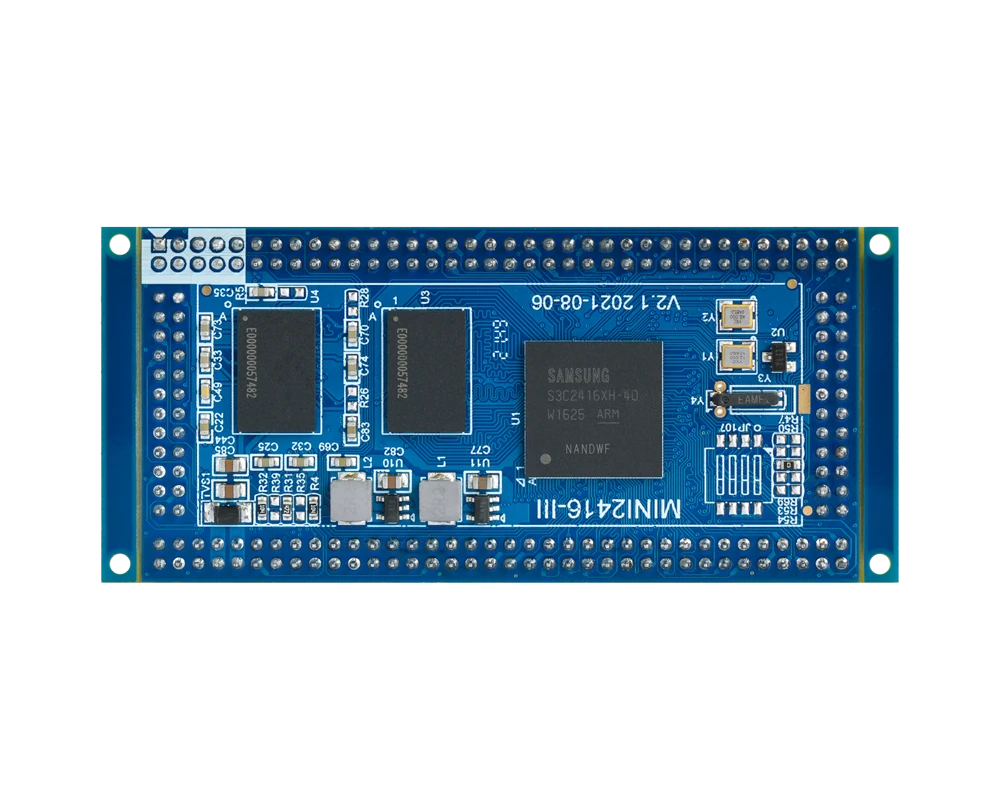

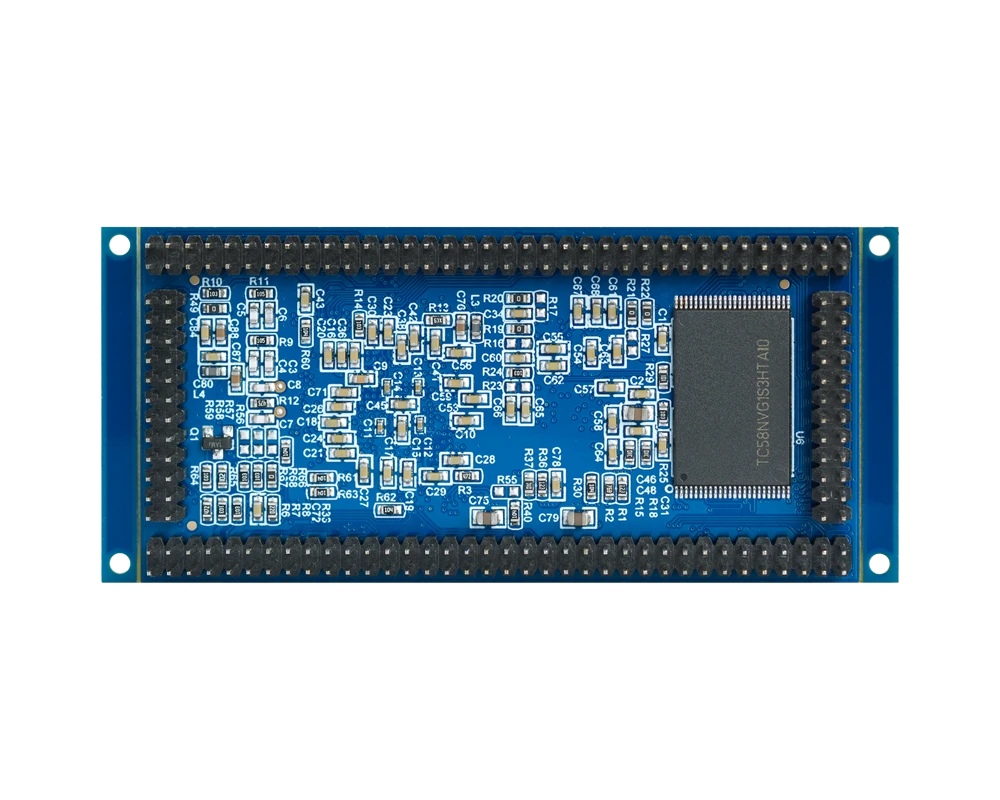

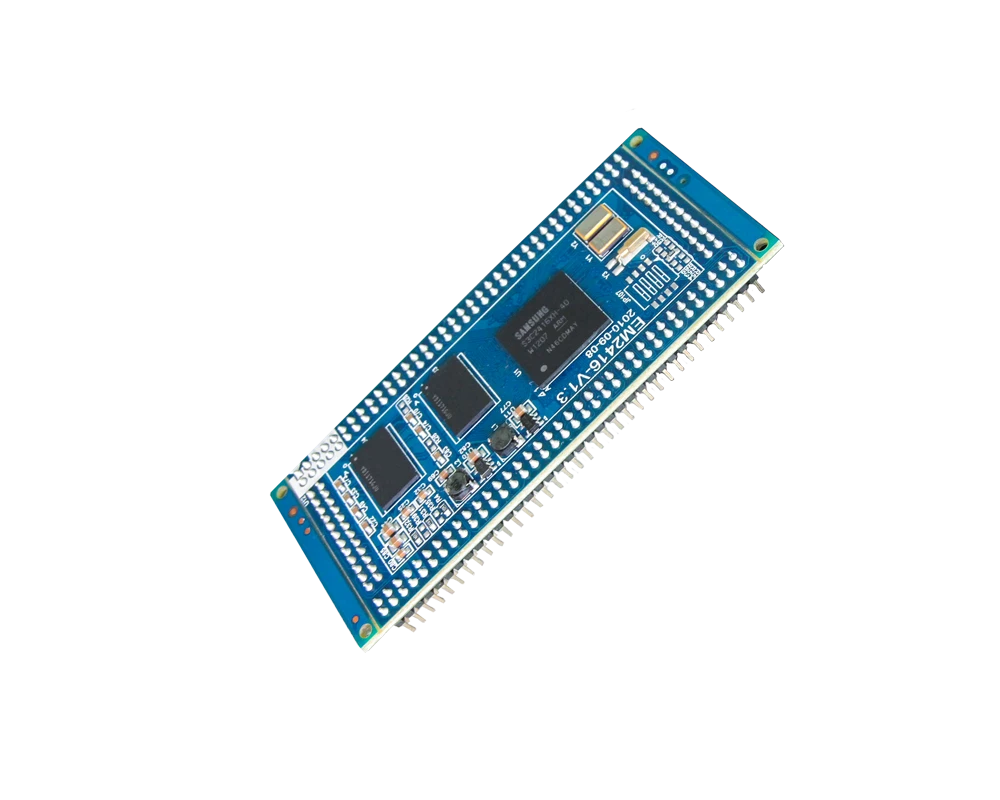

Boardcon MINI2416-III is a cost-effective arm9 based processor card which is based on Samsung S3C2416, it is designed specifically for business users who develop consumer electronics, industrial control, vehicle navigation, PDA and other electronic products.
The design of the MINI2416-III module offering high performance, lowest power consumption and a high degree of functional integration for entry level embedded applications. It is with a clock speed of 400MHz, contains 2D graphics acceleration video card which support common graphics acceleration function such as DirectDraw and GDI. The resolution of the video card is up to 1024*1024 pixels. Both MLC and SLC NAND Flash memory can be supported by MINI2416-III. Besides, MINI2416-III supports booting from SD, USB, OneNAND, NOR Flash and NAND Flash, to speed up the debugging and development for the upper application and low-level drivers greatly.
Rich peripherals such as USB, Ethernet, and integrated LCD controller make this module the ideal candidate for embedded applications requiring high performance and low power consumption. The on-board MMU supports major operating systems, including Linux and Embedded WinCE.
Specifications | |
---|---|
SoC | Samsung ARM926EJS S3C2416, 400MHz |
Memory | 64MB/128MB DDR2 |
Storage | 128MB/256MB/512MB/1GB SLC NAND Flash |
Supply Voltage | DC 3.3V |
Pin out | 4x UART, USB1.1 Host, USB2.0 Device, RGB, 2x SDMMC, I2S, I2C, SPI, 4x PWM, 6x ADC IN, GPIO, etc. |
Dimensions | 74 x 37 mm |
Weight | 18.2 gram |
Connectors | 2x 72-pin and 2x 24-pin, 2.0mm pitch Pin Header |
Application | POS terminals, industrial control, vehicle navigation, PDA and other electronic products. |
Development Board | EM2416 |
Certificates | CE Certification, EMC Report |
Block Diagram
PCB Dimension

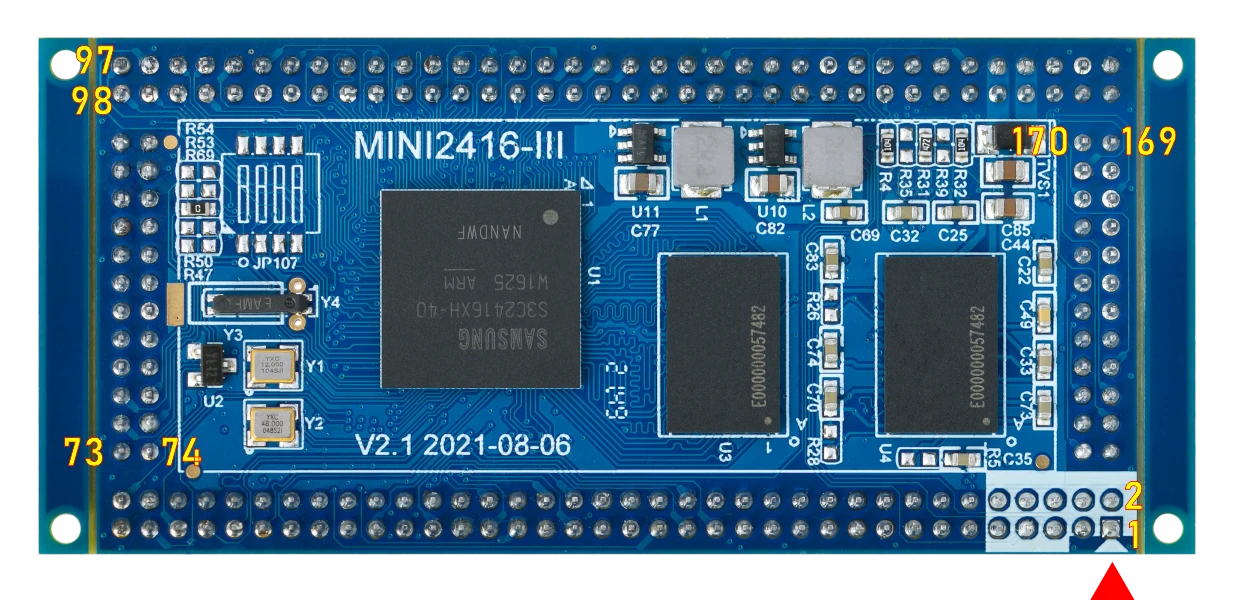

Pin Definition
Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
---|---|---|---|---|---|---|---|
1 | DATA6 | 2 | DATA7 | 3 | ADDR7 | 4 | ADDR8 |
5 | ADDR5 | 6 | ADDR6 | 7 | ADDR3 | 8 | ADDR4 |
9 | ADDR1 | 10 | ADDR2 | 11 | DATA30 | 12 | DATA31 |
13 | DATA28 | 14 | DATA29 | 15 | DATA26 | 16 | DATA27 |
17 | DATA24 | 18 | DATA25 | 19 | DATA22 | 20 | DATA23 |
21 | DATA20 | 22 | DATA21 | 23 | DATA18 | 24 | DATA19 |
25 | DATA16 | 26 | DATA17 | 27 | nTRST | 28 | nRESRT |
29 | TDO | 30 | TDI | 31 | TCK | 32 | TMS |
33 | RXD2/GPH5 | 34 | TXD2/GPH4 | 35 | RXD1/GPH3 | 36 | TXD1/GPH2 |
37 | RXD0/GPH1 | 38 | TXD0/GPH0 | 39 | nRTS0/GPH9 | 40 | nCTS0/GPH8 |
41 | nRTS1/GPH11 | 42 | nCTS1/GPH10 | 43 | RXD3/GPH7/nCTS2 | 44 | TXD3/GPH6/nRTS2 |
45 | EINT4/GPF4 | 46 | EINT5/GPF5 | 47 | EINT6/GPF6 | 48 | EINT7/GPF7 |
49 | EINT8/GPG0 | 50 | EINT11/GPG3 | 51 | EINT14/GPG6 | 52 | EINT13/GPG5 |
53 | EINT15/GPG7 | 54 | EINT12/GPG4 | 55 | EINT10/GPG2 | 56 | EINT9/GPG1 |
57 | EINT2/GPF2 | 58 | VDD_RTC | 59 | DP_UDEV | 60 | AIN3 |
61 | DM_UDEV | 62 | AIN2 | 63 | DN | 64 | AIN1 |
65 | DP | 66 | AIN0 | 67 | SPIMISO/GPE11 | 68 | SS/GPL13 |
69 | SPICLK/GPE13 | 70 | SPIMOSI/GPE12 | 71 | EINT0/GPF0 | 72 | nXBREQ/GPB6/RTCK |
73 | CLKOUT1/GPH14 | 74 | RGB_LEND/GPC0 | 75 | RADDR21/GPA6 | 76 | RADDR22/GPA7 |
77 | RADDR23/GPA8/ BOOT_SEL |
78 | RADDR24/GPA9 | 79 | EINT3/GPF3 | 80 | SD1_DAT2/GPL2 |
81 | SD1_DAT3/GPL3 | 82 | SD1_CMD/GPL8 | 83 | SD1_CLK/GPL9 | 84 | SD1_DAT0/GPL0 |
85 | SD1_DAT1/GPL1 | 86 | TCLK/GPB4 | 87 | RSMCLK/GPA23 | 88 | I2SCDCLK/GPE2 |
89 | I2SLRCK/GPE0 | 90 | I2SSCLK/GPE1 | 91 | RSMVAD/GPA24 | 92 | RSMBWAIT/GPM0 |
93 | I2SSDI/ GPE3 | 94 | I2SSDO/ GPE4 | 95 | nXBACK/GPB5 | 96 | XP/AIN9 |
97 | XM/AIN8 | 98 | YP/AIN7 | 99 | YM/AIN6 | 100 | RGB_VCLK/GPC1 |
101 | VLINE/GPC2 | 102 | VFRAME/GPC3 | 103 | VM/GPC4 | 104 | IICSCL/GPE14 |
105 | IICSDA/GPE15 | 106 | VD23/GPD15 | 107 | VD22/GPD14 | 108 | VD21/ GPD13 |
109 | VD20/ GPD12 | 110 | VD19/GPD11 | 111 | VD18/GPD10 | 112 | VD17/GPD9 |
113 | VD16/GPD8 | 114 | VD15/GPD7 | 115 | VD14/GPD6 | 116 | VD13/ GPD5 |
117 | VD12/GPD4 | 118 | VD11/GPD3 | 119 | VD10/GPD2 | 120 | VD9/GPD1 |
121 | VD8/GPD0 | 122 | VD7/GPC15 | 123 | VD6/GPC14 | 124 | VD5/GPC13 |
125 | VD4/GPC12 | 126 | VD3/GPC11 | 127 | VD2/GPC10 | 128 | VD1/GPC9 |
129 | VD0/GPC8 | 130 | nXDACK/GPB9 | 131 | nXDREQ/GPB10 | 132 | AIN4 |
133 | AIN5 | 134 | TOUT3/GPB3 | 135 | TOUT2/GPB2 | 136 | TOUT1/GPB1 |
137 | TOUT0/GPB0 | 138 | nRSTOUT | 139 | nBATT_FLT | 140 | nRBE0 |
141 | nRBE1 | 142 | CLKOUT0/GPH13 | 143 | EINT1/GPF1 | 144 | SD0_DAT2/GPE9 |
145 | SD0_DAT3/GPE10 | 146 | SD0_CMD/GPE6 | 147 | SD0_CLK/GPE5 | 148 | SD0_DAT0/GPE7 |
149 | SD0_DAT1/GPE8 | 150 | UARTCLK/GPH12 | 151 | nWAIT | 152 | nRCS1/GPA12 |
153 | nRCS2/GPA13 | 154 | nRCS3/GPA14 | 155 | nRCS4/GPA15 | 156 | nRCS5/GPA16 |
157 | nRCS0 | 158 | NC | 159 | GND | 160 | GND |
161 | 3.3V | 162 | 3.3V | 163 | DATA8 | 164 | DATA9 |
165 | DATA10 | 166 | DATA11 | 167 | DATA12 | 168 | DATA13 |
169 | DATA14 | 170 | DATA15 | 171 | ADDR25/GPA10 | 172 | ADDR0/GPA0 |
173 | nRWE | 174 | nROE | 175 | ADDR20/GPA5 | 176 | ADDR19/GPA4 |
177 | ADDR18/GPA3 | 178 | ADDR17/GPA2 | 179 | ADDR16/GPA1 | 180 | ADDR15 |
181 | ADDR14 | 182 | ADDR13 | 183 | ADDR12 | 184 | ADDR11 |
185 | ADDR10 | 186 | ADDR9 | 187 | DATA0 | 188 | DATA1 |
189 | DATA2 | 190 | DATA3 | 191 | DATA4 | 192 | DATA5 |
OS | Feature | Description |
---|---|---|
Linux2.6.21 | Bootloader | u-boot 1.3.4 1. Support Nand Flash erase/write/read 2. Support set, save Environment Variables 4. Support SD Card boot-up(replace JTAG) 5. Support bootm, bootargs setting |
Kernel and drivers | Kernel version: Linux2.6.21 Drivers: Serial ports, RTC, LCD, Touch Screen, SD card, Audio, Nand flash, WIFI, GSM/GPRS, GPS, supporting update image from SD |
|
File system | Yaffs File System, busybox, Provided Lib(ALSA-lib, tslib,glibc), udev support | |
Embedded GUI | Qtopia2.2.0 | |
Cross complier Environment | Cross-4.2.2-eabi |
