* Processor: Rockchip RK3566 Quad-core Cortex-A55, 1.8 GHz
* NPU: 1 TOPS

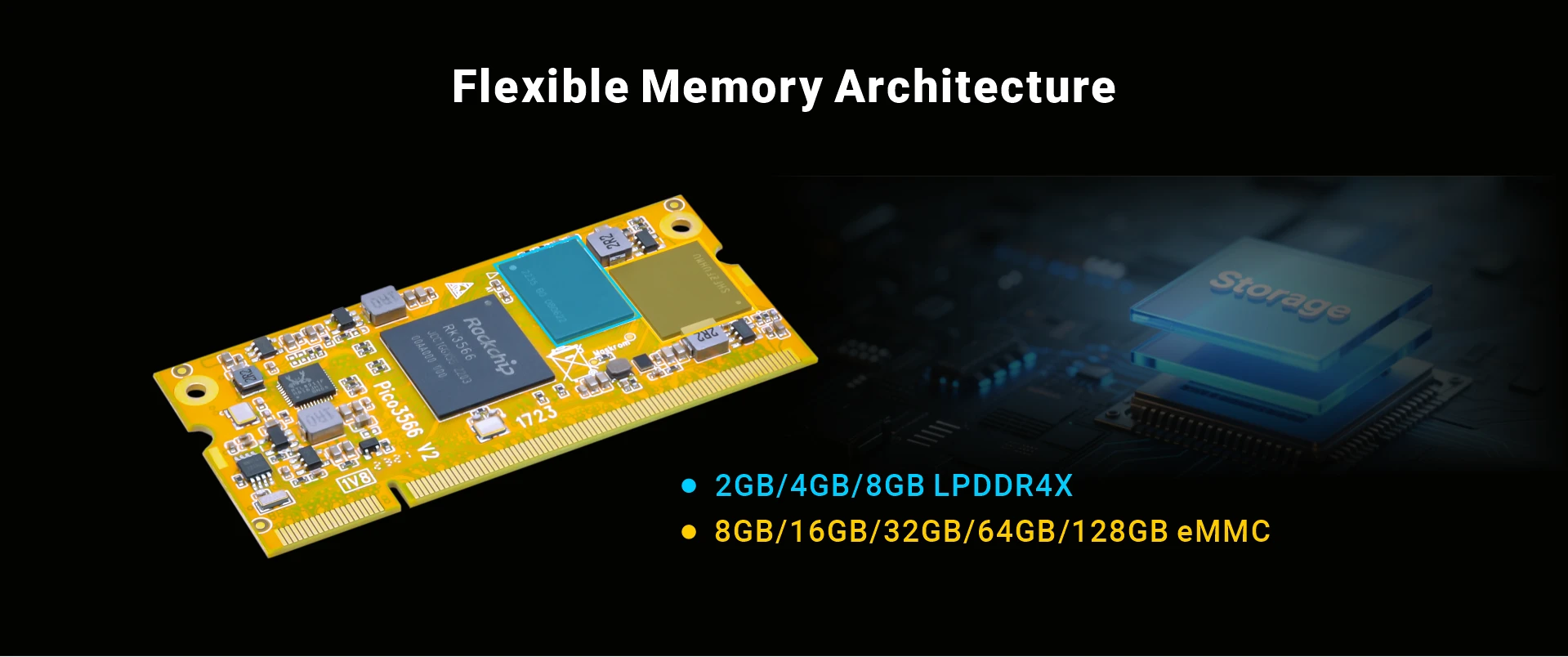

* RAM: 2/4/8GB
* Storage: 8/16/32/64/128GB
* Pin out: LVDS/MIPI DSI, MIPI CSI, I2S, HDMI, USB2.0 Host, USB3.0, USB2.0 OTG, Gigabit Ethernet, 2x SDMMC, SPDIF, I2C, SPI, 8x UART, Debug, PWM, ADC
* Operating system: Android12, Debian11
* Board size: 67.6 x 32mm
* Connector: 200-pin SODIMM edge connector

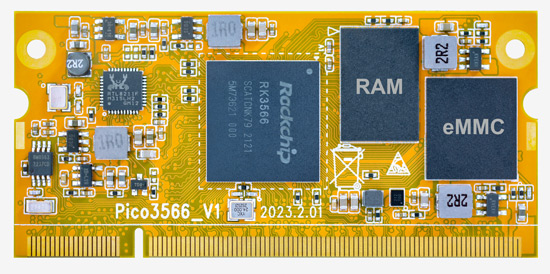

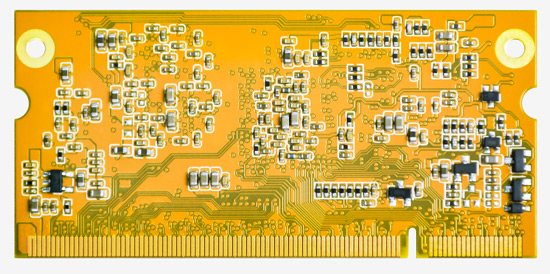

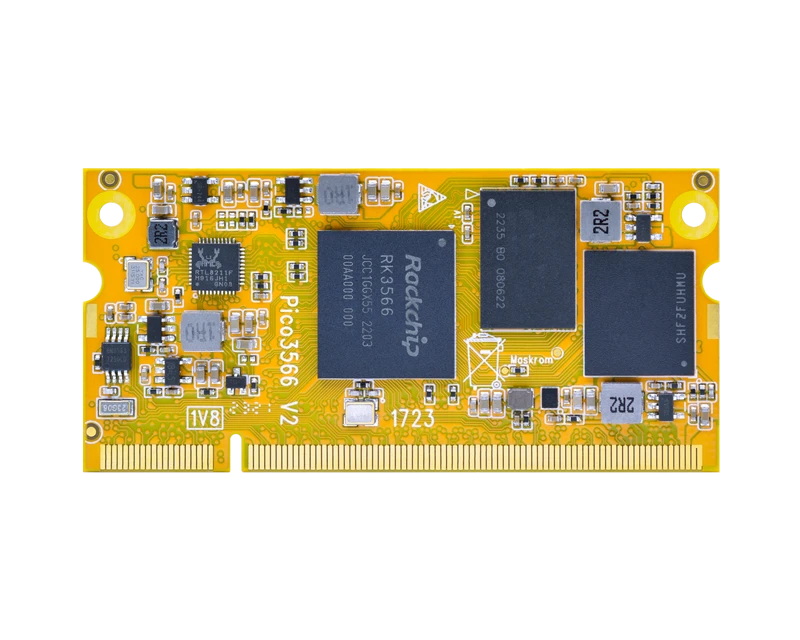

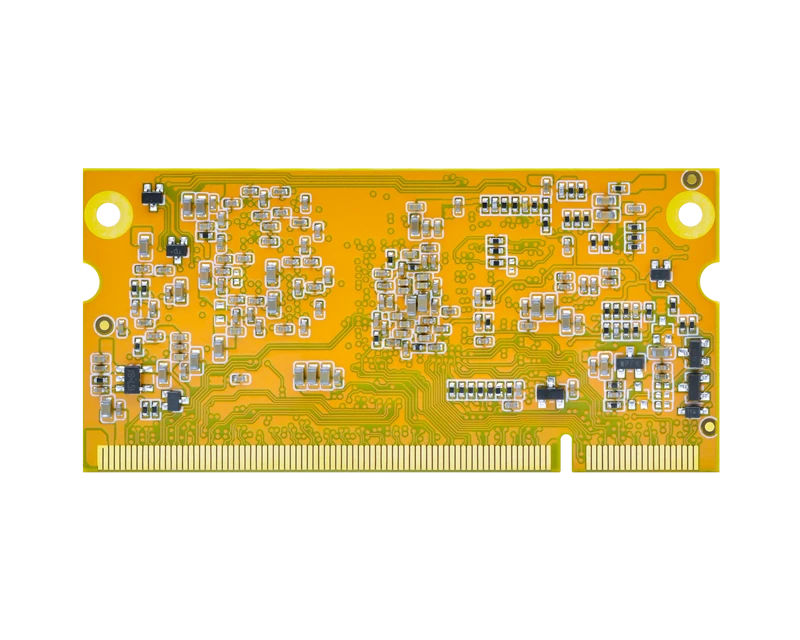

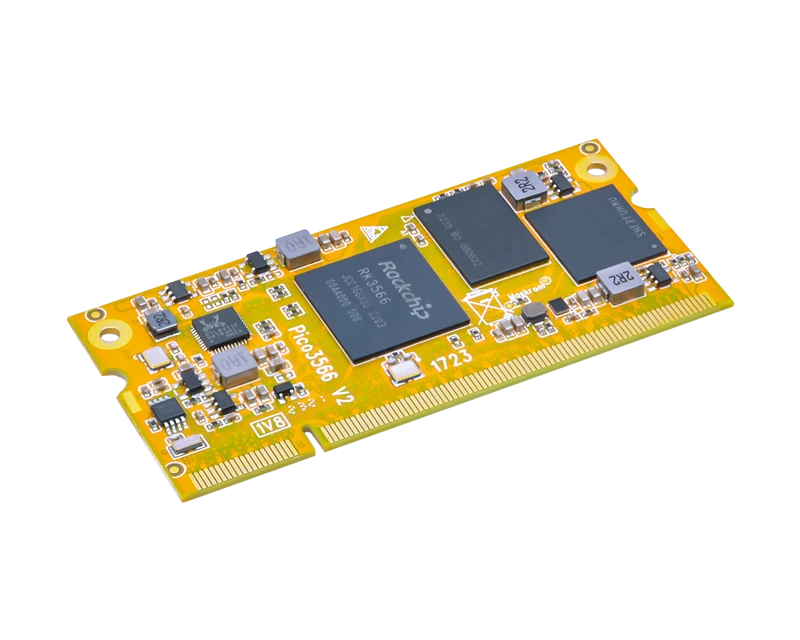

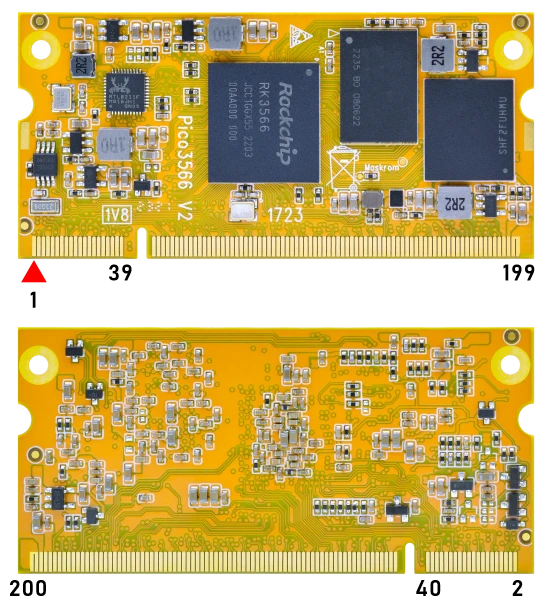

The PICO3566 is a Rockchip RK3566 quad-core system-on-module that offers an alternative to the Raspberry Pi CM3+, with the similar form factor allowing it to become a drop-in replacement. The SOM is designed specifically for the AI devices such as industrial controller, IoT devices, intelligent interactive devices, personal computers and robots.
PICO3566 comes with ARM Cortex-A55 cores, a Mali-G52-2EE GPU and a 1-TOPS NPU. The ARM architecture and advanced process brings higher performance and power efficiency. Up to 8M@30fps processing power, supporting time-sharing and multiplexing dual camera. RK3566 supports 4KP60 H.264/H.265/VP9 and other formats HD decoding and 1080p 60fps H.264 and H.265 format encoding. The build-in NPU supports INT8/INT16/FP16/BFP16 MAC hybrid operation.
|

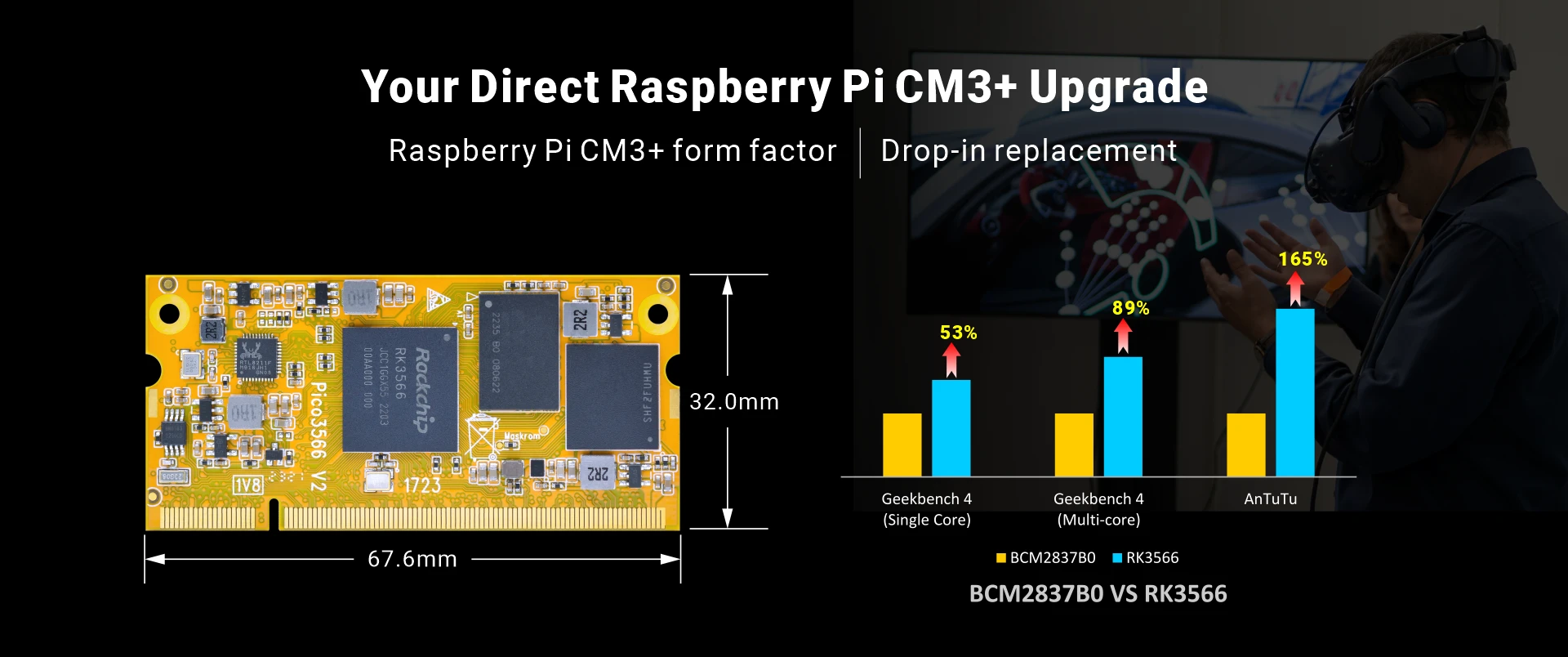

PICO3566 VS Raspberry Pi Compute Module 3+ |
||
|---|---|---|
| Model | PICO3566 | Raspberry Pi CM3+ |
| Processor | Rockchip RK3566, Quad-core Cortex-A55 64-bit SoC @ 1.8 GHz | Broadcom BCM2837B0, Quad-core Cortex-A53 64-bit SoC @ 1.2GHz |
| Lithography | 22nm | 28nm |
| GPU | ARM G52 2EE | Videocore IV |
| NPU | 1TOPS | N/A |
| Memory | 2/4/8GB LPDDR4 or LPDDR4X | 1GB LPDDR2 SDRAM |
| Storage | 8/16/32/64/128GB eMMC flash | 8/16/32GB eMMC Flash |
| Display interfaces | 1x HDMI2.0 up to 4K60 1x 4-lane MIPI DSI, 1x2-lane DSI 1x 4-lane LVDS multiplexed with 1x MIPI DSI |
1x HDMI 1.3a, 1080P30 1x 4-lane MIPI DSI, 1x 2-lane MIPI DSI 1x DPI (Parallel RGB Display) |
| Camera interfaces | 1x 4-lane MIPI CSI camera port or 2x 2-lane MIPI CSI camera port |
1x 4-lane MIPI CSI camera port 1x 2-lane MIPI CSI camera port |
| Ethernet | Gigabit Ethernet PHY (RTL8211F-CG) | N/A |
| USB | 1x USB2.0 OTG, 1x USB2.0 Host, 1x USB3.0 | 1x USB2.0 HOST/OTG |
| PCIe | 1x 1-lane PCIe Gen 2 | N/A |
| SATA | 2x SATA multiplexed with PCIe and USB 3.0 interfaces | N/A |
| GPIO | 66x GPIO: 4x I2C 4x SPI 9x UART 2x SD/SDIO 3x I2S 1x ADC 14x PWM |
48x GPIO: 2x I2C 2x SPI 2x UART 2x SD/SDIO 1x NAND interface (SMI) |
| Connector | 200-pin SODIMM edge connector | 200-pin SODIMM edge connector |
| Supply Voltage | Discrete Power on board: 3.3V - 5V | Discrete Power on board: 1.8V - 5V |
| Operating Systems | Android12, Debian 11 | Raspberry Pi OS |
| Dimensions | 67.6 x 32 mm | 67.6 x 31 mm |

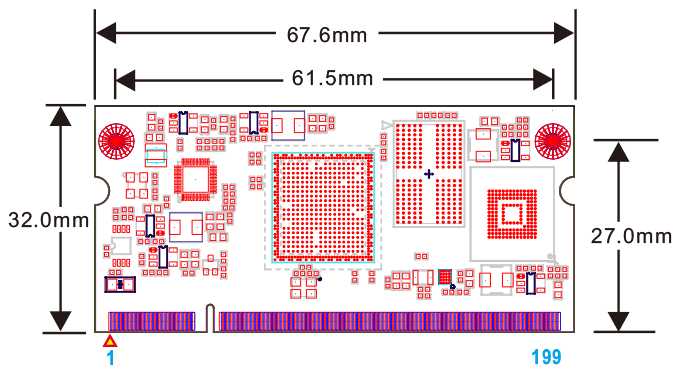

PCB Dimension
