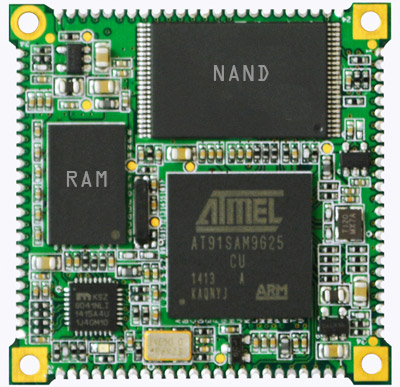

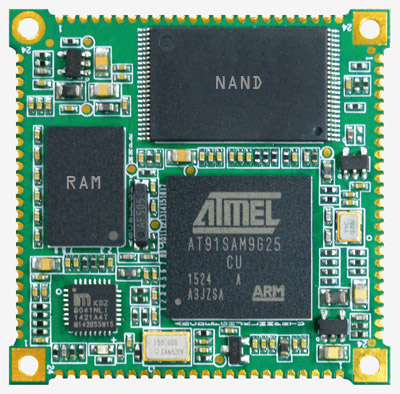

The MINI9G25 ARM9 Board is an ARM embedded computer on module(CoM) produced by BOARDCON, integrate the ATMEL ARM926EJ-S-based processor AT91SAM9G25, operating at 400MHz frequency, and can support Linux OS. The board has 128MB DDR2 SDRAM, 128MB NandFlash, 4MB DataFlash, 64KB Serial EEPROM.
- Small form-factor
- Available Carrier Board
- Custom engineering for customer needs
- Saving your resources
- Optimizing your product development cost
- Shortening time-to-market
- Avoiding development risk
|CPU||ARM9 @ 400Mhz on Atmel AT91SAM9G25-CU|

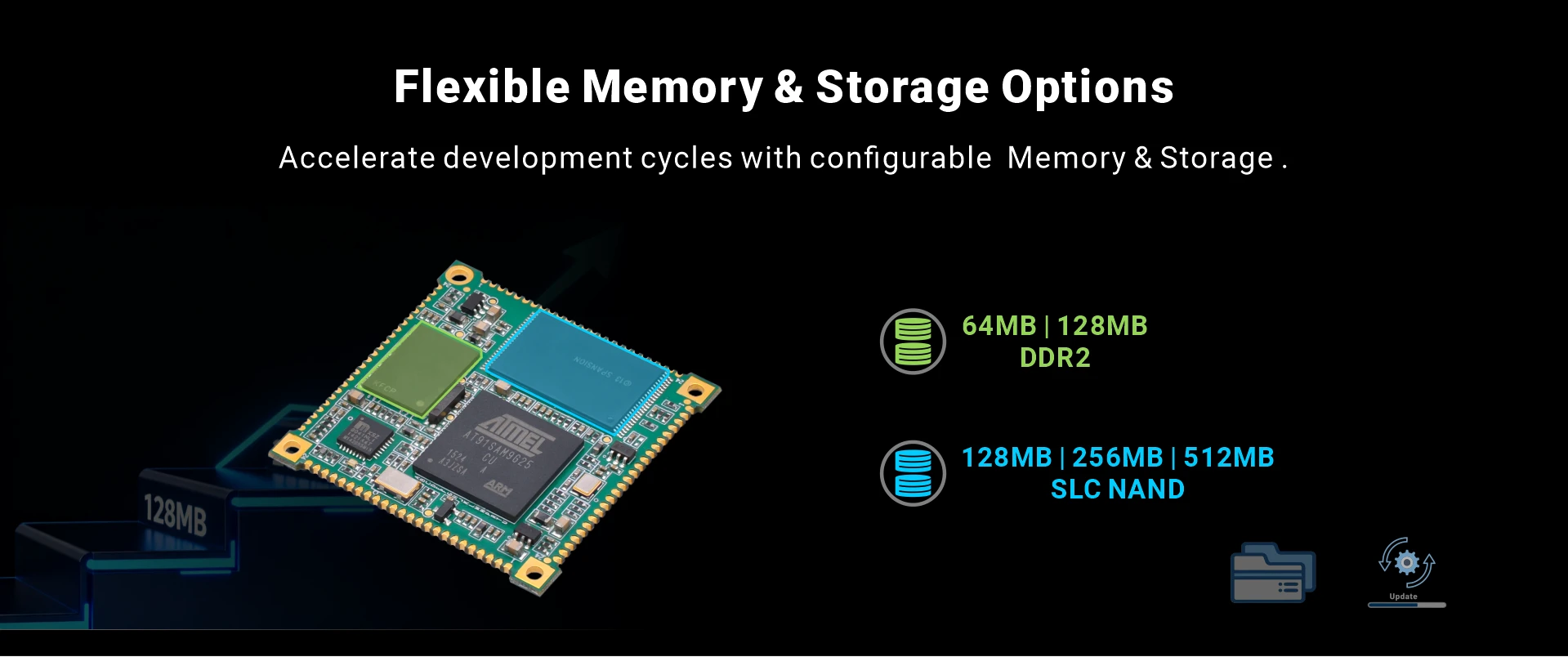

|Storage||128MB/256MB/512MB SLC NAND optional|
|Supply Voltage||DC 3.3V|
|Pin out||Ethernet, USB, UART, I2C, SPI, GPIO, SD, ADC, etc.|
|Ethernet||10/100M Ethernet, KSZ8041NL controller|

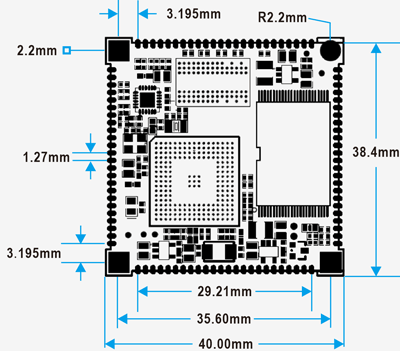

|Dimensions||40 x 40 mm|

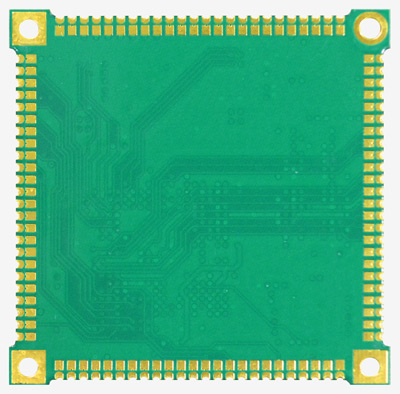

|Package||96-pin, 1.27mm pitch|
|Storage temperature||-40 to +85 °C|
|Application||Printer, industrial control, security device, electric power control system|

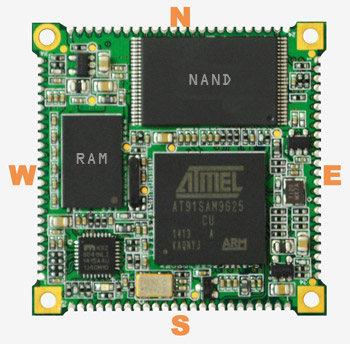

MINI9G25 Pin Definition
* Bootloader support (Support update the system via TF Card, USB Disk and Ethernet)
* Linux kernel version: Linux 3.6.9
* Buildroot rootfs provided (pre-install in the Nand Flash)
DHCP, SSH, Telnet, Test Demo Support
The Expand interface demo provide
Fully open source firmware, software environments and toolchains available from Atmel sites
* Debian system provided(Need boot from SD/TF card)
Thousands of Open Source applications available from the Debian repositories
Almost all programming language available
C, Python, Perl and PHP already installed on the factory default micro SD for in-board development
* All the Bootloader/Linux Kernel Source code and system images provide
* Buildroot is a configurable Makefile which downloads, configures, and builds cross compilers, the kernel, busybox, and most of the other stuff needed for a simple, small complete Linux distribution and root filesystem based on uClibc, glibc or EGLIBC C libraries
* Small root filesystem, you can install the system in Nand Flash
* User can refer to it in the atmel website: http://www.at91.com/linux4sam/bin/view/Linux4SAM/
* We provide the source code and system image in CD.
* Provide the developer method manul in the CD
* Support SSH, DHCP
* big root filesystem that contain more function, you have to install the system in SD card.
* It is possible to develop in almost any language using differents tools. In the developers page we illustrate some different development methods available and examples to manage the embedded peripherals in C or Python languages.
* The C compiler and the Python interpreter are pre-installed by default. Also a small web server (Lighttpd) and PHP language interpreter is already available for the web development.
* Other languages, tools, web servers, etc are available from Debian binary repositories and can be installed in few minutes.
* We propose, by default, a Debian Linux bootable from SD card. Any executable can be built starting from sources and following our tutorials. The basic requirements are a Linux Ubuntu PC.
Atmel AT91SAM9G25 datasheet (3.45MB)
MINI9G25 Hardware Guide (1.67MB)
MINI9G25 Pin Definition (319KB)
AT91 Bootstrap.pdf (225KB)
Atmel SoC Selection Guide.pdf (3.55MB)
If you order the System-on-Module or any question, please feel free to contact us at email@example.com
