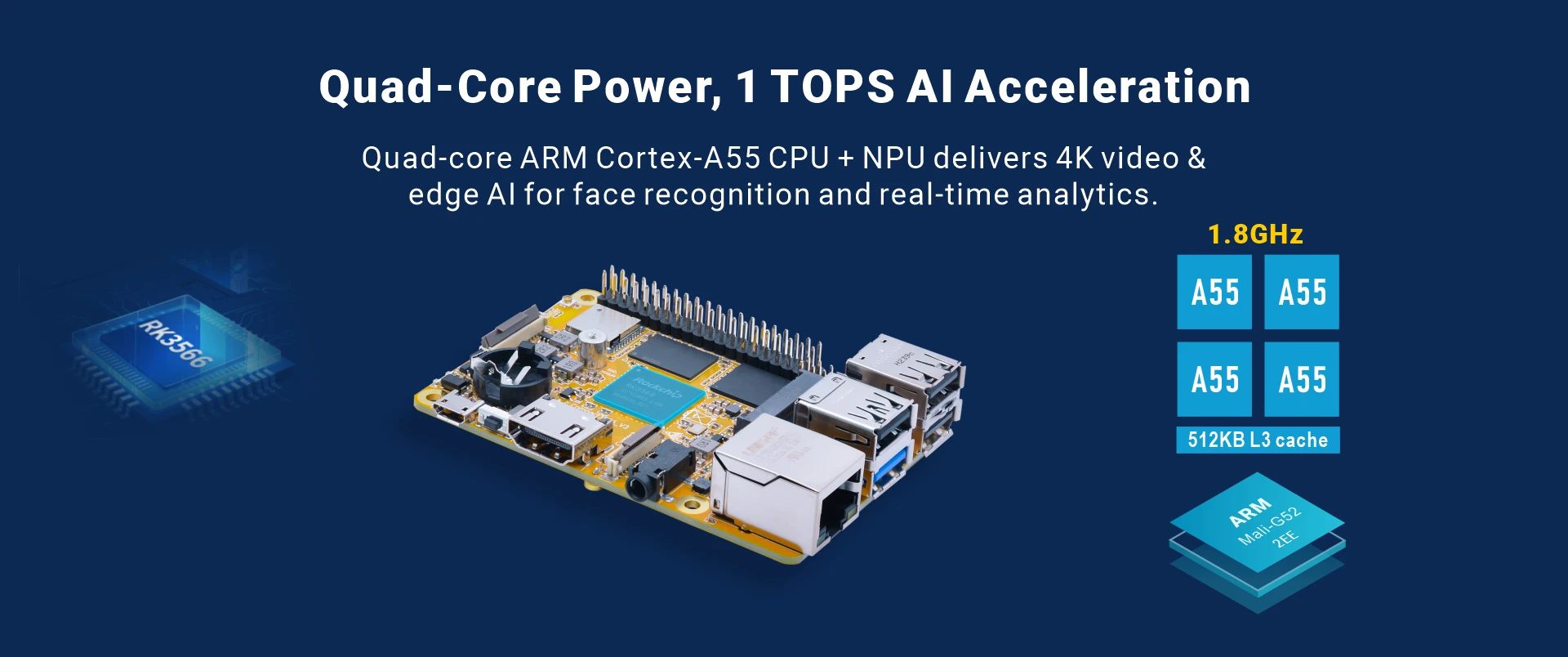

* Processor: Rockchip RK3566 Quad-core Cortex-A55, 1.8 GHz
* RAM: 2GB
* Storage: 8GB eMMC
* Interfaces: 4x UART, 2x USB2.0 Host, USB3.0, USB2.0 OTG, LVDS/MIPI_DSI, MIPI_CSI, Ethernet, HDMI, Audio I/O, SD, M.2, GPIO, SPI, I2C, etc.
* Operating system: Android11, Debian11, buildroot
* Board size: 85mm x 56mm

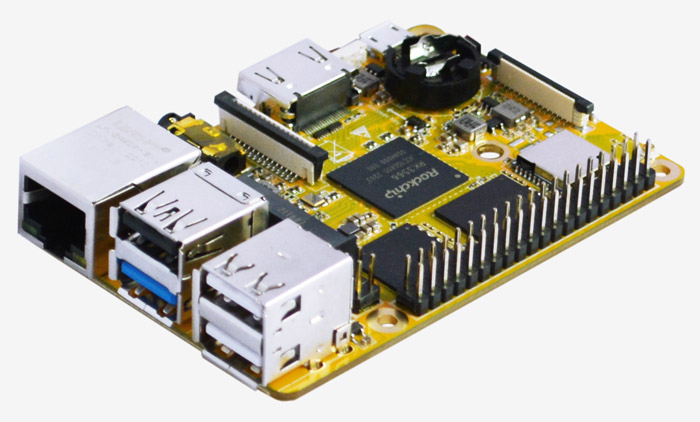

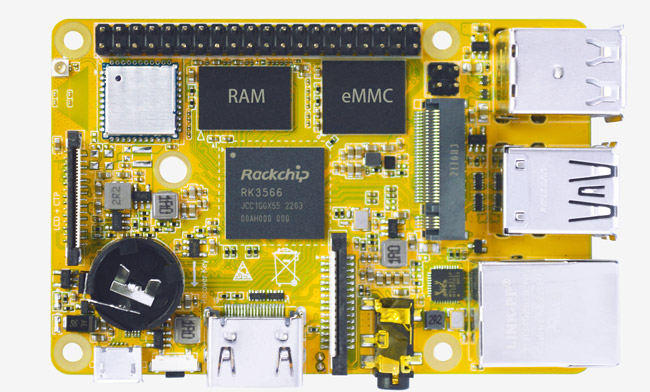

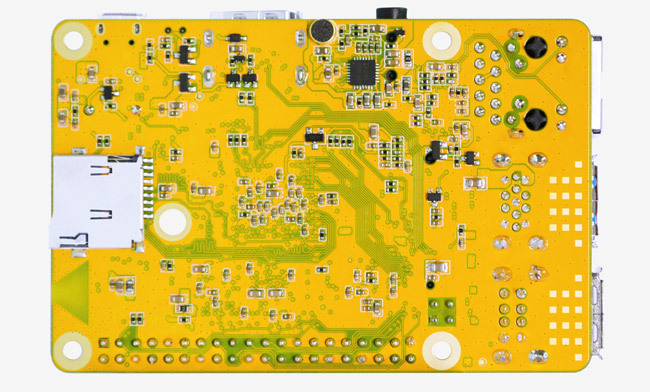

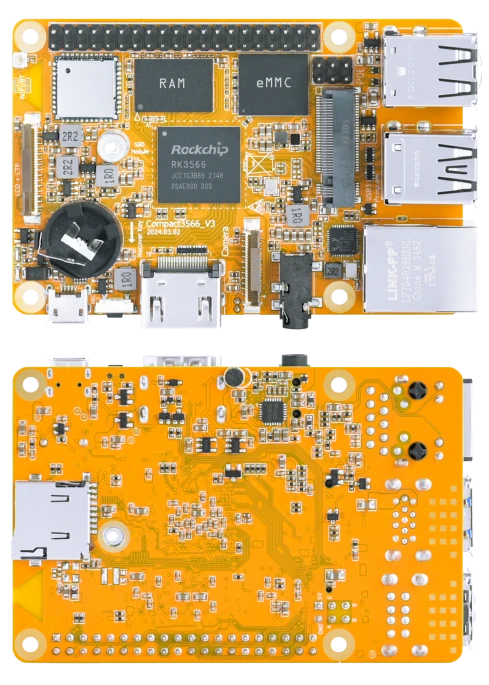

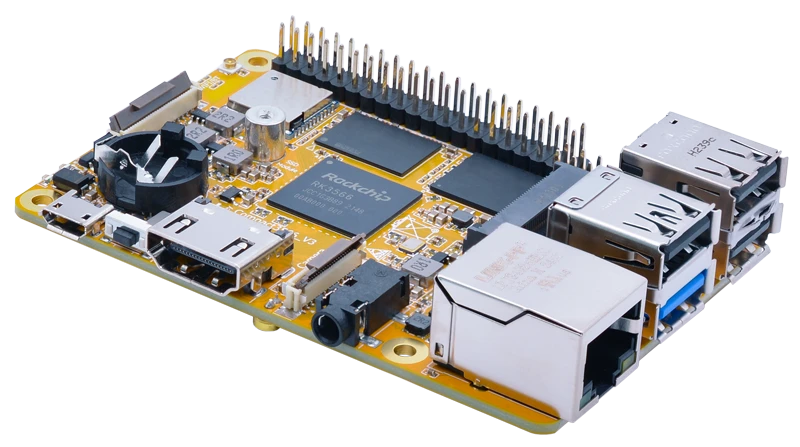

Compact3566 is a credit card-sized single board computer (SBC) based on the Rockchip RK3566 Quad-core Cortex-A55 processor designed for IoT devices, such as home security system, Face Recognizing Robot, drones and HMI.

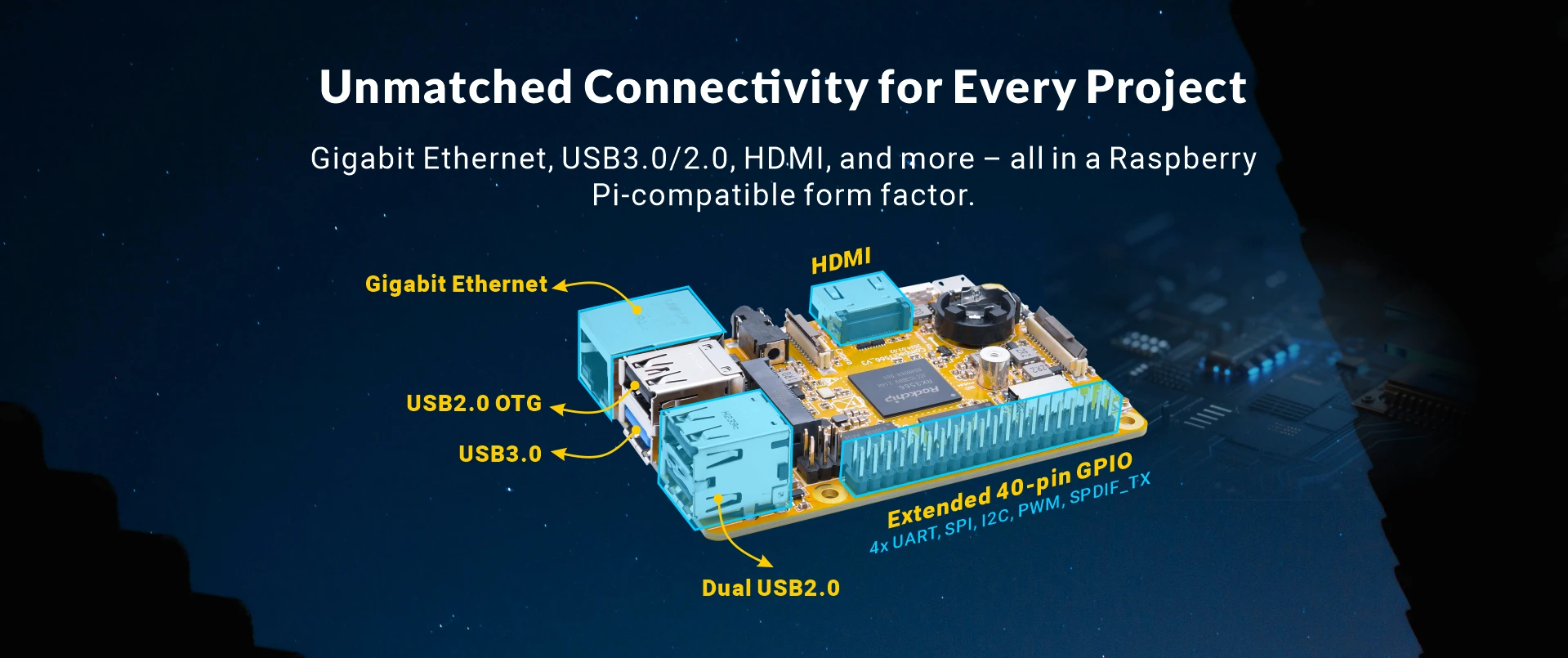

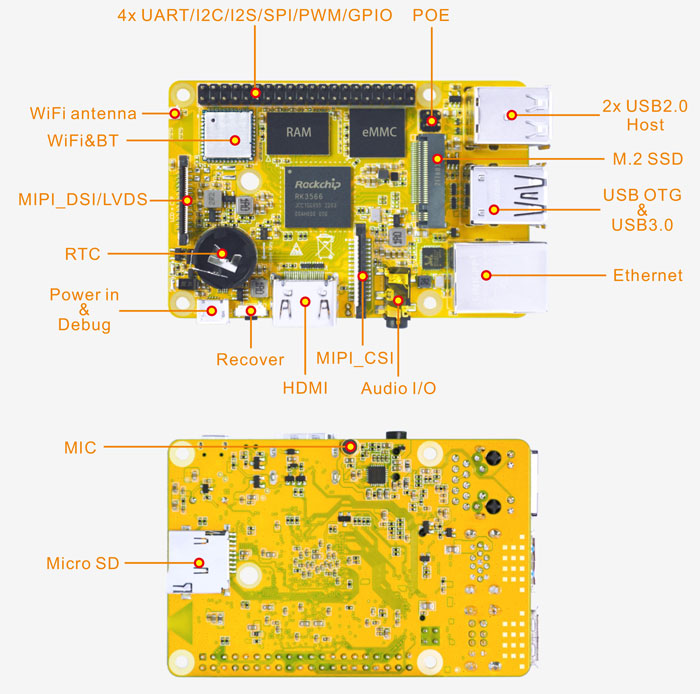

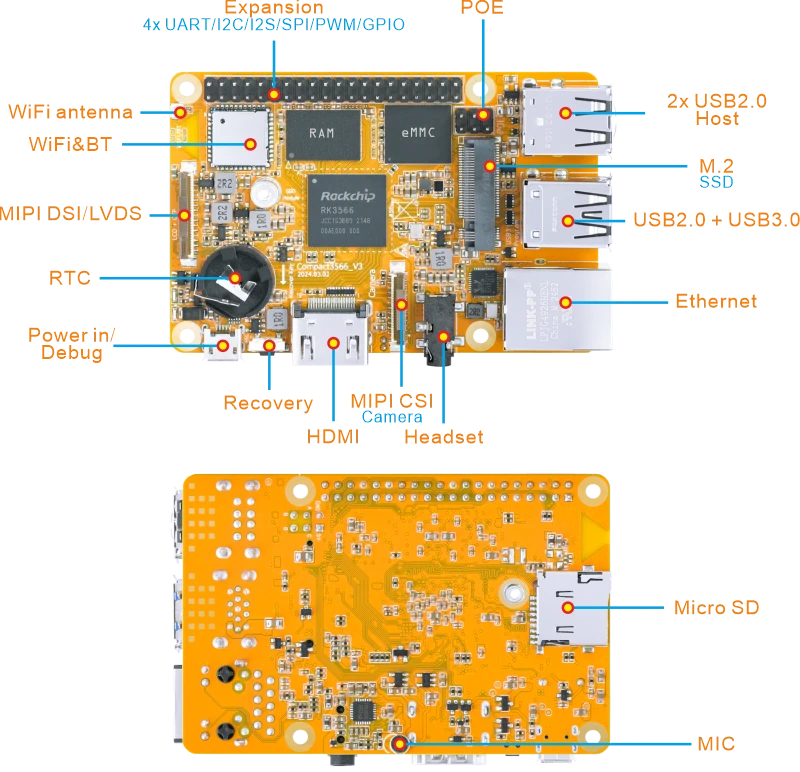

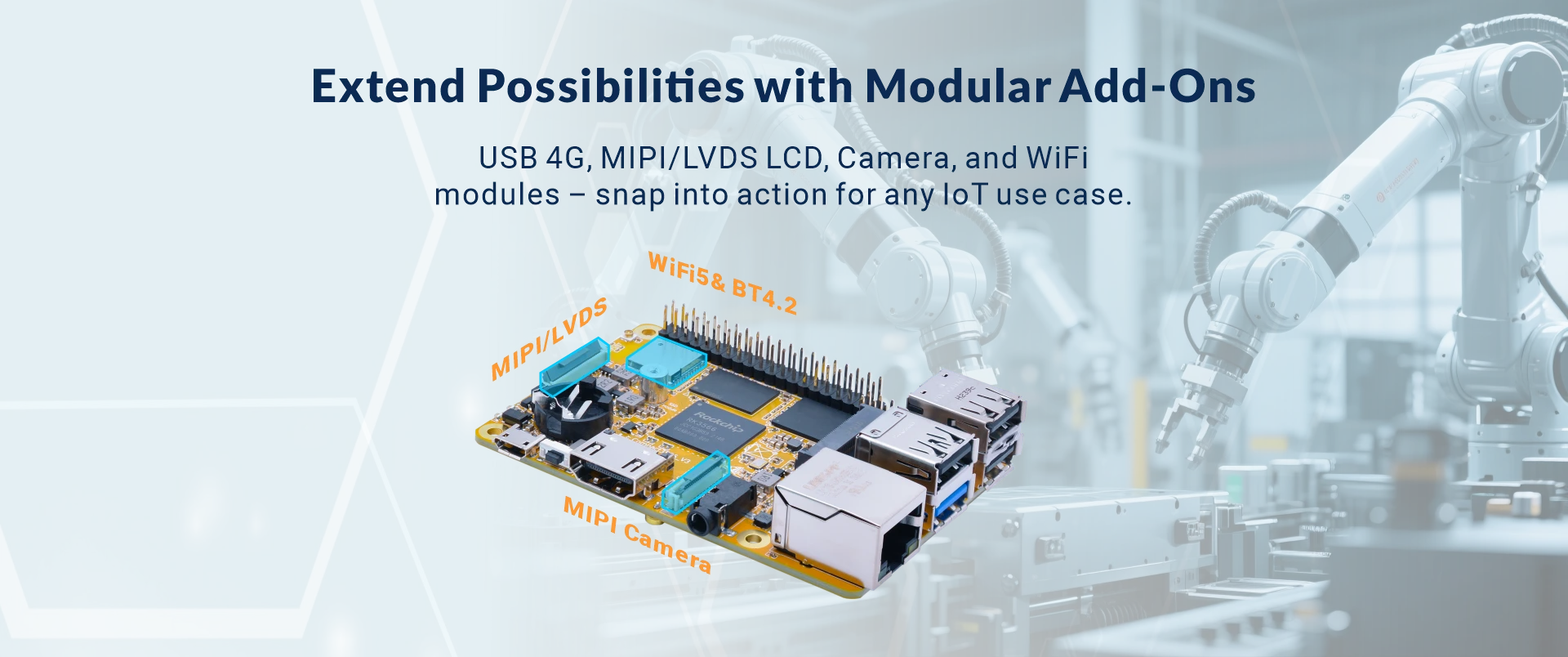

The small computing platform has a high-performance and low power processor with USB ports, gigabit Ethernet, 2.4G/5G WiFi, M.2, micro-SD card slot, MIPI CSI camera connector, MIPI DSI( or LVDS) and HDMI port that support 4K monitors.
Compact3566 VS Raspberry Pi 3 Model B+ |
||
---|---|---|
Model | Compact3566 | Raspberry Pi 3 Model B+ |
Processor | Rockchip RK3566, Quad-core Cortex-A55 64-bit SoC @ 1.8 GHz | Broadcom BCM2837B0, Quad-core Cortex-A53 64-bit SoC @ 1.4GHz |
Lithography | 22nm | 28nm |
GPU | ARM G52 2EE | Videocore-IV |
NPU | 1TOPS | N/A |
OS | Android11.0, debian 11, buildroot | Raspios |
Memory | 2/4/8GB LPDDR4 or LPDDR4X | 1GB LPDDR2 SDRAM |
Storage | - 8/16/32/64/128GB eMMC flash - M.2 PCIe 2.0 socket NVMe SSD - Micro SD slot |
Micro SD slot |
Connectivity | - 2.4GHz and 5GHz IEEE 802.11 a/b/g/n/ac wireless LAN, Bluetooth 4.2 - Gigabit Ethernet |
- 2.4GHz and 5GHz IEEE 802.11 b/g/n/ac wireless LAN, Bluetooth 4.2 - Gigabit Ethernet |
Video & sound | - HDMI2.0 - MIPI DSI/LVDS display port - MIPI CSI camera port - stereo output and composite video port |
- HDMI1.3 - MIPI DSI display port - MIPI CSI camera port - stereo output and composite video port |
Multimedia | - H.264/H.265/VP9 decode (4Kp60); - H.264/H.265 encode (1080p60); - OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D Graphics Engine; - 8M ISP |
- H.264, MPEG-4 decode (1080p30); - H.264 encode (1080p30); - OpenGL ES 1.1, 2.0 graphics |
USB | - 1x USB2.0 OTG (USB-AF) - 2x USB2.0 Host - 1x USB 3.0 |
4 × USB 2.0 ports |
GPIO | Extended 40-pin GPIO header | Extended 40-pin GPIO header |
Power in | - 5V/2A DC via micro USB connector - 5V DC via GPIO header - Power over Ethernet (PoE)–enabled (requires separate PoE HAT) |
- 5V/2.5A DC via micro USB connector - 5V DC via GPIO header - Power over Ethernet (PoE)–enabled (requires separate PoE HAT) |

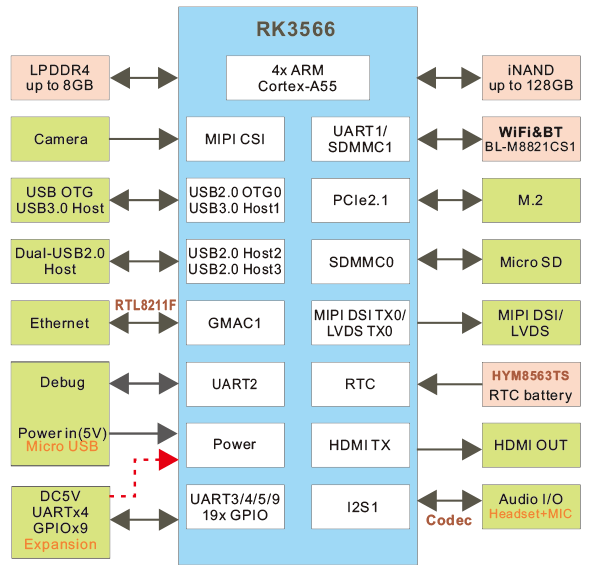

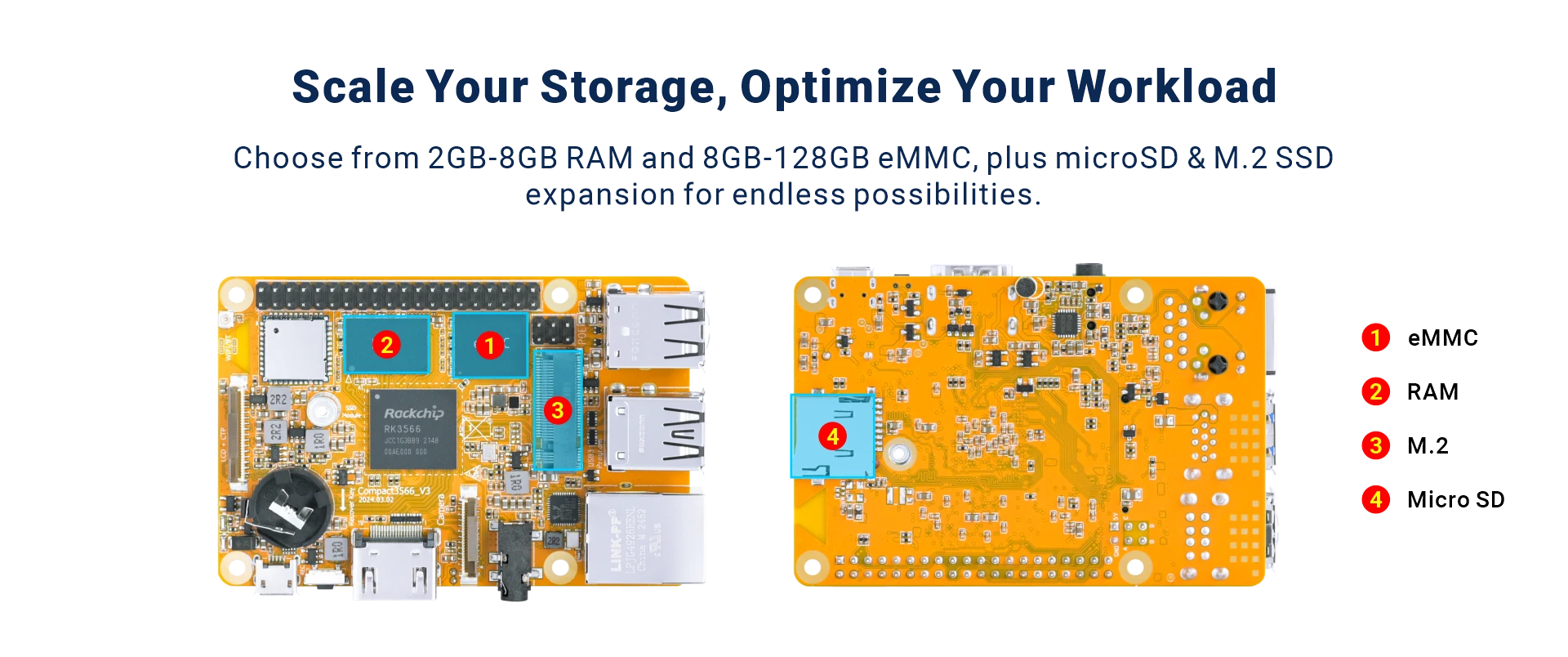

Dimensions | 85 x 56 x 19.7mm | 85 x 56 x 19.5mm |
Specifications | |
---|---|
CPU | Rockchip RK3566 Quad-core Cortex-A55, 1.8 GHz |
GPU | ARM Mali-G52 2EE GPU with support for OpenGL ES 1.1/2.0/3.2. OpenCL 2.0. Vulkan 1.1 |
NPU | 1 TOPS |
Memory | 2/4/8GB LPDDR4 or LPDDR4X RAM |
Storage | 8/16/32/64/128GB eMMC flash M.2 PCIe 2.0 socket for SSD (NGFF) MicroSD card slot |
Power Supply | 5V/2A via Micro USB |
USB | 1x USB2.0 OTG (USB-AF) 2x USB2.0 Host 1x USB 3.0 |

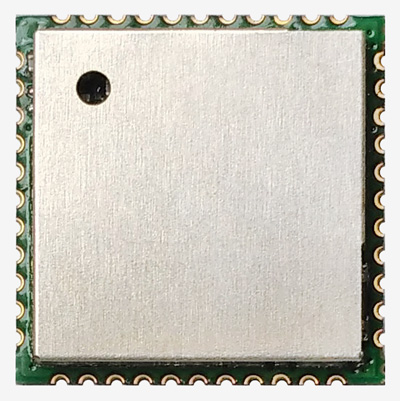

Networking | Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller 2.4G/5G WiFi(802.11 a/b/g/n/ac) with Bluetooth 4.2 |
Debugging | Micro USB |
Display | MIPI DSI/LVDS, HDMI2.0 output |
Audio | ES8388 audio codec. 1x 3.5mm audio I/O jack, 1x differential MIC |

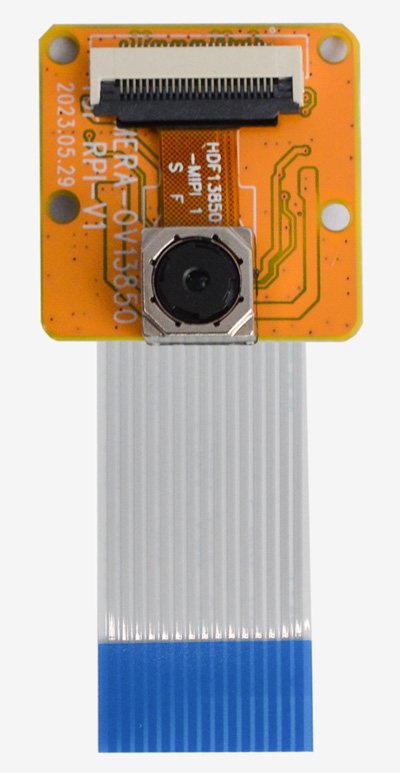

Camera(optional) | MIPI CSI Camera, 15-pin FPC connector. |
Expansion | 4x UART, SPI, I2C, PWM, SPDIF_TX and GPIO via 40-pin header |
Misc | 1x Recover button, 2x LED, RTC |
Weight | 50 gram |
Dimensions | 85 x 56mm (Raspberry Pi 3-like form factor) |

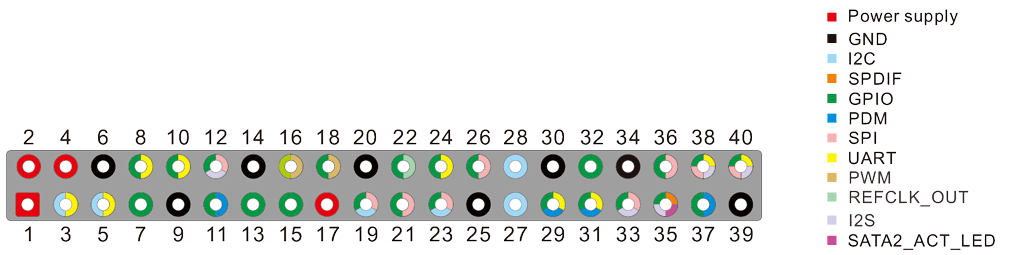

GPIO Header Pin Definition (PCB version: V2)
Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
---|---|---|---|---|---|---|---|
1 | VCC3V3_SYS | 11 | GPIO1_B1_d/ PDM_SDI2_M0 |
21 | GPIO0_C5_d/ SPI0_MISO_M0 |
31 | GPIO1_A4_d/ UART4_RX_M0/ PDMCLK1_M0 |
2 | VCC5V_SYS | 12 | GPIO4_C3_d/ SPI3_MOSI_M1/ I2S3_SCLK_M1 |
22 | GPIO0_A0_d/ REFCLK_OUT |
32 | GPIO0_C7_d |
3 | I2C3_SDA_M0/ UART3_RX_M0 |
13 | GPIO0_A5_d | 23 | GPIO0_B5_u/ SPI0_CLK_M0/ I2C2_SCL_M0 |
33 | GPIO4_C2_d/ SPI3_CLK_M1/ I2S3_MCLK_M1 |
4 | VCC5V_SYS | 14 | GND | 24 | GPIO0_C6_d/ SPI0_CS0_M0 |
34 | GND |
5 | I2C3_SCL_M0/ UART3_TX_M0 |
15 | GPIO0_A6_d | 25 | GND | 35 | GPIO4_C4_d/ SPDIF_TX_M2/ I2S3_LRCK_M1/ SATA2_ACT_LED |
6 | GND | 16 | GPIO0_B7_d/ PWM0_M0 |
26 | GPIO0_C4_d/ SPI0_CS1_M0 |
36 | GPIO4_D1_u/ SPI3_CS1_M1 |
7 | GPIO0_A3_u | 17 | VCC3V3_SYS | 27 | I2C1_SDA | 37 | GPIO1_B2_d/ PDM_SDI1_M0 |
8 | GPIO3_C2_d/ UART5_TX_M1 |
18 | GPIO0_C2_d/ PWM3_IR |
28 | I2C1_SCL | 38 | GPIO4_C6_d/ UART9_RX_M1/ SPI3_CS0_M1/ I2S3_SDI_M1 |
9 | GND | 19 | GPIO0_B6_u/ SPI0_MOSI_M0/ I2C2_SDA_M0 |
29 | GPIO1_A6_d/ UART4_TX_M0/ PDMCLK0_M0 |
39 | GND |
10 | GPIO3_C3_d/ UART5_RX_M1 |
20 | GND | 30 | GND | 40 | GPIO4_C5_d/ UART9_TX_M1/ SPI3_MISO_M1/ I2S3_SDO_M1 |

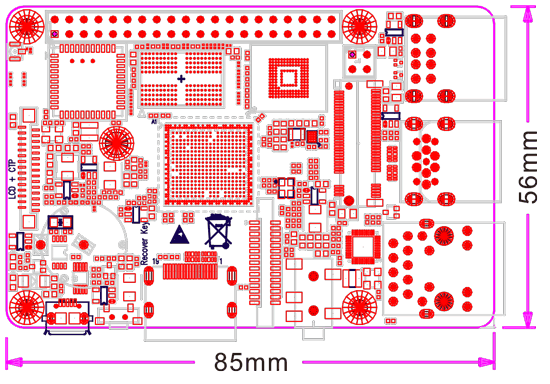

PCB Dimension
OS | Item | Feature | Description |
---|---|---|---|
Android11 | Boot | U-Boot 2017.09 | rk356x_spl_loader_v1.11.112.bin |
Kernel | Version | Linux 4.19.219 | |
Drivers | HDMI | Support 4K, 1080P, 720P, 480P resolution | |

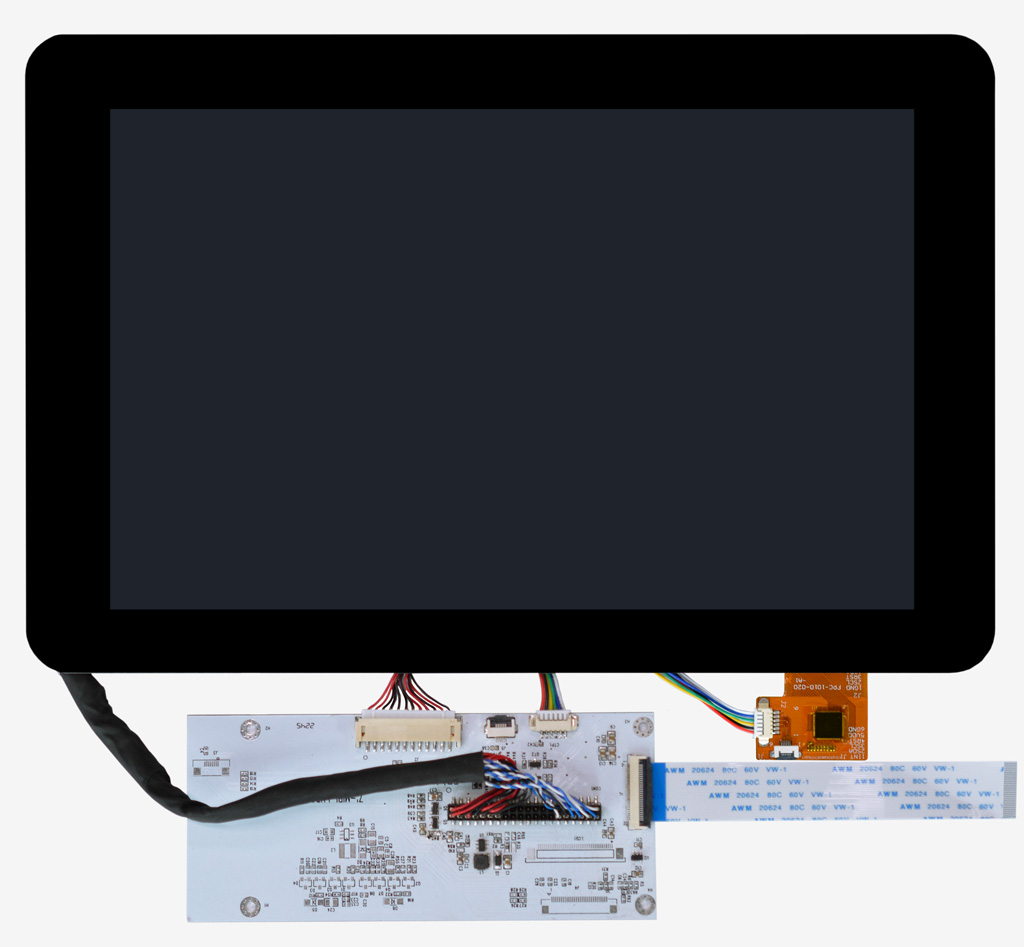

LCD | 10.1-inch MIPI LCD with touch screen | ||
Audio | Audio in/out | ||
SD card | Micro SD card | ||
SSD | NVME SSD (M.2) | ||
USB2.0 | 2x USB2.0 Host | ||
USB3.0 | USB3.0 Host | ||
OTG | USB2.0 OTG | ||
Ethernet | 10/100/1000 Mbit/s Ethernet | ||
WiFi | Wireless-2.4G/5G 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.2 | ||
Camera | OV5647(5MP) | ||
Debugging | Debug serial | ||
eMMC | Support eMMC 5.1 | ||
RTC | Real time keeping | ||
UART | Support | ||
SPI | Support | ||
GPIO | Support | ||
Embedded GUI | Android11 | Clock, Gallery, Calculator, Camera, Files, Video, Music etc. | |
Cross-compiler Environment |
ubuntu-18.04, openjdk version "11.0.4" | ||
Debug Tools | SecureCRT, AndroidTool.exe, ADB |
OS | Item | Feature | Description |
---|---|---|---|
Debian 11 | Boot | uboot 2017.09 | MiniLoaderAll.bin |
Kernel | Version | Linux 5.10.110 | |
File system | File system | Debian11 | |
Drivers | HDMI | Support 4K, 1080P, 720P, 480P resolution | |
LCD | 10.1-inch MIPI LCD with touch screen | ||
Audio | Audio in/out | ||
SD card | Micro SD card | ||
SSD | NVME SSD (M.2) | ||
USB2.0 | 2x USB2.0 Host | ||
USB3.0 | USB3.0 Host | ||
OTG | USB2.0 OTG | ||
Ethernet | 10/100/1000 Mbit/s Ethernet | ||
WiFi | Wireless-2.4G/5G 802.11 a/b/g/n/ac | ||
Bluetooth | Bluetooth 4.2 | ||
Camera | OV5647(5MP) | ||
Debugging | Debug serial | ||
eMMC | Support eMMC 5.1 | ||
RTC | Real time keeping | ||
UART | Support | ||
GPIO | Support | ||
SPI | Support | ||
Cross-compiler Environment |
ubuntu-20.04 | ||
Debug Tools | SecureCRT, AndroidTool.exe |
