CM210-III

* Processor: Samsung ARM Cortex-A8 S5PV210AH @1GHz
* RAM: 256/512MB
* Storage: 512MB/1GB/2GB/4GB/8GB/32GB
* Pin out: Ethernet, USB HOST, USB OTG, UART, SPI, IIC, RTC, EXTINT, Audio, HDMI, etc.
* Operating system: Linux2.6.32, WinCE6.0(R3), Android4.0
* Board size: 59.9mm x 61.55mm
* Package: 230-pin, 1.0mm pitch

Overview
Hardware
Software
Download
Price&Order
FAQ

The Boardcon CM210-III is a full function embedded system on module based on S5PV210AH processor in small size and designed for communication, healthcare, automation, transportation, multimedia advertising, high performance POS machine, and surveillance applications with a Custom base board.

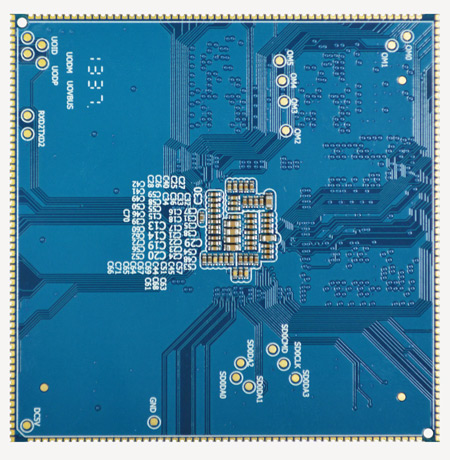

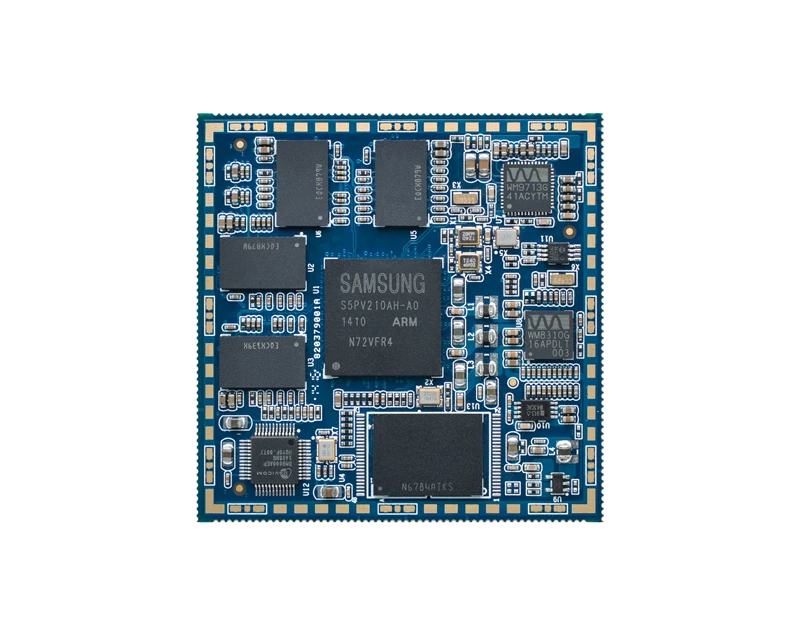

CM210-III-s5pv210-computer-on-module

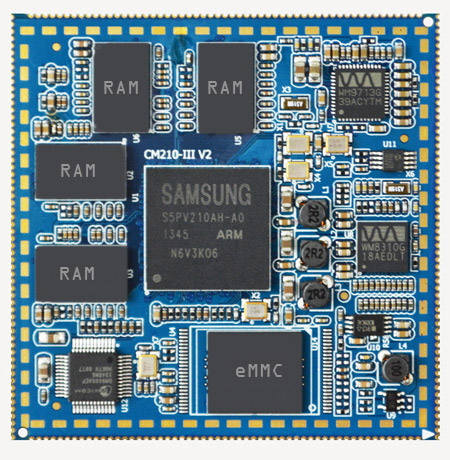

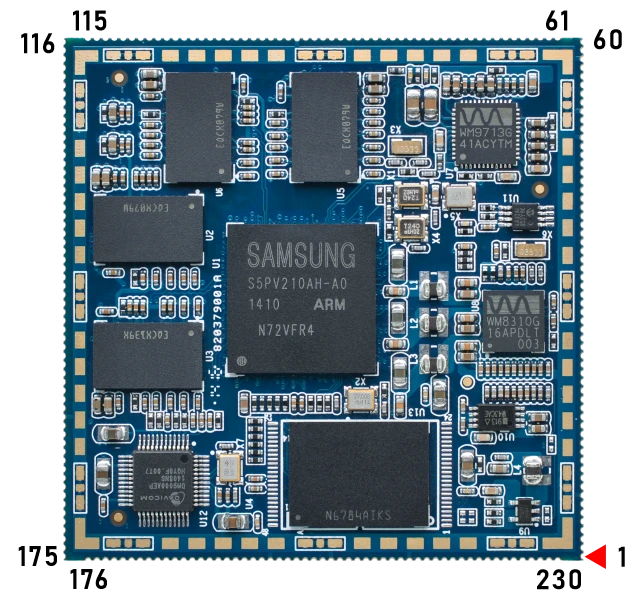

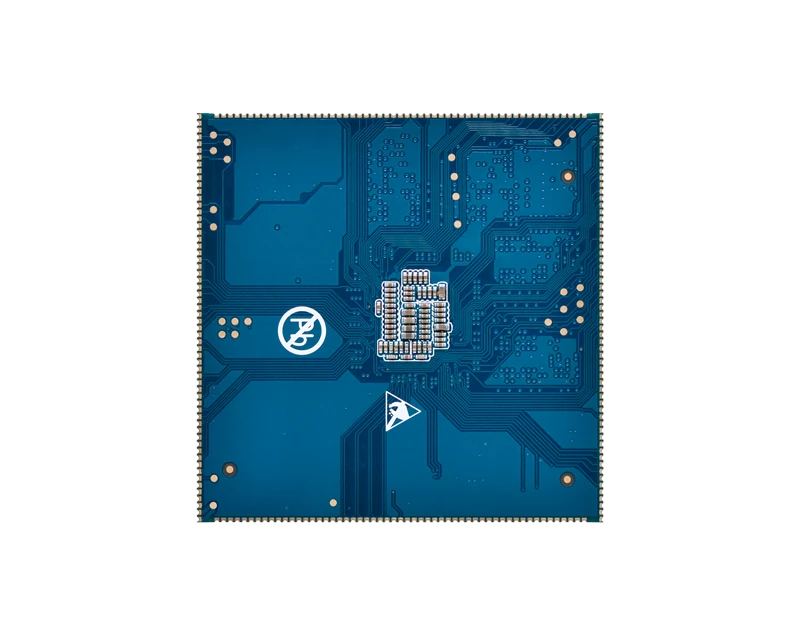

CM210-III-system-on-module

Specifications

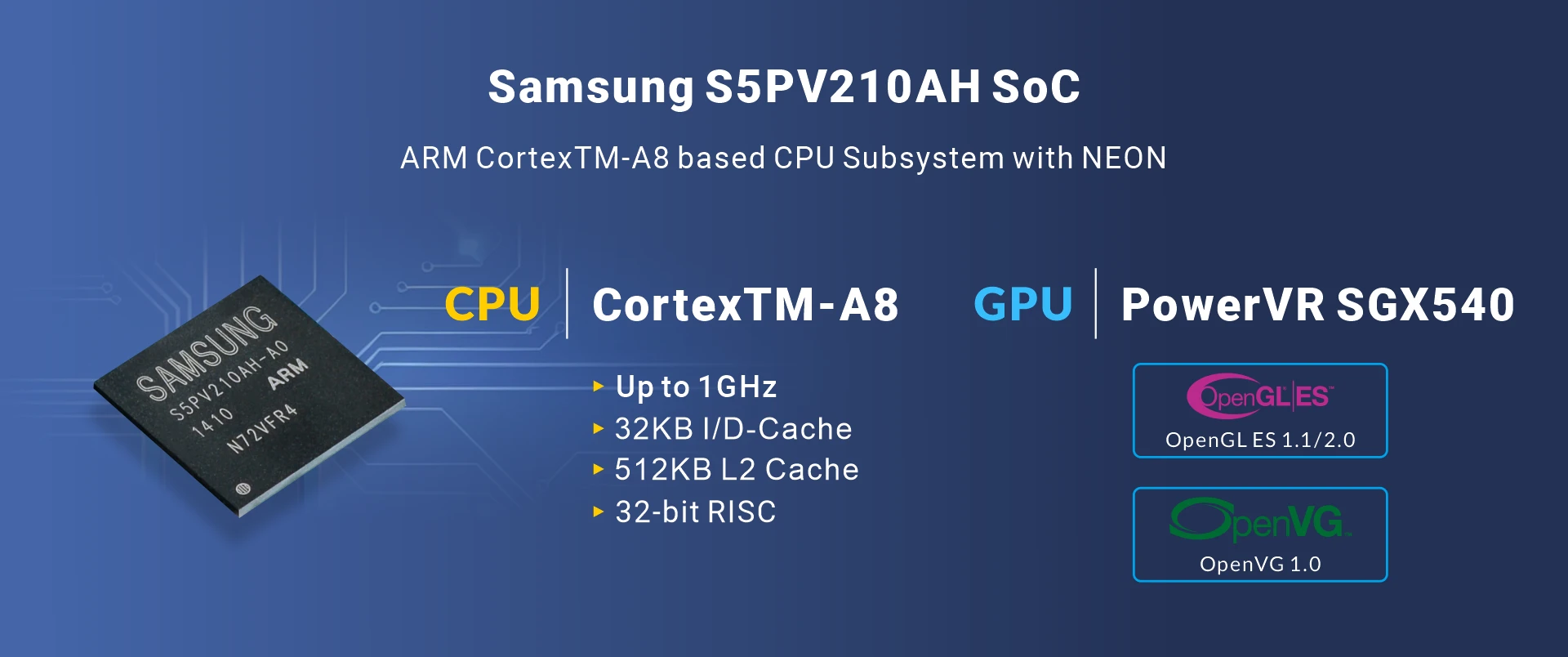

CPU	Samsung ARM Cortex-A8 S5PV210AH, 1GHz
GPU	PowerVR SGX540@200MHz
Memory	256/512MB DDR2
Storage	512MB/1GB NAND Flash, 4/8/16/32GB eMMC optional
Supply Voltage	DC 5V

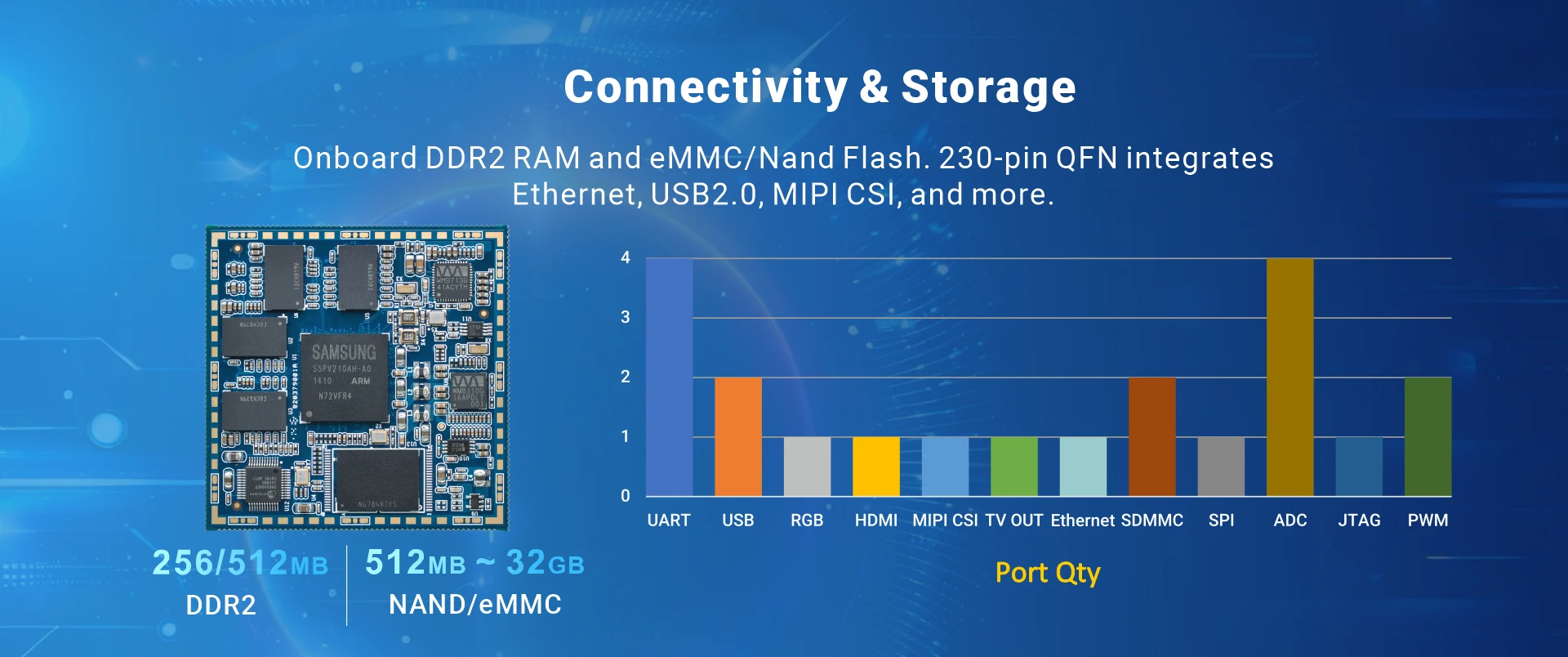

Pin out	Ethernet, USB HOST, USB OTG, UART, SPI, IIC, RTC, EXTINT, Audio, HDMI, etc.
Ethernet	10/100M Ethernet, DM9000AEP controller
PCB Layer	8
Dimensions	61.55 x 59.9 mm
Weight	11.0 gram
Package	230-pin, 1.0mm pitch
Application	MID, POS, PND, and Terminal controller
Development Board	EM210

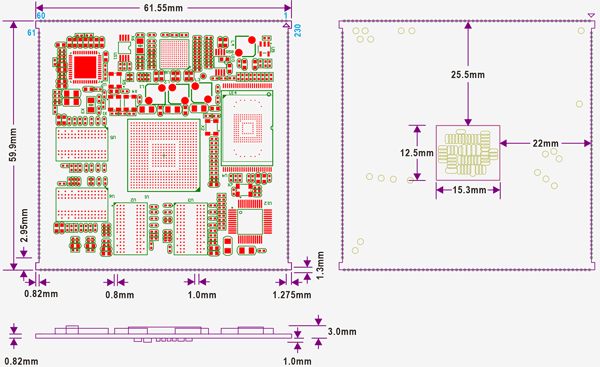

PCB Dimension

CM210-III pcb dimension

Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	DC5V	61	MIC1	116	SPIMOSI1	176	DATA15
2	DC5V	62	MICN	117	SPIMISO1	177	DATA14
3	VBAT	63	MICP	118	SPICS1	178	DATA13
4	VBAT -	64	LINEL	119	SPICLK1	179	DATA12
5	USBVDD	65	LINER	120	I2C_SDA0	180	DATA11
6	USBVDD	66	GSM_MIC-	121	I2C_SCL0	181	DATA10
7	VDD_RTC	67	GSM_MIC+	122	RTSn1	182	DATA9
8	GND	68	SPKL	123	CTSn1	183	DATA8
9	XVVD23	69	SPKR	124	RXD1	184	DATA7
10	XVVD22	70	LOUT	125	TXD1	185	DATA6
11	XVVD21	71	ROUT	126	RTSn0	186	DATA5
12	XVVD20	72	HS_DET	127	CTSn0	187	DATA4
13	XVVD19	73	AUGND	128	RXD0	188	DATA3
14	XVVD18	74	I2C_SCL1	129	TXD0	189	DATA2
15	XVVD17	75	I2C_SDA1	130	TOUT1	190	DATA1
16	XVVD16	76	HDMI_CEC	131	TOUT0	191	DATA0
17	XVVD15	77	HDMI_HPD	132	SPIMOSI0	192	CSn0
18	XVVD14	78	XCIPCLK	133	SPIMISO0	193	WEn
19	XVVD13	79	XCIVSYNC	134	SPICS0	194	OEn
20	XVVD12	80	XCIHREF	135	SPICLK0	195	BE0
21	XVVD11	81	XCIMCLK	136	MMC0CLK	196	BE1
22	XVVD10	82	XCIFIELD	137	MMC0CMD	197	GND
23	XVVD9	83	XCIDATA0	138	MMC0CDn	198	XJTRSTN
24	XVVD8	84	XCIDATA1	139	MMC0DAT0	199	XJTMS
25	XVVD7	85	XCIDATA2	140	MMC0DAT1	200	XJTCK
26	XVVD6	86	XCIDATA3	141	MMC0DAT2	201	XJTDI
27	XVVD5	87	XCIDATA4	142	MMC0DAT3	202	XJTDO
28	XVVD4	88	XCIDATA5	143	KP_COL7	203	DACOUT0
29	XVVD3	89	XCIDATA6	144	KP_COL6	204	GND
30	XVVD2	90	XCIDATA7	145	KP_COL5	205	HDMITXCN
31	XVVD1	91	GND	146	KP_COL4	206	HDMITXCP
32	XVVD0	92	EINT0	147	KP_COL3	207	HDMITXN0
33	XVVCLK	93	EINT1	148	KP_COL2	208	HDMITXP0
34	XVHSYNC	94	EINT3	149	KP_COL1	209	HDMITXN1
35	XVVSYNC	95	EINT4	150	KP_COL0	210	HDMITXP1
36	XVVDEN	96	EINT5	151	KP_ROW7	211	HDMITXN2
37	TSXN	97	EINT6	152	KP_ROW6	212	HDMITXP2
38	TSXP	98	EINT7	153	KP_ROW5	213	GND
39	TSYN	99	EINT10	154	KP_ROW4	214	NET_RX+
40	TSYP	100	EINT11	155	KP_ROW3	215	NET_RX-
41	ADCIN0	101	EINT16	156	KP_ROW2	216	NET_TX+
42	ADCIN1	102	EINT17	157	KP_ROW1	217	NET_TX-
43	ADCIN6	103	EINT18	158	KP_ROW0	218	NET_LINK
44	ADCIN7	104	EINT19	159	GND	219	NET_SPD
45	TXD2	105	EINT20	160	ADDR15	220	AVDD25
46	RXD2	106	ENIT21	161	ADDR14	221	MMC2CLK
47	TXD3	107	EINT22	162	ADDR13	222	MMC2CMD
48	RXD3	108	EINT23	163	ADDR12	223	MMC2CDn
49	GND	109	RTCCLKO	164	ADDR11	224	MMC2DAT0
50	XUHDP	110	OM5	165	ADDR10	225	MMC2DAT1
51	XUHDN	111	OM4	166	ADDR9	226	MMC2DAT2
52	GND	112	OM3	167	ADDR8	227	MMC2DAT3
53	UDRVVBUS	113	OM2	168	ADDR7	228	PWRON
54	VBUS	114	OM1	169	ADDR6	229	nRESET
55	XUODM	115	OM0	170	ADDR5	230	BAT_NTC
56	XUODP			171	ADDR4
57	XUOID			172	ADDR3
58	GND			173	ADDR2
59	GSM_SPK+			174	ADDR1
60	GSM_SPK-			175	ADDR0

OS	Item	Feature	Description
Linux2.6.32	Bootloader	Boot	Start up system, supporting one Key to update Bootloader, Kernel, Yaffs, and one Key to configure parameters of Linux. Also can be configured the board booting from Yaffs or NFS
		Tftp	Support tftp transmitting protocol
		File system	Yaffs
		Kernel	Support writing kernel image into nand flash and kernel parameter setting
		Etc.	Support via USB and Serial Interface to download application to flash debug
	Kernel	Version	Linux kernel 2.6.32
		File system	CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2
		Serial	serial driver
		10/100M Ethernet	DM9000
		RTC	RTC driver
		USB Host	USB Host, USB Slave driver
		Buttons	User buttons
		LCD	Coming with driver for4.3", 7" TFT LCD
		Touch panel	Touch panel driver
		SD card	SD card driver
		Sound	WM9713
		Camera	CMOS/CCS Camera driver
		USB Camera	The chip of USB Camera is Vimicro 301p, the USB Camera is collecting dynamic picture and showing on the LCD
		WCDMA Module	Using WCDMA Module to dial-up to Ethernet
	Embedded GUI	Qt/Embedded	Qtopia 2.2.0 and Qtopia 4.7.3
	Application	Servfox	The application is running under Console platform, it controls the USB Camera by internet and displays the picture taken by camera on the LCD. It can be taken as net monitor when the application works with USB Camera.
		Spcacat	It is a camera picture capture application under Console platform
		Snapshot	It is a LCD picture capture application under Console platform
		Rz and sz	It is a application that transfer and receive file by serial port
		Madplay	It is a MP3 player
	Network protocol	TCP/IP	TCP/IP protocol
		Telnet	Telnet server, telnet remote login
		File transfer	FTP Client/server
		Web server	BOA Web Server
	USB port supported Devices		U-disk, portable hard-disk, USB mouse, USB Keyboard, USB HUB, USB Camera and so on.
	Command		cat, chmod, discard, echo, flashsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls,mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod
	Tools		busybox1.13 (provided in the CD-ROM)

OS	Item	Feature	Description
WinCE6.0	Bootloader	BL1_UART.nb0	The first serial guide,not burn into Nand flash
		EBOOT.nb0	The second serial guide,not burn into Nand flash
		bootimage.nb0 (stepldr+Eboot)	Include stepldr and eboot, burn into Nand flash 1. USB download: update the image via USB OTG 2.0 2. Format Nand Flash 3. Format BinFS 4. Low-level Format 5. Set boot-up delayed time 6. Booting process bar
		uboot.bin	Use to format the nand flash
	System	Drivers	7" Touch Screen
	System	Drivers	SPI, Camera, USB Host, USB OTG, IIC, WIFI, GPS, JPEG, SD/MMC/SDIO, DMA, MFC, Keyboard, Serial ports, AC97, OpenGGLES1.1&2.1/D3DM
	Application	Software features	Source code and test program for MFC, Camera, JPEG, OpenGLES1.1 & 2.0

OS	Item	Feature	Description
Android4.0	Bootloader	Uboot-1.3.4	Main functions: 1.Supporting Nand Flash erase/write/read 2.Supporting USB download Image 3.Supporting print, set, save Environment Variables 4.Supporting memory's contents display/compare/modify 5.Supporting bootm, bootargs setting
		USB Installer.bin	Uboot boot process, download uboot by the process
		Image update	Support updating image from SD card or USB
	Kernel and drivers	Kernel version	Linux 3.0.8
	Kernel and drivers	Drivers	Serial ports, RTC, 4.3/ 7/ 10.1/15 inch LCD including Touch Screen, SD, USB Host, USB OTG, LEDs, AC97, Keyboard, 3-axis accelerometer, PWM, IIC, SPI, MFC, TVOUT, HDMI, JPEG, WIFI, WCDMA, GPS, DM9000
	File System	File System	Yaffs File System
	Embedded GUI	Android4.0	Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager.
	Network protocol & application	Network Protocol	TCP/IP protocol, Telnet, FTP Client/server, boa web server
	Network protocol & application	Application	Alarm Clock, Browser, Gallery, Calculator, Camera, Phons, Email, Maps, ES File Explorer, Mediaplayer, Music, Picsay, ASTRO
	Cross compiler Environment		Arm-2009q3.tar.bz2, JDK1.6
	Debug Tools	DNW, MoviNAND_Fusing_Tool.exe, VmWare7.0
