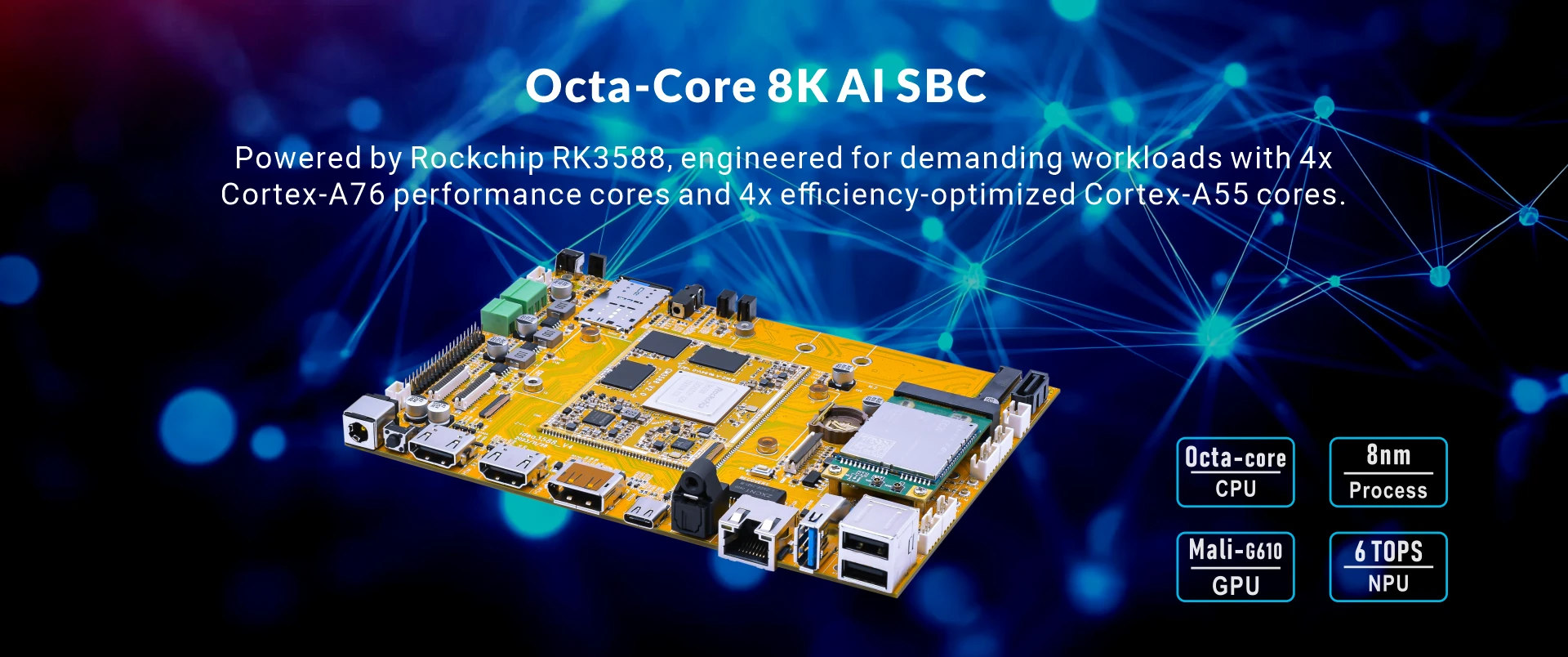

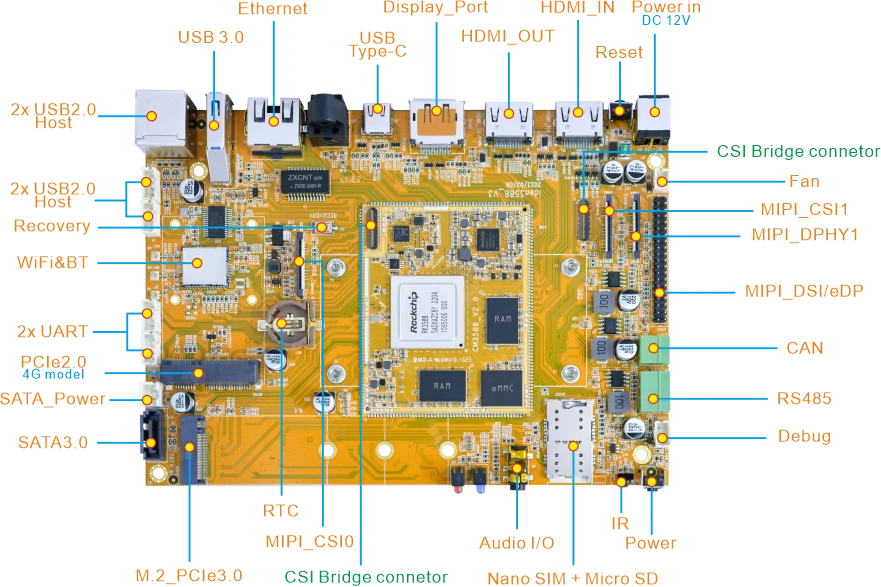

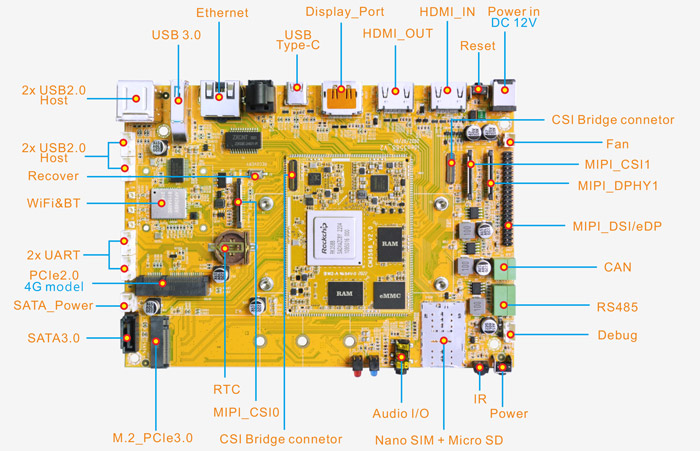

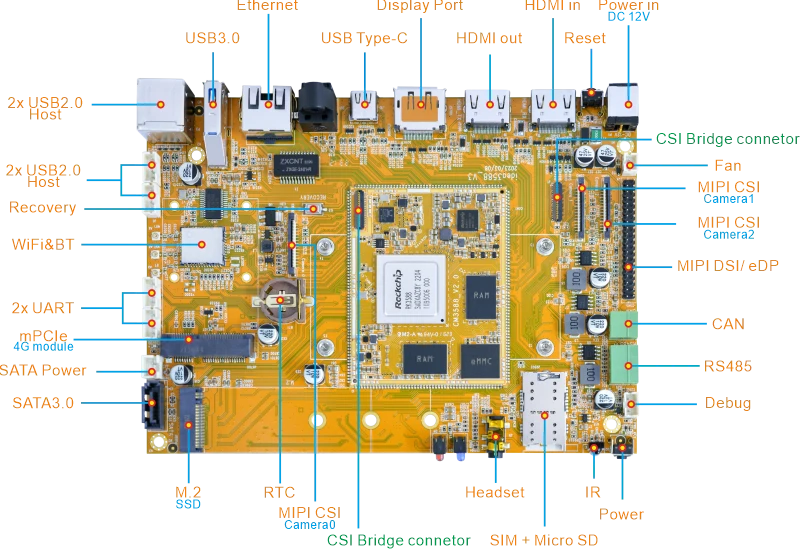

Octa-core single board computer powered by Rockchip RK3588 processor

RK3588 VS RK3588S
Processor	RK3588	RK3588S
Lithography	8 nm	8 nm
ISA	ARMv8-A (64-bit)	ARMv8-A (64-bit)
CPU	4x Cortex-A76 @ 2.4GHz 4x Cortex-A55 @ 1.8GHz	4x Cortex-A76 @ 2.4GHz 4x Cortex-A55 @ 1.8GHz
GPU	ARM Mali-G610 MP4	ARM Mali-G610 MP4
AI accelerator (NPU)	6 TOPS	6 TOPS
Memory types	LPDDR4, LPDDR4X, LPDDR5	LPDDR4, LPDDR4X, LPDDR5
Storage	eMMC 5.1	eMMC 5.1
Support FSPI Flash	Support FSPI Flash
Micro SD Card 3.0	Micro SD Card 3.0
USB	1x USB3.0 (shared with PCIe2.1/SATA3)	1x USB3.0 (shared with PCIe2.1/SATA3)
2x USB2.0 Host	2x USB2.0 Host
2x USB3.1/2.0 OTG (Two full function Type C)	1x USB3.1/2.0 OTG (One full function Type C)
Display	Type-C/DP1.4 shared, 2x 4-lane DP1.4	Type-C/DP1.4 shared, 1x 4-lane DP1.4
2x HDMI2.1 TX/eDP1.3	1x HDMI2.1 TX /eDP1.3
2x 4-lane MIPI DPHY TX/CPHY TX	2x 4-lane MIPI DPHY TX/CPHY TX
Camera/Video input	2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI	1x 4-lane MIPI CSI or 2x 2-lane MIPI CSI
2x MIPI CPHY RX/MIPI DPHY RX	2x MIPI CPHY RX/MIPI DPHY RX
HDMI RX	1x 4-lane HDMI RX	N/A
PCIe3.0	1x 4-lane or 2x 2-lane PCIe3.0	N/A
PCIe2.1/SATA3.0	3x 1-lane PCIe2.1	2x 1-lane PCIe2.1
3x SATA3.0	2x SATA3.0
ADC	8x SARADC	6x SARADC
SDIO	1x SDIO3.0	1x SDIO3.0
GMAC	2x (GMAC0+GMAC1)	1x (GMAC1)
I2C	9x I2C	9x I2C
PWM	16x PWM	16x PWM
UART	10x UART	10x UART
SPI	6x SPI	6x SPI
I2S	4x 12S	4x 12S
PDM	2x PDM	2x PDM
CIF	1x CIF	1x CIF
SPDIF	2x SPDIF(8ch)	2x SPDIF(8ch)
Package	23 x 23mm, 0.65pitch	17 x 17mm, 0.4pitch

RK3588 VS RK3588S

Processor

RK3588

RK3588S

Lithography

8 nm

ISA

ARMv8-A (64-bit)

CPU

4x Cortex-A76 @ 2.4GHz
4x Cortex-A55 @ 1.8GHz

GPU

ARM Mali-G610 MP4

AI accelerator (NPU)

6 TOPS

Memory types

LPDDR4, LPDDR4X, LPDDR5

Storage

eMMC 5.1

Support FSPI Flash

Micro SD Card 3.0

USB

1x USB3.0 (shared with PCIe2.1/SATA3)

2x USB2.0 Host

2x USB3.1/2.0 OTG (Two full function Type C)

1x USB3.1/2.0 OTG (One full function Type C)

Display

Type-C/DP1.4 shared, 2x 4-lane DP1.4

Type-C/DP1.4 shared, 1x 4-lane DP1.4

2x HDMI2.1 TX/eDP1.3

1x HDMI2.1 TX /eDP1.3

2x 4-lane MIPI DPHY TX/CPHY TX

Camera/Video input

2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI

1x 4-lane MIPI CSI or 2x 2-lane MIPI CSI

2x MIPI CPHY RX/MIPI DPHY RX

HDMI RX

1x 4-lane HDMI RX

N/A

PCIe3.0

1x 4-lane or 2x 2-lane PCIe3.0

N/A

PCIe2.1/SATA3.0

3x 1-lane PCIe2.1

2x 1-lane PCIe2.1

3x SATA3.0

2x SATA3.0

ADC

8x SARADC

6x SARADC

SDIO

1x SDIO3.0

GMAC

2x (GMAC0+GMAC1)

1x (GMAC1)

I2C

9x I2C

PWM

16x PWM

UART

10x UART

SPI

6x SPI

I2S

4x 12S

PDM

2x PDM

CIF

1x CIF

SPDIF

2x SPDIF(8ch)

Package

23 x 23mm, 0.65pitch

17 x 17mm, 0.4pitch

Specifications
CPU	Rockchip RK3588. Quad-core Cortex-A76 + Quad-core Cortex-A55
GPU	ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2
NPU	6 TOPS
Memory	8GB LPDDR4X (up to 16GB)
Storage	32GB eMMC flash (up to 128GB) MicroSD card slot 1x SATA3.0 1x M.2 PCIe SSD
Power Supply	12V/3A DC input jack
USB	1x USB3.1 Type-C 4x USB2.0 Host 2.0 (1x Dual-USB AF connector, 2x 4pin connector) 1x USB3.0 Host
Connectivity	Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller SDIO 2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac/ax) with Bluetooth5.2 Mini PCIe socket with Nano SIM card port to support 4G LTE Modem or PCIe WIFI Modem
Serial	1x Serial port for debug, 3-pin connector 2x UART, 4-pin connectors 1x RS485
Video	Output	HDMI 2.1 up to 8Kp60 MIPI DSI/eDP 1.3, up to 4Kp60 (40-pin header) DisplayPort 1.4, up to 8Kp30
Input	HDMI input, up to 4Kp60 2x MIPI-CSI, 1x DPHY input for camera
Audio	3.5mm audio I/O jack 8-channel audio via HDMI
Camera	3x Cameras, 30-pin FPC connector
Keys	Recover, Reset, Power
Other features	RTC with battery connector; IR receiver, CAN
Dimension	Based board - 165 x 120mm; CPU module - 67 x 53mm

Specifications

CPU

Rockchip RK3588. Quad-core Cortex-A76 + Quad-core Cortex-A55

GPU

ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2

NPU

6 TOPS

Memory

8GB LPDDR4X (up to 16GB)

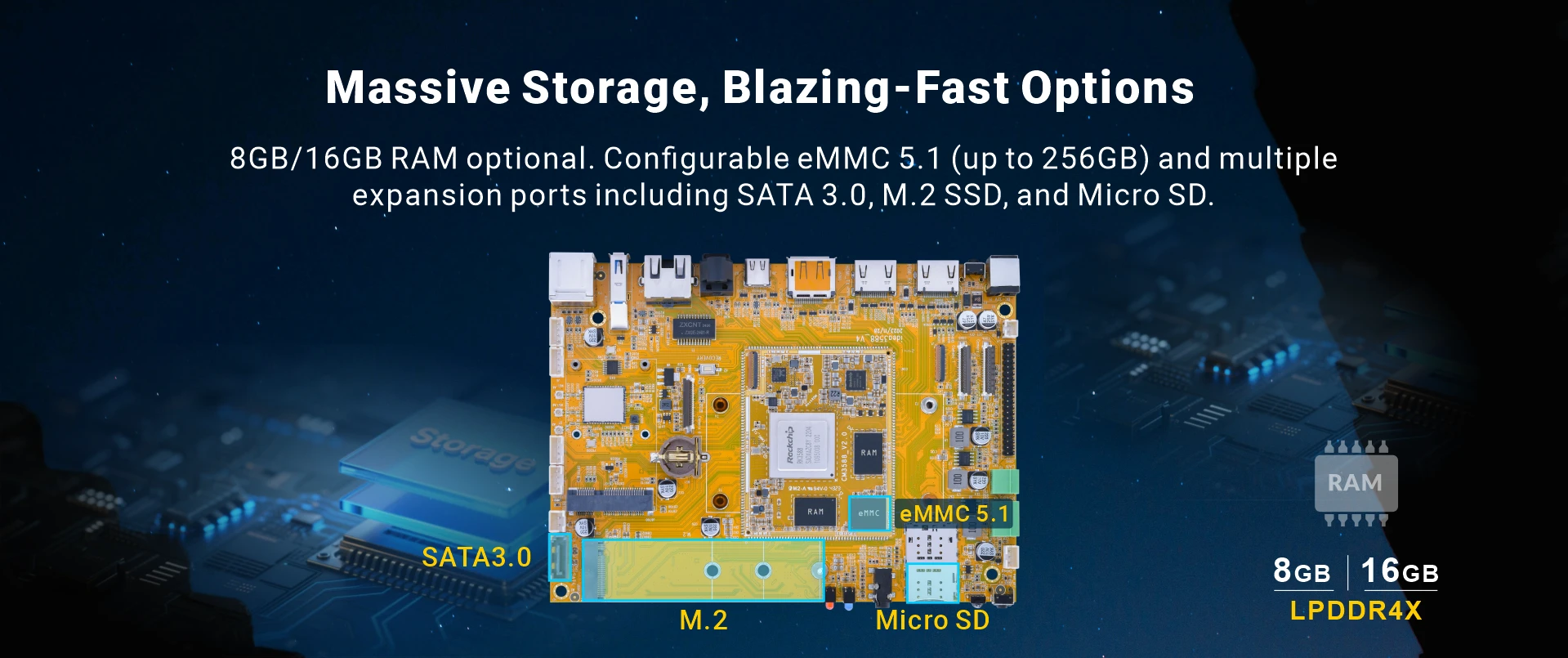

Storage

32GB eMMC flash (up to 128GB)
MicroSD card slot
1x SATA3.0
1x M.2 PCIe SSD

Power Supply

12V/3A DC input jack

USB

1x USB3.1 Type-C
4x USB2.0 Host 2.0 (1x Dual-USB AF connector, 2x 4pin connector)
1x USB3.0 Host

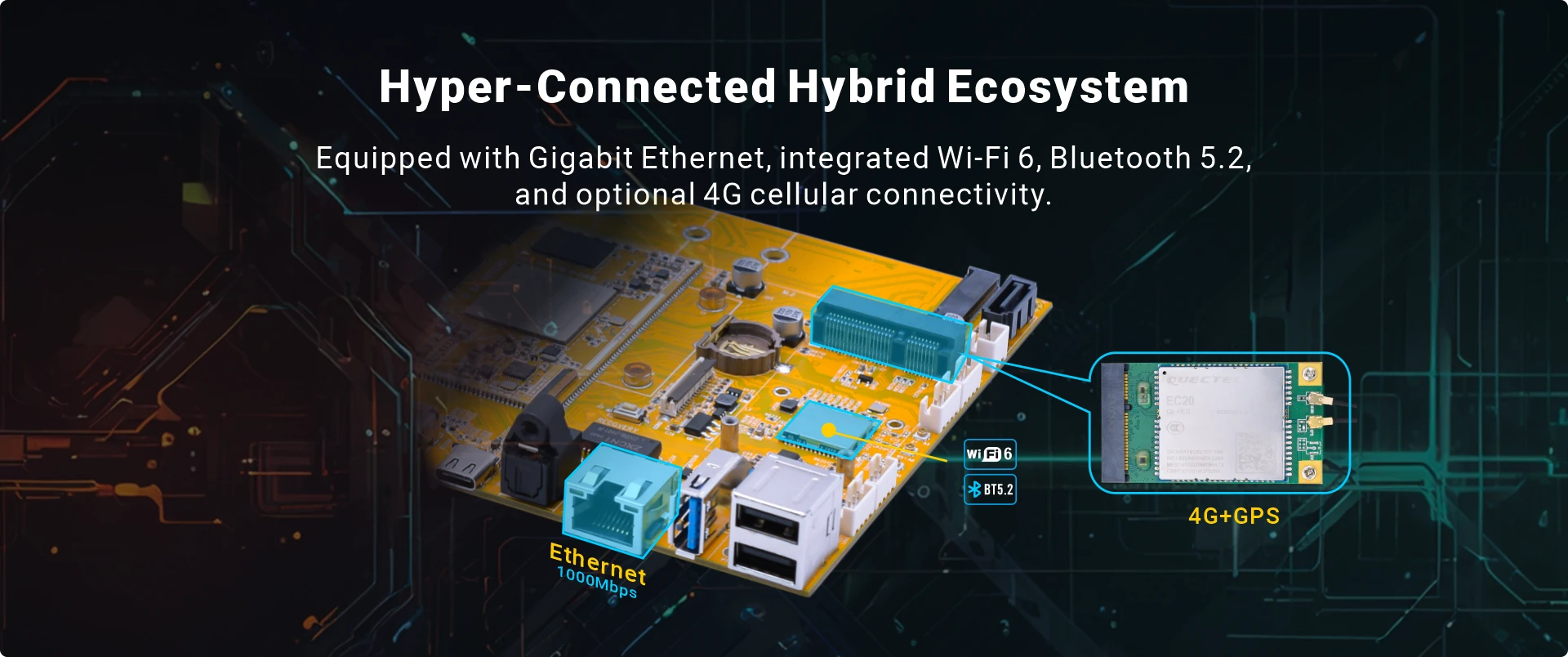

Connectivity

Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller
SDIO 2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac/ax) with Bluetooth5.2
Mini PCIe socket with Nano SIM card port to support 4G LTE Modem or PCIe WIFI Modem

Serial

1x Serial port for debug, 3-pin connector
2x UART, 4-pin connectors
1x RS485

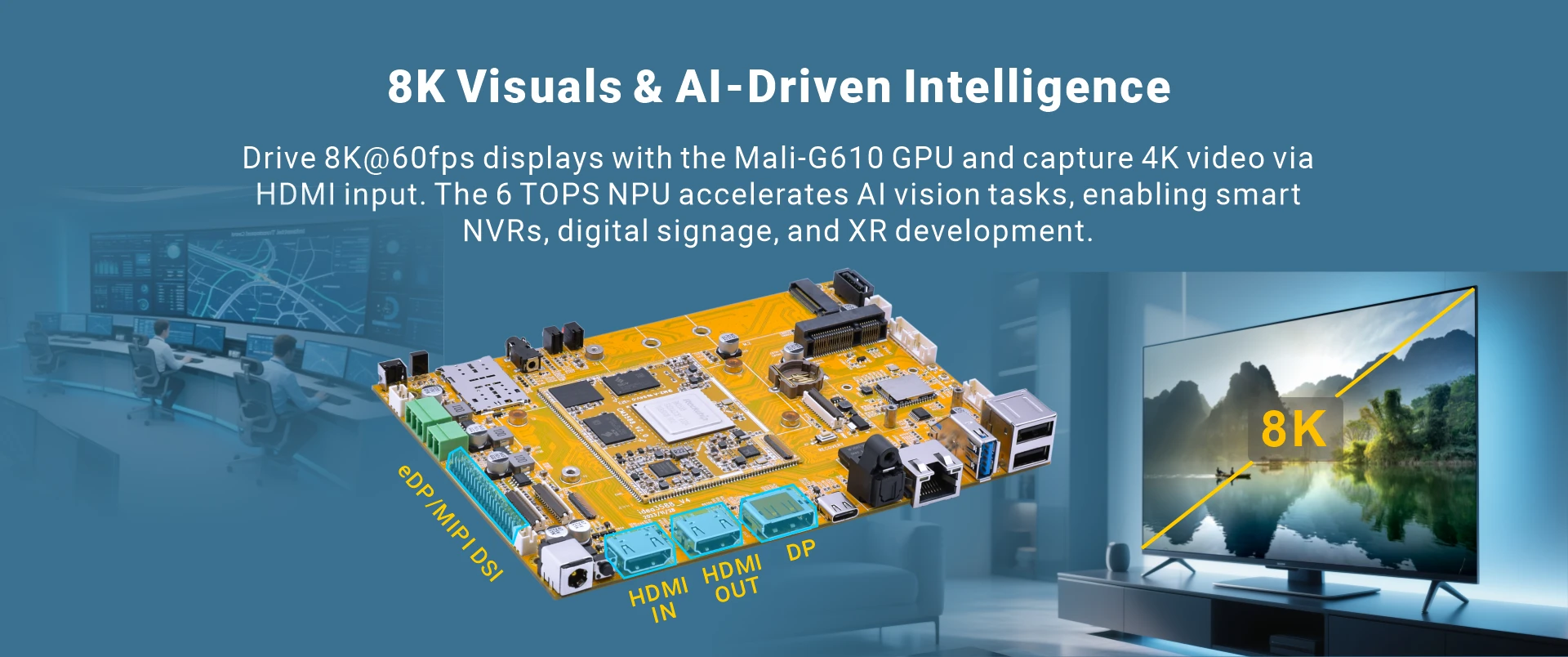

Video

Output

HDMI 2.1 up to 8Kp60
MIPI DSI/eDP 1.3, up to 4Kp60 (40-pin header)
DisplayPort 1.4, up to 8Kp30

Input

HDMI input, up to 4Kp60
2x MIPI-CSI, 1x DPHY input for camera

Audio

3.5mm audio I/O jack
8-channel audio via HDMI

Camera

3x Cameras, 30-pin FPC connector

Keys

Recover, Reset, Power

Other features

RTC with battery connector; IR receiver, CAN

Dimension

Based board - 165 x 120mm; CPU module - 67 x 53mm

OS	Item	Feature	Description
Android 12	Boot	U-Boot 2017.09	rk3588_spl_loader_v1.06.109.bin
Kernel	Version	Linux version 5.10.66
Drivers	HDMI OUT	Support 8K, 4K, 1080P, 720P, 480P resolution
HDMI IN	HDMI 2.0 RX PHY, 4 lanes support 4K, 1080P, 720P, 480P resolution
DP	Support 8K, 4K, 1080P, 720P, 480P resolution
Audio	Audio in/out, headphone
SD card	Micro SD card
USB2.0	USB mouse, USB keyboard, USB storage etc.
USB3.0	USB3.0 or SATA3.0
Type-C	USB3.1 Type-C
Ethernet	10/100/1000 Mbit/s Ethernet
Camera	3x Camera. support single sensor or multi-sensor (5 sensors at most) Support 8 Megapixels IMX415 single sensor default
WiFi	2T2R 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Serial Port	Debug serial
eMMC	Support eMMC 5.1
4G&GPS	EC20 LTE
SATA	SATA3.0
LCD	10.1-inch MIPI LCD with touch screen, 1920 x 1200 eDP LCD
CAN	Support
RTC	HYM8563TS
UART	2x UART
RS485	Support
PCIE	PCIe NVMe SSD
FAN	GPIO control
IR	PWM IR
SPDIF	Audio out
Embedded GUI	Android12	Clock, Gallery, Calculator, Camera, Files, Video, Music etc.
Cross-compiler Environment	ubuntu-18.04, openjdk version "11.0.4"
Debug Tools	SecureCRT, AndroidTool.exe, ADB

Item

Feature

Description

Android 12

Boot

U-Boot 2017.09

rk3588_spl_loader_v1.06.109.bin

Kernel

Version

Linux version 5.10.66

Drivers

HDMI OUT

Support 8K, 4K, 1080P, 720P, 480P resolution

HDMI IN

HDMI 2.0 RX PHY, 4 lanes support 4K, 1080P, 720P, 480P resolution

Support 8K, 4K, 1080P, 720P, 480P resolution

Audio

Audio in/out, headphone

SD card

Micro SD card

USB2.0

USB mouse, USB keyboard, USB storage etc.

USB3.0

USB3.0 or SATA3.0

Type-C

USB3.1 Type-C

Ethernet

10/100/1000 Mbit/s Ethernet

Camera

3x Camera.
support single sensor or multi-sensor (5 sensors at most)
Support 8 Megapixels IMX415 single sensor default

WiFi

2T2R 802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

Serial Port

Debug serial

eMMC

Support eMMC 5.1

4G&GPS

EC20 LTE

SATA

SATA3.0

LCD

10.1-inch MIPI LCD with touch screen, 1920 x 1200 eDP LCD

CAN

Support

RTC

HYM8563TS

UART

2x UART

RS485

Support

PCIE

PCIe NVMe SSD

FAN

GPIO control

PWM IR

SPDIF

Audio out

Embedded GUI

Android12

Clock, Gallery, Calculator, Camera, Files, Video, Music etc.

Cross-compiler Environment

ubuntu-18.04, openjdk version "11.0.4"

Debug Tools

SecureCRT, AndroidTool.exe, ADB

OS	Item	Feature	Description
Debian11	Boot	U-Boot 2017.09	rk3588_spl_loader_v1.06.109.bin
Kernel	Version	Linux version 5.10.66
Drivers	HDMI OUT	Support 8K, 4K, 1080P, 720P, 480P resolution
DP	Support 8K, 4K, 1080P, 720P, 480P resolution
Audio	Audio in/out, headphone
SD card	Micro SD card
USB2.0	USB mouse, USB keyboard, USB storage etc.
USB3.0	USB3.0
Type-C	USB3.1 Type-C
Ethernet	10/100/1000 Mbit/s Ethernet
Camera	3x Camera. support single sensor or multi-sensor (5 sensors at most) Support 8 Megapixels IMX415 single sensor default
WiFi	2T2R 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
Serial Port	Debug serial
eMMC	Support eMMC 5.1
4G&GPS	EC20 LTE
SATA	SATA3.0
LCD	10.1-inch(1920x1200) eDP LCD
CAN	Support
RTC	HYM8563TS
UART	2x UART
RS485	Support
PCIE	PCIe NVMe SSD
FAN	GPIO control
IR	PWM IR
Embedded GUI	Debian11	Trash, Filesystem, Home.
Cross-compiler Environment	ubuntu-21.04
Debug Tools	SecureCRT, AndroidTool.exe, ADB

Item

Feature

Description

Debian11

Boot

U-Boot 2017.09

rk3588_spl_loader_v1.06.109.bin

Kernel

Version

Linux version 5.10.66

Drivers

HDMI OUT

Support 8K, 4K, 1080P, 720P, 480P resolution

Audio

Audio in/out, headphone

SD card

Micro SD card

USB2.0

USB mouse, USB keyboard, USB storage etc.

USB3.0

Type-C

USB3.1 Type-C

Ethernet

10/100/1000 Mbit/s Ethernet

Camera

3x Camera.
support single sensor or multi-sensor (5 sensors at most)
Support 8 Megapixels IMX415 single sensor default

WiFi

2T2R 802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

Serial Port

Debug serial

eMMC

Support eMMC 5.1

4G&GPS

EC20 LTE

SATA

SATA3.0

LCD

10.1-inch(1920x1200) eDP LCD

CAN

Support

RTC

HYM8563TS

UART

2x UART

RS485

Support

PCIE

PCIe NVMe SSD

FAN

GPIO control

PWM IR

Embedded GUI

Debian11

Trash, Filesystem, Home.

Cross-compiler Environment

ubuntu-21.04

Debug Tools

SecureCRT, AndroidTool.exe, ADB

OS	Item	Feature	Description
Buildroot	Boot	U-Boot 2017.09	rk3588_spl_loader_v1.07.111.bin
Kernel	Version	Linux version 5.10.66
Drivers	HDMI OUT	Support up to 7680x4320@60Hz
DP	Support up to 7680x4320@30Hz
eDP	Support up to 4K@60Hz
Type-C	USB3.1 Type-C, support to USB device and HDMI OUT
Ethernet	Gigabit Ethernet
USB3.0	Support
USB2.0	Support 4xUSB2.0
WiFi	2T2R 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2
UART	2x UART
RTC	HYM8563TS
4G&GPS	EC20 LTE
SATA	Support SATA3.0
PCIE	PCIe NVMe SSD
Audio	headphone(in/out)
All-in-one card holder	Nano SIM+Micro SD
IR	PWM15 IR
Serial Port	Debug serial
RS485	Support
CAN	Support
FAN	Support
Embedded GUI	QT	qfm, qplayer, qsetting, chromium browser, multivideoplayer, qcamera, Qt V4L2 test Utility
Cross-compiler Environment	ubuntu-18.04
Debug Tools	SecureCRT, AndroidTool.exe, ADB

Item

Feature

Description

Buildroot

Boot

U-Boot 2017.09

rk3588_spl_loader_v1.07.111.bin

Kernel

Version

Linux version 5.10.66

Drivers

HDMI OUT

Support up to 7680x4320@60Hz

Support up to 7680x4320@30Hz

eDP

Support up to 4K@60Hz

Type-C

USB3.1 Type-C, support to USB device and HDMI OUT

Ethernet

Gigabit Ethernet

USB3.0

Support

USB2.0

Support 4xUSB2.0

WiFi

2T2R 802.11 a/b/g/n/ac/ax

Bluetooth

Bluetooth 5.2

UART

2x UART

RTC

HYM8563TS

4G&GPS

EC20 LTE

SATA

Support SATA3.0

PCIE

PCIe NVMe SSD

Audio

headphone(in/out)

All-in-one card holder

Nano SIM+Micro SD

PWM15 IR

Serial Port

Debug serial

RS485

Support

CAN

Support

FAN

Support

Embedded GUI

qfm, qplayer, qsetting, chromium browser, multivideoplayer, qcamera, Qt V4L2 test Utility

Cross-compiler Environment

ubuntu-18.04

Debug Tools

SecureCRT, AndroidTool.exe, ADB

Expansion Module	Module Detail	Android	Debian	Buildroot
4G	Quectel EC20 Mini PCIe Multi-mode LTE Module	√	√	√
WiFi&Bluetooth	BL-M8852BS2 module. 2.4/5G WiFi + Bluetooth 5.2	√	√	√
Camera	SONY IMX415-AAQR-C module	√	√	-
10.1-inch LCD	1920*1200 Pixels. eDP1.2 interface	√	√	√

I downloaded the source code，when I try to compile, I got this error:

  @ubuntu:/home/idea3588/buildroot$  ./build.sh kernel

  processing option: kernel

  ============Start building kernel============

  TARGET_ARCH     =arm64
  TARGET_KERNEL_CONFIG =rockchip_linux_defconfig
  TARGET_KERNEL_DTS  =rk3588-evb2-lp4-v10-edp-linux
  TARGET_KERNEL_CONFIG_FRAGMENT =

  ==========================================

  #
  # No change to .config
  #
    CALL    scripts/atomic/check-atomics.sh
    CALL    scripts/checksyscalls.sh
    CHK    include/generated/compile.h
    LZ4C    arch/arm64/boot/Image.lz4
  fatal: youe current branch 'master' does not have any commits yet
  Incorrect parameters
  Usage :
        lz4 [arg] [input] [output]
  input   : a filename
        with no FILE, or when  FILE is - or stdin, read standard input
  Arguments :
   -1   : Fast compression (default)
   -9    : High compression
   -d   : decompression (default for .lz4 extension)
   -z   : force compression
   -f   : overwrite output without prompting
   -h/-H  : display help/long help and exit

  arch/arm64/boot/Makefile:31: recipe for target 'arch/arm64/boot/Image.lz4'  failed

  make[2]: *** [arch/arm64/boot/Image.lz4] Error 1
  make[2]: *** Deleting file 'arch/arm64/boot/Image.lz4'
  arch/arm64/Makefile:170: recipe for target 'Image.lz4' failed
  make[1]: *** [Image.lz4] Error 2
  make[1]: *** Waiting for unfinished jobs....
  arch/arm64/Makefile:214: recipe for target 'rk3588-evb2-lp4-v10-edp-linux.img'  failed
  make: *** [rk3588-evb2-lp4-v10-edp-linux.img] Error 2
  ERROR: Running build_kernel failed!
  ERROR: exit code 2 from line 656:
      make ARCH=$RK_ARCH $RK_KERNEL_DTS.img -j$RK_JOBS

Cause: The version of lz4 delivered with the compilation system is too early.
Solution: update to V1.8.3 or later.
lz4 -v //check the compiler lz4 version
sudo cp out/host/linux-x86/bin/lz4 /usr/bin/lz //copy lz4 from the Android source directory to override the compiler's
