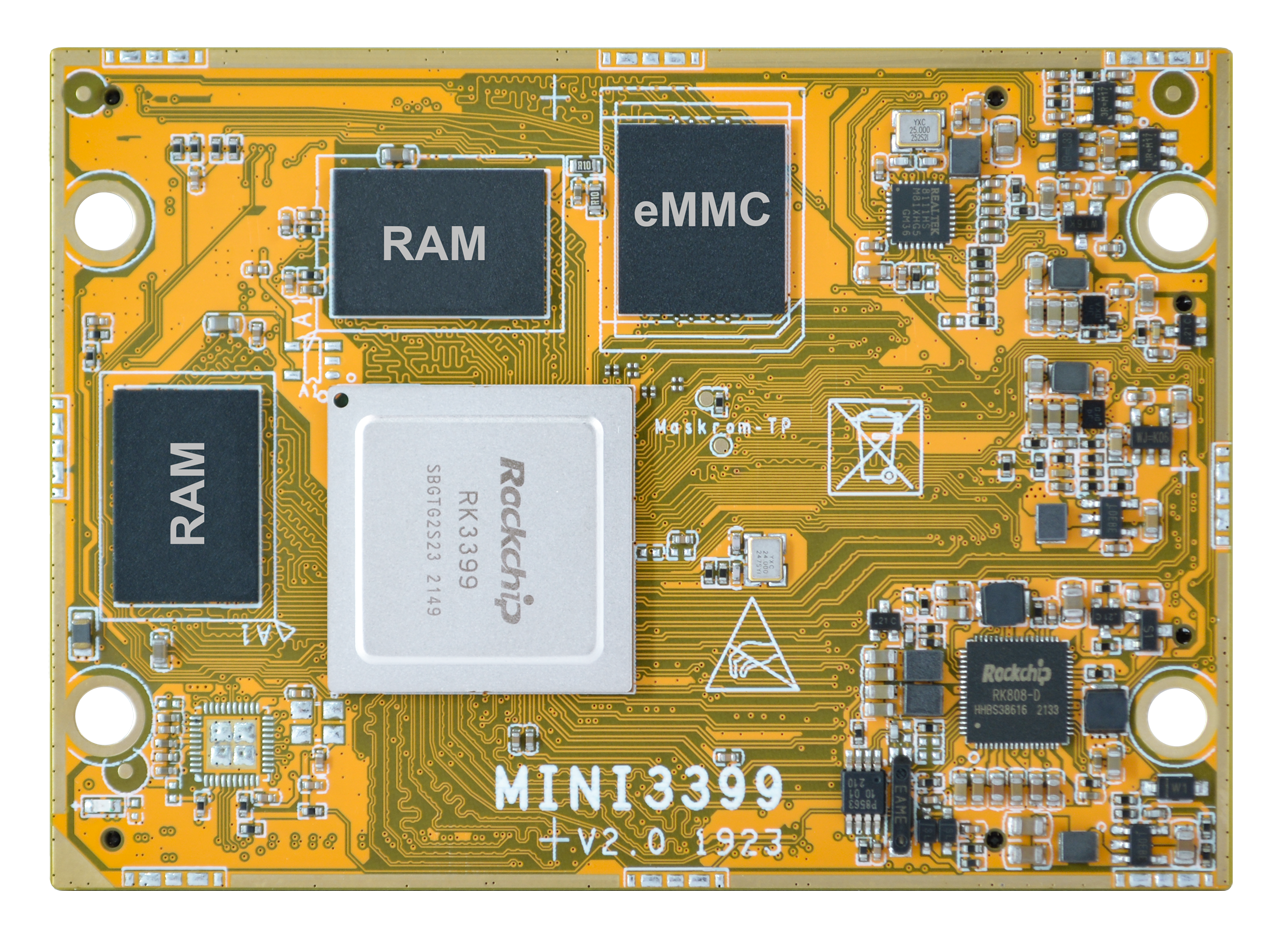

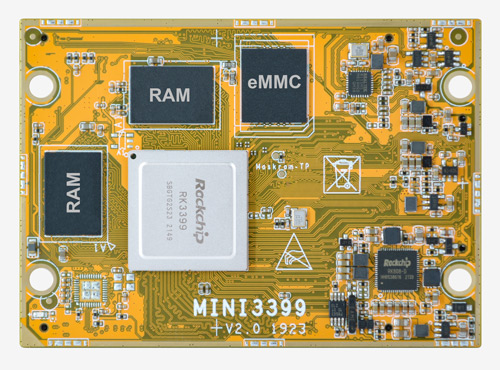

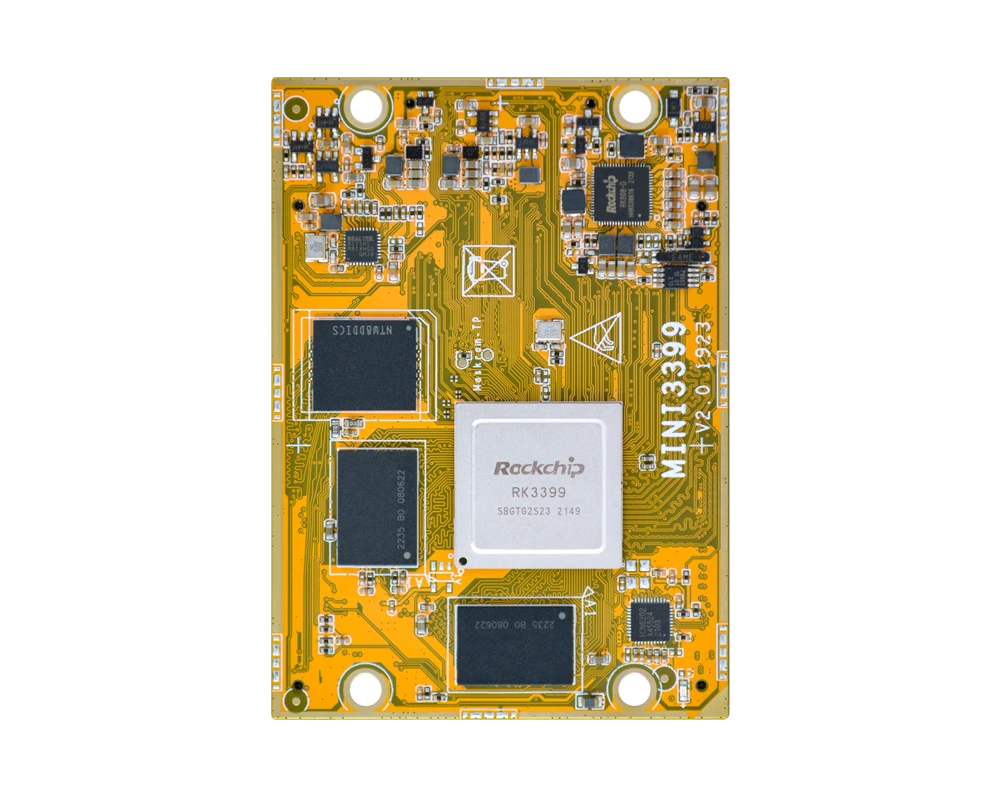

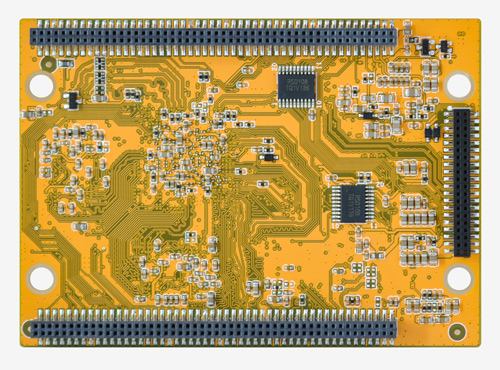

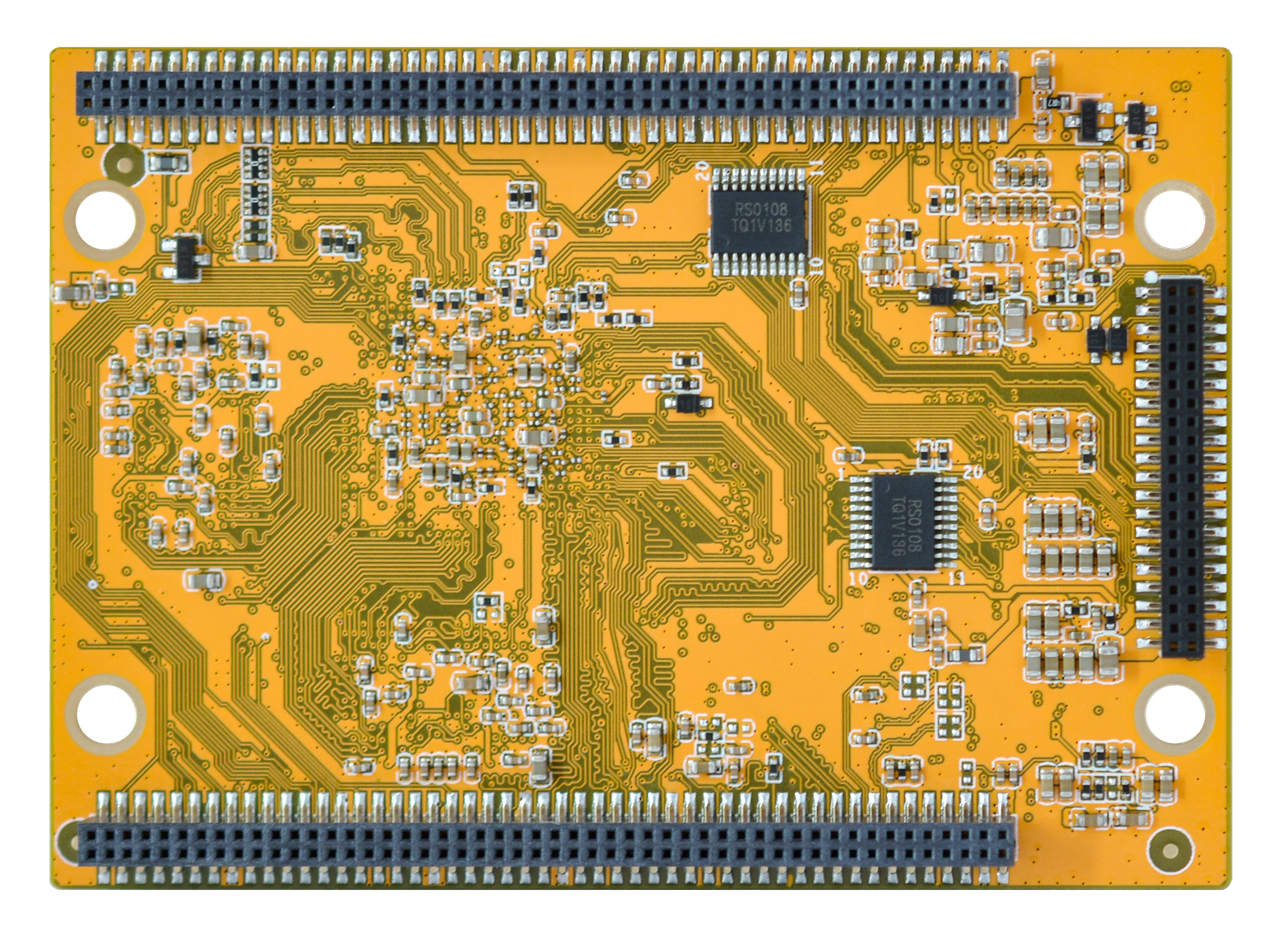

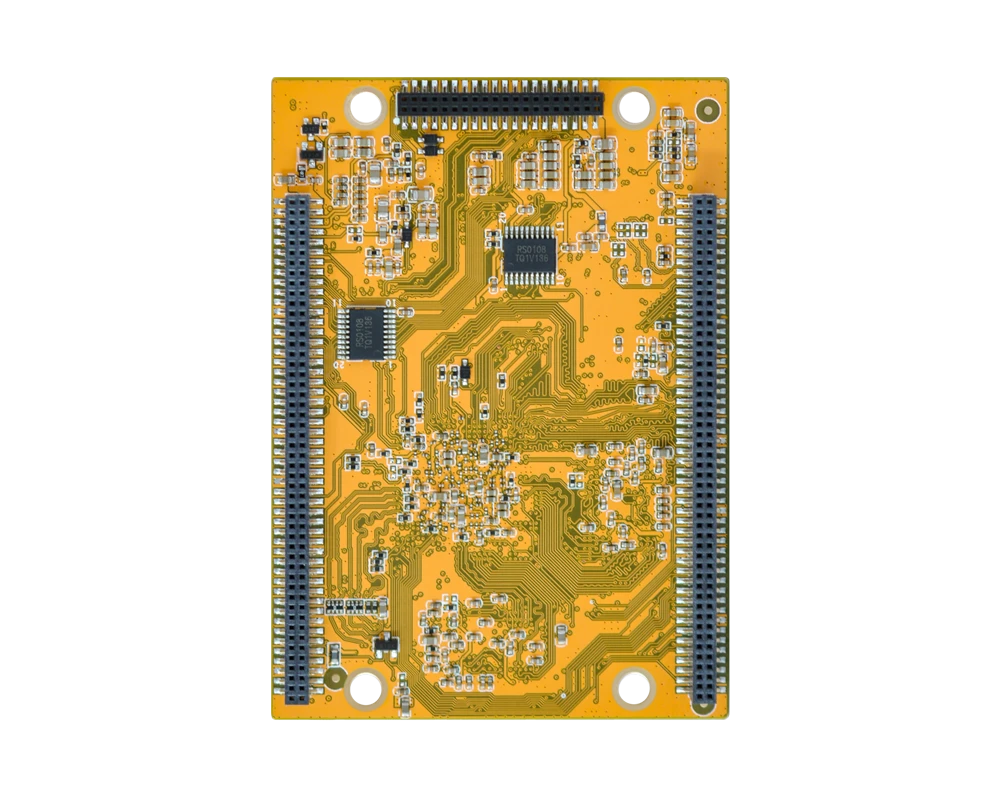

MINI3399

* Processor: Rockchip RK3399, Dual-core Cortex-A72 @1.8GHz + Quad-core Cortex-A53 @1.4GHz
* RAM: 4GB
* Storage: 8GB
* Pin out: 3x UART, Debug, 2x USB2.0 Host, 2x Type-C, LVDS/MIPI_TX, eDP, MIPI_TX/RX, MIPI_RX, HDMI OUT, PCIe, Ethernet, PWM, GPIO, CIF, ADC, SPIDF, I2S, SDMMC, SPI, etc.
* Operating system: Android11
* Board size: 82 x 58mm
* Connectors: 1.27mm pitch, 100-/40-pin Female Pin Header

Overview
Hardware
Software
Download
Price&Order
FAQ

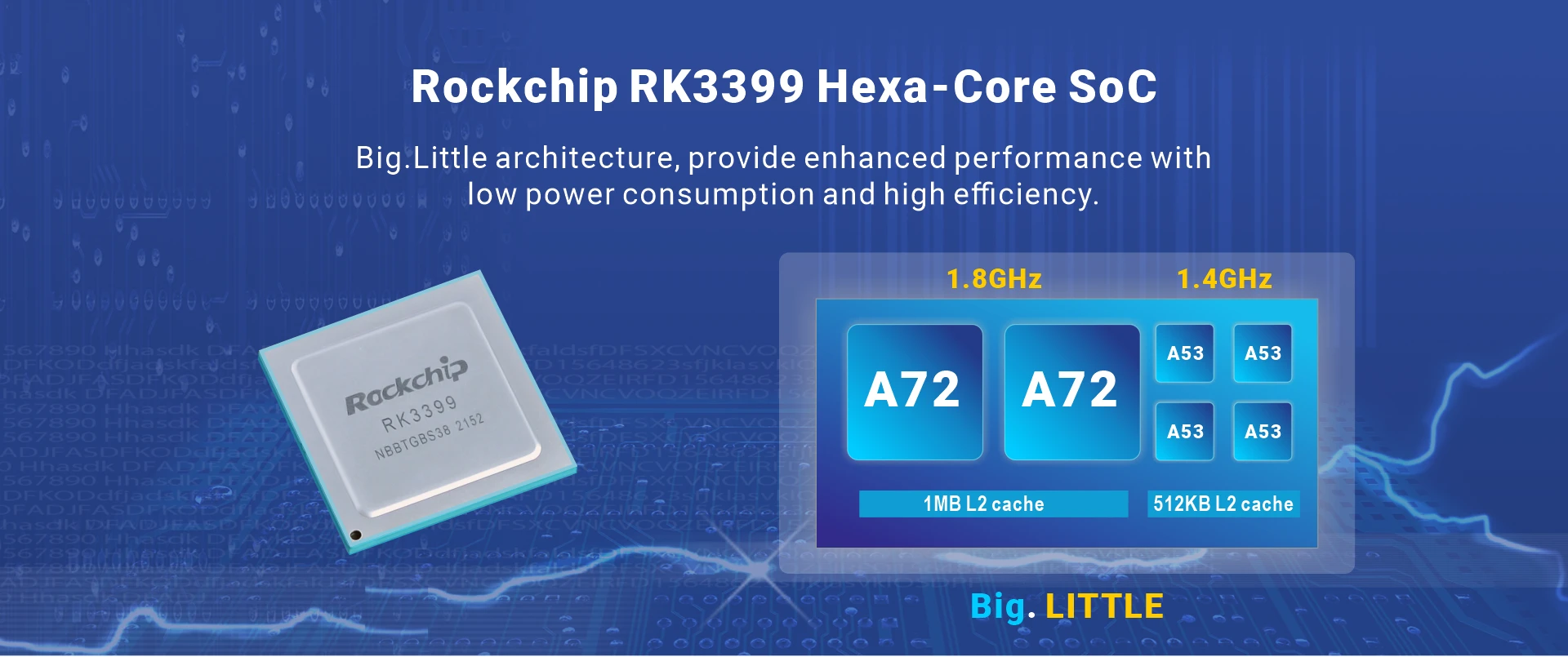

The MINI3399 SoM features a Rockchip RK3399 Hexa-core processor, supports 4K video decoding and 4K display output, and Mali-T860 MP4 GPU provides good graphics processing capabilities. This RK3399 SoM offers a range of connectivity options, including USB ports, Gigabit Ethernet, Wi-Fi, and Bluetooth, ensuring that it can easily interface with various peripherals and networks. It is a versatile platform that can be used in various applications, including industrial automation, robotics, digital signage, IoT devices, and more.
Boardcon offers customization options, allowing clients to tailor the MINI3399-based development board to their specific project requirements.

Specifications
CPU	Rockchip RK3399, Dual 64-bit Cortex-A72@1.8GHz + Quad Cortex-A53 @ 1.4GHz

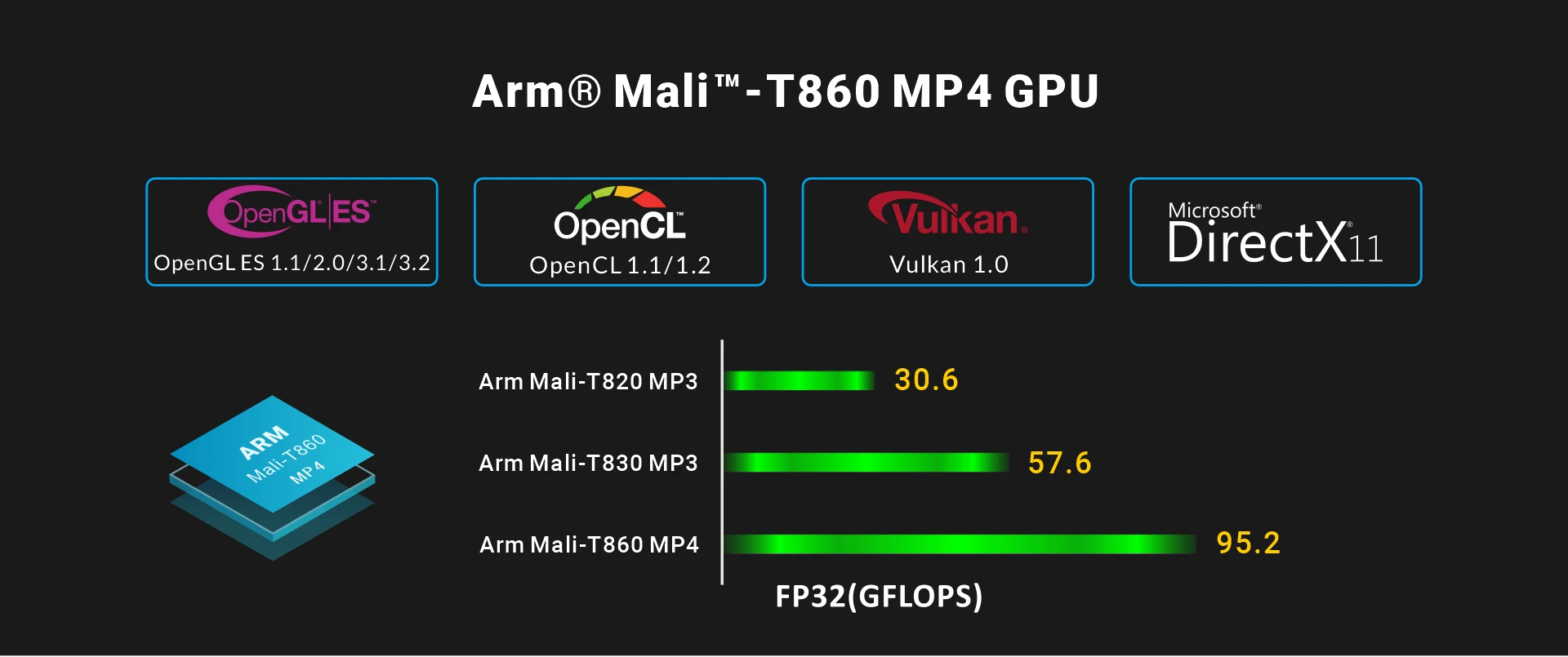

GPU	ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc.

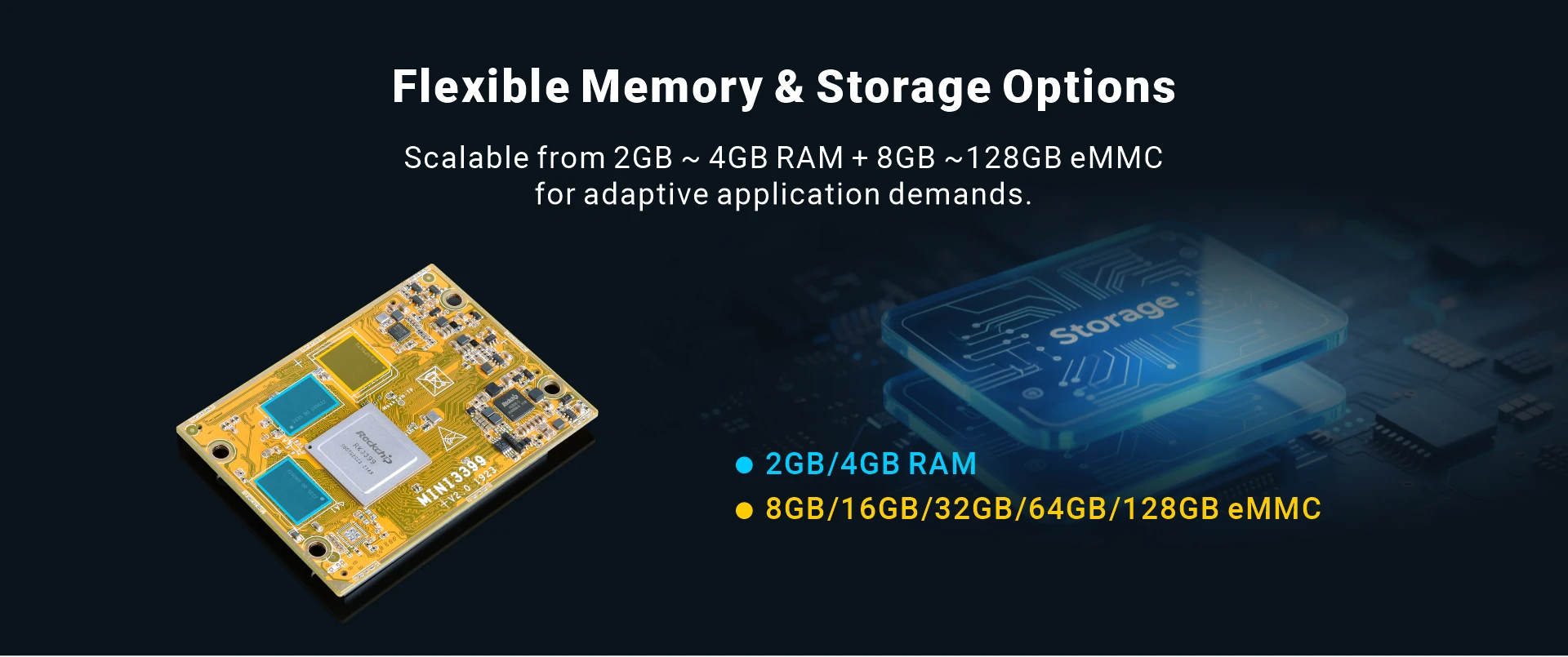

Memory	2GB/4GB
Storage	8GB/16GB/32GB/64GB/128GB
Supply Voltage	DC 5V

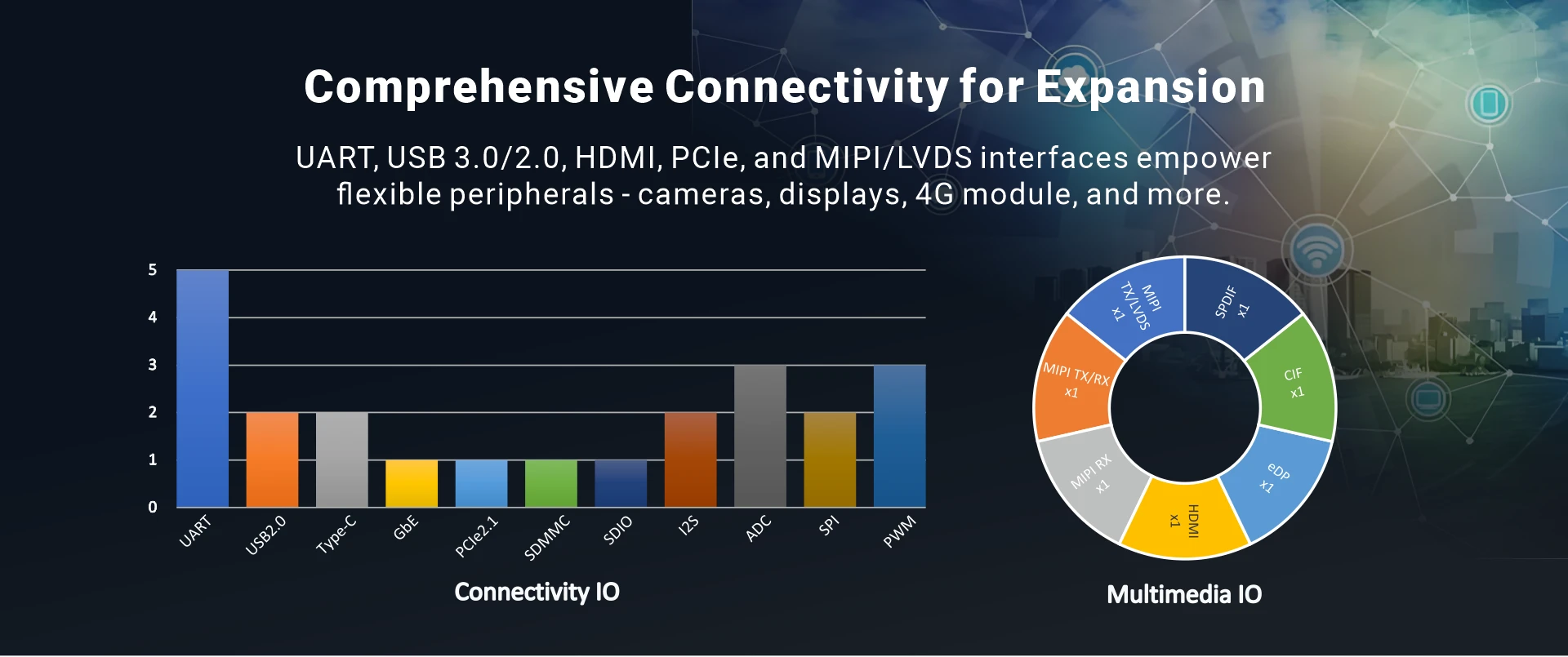

Pin out	HDMI OUT, 2x PWM, 22x GPIO, LVDS/MIPI_TX, eDP, MIPI_TX/RX, MIPI_RX, CIF, 3x ADC, 3x UART, Debug, SPIDF, 2x I2S, SDMMC, 3x SPI, 2x USB2.0 Host, 2x Type-C, SDIO, 2x PCIe (or 1x PCIe, 1x Ethernet)
PCB Layer	8
Dimension	82 x 58mm
Weight	28.8 gram
Connector	1.27mm pitch, (2x 100-pin + 1x 40-pin) Header
Application	industrial automation, robotics, digital signage, IoT devices, etc.
Development Board	SBC3399
Operating system	Android11

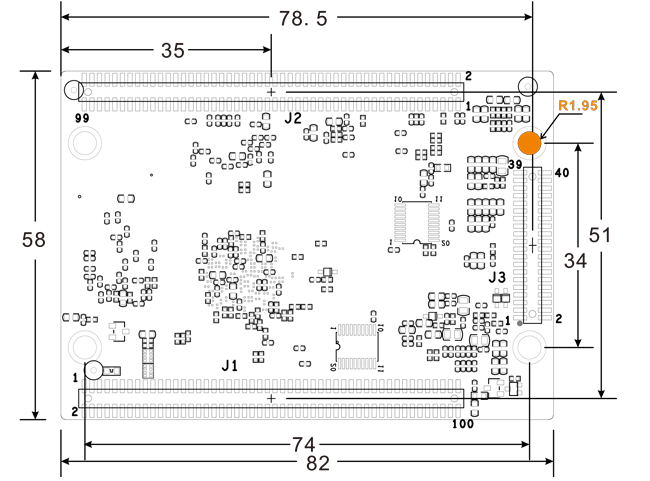

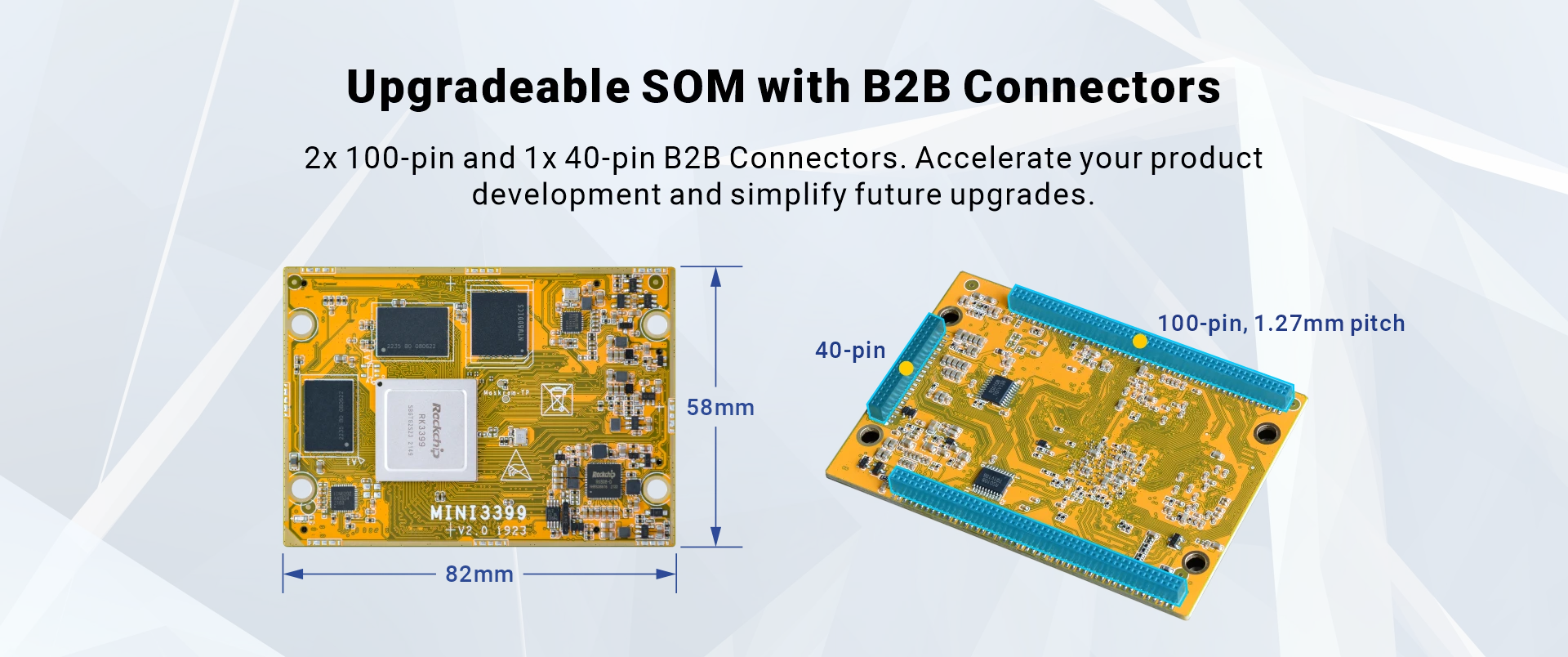

Indicator PCB Dimension

MINI3399_V2_PCB_dimension

Indicator Pin Definition

Pin J1	Signal	Pin J1	Signal	Pin J2	Signal	Pin J2	Signal
1	TX_C-	51	MIPI_TX/RX_D2P	1	VCC_SYS	51	3V3_SPI1_UART4_RXD
2	TX_0-	52	MIPI_TX/RX_D1P	2	GND	52	3V3_SPI1_UART4_TXD
3	TX_C+	53	MIPI_TX/RX_D3P	3	VCC_SYS	53	GND
4	TX_0+	54	GND	4	GND	54	SPI4_CLK/MAC_RXD2
5	GND	55	MIPI_TX/RX_D3N	5	AC_DET	55	SPI4_TXD/MAC_TXD3
6	GND	56	3V_GPIO4_D5	6	MDI0+	56	SPI4_RXD/MAC_TXD2
7	TX_1-	57	RTC_CLKO_WIFI	7	MDI1+	57	UART1_RX/MAC_TXEN
8	TX_2-	58	GPIO1_C7_d	8	MDI0-	58	UART1_TX/MAC_MDIO
9	TX_1+	59	GND	9	MDI1-	59	3V3_GPIO3_B1/MAC_RXDV
10	TX_2+	60	MIPI_RX_CLKN	10	3V_PWM0	60	3V_GPIO4_D4
11	HDMI_HPD	61	MIPI_RX_D0P	11	MDI2+	61	3V_I2S1_LRCK_RX
12	HDMI_CEC	62	MIPI_RX_CLKP	12	MDI3+	62	3V_I2S1_LRCK_TX
13	I2C_SDA_HDMI	63	MIPI_RX_D0N	13	MDI2-	63	SDMMC_CLK
14	I2C_SCL_HDMI	64	MIPI_RX_D2N	14	MDI3-	64	GND
15	GND	65	MIPI_RX_D1N	15	GND	65	SDMMC_D0
16	3V3_PWM3	66	MIPI_RX_D2P	16	Reset_KEY	66	SDMMC_CMD
17	3V3_GPIO1_A1	67	MIPI_RX_D1P	17	SDIO0_CMD	67	SDMMC_D2
18	3V3_GPIO1_A3	68	MIPI_RX_D3P	18	SDIO0_D0	68	SDMMC_D1
19	3V3_GPIO1_A2	69	MIPI_RX_D3N	19	SDIO0_D1	69	SDMMC_DET
20	LVDS1_MIPI_TX_D0P	70	GPIO2_B4_u	20	SDIO0_D2	70	SDMMC_D3
21	LVDS1_MIPI_TX_D0N	71	GPIO2_D4_d	21	SDIO0_D3	71	3V_I2S1_SDI0
22	LVDS1_MIPI_TX_D1P	72	CIF_HSYNC	22	SDIO0_CLK	72	3V_I2S1_SCLK
23	LVDS1_MIPI_TX_D1N	73	CIF_VSYNC	23	BT_WAKE_L	73	GND
24	LVDS1_MIPI_TX_D2P	74	CIF_CLKO	24	SDIO0_PWR	74	3V_I2S1_SDO0
25	LVDS1_MIPI_TX_D2N	75	CIF_CLKIN	25	WIFI_REG_ON_H	75	3V_I2S0_SDI0
26	LVDS1_MIPI_TX_D3P	76	I2C4_SCL	26	BT_HOST_WAKE_L	76	3V_I2S_MCLK
27	LVDS1_MIPI_TX_D3N	77	I2C4_SDA	27	WIFI_HOST_WAKE_L	77	3V_I2S0_SCLK
28	GPIO0_A2_d	78	GND	28	BT_REG_ON_H	78	3V_I2S0_LRCK_RX
29	GND	79	3V3_GPIO1_B5	29	SPI0_CLK/MAC_RXD0	79	3V_I2S0_LRCK_TX
30	LVDS1_MIPI_TX_CLKP	80	3V3_GPIO1_A4	30	SPI0_CSn0/MAC_RXD1	80	3V_I2S0_SDO0
31	LVDS1_MIPI_TX_CLKN	81	3V3_GPIO1_C6	31	SPI0_RXD/MAC_TXD0	81	3V_I2S0_SDO1
32	eDP_TX0P	82	3V3_GPIO1_C2	32	SPI0_TXD/MAC_TXD1	82	3V_I2S0_SDO2
33	eDP_TX0N	83	LED1/GPO	33	SPI0_CSn1/MAC_MDC	83	3V_I2S0_SDO3
34	eDP_TX1P	84	LED2/LED1	34	SPI4_CSn0/MAC_RXD3	84	3V_SPDIF_TX
35	eDP_TX1N	85	VCC3V0_TOUCH	35	UART0_RXD	85	I2C5_SDA/MAC_RXER
36	eDP_TX2P	86	3V3_GPIO0_B0	36	UART0_TXD	86	GND
37	eDP_TX2N	87	3V3_GPIO0_B5	37	GND	87	3V_I2C1_SDA
38	eDP_TX3P	88	ADC_IN3	38	UART0_CTS	88	I2C5_SCL/MAC_CLK
39	eDP_TX3N	89	3V3_GPIO1_D0	39	TYPEC0_DM	89	3V_GPIO4_D2
40	GPIO0_B3_d	90	ADC_IN1	40	UART0_RTS	90	3V_I2C1_SCL
41	NC	91	VCCIO_SD	41	TYPEC0_DP	91	UART2DBG_RX
42	eDP_AXUP	92	ADC_IN2	42	TYPEC0_ID	92	3V_GPIO4_D1
43	eDP_AXUN	93	VCC1V8_DVP	43	HOST0_DM	93	UART3_RX/MAC_RXCLK
44	GND	94	VCCA3V0_CODEC	44	TYPEC0_U2VBUSDET	94	UART2DBG_TX
45	MIPI_TX/RX_CLKN	95	VCC_EFUSE	45	HOST0_DP	95	UART3_RTS/MAC_TXCLK
46	MIPI_TX/RX_D0P	96	VCC_RTC	46	HOST1_DM	96	UART3_TX
47	MIPI_TX/RX_CLKP	97	VCC3V3_SYS	47	3V3_SPI1_CSn0	97	3V_PWM1
48	MIPI_TX/RX_D0N	98	GND	48	HOST1_DP	98	UART3_CTS/SPDIFO
49	MIPI_TX/RX_D2N	99	VCC3V3_SYS	49	3V3_SPI1_CLK	99	POWER_KEY
50	MIPI_TX/RX_D1N	100	GND	50	GND	100	3V_GPIO4_D3

Pin J3	Signal	Pin J3	Signal	Pin J3	Signal	Pin J3	Signal
1	TYPEC0_AUXP	11	TYPEC0_TX2P	21	TYPEC1_DP	31	GND
2	GND	12	TYPEC0_RX2N	22	CIF_D0	32	PMIC_EXT_EN
3	TYPEC0_AUXM	13	TYPEC0_TX2N	23	CIF_D1	33	PCIE_TX1N
4	3V3_GPIO1_A0	14	GND	24	GND	34	PCIE_RX1_N
5	GND	15	TYPEC1_RX1P	25	CIF_D2	35	PCIE_TX1P
6	TYPEC0_RX1P	16	TYPEC1_TX1P	26	CIF_D3	36	PCIE_RX1_P
7	TYPEC0_TX1P	17	TYPEC1_RX1N	27	CIF_D4	37	VCC_SYS
8	TYPEC0_RX1N	18	TYPEC1_TX1N	28	CIF_D5	38	GND
9	TYPEC0_TX1N	19	TYPEC1_DM	29	CIF_D6	39	VCC_SYS
10	TYPEC0_RX2P	20	NC	30	CIF_D7	40	GND

OS	Item	Feature	Description
Android 11	Boot	Uboot-201709	rk3399_loader_v1.25.126.bin
	Kernel	Version	Linux 4.19.193
	Drivers	eMMC	Support eMMC 5.1
		GPU	Support AFBC
		HDMI	Support 4K,1080P, 720P, 480P resolution
		Audio	Audio in/out
		SD	Micro SD
		USB	USB2.0 Host, USB3.0 Host, USB3.0 Type-C
		SATA	SATA3.0
		Ethernet	10/100/1000 Mbit/s Ethernet
		eDP	eDP 1.3
		MIPI LCD	10.1-inch MIPI LCD
		LVDS	10.1-inch LVDS LCD
		Camera	MIPI Camera. 13 Megapixels, OV13850 module
		4G	mPCIe 4G
		UART	3x UART
		WiFi	Wireless- 2.4GHz, 802.11 b/g/n
		Bluetooth	Bluetooth 4.2
		Debug	Debug serial port
		Others	I2S, SPI, ADC, GPIO
	Embedded GUI	Android 11	Support Clock, Lightning, Gallery, Calculator, Camera, Email, Explorer, Video, Music etc.
	Cross-compiler Environment	ubuntu-18.04
	Debug Tools	SecureCRT, AndroidTool.exe, ADB
