PICO3399

* Processor: Rockchip RK3399, Dual 64-bit Cortex-A72 + Quad Cortex-A53 @ 1.8GHz
* RAM: 1/2/4GB LPDDR4
* Storage: 8/16/32/64/128GB
* Pin out: 2x USB2.0 Host, 2x USB3.0 or 2x Type-C, UART, MIPI, GbE, HDMI in&out, Audio, I2C, I2S, PCI-E, SD/MMC/SDIO, GPIO, eDP
* Operating system: Android 11, Debian 10, Ubuntu 16.04
* Board size: 50mm x 82mm
* Connectors: MXM3.0-314P card edge connector
CE Certification, CE-EMC Report
FCC Certification, FCC-VOC Report

Overview
Hardware
Software
Download
Price&Order
FAQ

The PICO3399 is a hexa-core module which is based on the Rockchip RK3399 processor that adopts big.LITTLE CPU architecture dual core cortex-A72 and quad-core cortex-A53, Mali-T860MP4 GPU. The module supports 4K H.265 video decoding up to 60 fps, HDMI in/output, USB Type-C, Gigabit Ethernet, Android 11 operating system, and target to 2in1 Android tablets, VR, TV-BOX, laptops, in-vehicle navigations, communications and other terminals covering industrial and consumer applications, including smart Device, advertising devices, all-in-one machines, POS systems, vehicle control terminals, thin-clients, VOIP video conferencing security / monitoring / policing, IoT, as well as other fields.

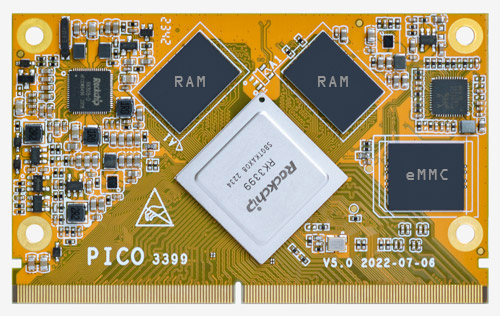

Rockchip RK3399 module

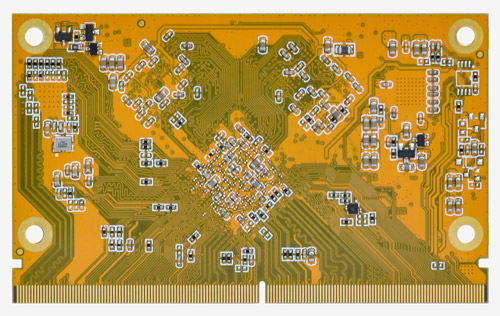

pico3399-RK3399-System-on-module

Specifications

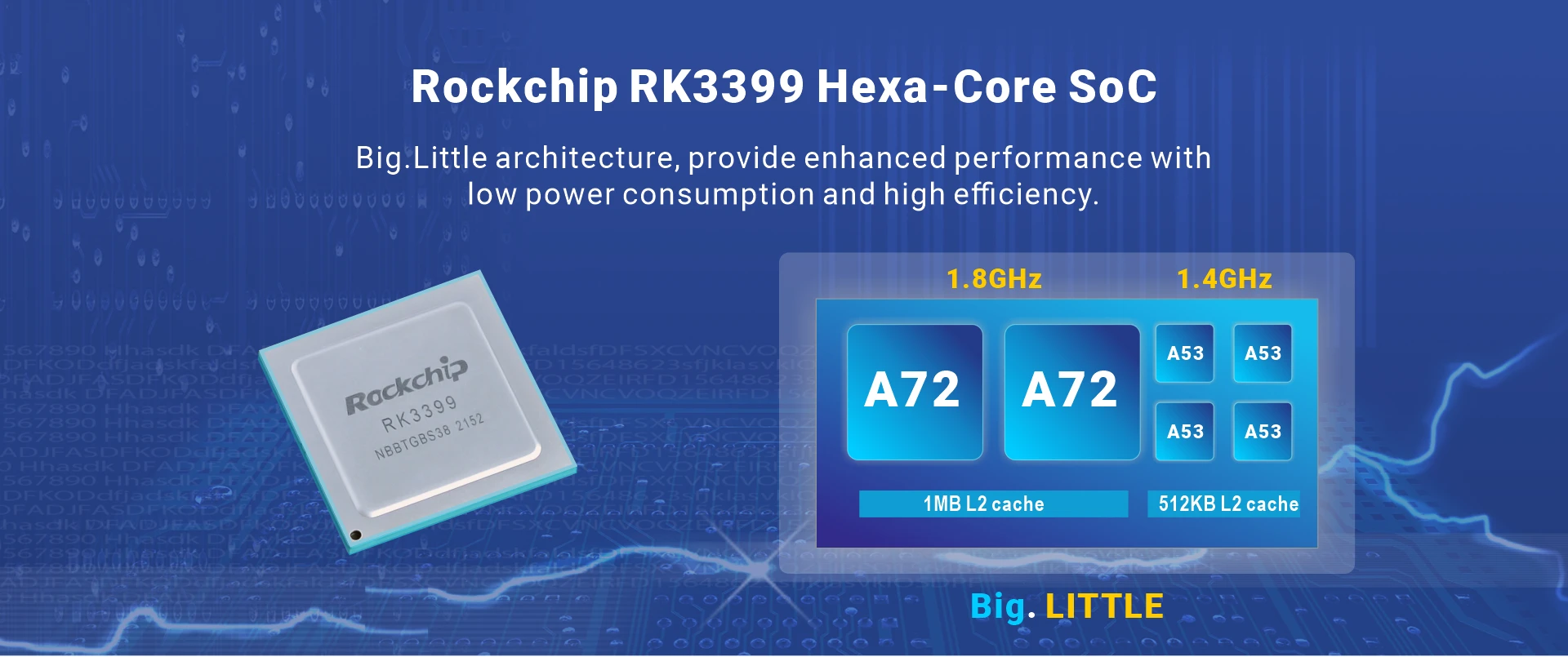

CPU	Rockchip RK3399, Dual 64-bit Cortex-A72@1.8GHz + Quad Cortex-A53 @ 1.4GHz

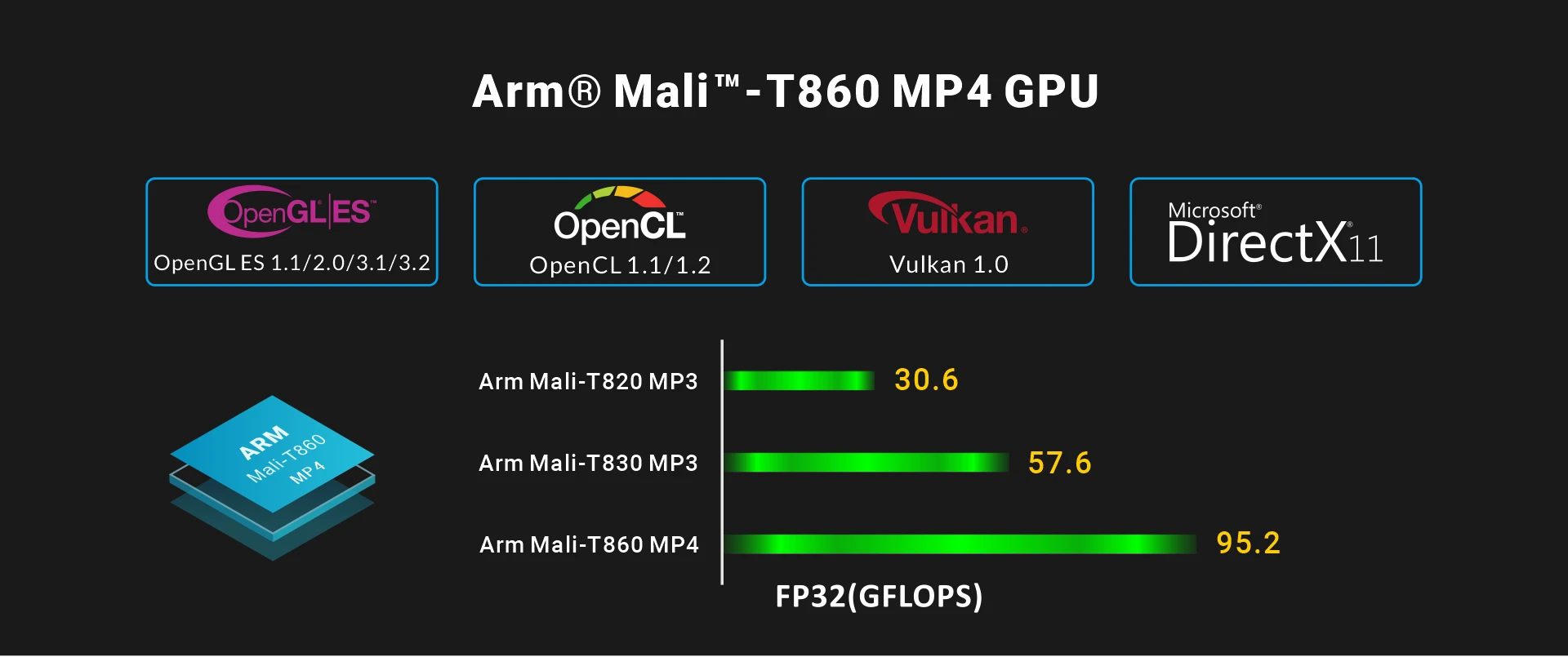

GPU	ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc.
Memory	1/2/4GB LPDDR4
Storage	8/16/32/64/128GB eMMC
Supply Voltage	DC 5V

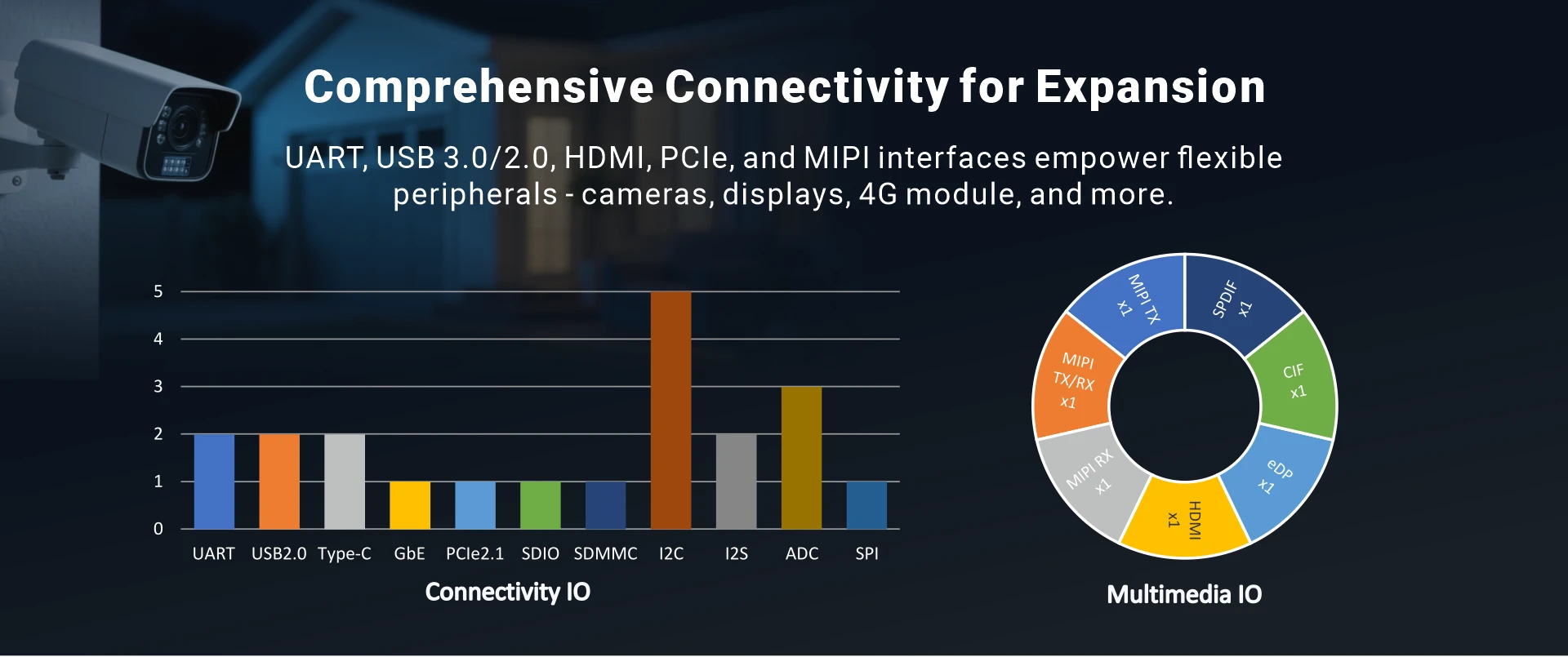

Pin out	USB2.0 Host, USB3.0 or USB Type-C, UART, MIPI, GbE, HDMI in&out, Audio, I2C, I2S, PCI-E, ADC, SD/MMC/SDIO, GPIO, eDP, etc.
PCB Layer	8
Dimensions	82 x 50 mm

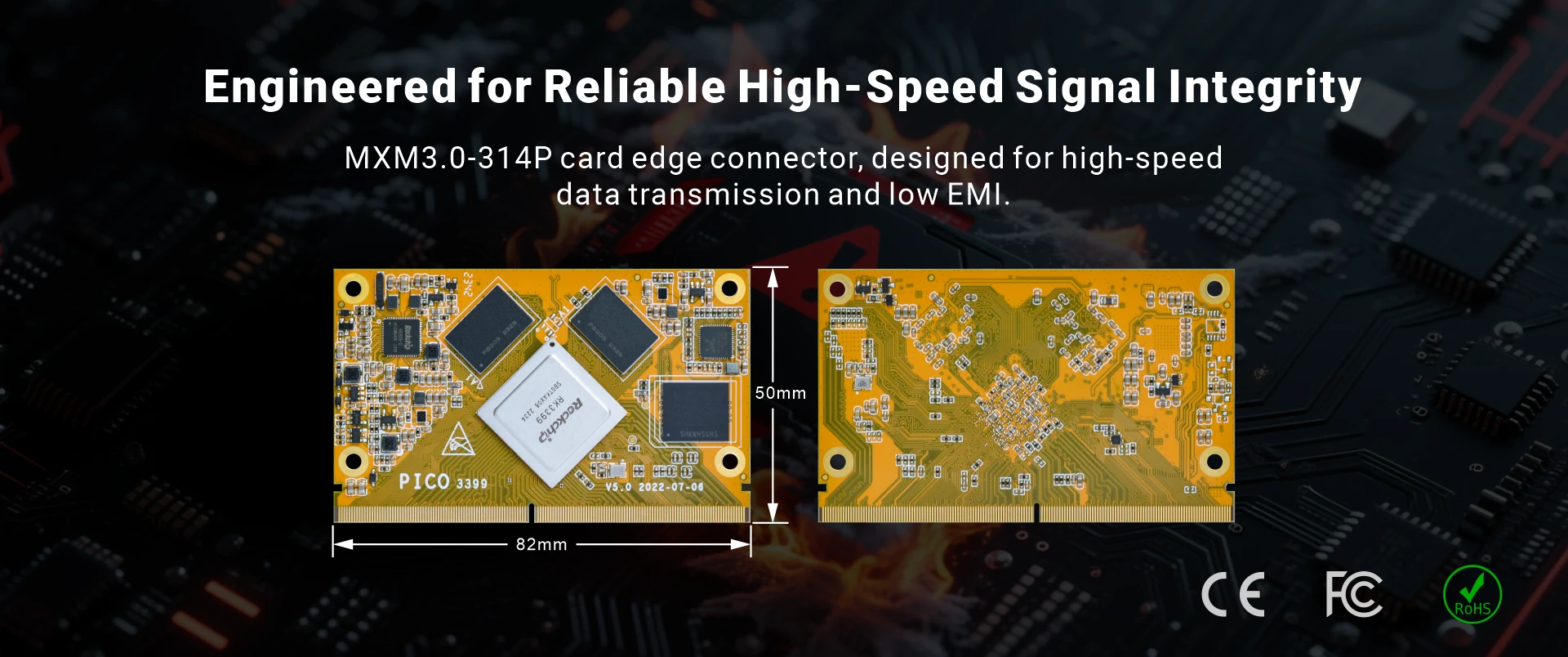

Connectors	314-pin card edge connector
Application	Smart Device, advertising devices, all-in-one machines, POS systems, vehicle control terminals, etc.
Development Board	EM3399
Certificates	CE Certification, FCC Certification

Indicator PCB Dimension

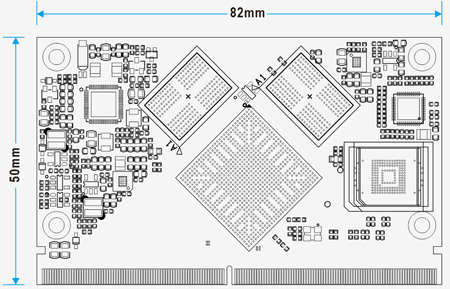

PICO3399 PCB dimension

Indicator Pin Definition

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
P1	VDD5V	P79	TYPEC0_TX2N	S1	VDD5V	S80	ADC_IN2
P2	VDD5V	P80	GND	S2	VDD5V	S81	ADC_IN3
P3	VDD5V	P81	TYPEC1_RX1N	S3	VDD5V	S82	GND
P4	VDD5V	P82	TYPEC1_RX1P	S4	VDD5V	S83	TYPEC0_ID
P5	AC_DET	P83	GND	S5	VBuck	S84	TYPEC0_U2VBUSDET
P6	PMIC_EXT_EN	P84	TYPEC1_TX1P	S6	GND	S85	GND
P7	I2C1_SCL	P85	TYPEC1_TX1N	S7	RTC_CLKO_WIFI	S86	PCIE_RX3_N
P8	I2C1_SDA	P86	GND	S8	GND	S87	PCIE_RX3_P
P9	GPIO4_A4	P87	TYPEC1_RX2N	S9	POWER_KEY	S88	GND
P10	GPIO4_A7	P88	TYPEC1_RX2P	S10	Reset_KEY	S89	PCIE_TX3P
P11	I2S0_SDO0	P89	GND	S11	RESET_OUT	S90	PCIE_TX3N
P12	GPIO3_D6	P90	TYPEC1_TX2P	S12	GPIO3_D4	S91	GND
P13	GPIO4_A5	P91	TYPEC1_TX2N	S13	I2S0_SCLK	S92	PCIE_RX2_N
P14	I2S0_LRCK_TX	P92	GND	S14	I2C1_SCLK	S93	PCIE_RX2_P
P15	IGPIO4_C5	P93	TYPEC1_AUXM	S15	GPIO4_A6	S94	GND
P16	I2S0_SDI0	P94	TYPEC1_AUXP	S16	GPIO3_D5	S95	PCIE_TX2P
P17	UART2DBG_RX	P95	GND	S17	LCD_BL_PWM	S96	PCIE_TX2N
P18	I2C_SCL_HDMI	P96	PCIE_RX1_P	S18	I2S0_LRCK_RX	S97	GND
P19	GPIO4_D3	P97	PCIE_RX1_N	S19	GPIO4_D0	S98	BT_HOST_WAKE_L
P20	TOUCH_RST_L	P98	GND	S20	PCIE_PRSNT	S99	SDMMC_D2
P21	GPIO4_D1	P99	PCIE_TX1P	S21	GPIO4_D2	S100	SDMMC_D0
P22	BT_WAKE_L	P100	PCIE_TX1N	S22	GND	S101	SDMMC_D1
P23	SDIO0_D1	P101	GND	S23	I2S_CLK	S102	SDMMC_CMD
P24	UART0_RXD	P102	PCIE_RX0_P	S24	GND	S103	SDMMC0_DET_L
P25	UART0_RTS	P103	PCIE_RX0_N	S25	PCIE_PRSNT1#	S104	GND
P26	UART0_CTS	P104	GND	S26	UART2DBG_TX	S105	SDMMC_CLK
P27	GND	P105	PCIE_TX0P	S27	GPIO4_D4	S106	GND
P28	MIPI_TX/RX_D0P	P106	PCIE_TX0N	S28	I2C_SDA_HDMI	S107	BT_REG_ON_H
P29	MIPI_TX/RX_D0N	P107	GND	S29	HDMI_CEC	S108	SDMMC_D3
P30	GND	P108	PCIE_REF_CLKN	S30	GND	S109	1V8_GPIO0_B0
P31	MIPI_TX/RX_D1P	P109	PCIE_REF_CLKP	S31	SDIO0_CLK	S110	1V8_GPIO0_B5
P32	MIPI_TX/RX_D1N	P110	GND	S32	GND	S111	GPIO1_A4
P33	GND	P111	HOST0_DP	S33	HDMI_HPD	S112	GPIO1_A2
P34	MIPI_TX/RX_CLKP	P112	HOST0_DM	S34	1V8_GPIO2_D3	S113	GPIO1_A0
P35	MIPI_TX/RX_CLKN	P113	GND	S35	1V8_GPIO2_D4	S114	1V8_GPIO0_A6
P36	GND	P114	HOST1_DP	S36	SDIO0_CMD	S115	GPIO1_A3
P37	MIPI_TX/RX_D2P	P115	HOST1_DM	S37	SDIO0_D2	S116	SDMMC0_PWR_H
P38	MIPI_TX/RX_D2N	P116	GND	S38	SDIO0_D3	S117	GND
P39	GND	P117	GND	S39	UART0_TXD	S118	SPI1_CLK
P40	MIPI_TX/RX_D3P	P118	WIFI_REG_ON_H	S40	SDIO0_D0	S119	SPI1_CSn0
P41	MIPI_TX/RX_D3N	P119	WIFI_HOST_WAKE_L	S41	GND	S120	PCIE_PERST#
P42	GND	P120	1V8_GPIO0_B3	S42	MIPI_TX_D3N	S121	PCIE_WAKE#
P43	MIPI_RX_D3P	P121	GPIO1_A1	S43	MIPI_TX_D3P	S122	GND
P44	MIPI_RX_D3N	P122	SPI1_TXD	S44	GND	S123	RK3399_26M_OUT
P45	GND	P123	I2C4_SDA	S45	MIPI_TX_D2N	S124	GND
P46	MIPI_RX_D2P	P124	I2C4_SCL	S46	MIPI_TX_D2P	S125	SPI1_RXD
P47	MIPI_RX_D2N	P125	GPIO3_B2	S47	GND	S126	OTP_OUT_H
P48	GND	P126	GND	S48	MIPI_TX_CLKN	S127	GPIO1_C6
P49	MIPI_RX_CLKP	P127	CIF_CLKOUT	S49	MIPI_TX_CLKP	S128	GPIO1_D0
P50	MIPI_RX_CLKN	P128	GND	S50	GND	S129	NC
P51	GND	P129	GPIO2_A2	S51	MIPI_TX_D1N	S130	GND
P52	MIPI_RX_D1P	P130	GPIO2_A5	S52	MIPI_TX_D1P	S131	GND
P53	MIPI_RX_D1N	P131	GPIO2_A3	S53	GND	S132	I2C2_SCL
P54	GND	P132	GPIO2_A4	S54	MIPI_TX_D0N	S133	I2C7_SCL
P55	MIPI_RX_D0P	P133	GPIO2_A6	S55	MIPI_TX_D0P	S134	I2C6_SDA
P56	MIPI_RX_D0N	P134	GND	S56	GND	S135	I2C6_SCL
P57	GND	P135	I2C2_SDA	S57	GND	S136	GND
P58	TX_C-	P136	I2C7_SDA	S58	VCC3V3_SYS	S137	GND
P59	TX_C+	P137	CIF_PDN0	S59	VCC3V3_SYS	S138	SPDIF_TX
P60	GND	P138	GND	S60	VCC3V3_SYS	S139	GND
P61	TX_0-	P139	GND	S61	VCC_EFUSE	S140	GND
P62	TX_0+	P140	eDP_TX3P	S62	VCC_EFUSE	S141	LED0_AD0
P63	GND	P141	eDP_TX3N	S63	GND	S142	LED1_AD1
P64	TX_1-	P142	GND	S64	TYPEC0_AUXM	S143	LED2_RXDLY
P65	TX_1+	P143	eDP_TX2P	S65	TYPEC0_AUXP	S144	GND
P66	GND	P144	eDP_TX2N	S66	GND	S145	MDI0-
P67	TX_2-	P145	GND	S67	TYPEC0_CC1	S146	MDI0+
P68	TX_2+	P146	NC	S68	GND	S147	GND
P69	GND	P147	NC	S69	TYPEC0_RCLKP	S148	NC
P70	TYPEC0_RX1N	P148	eDP_TX1P	S70	TYPEC0_RCLKN	S149	NC
P71	TYPEC0_RX1P	P149	eDP_TX1N	S71	GND	S150	MDI1-
P72	GND	P150	GND	S72	TYPEC0_CC2	S151	MDI1+
P73	TYPEC0_TX1P	P151	eDP_TX0P	S73	GND	S152	GND
P74	TYPEC0_TX1N	P152	eDP_TX0N	S74	TYPEC0_DP	S153	MDI2-
P75	TYPEC0_RX2N	P153	GND	S75	TYPEC0_DM	S154	MDI2+
P76	TYPEC0_RX2P	P154	eDP_AXUP	S76	TYPEC1_DM	S155	GND
P77	GND	P155	eDP_AXUN	S77	TYPEC1_DP	S156	MDI3-
P78	TYPEC0_TX2P	P156	GND	S78	GND	S157	MDI3+
				S79	ADKEY_IN	S158	GND

OS	Item	Feature	Description
Android 11	Boot	uboot 2017.09	rk3399_loader_v1.27.126.bin
	Kernel	Version	Linux 4.19.232
	Drivers	HDMI	Support 4K,1080P, 720P, 480P resolution
		Audio	Audio in/out
		SD card	Micro SD card
		USB	USB mouse, USB keyboard, usb storage etc
		Ethernet	10/100/1000 Mbit/s Ethernet
		eDP	Support eDP 1.3 10.8Gbps
		MIPI_TX	Support MIPI LCD
		Camera	13 Megapixels, OV13850 module
		WIFI	Wireless- 2.4GHz/5GHz 802.11 a/b/g/n/ac
		Bluetooth	Bluetooth 4.1, AP6356s module
		Serial Port	Debug serial
		PCI-E	Support 4G&GPS, SSD
		GPU	Support AFBC
		eMMC	Support eMMC 5.1
	Embedded GUI	Android 11	Support Clock, Lightning, Gallery, Calculator, Camera, Email, Explorer, Video, Music etc.
	Cross-compiler Environment	ubuntu-18.04, java-8-openjdk-amd64.tar.bz2
	Debug Tools	SecureCRT, AndroidTool.exe, ADB

OS	Item	Feature	Description
Android7.1.2	Boot	uboot 2017-06-09#1.09	rk3399_loader_v1.08.109.bin
	Kernel	Version	Linux 4.4.126
	Drivers	HDMI	Support 4K,1080P, 720P, 480P resolution
		Audio	Audio in/out
		SD card	Micro SD card
		USB	USB mouse, USB keyboard, usb storage etc
		Ethernet	10/100/1000 Mbit/s Ethernet
		eDP	Support eDP 1.3 10.8Gbps
		MIPI_TX	Support MIPI LCD
		Camera	13 Megapixels, OV13850 module
		WIFI	Wireless- 2.4GHz/5GHz 802.11 a/b/g/n/ac
		Bluetooth	Bluetooth 4.1, AP6356s module
		Serial Port	Debug serial
		PCI-E	Support 4G/SSD
		GPU	Support AFBC
		eMMC	Support eMMC 5.1
	Embedded GUI	Android7.1.2	Support Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc.
	Cross-compiler Environment	ubuntu-14.04, java-8-openjdk-amd64.tar.bz2
	Debug Tools	SecureCRT, AndroidTool.exe, ADB

OS	Item	Feature	Description
Debian	Boot	uboot 2017.09	MiniLoaderAll.bin
	Kernel	Version	Linux 4.4.167
	File system	File system	Debian
	Drivers	Audio	Audio out
		SD card	Micro_sd card
		USB	USB mouse, USB keyboard, usb storage etc
		Ethernet	10/100/1000M RJ45
		WIFI	Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac
		Bluetooth	Bluetooth 4.1, AP6354 module
		3D acceleration	Support 3D acceleration
		LCD	MIPI LCD(1280*800)
		Type-C	USB Type-C Download, Support type-C to RJ45/RS232/USB HOST
		PCI-E	Support 3G/4G/SSD
		HDMI	Support 1920x1080P resolution
		RTC	Real time keeping
		Hard decoding play	Support
		GPIO	Support
		KEY	Recovery and reset key
		Debug	Debug serial
		GPU	Support AFBC
		eMMC	Support eMMC 5.1
