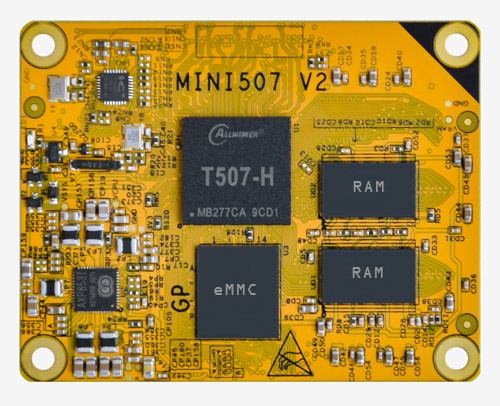

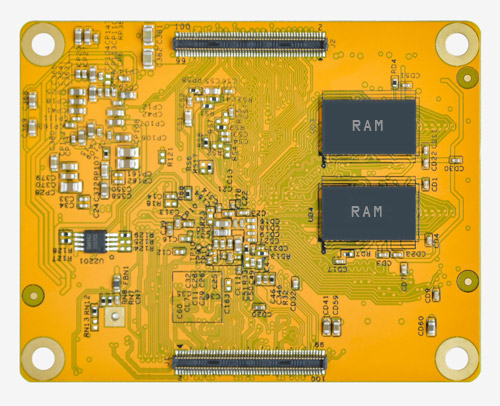

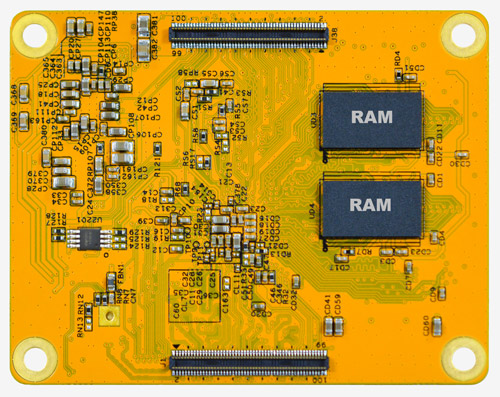

MINI507

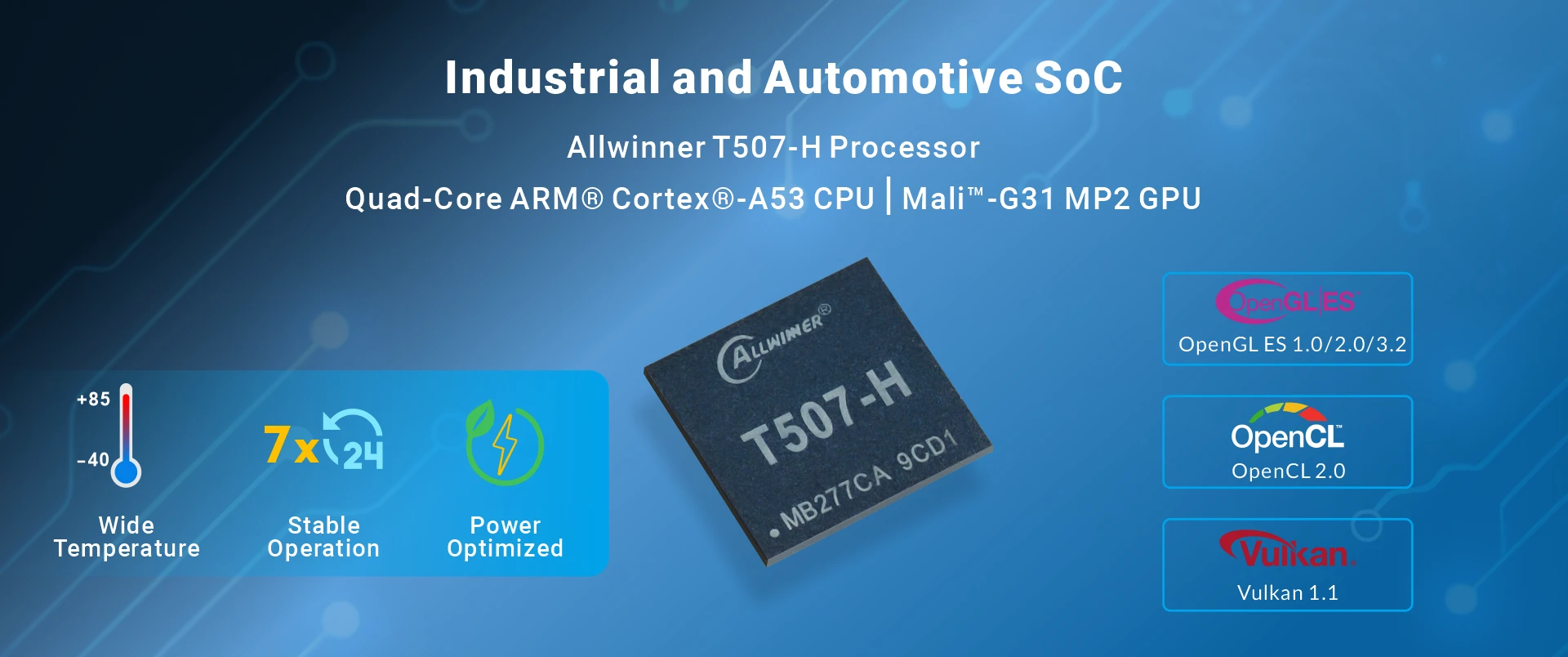

* Processor: Allwinner T507-H with a quad-core Arm Cortex-A53 processor @ 1.5GHz
* RAM: 2GB/4GB
* Storage: 8GB/16GB/32GB/64GB
* Pin out: 33x UART, 3x USB2.0 Host, USB2.0 OTG, MIPI CSI, LVDS/RGB, HDMI TX, TV out, GbE, SDMMC, SDIO, SPDIF, Line out, ADC, I2S, IR, SPI, TWI, GPIO, etc.
* Operating system: Android10, Linux4.9.170
* Board size: 65mm x 51mm
* Connectors: 0.4mm pitch, 2x 100pins Board-to-Board Connectors (Plug)
The MINI507 is a cost-optimized system on module powered by Allwinner T507-H processor and provides an ideal solution for embedded products requiring high-performance and low power consumption. It is especially designed for automotive electronics embedded applications, such as Intelligent Cockpit, Around View Monitor(AVM), In-Vehicle Infotainment (IVI).
| Specifications | |
|---|---|
| CPU | Allwinner T507-H with a quad-core Arm Cortex-A53 processor @ 1.5GHz |
| GPU | G31 MP2 GPU. Supports OpenGL ES 1.0/2.0/3.2, Vulkan 1.1, OpenCL 2.0 |
| Memory | 2GB/4GB |
| Storage | 8GB/16GB/32GB/64GB |
| Supply Voltage | DC5V |
| Pin out | 3x UART, 3x USB2.0 Host, USB2.0 OTG, MIPI CSI, LVDS/RGB, HDMI TX, TV out, GbE, 100M PHY, SDMMC, SDIO, SPDIF out, Line out, 4x ADC IN, I2S, IR, SPI, FEL, 2x TWI, GPIO, etc. |
| Ethernet | 1000M GMAC, 100M PHY |
| PCB Layer | 6 |
| Weight | 15.5 gram |
| Connectors | 2x 100-pin, 0.4mm pitch |
| Application | Intelligent Cockpit, AVM, IVI, etc. |
| Development Board | EMT507 |
| Operating system | Android 10, Linux4.9.170 |
| Dimensions | 65 x 51mm |

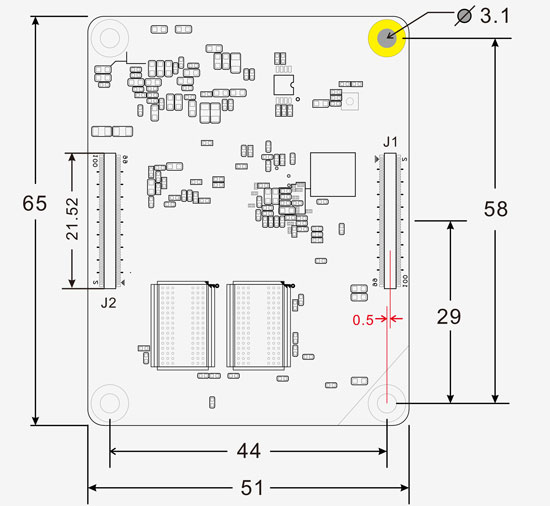

PCB Dimension
Pin Definition
| Pin J1 |
Signal | Pin J1 |
Signal | Pin J2 |
Signal | Pin J2 |
Signal |
|---|---|---|---|---|---|---|---|
| 1 | MDI-RN | 2 | MDI-TN | 1 | PE13 | 2 | GND |
| 3 | MDI-RP | 4 | MDI-TP | 3 | PE14 | 4 | SPI0_CLK_1V8 |
| 5 | LED0/PHYAD0 | 6 | LED3/PHYAD3 | 5 | PE15 | 6 | PE12 |
| 7 | GND | 8 | GND | 7 | PE0 | 8 | PE18 |
| 9 | LVDS0-CLKN/LCD-D7 | 10 | LVDS0-D3N/LCD-D9 | 9 | PE16 | 10 | PE19 |
| 11 | LVDS0-CLKP/LCD-D6 | 12 | LVDS0-D3P/LCD-D8 | 11 | PE17 | 12 | PE8 |
| 13 | LVDS0-D2P/LCD-D4 | 14 | LVDS0-D1N/LCD-D3 | 13 | SDC0-DET | 14 | PE3 |
| 15 | LVDS0-D2N/LCD-D5 | 16 | LVDS0-D1P/LCD-D2 | 15 | GND | 16 | PE2 |
| 17 | LVDS1-D3N/LCD-D19 | 18 | LVDS0-D0N/LCD-D1 | 17 | SDC0-D0 | 18 | PE1 |
| 19 | LVDS1-D3P/LCD-D18 | 20 | LVDS0-D0P/LCD-D0 | 19 | SDC0-D1 | 20 | SPI0_MOSI_1V8 |
| 21 | LVDS1-D2N/LCD-D15 | 22 | LVDS1-CLKN/LCD-D17 | 21 | SDC0-D2 | 22 | PE4 |
| 23 | LVDS1-D2P/LCD-D14 | 24 | LVDS1-CLKP/LCD-D16 | 23 | SDC0-D3 | 24 | PE5 |
| 25 | LVDS1-D1N/LCD-D13 | 26 | LVDS1-D0N/LCD-D11 | 25 | SDC0-CMD | 26 | PE7 |
| 27 | LVDS1-D1P/LCD-D12 | 28 | LVDS1-D0P/LCD-D10 | 27 | SDC0-CLK | 28 | PE6 |
| 29 | LCD-D20 | 30 | LCD-D22 | 29 | GND | 30 | PE9 |
| 31 | LCD-D21 | 32 | LCD-D23 | 31 | EPHY-CLK-25M | 32 | PE10 |
| 33 | LCD-PWM | 34 | LCD-HSYNC | 33 | RGMII-MDIO | 34 | PE11 |
| 35 | GND | 36 | LCD-VSYNC | 35 | RGMII-MDC | 36 | CK32KO |
| 37 | LCD-CLK | 38 | LCD-DE | 37 | RGMII-RXCK | 38 | GND |
| 39 | GND | 40 | GND | 39 | RGMII-RXD3 | 40 | PG-MCSI-SCK |
| 41 | USB3-DM | 42 | HTX2N | 41 | RGMII-RXD2 | 42 | PG-MCSI-SDA |
| 43 | USB3-DP | 44 | HTX2P | 43 | RGMII-RXD1 | 44 | PE-TWI2-SCK |
| 45 | USB2-DM | 46 | HTX1N | 45 | RGMII-RXD0 | 46 | PE-TWI2-SDA |
| 47 | USB2-DP | 48 | HTX1P | 47 | RGMII-RXCTL | 48 | BT-PCM-CLK |
| 49 | USB1-DM | 50 | HTX0N | 49 | GND | 50 | BT-PCM-SYNC |
| 51 | USB1-DP | 52 | HTX0P | 51 | RGMII-TXCK | 52 | BT-PCM-DOUT |
| 53 | USB0-DM | 54 | HTXCN | 53 | RGMII-TXCTL | 54 | BT-PCM-DIN |
| 55 | USB0-DP | 56 | HTXCP | 55 | RGMII-TXD3 | 56 | BT-UART-RTS |
| 57 | GND | 58 | HSDA | 57 | RGMII-TXD2 | 58 | BT-UART-CTS |
| 59 | UART0-TX | 60 | HSCL | 59 | RGMII-TXD1 | 60 | BT-UART-RX |
| 61 | UART0-RX | 62 | HHPD | 61 | RGMII-TXD0 | 62 | BT-UART-TX |
| 63 | PH4 | 64 | HCEC | 63 | GND | 64 | GND |
| 65 | GND | 66 | GND | 65 | RGMII-CLKIN-125M | 66 | WL-SDIO-D0 |
| 67 | MCSI-D3N | 68 | MCSI-D2N | 67 | PHYRSTB | 68 | WL-SDIO-D1 |
| 69 | MCSI-D3P | 70 | MCSI-D2P | 69 | GND | 70 | WL-SDIO-D2 |
| 71 | MCSI-CLKN | 72 | MCSI-D1N | 71 | MCSI-MCLK | 72 | WL-SDIO-D3 |
| 73 | MCSI-CLKP | 74 | MCSI-D1P | 73 | GND | 74 | WL-SDIO-CMD |
| 75 | GND | 76 | MCSI-D0N | 75 | PG-TWI4-SCK | 76 | WL-SDIO-CLK |
| 77 | UART5-RX | 78 | MCSI-D0P | 77 | PG-TWI4-SDA | 78 | GND |
| 79 | UART5-TX | 80 | PH-I2S3-DOUT0 | 79 | FEL | 80 | ALDO5 |
| 81 | LINEOUTR | 82 | PH-I2S3-MCLK | 81 | EXT-IRQ | 82 | BLDO5 |
| 83 | LINEOUTL | 84 | PH-I2S3-DIN0 | 83 | PMU-PWRON | 84 | GND |
| 85 | AGND | 86 | PH-I2S3-LRLK | 85 | RTC-BAT | 86 | 3V3_SYS |
| 87 | PC3 | 88 | PH-I2S3-BCLK | 87 | GND | 88 | DCDC6 |
| 89 | PC4 | 90 | LRADC | 89 | SOC-RESET | 90 | DCDC6 |
| 91 | GPADC3 | 92 | GPADC1 | 91 | GND | 92 | GND |
| 93 | GPADC0 | 94 | GPADC2 | 93 | DCIN | 94 | DCIN |
| 95 | TV-OUT | 96 | PA/TWI3-SDA | 95 | DCIN | 96 | DCIN |
| 97 | IR-RX | 98 | PA/TWI3-SCK | 97 | DCIN | 98 | DCIN |
| 99 | PC7 | 100 | GND | 99 | DCIN | 100 | DCIN |
| OS | Item | Feature | Description |
|---|---|---|---|
| Android 10 | Boot | U-Boot 2018.05 | u-boot-sun50iw9p1.bin |
| Kernel | Version | Linux version 4.9.170 | |
| Drivers | HDMI OUT | Support 4K, 1080P, 720P, 480P resolution | |
| Audio | Audio out | ||
| SD card | Micro SD card | ||
| USB Host | 5x USB2.0 Host | ||
| USB OTG | USB2.0 OTG | ||
| Ethernet | support 1x 100M Ethernet, 1x 1000M Ethernet | ||
| Camera | 4x AHD Camera | ||
| WiFi | 1T1R 802.11 b/g/n | ||
| Bluetooth | Bluetooth 4.2 | ||
| Serial Port | Debug serial | ||
| eMMC | Support eMMC 5.1 | ||
| 4G | EC20 LTE | ||
| LCD | 10.1-inch LVDS LCD with touch screen | ||
| UART | RS232 | ||
| RTC | Support | ||
| IR | PWM IR | ||
| Embedded GUI | Android10 | Gallery, DVR, Calculator, Camera, Video, Music etc. | |
| Cross-compiler Environment | ubuntu-16.04, openjdk version "1.8.0_292" | ||
| Debug Tools | SecureCRT, PhoenixSuit.exe, ADB | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux4.9.170 | Bootloader | Boot | U-Boot 2018.05 |
| Boot mode | Boot from eMMC | ||
| Download | Download via USB OTG | ||
| Buildroot | Version | buildroot-201902 | |
| Kernel | Version | Linux4.9.170 | |
| Serial | Support | ||
| RTC | Support | ||
| Ethernet | Dual Ethernet ,100M and 1G Ethernet RJ45 connector | ||
| USB host | Support USB2.0 HOST | ||
| LCD | Support 10.1-inch LVDS LCD | ||
| eMMC | Support | ||
| MMC/SD | MMC mode. Support 1x Micro SD card slot | ||
| LSM9DS1 | support driver | ||
| Audio I/O | Support Audio out | ||
| HDMI | Support | ||
| Embedded GUI | Qt/Embedded | Qt5.12.5 | |
| File system | TCP/IP | TCP/IP protocol | |
| Network ping | Check the network | ||
| Ifconfig, route | For network configuration and related service application | ||
| Basic tool | linux common cammands | cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, insmod, lsmod, rmmod, dd, df, aplay | |
| Tools | DNW, CRT, MFGTOOLS.RAR, VMWARE7.0 |
| Datasheet |
|
|
|
|
| Reference Manual |
|
|
If you order the SOM or any question, please feel free to contact us at market@armdesigner.com
