* Processor: Samsung ARM9 S3C2416 @400MHz
* RAM: 128MB
* Storage: 256MB/512MB/1GB optional
* Interface: 3x serial ports(for GPS, GPRS/CDMA, Debug), Audio, Microphone, LCD, SPK, Printer, Micro SD, SIM, Battery connector
* Operating system: Linux2.6.21, WinCE6.0
* Board size: 190 x 84 x 42mm

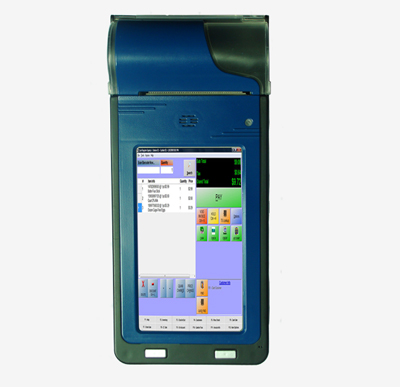

EM2416 hand-held POS is based on Samsung ARM9 S3C2416 microprocessor which is optimized for embedded and mobile applications, featuring a 16/32-bit ARM926EJ-S core, on-chip peripherals that include a 2D graphics accelerator and low voltage supported by Samsung’s 65nm low-power technology.
The fully integrated POS includes a host of built-in features such as touchscreen and thermal printer, also GPRS/CDMA, GPS and WIFI module are available according to the customer demands.
The POS is available for either Linux or Windows operating system.
Specifications | |
---|---|
CPU | Samsung ARM926EJS S3C2416 400MHz with separate 16KB instruction and 16KB data caches, 2D Accelerator |
SDRAM | 128MB DDR2 SDRAM, 133MHz, 32bit |
NAND Flash | 256MB or 1GB SLC NAND Flash |
Serial Port | 3 serial ports, one for GPS, one for GPRS/CDMA, one for Debug |
CDMA or GSM/GPRS | Support standard AT command Set |
LCD | 4.3 inch LCD, resolution 480*272 |
Key | 5 keys, one for power control |
Audio codec | WM8976 Audio chip |
ADC | Adjustable resistor is connected with pins of ADC to check analog/digital change |
RTC | Real Time Clock, powered by external lithium battery |
Printer | printing on 2-inch widepaper (58mm) print at 80 mm/s (640 dotlines/s), 8 dots/mm of resolution |
Micro SD card | Support 1G, 2G, 3G card |
power | 7.8V battery, supporting charge online |
others | Vibrators, Speaker, microphone, headphone |
Dimension | 190 x 84 x 42mm(Length*Width*Thickness) |
OS | Feature | Description |
---|---|---|
Linux2.6.21 | Bootloader | Version: u-boot1.3.4 |
Support Nand Flash erase/write/read set, save Environment Variables bootm, bootargs setting | ||
Kernel | Version: linux2.6.21 | |
Drivers | Serial ports, RTC, LCD,Touch Screen, SD card, Audio, Nand Flash, Printer, Keys, Vibrators, ADC | |
File system | Yaffs File System, busybox, Provided Lib (ALSA -lib, tslib, glibc), udev support | |
Embedded GUI | Qtopia2.2, Qt4.6 | |
Network protocol | TCP/IP, PPP, Telnet, FTP, Web server | |
Cross compiler Environment |
cross-4.2.2-eabi | |
others | Support Sleep mode, battery voltage monitor, startup logo |
OS | Item | Feature | Description |
---|---|---|---|
WinCE6.0 | Bootloader | stepldr | Copy Eboot to SDRAM to jump to Eboot |
Eboot | Support downloading images through USB device port. | ||
Driver | Serial device | Three serial ports | |
Printer | Thermal printer, provide the printer test program | ||
USB Host | USB Host driver, supporting USB ActiveSync | ||
USB Device | USB Device driver | ||
RTC | Real time keeping | ||
Buttons | User buttons | ||
LCD | Coming with driver for 3.5", 4.3", 7" and 10.4" TFT LCD (resolution 800*600) | ||
USB WIFI | RT3070, RTL8188CUS, RTL8188EUS | ||
GPRS | Support GPRS surf Internet, call and answer the phone | ||
ADC | ADC driver | ||
Touch Screen | Touch Screen driver | ||
Audio | WM8976 | ||
SD/MMC card | Block devices drivers | ||
Others | Support MediaPlayer, IE browser, saving Register change, MFC, NET2.0, NET3.5 and so on. |
Samsung ARM9 S3C2416 Datasheet (2.7MB)
