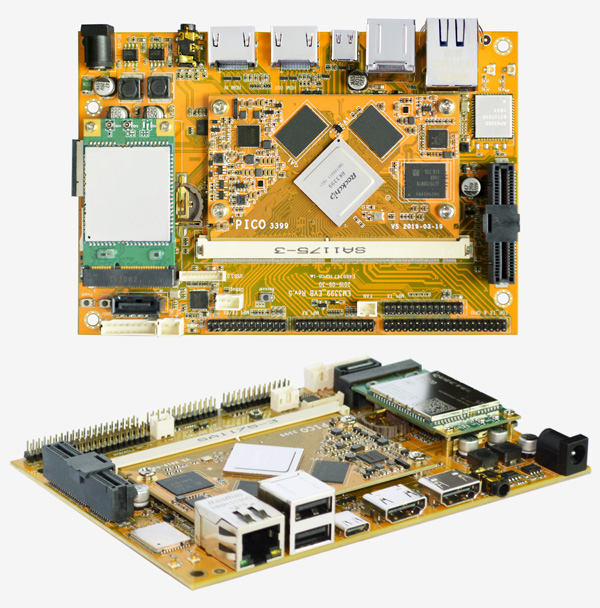

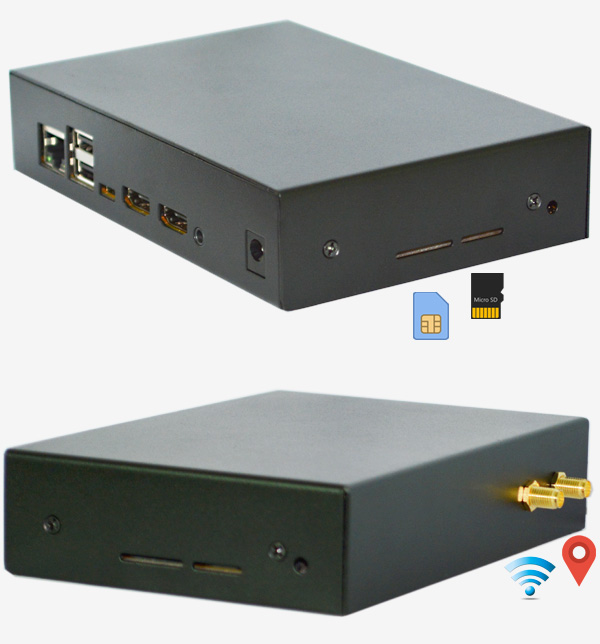

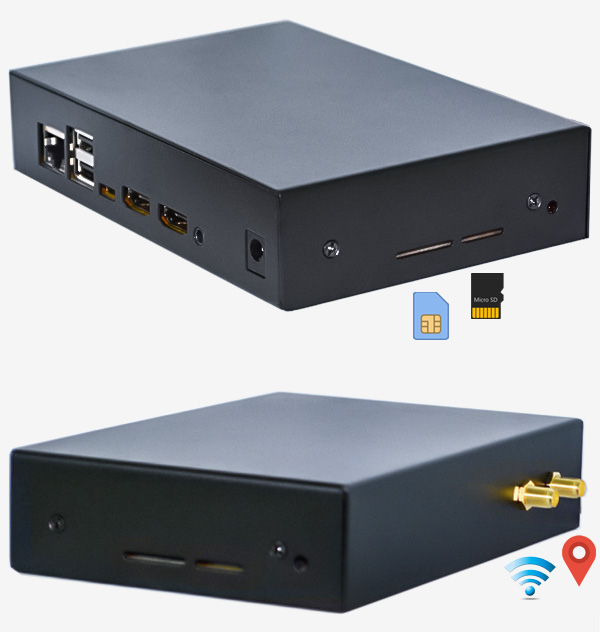

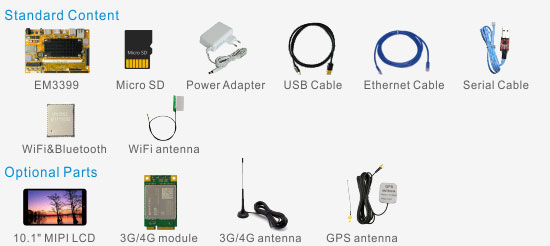

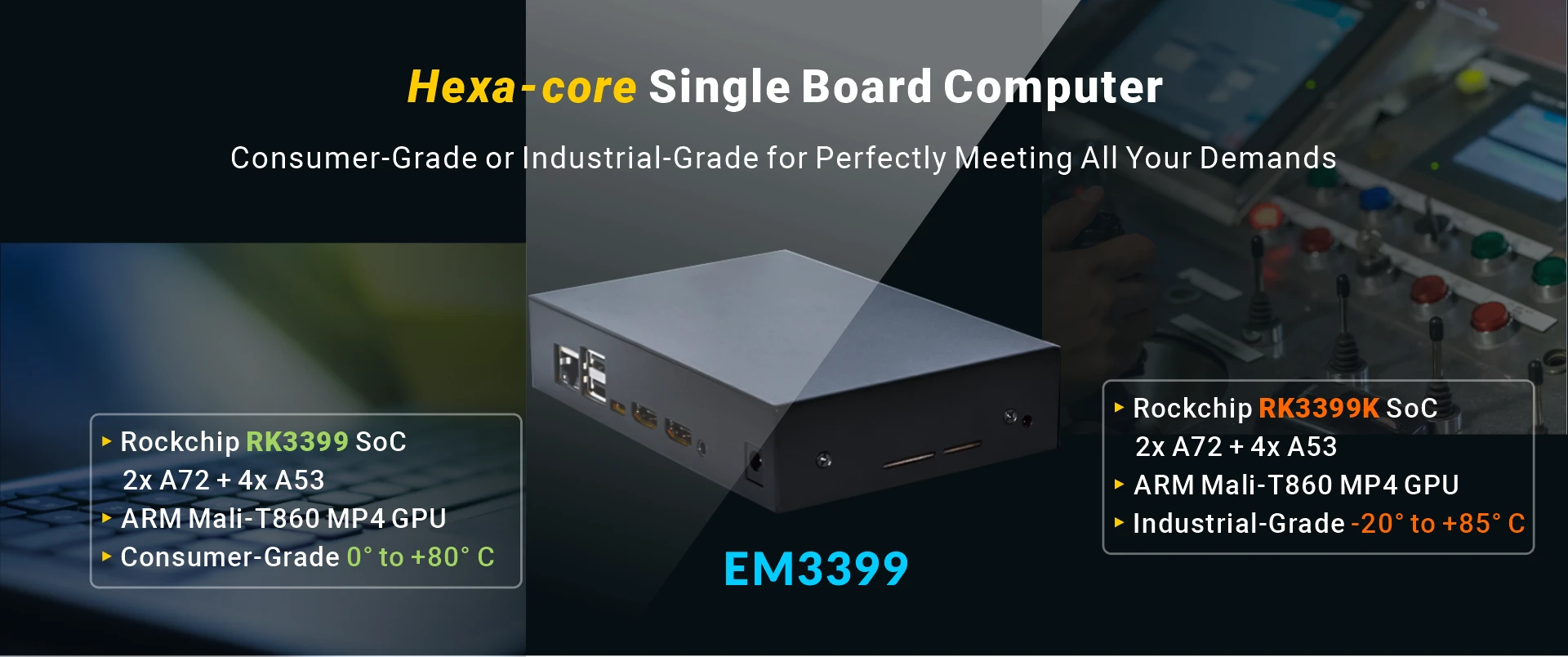

The Boardcon EM3399 is a hexa-core single-board computer based on Rockchip RK3399 processor with two Cortex A72 cores clocked at up to 2.0GHz, and four Cortex A53 cores teamed with a Mali-T860MP4 GPU, featuring 3G and WiFi/BT module, supporting 4K H.265 video decoding up to 60 fps, HDMI in/output, USB Type-C, Gigabit Ethernet, Android6.0.1 operating system, and target to 2in1 Android tablets, VR, TV-BOX, laptops, in-vehicle navigations, communications and other terminals covering industrial and consumer applications, including smart Device, advertising devices / the all-in-one machines, POS systems, vehicle control terminals, thin-clients, VOIP video conferencing security / monitoring / policing, IoT, as well as other fields.

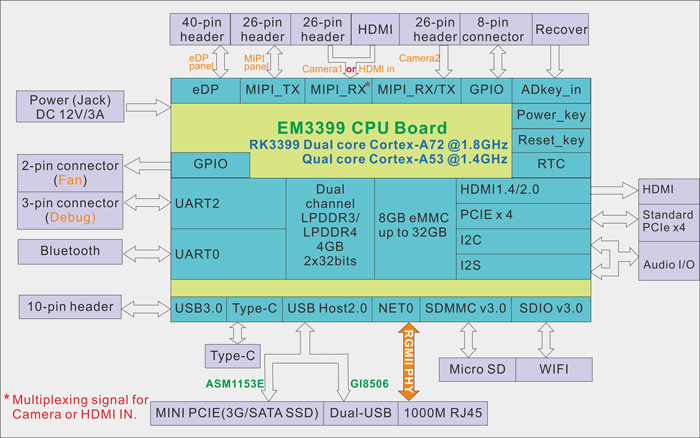

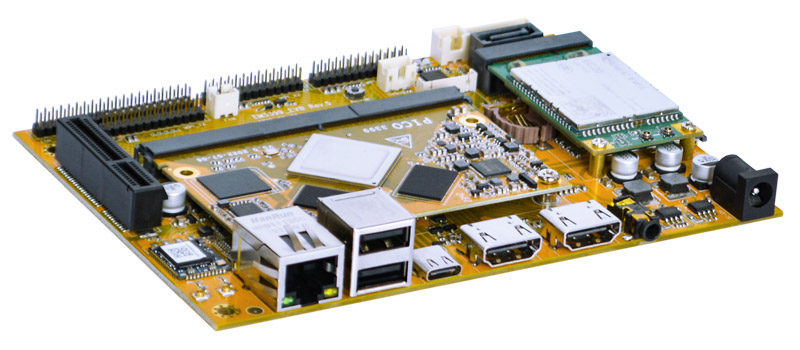

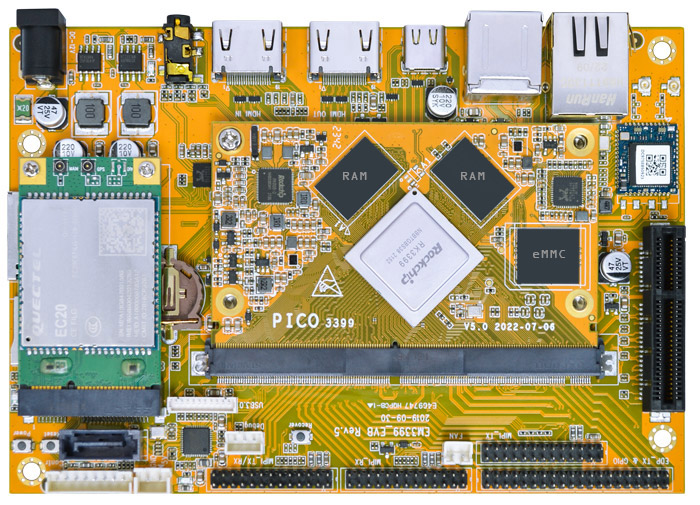

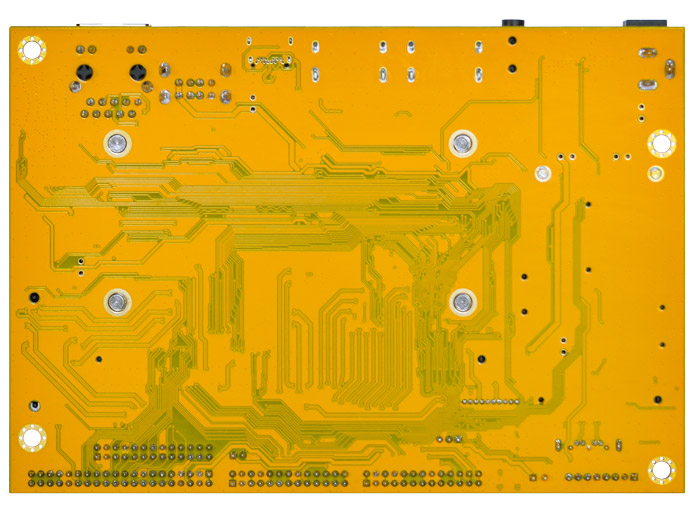

The platform is implemented with a PICO3399 computer-on-module providing most of the functions and interfaces, and EM3399_C carrier board providing connectors and several additional functions.

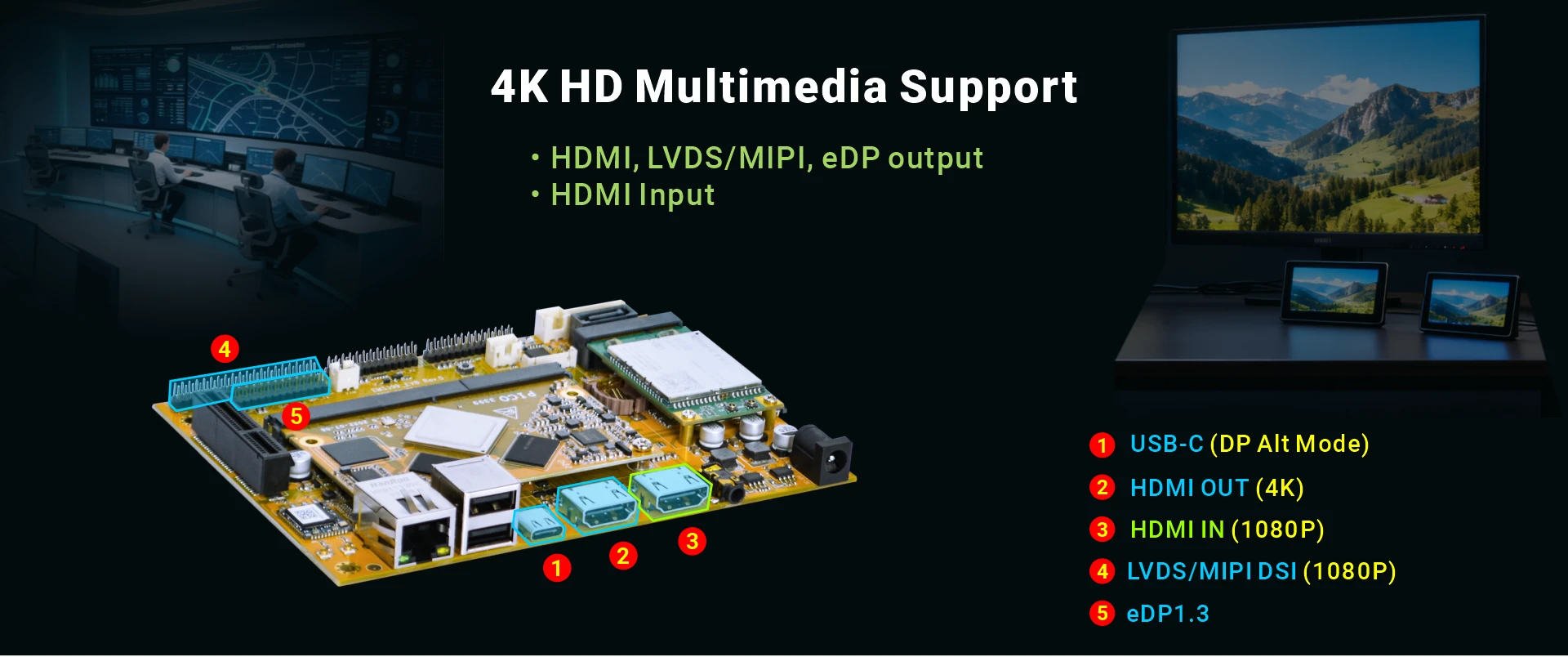

The processor of EM3399 provides terminals with faster operation speed and better visual effects by utilizing its powerful CPU, GPU, faster interface standards and transfer speeds, 4K@60fps10-bit video playback and output capabilities that support H.265/VP9 encoding, better image decoding, rich game engines, and 3D graphics processing capabilities.

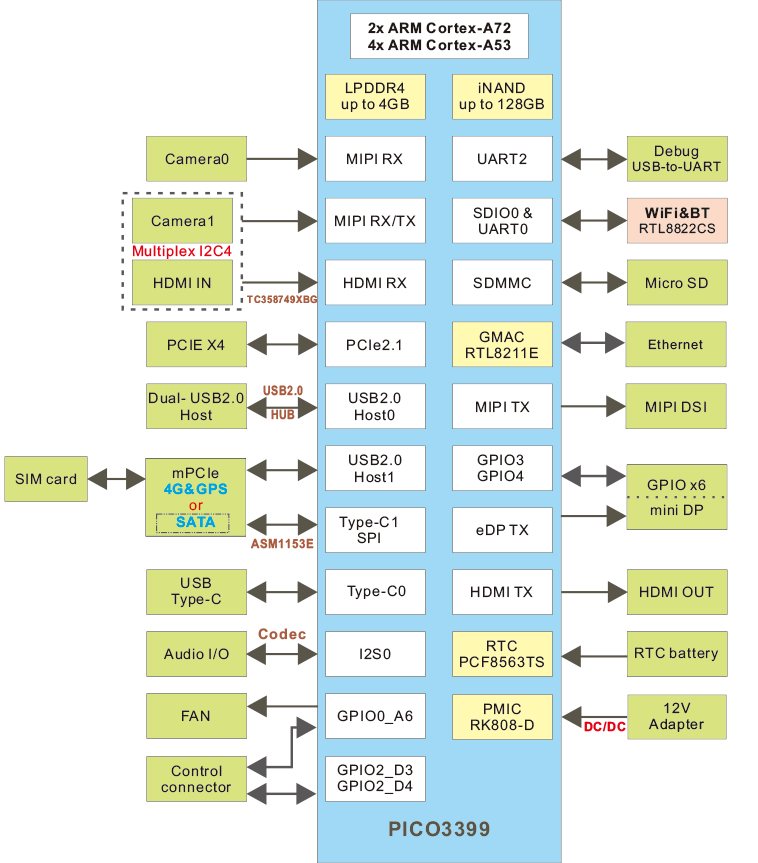

| Feature |
Specifications |
| CPU |
· Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU. Frequency is over 2.0GHz (Big cluster)
· 28nm HKMG process
· 1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster |
| GPU |
· Mali-T864 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
· Supports AFBC (ARM Frame Buffer Compression) |
| Memory |
4GB |

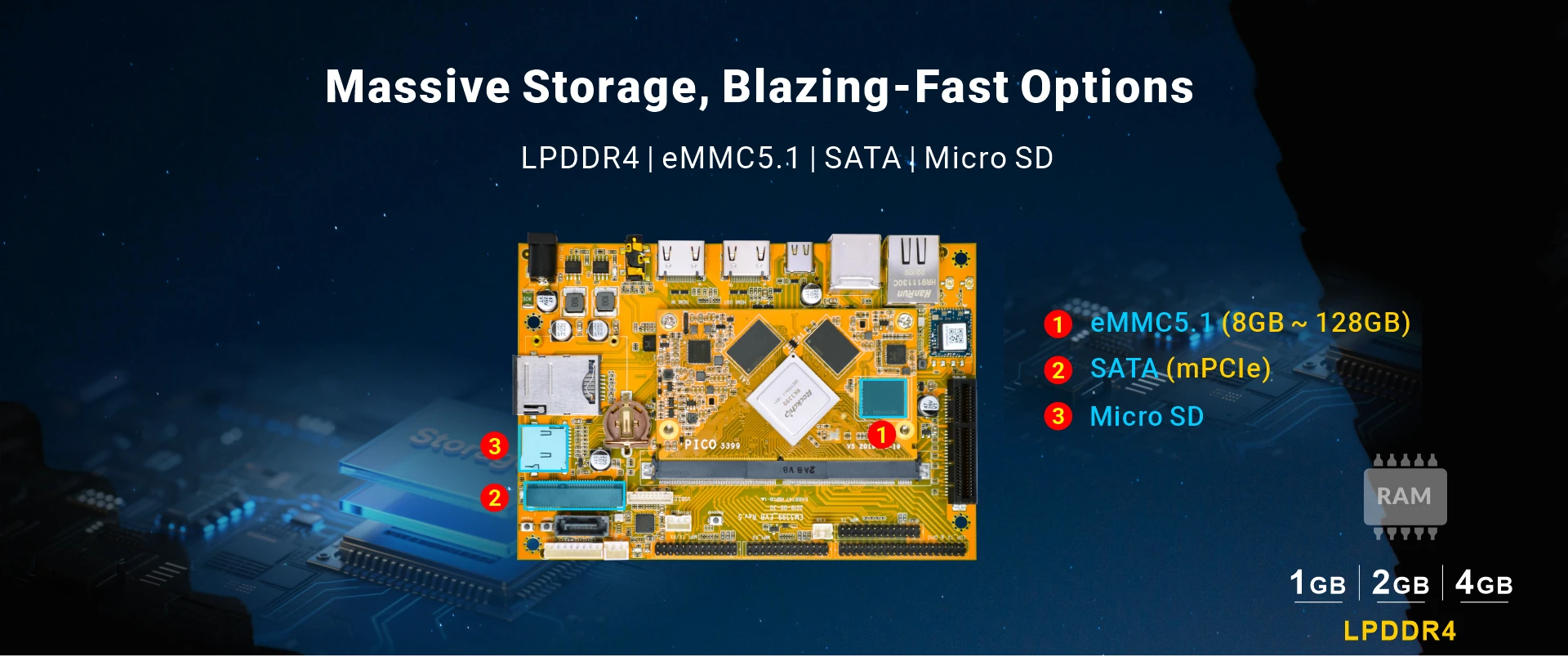

| Flash |
8GB eMMC Flash |
| Power |
DC 12V/2A |
| USB |
2x USB2.0 Host, 1x USB3.0 Host, 1x USB Type-C |
| UART |
1x 3pin connector. For debug. |
| LCD |
1x eDP LCD via 40-pin header interface, 1x 2-CH MIPI |

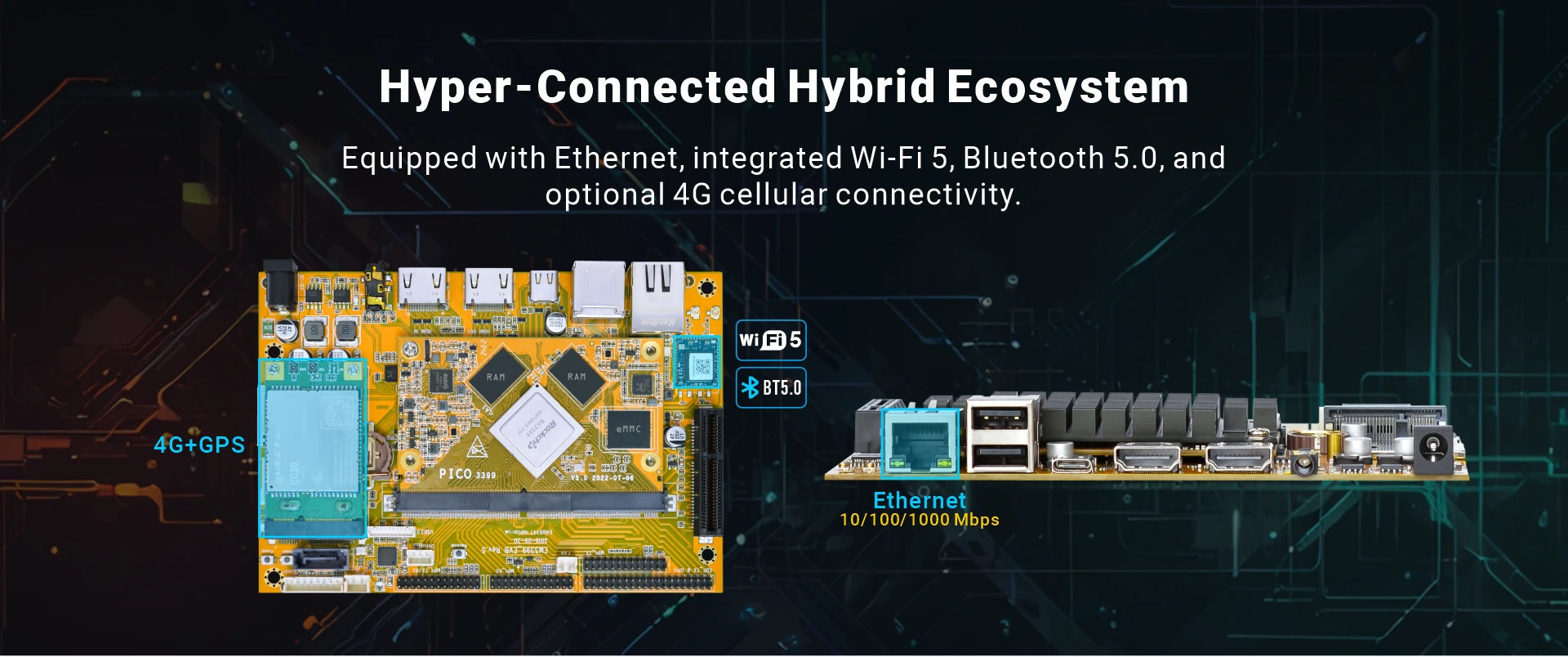

| Ethernet |
1000M High performance Ethernet(RTL8211E), RJ45 interface |
| HDMI IN |
TC358749XBG |
| HDMI OUT |
HDMI 1.4 and 2.0 |

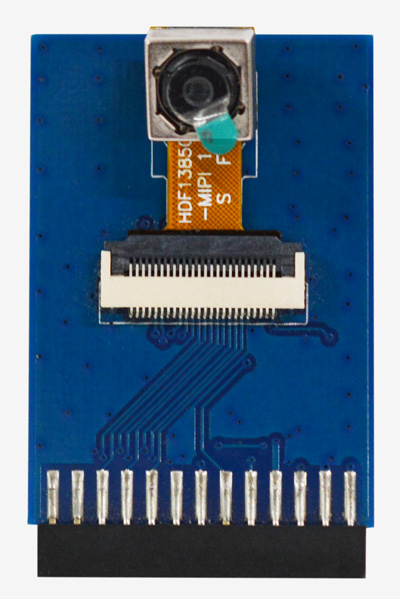

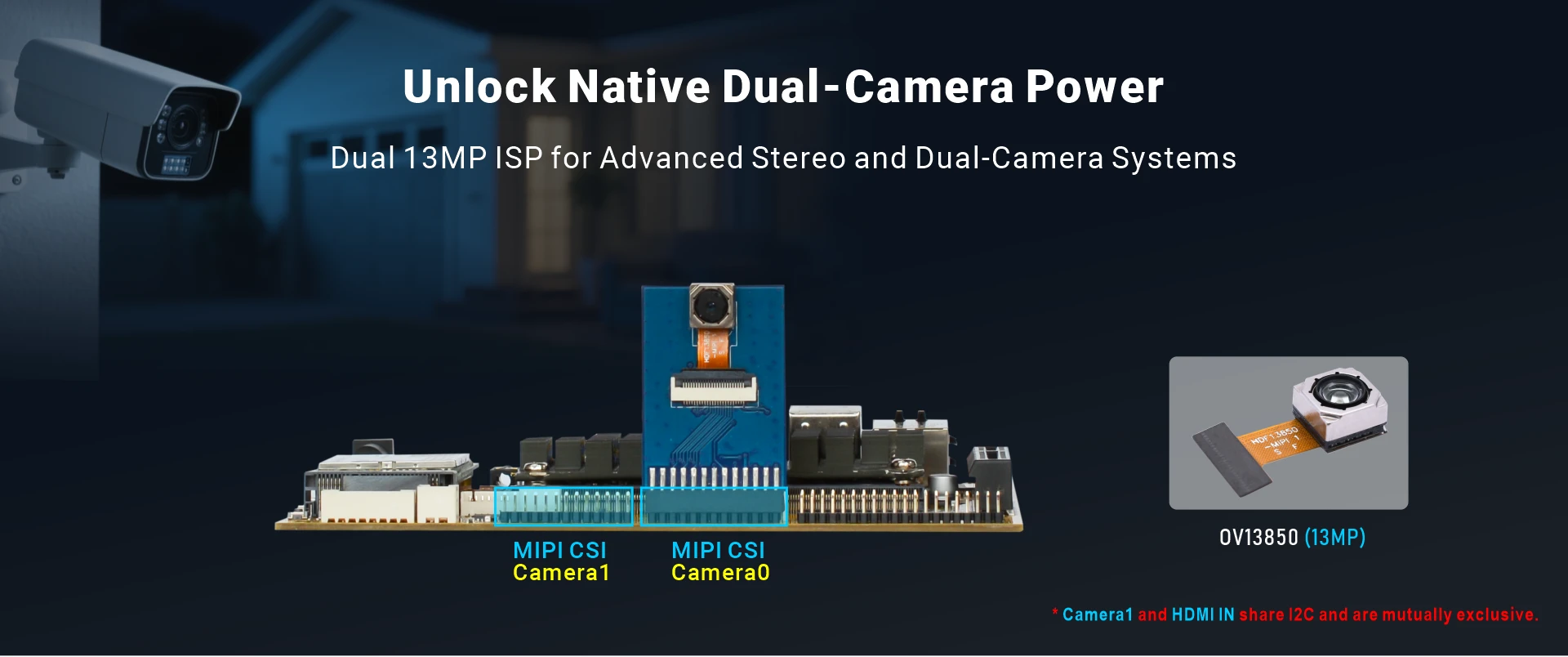

| MIPI Camera |
2-CH MIPI RX, Support 3-D video capture |
| Audio codec |
Adopt ALC5651 Audio chip, Audio I / O interface |
| RTC |
Real Time Clock, powered by external lithium battery |
| SD card |
1x T-Flash card |
| SIM card |
1x SIM card slot |
| Buttons |
3x User Buttons, for Recover, Power, Reset |
Standard
PCI-E x4 |
For Video card |

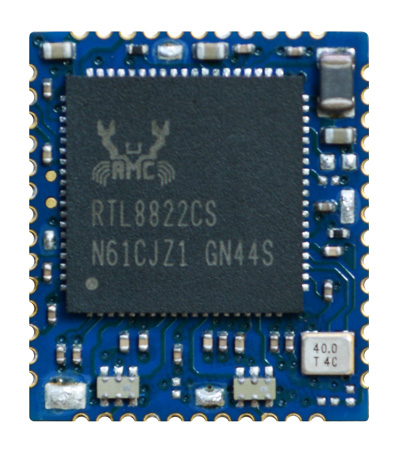

WIFI&BT
(optional) |
AP6354 Module. 2.4/5G WiFi, Bluetooth 4.1 |
| SSD (optional) |
PCI-E connector. Shared interface with 3G. |

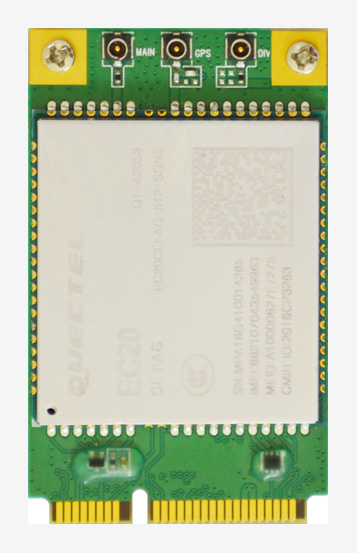

| WLAN |
PCI-E connector. Supporting 3G/4G WLAN module |
| GPIO |
5 groups of GPIO (GPIO0~GPIO4), total 122 GPIOs |

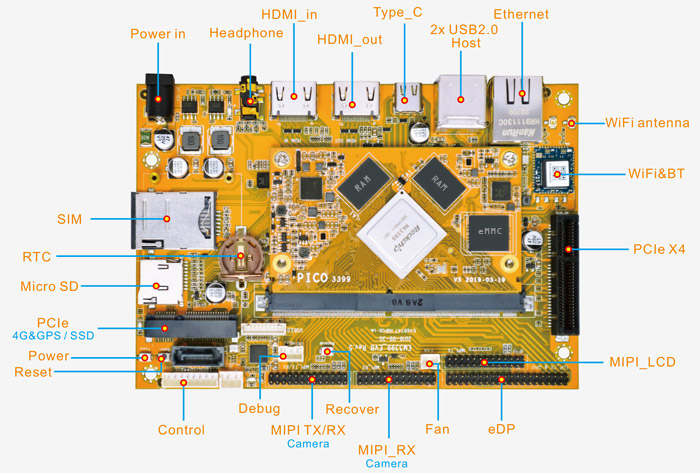

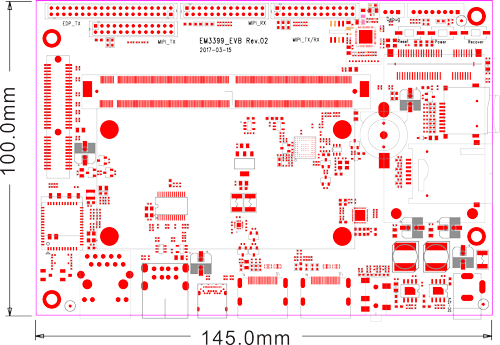

| Dimension |
100mm x 145mm |
PCB Dimension
| OS |
Item |
Feature |
Description |
| Android6.0.1 |
Boot |
Uboot-2014.10 |
RK322XMiniLoaderAll_V2.31.bin |
| Kernel |
Version |
Linux 4.4.36 |
| Drivers |
HDMI-IN |
Support 1080P resolution |
| HDMI-OUT |
Support HDMI 1.4/2.0 |
| Type-C |
Support type-C to RJ45/RS232/HDMI_OUT/USB HOST |
| USB |
USB keyboard and USB mouse, USB storage |
| Ethernet |
1000M, RJ45 |
| PCI-E |
Support 3G/SSD |
| eDP |
Support eDP 1.3 10.8Gbps |
| MIPI_TX |
Support MIPI LCD |
| MIPI_RX |
Support camera |
| MIPI_TX/RX |
Support camera |
| SD card |
T-Flash card |
| Audio |
Audio in/out |
| WIFI |
Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac |
| Bluetooth |
Bluetooth 4.1, AP6354 module |
| RTC |
Real time keeping |
| Debug |
Debug serial |
| GPU |
Support AFBC |
| eMMC |
Support eMMC 5.1 |
| OS |
Item |
Feature |
Description |
| Debian |
Boot |
uboot 2016-12-03#1.05 |
RK3399MiniLoaderAll_V1.05.bin |
| Kernel |
Version |
Linux 4.4.41 |
| File system |
File system |
Debian |
| Drivers |
Audio |
Audio out |
| SD card |
Micro_sd card |
| USB |
USB mouse, USB keyboard, usb storage etc |
| Ethernet |
10/100/1000M RJ45 |
| WIFI |
Wireless-2.4GHz/5GHz 802.11 a/b/g/n/ac |
| Bluetooth |
Bluetooth 4.1, AP6354 module |
| 3D acceleration |
Support 3D acceleration |
| LCD |
LVDS / VGA interface |
| Type-C |
USB Type-C Download, Support type-C to RJ45/RS232/USB HOST |
| PCI-E |
Support 3G(MU709S-2) / SSD |
| HDMI |
Support 1920x1080P resolution |
| RTC |
Real time keeping |
| Hard decoding play |
Support |
| GPIO |
Support |
| KEY |
Recovery and reset key |
| Debug |
Debug serial |
| GPU |
Support AFBC |
| eMMC |
Support eMMC 5.1 |
1 How to get root and use USB ADB, ethernet ADB on the EM3399 Android system?
A: Maybe the link below is useful for you:
http://www.boardcon.com/download/EM3399_adb_root.zip
2 How to debug HDMI-IN in EM3399 Android 6.0 system?
A: There is not single HDMI-IN source package, and the HDMI-IN is simulated as CAMERA. The effective IC of HDMI-IN is TC358749XBG. It needs to configure the following files in the source code if debugging the HDMI-IN :
The HDMI-IN voice related files path：
kernel\sound\soc\codecs\rt5651.c
kernel\sound\soc\rockchip\rockchip_rt5651_tc358749x.c
The HDMI-IN display related files path:
kernel\arch\arm64\boot\dts\rockchip\boardcon-rk3399.dts
em3399_mid\hardware\rockchip\camera\Config\cam_board_rk3399.xml
