PICO-IMX8M-MINI

* Processor: NXP i.MX8M Mini, 4x Cortex-A53 core @1.8GHz, 1x Cortex-M4F
* RAM: 1/2/4GB LPDDR4
* Storage: 8/16/32/64/128GB eMMC
* Pin out: UART, USB Host, USB OTG, Gigabit Ethernet, MIPI CSI, MIPI DSI, PCIe, GPIO, SD, JTAG, I2C, SPI, SPDIF, SAI, etc.
* Operating system: Linux4.14
* Board size: 67.6mm x 34.3 mm
* Connectors: 200-pin SO-DIMM edge connector

Overview
Hardware
Software
Download
Price&Order
FAQ

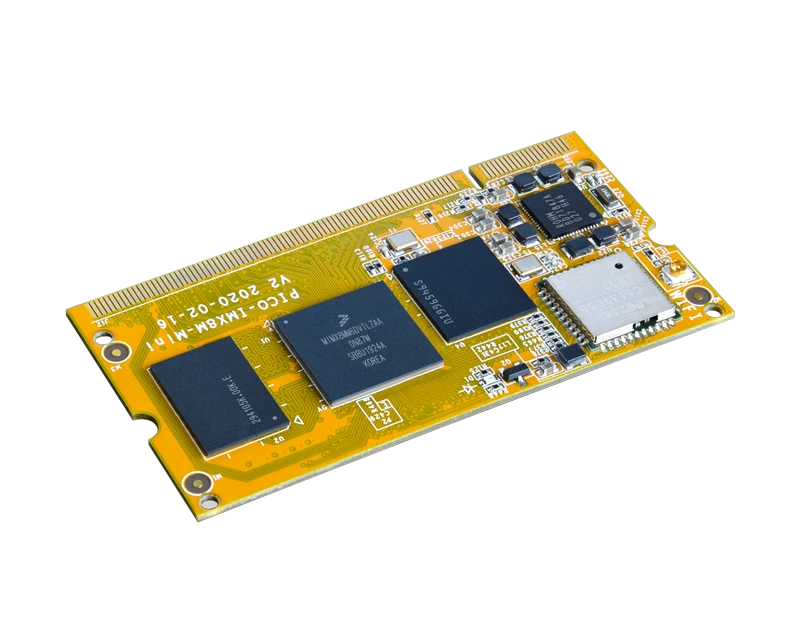

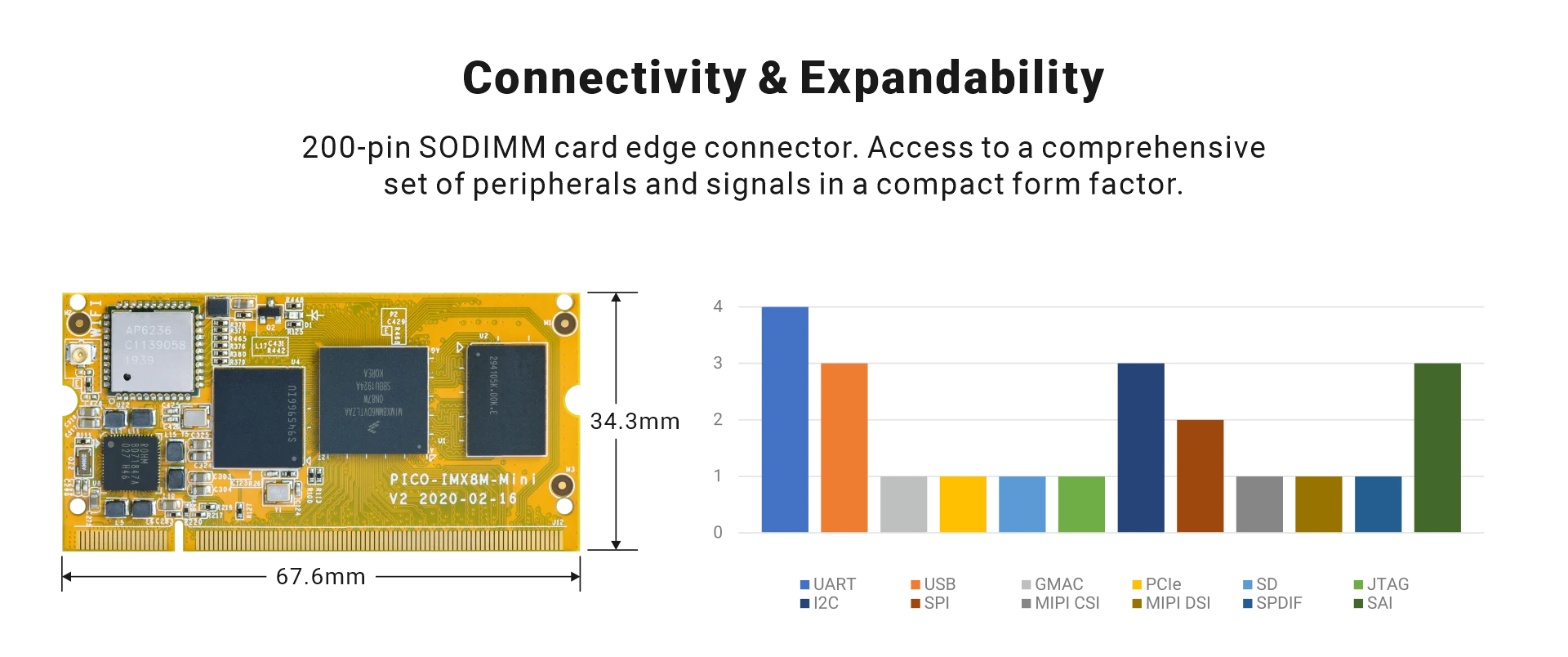

The Boardcon PICO-IMX8M-MINI is a SO-DIMM200 system on module based on NXP's quad-core, 1.8GHz i.MX8M Mini SoC. It comes with 2GB RAM and 8GB eMMC, and integrates WiFi, and BT connectivity, multiple USB and UART ports plus GPIO lines, and MIPI-DSI and MIPI-CSI display interfaces.

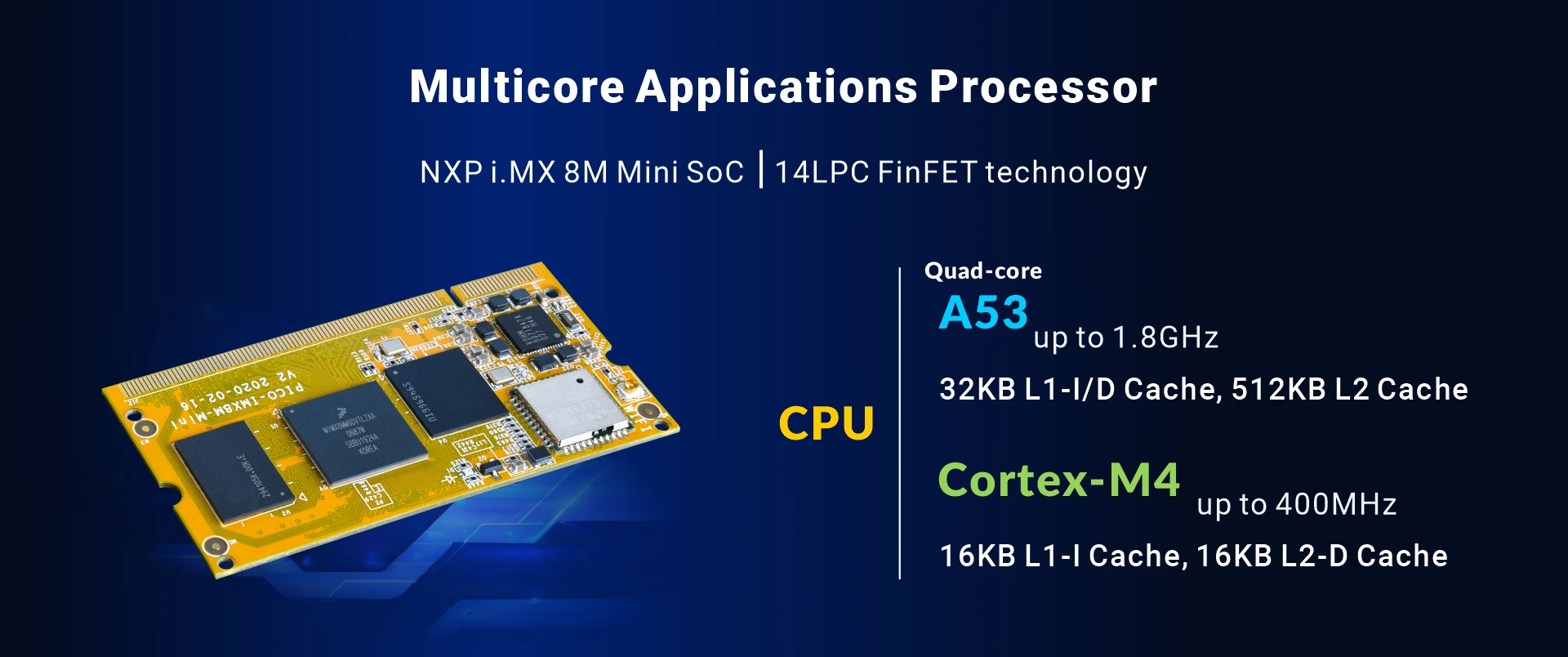

The i.MX 8M Mini is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With powerful multimedia abilities and a range of connectivity features – Boardcon i.MX8M Mini SOM is ideal for Advanced graphics, machine vision, and other multimedia applications.

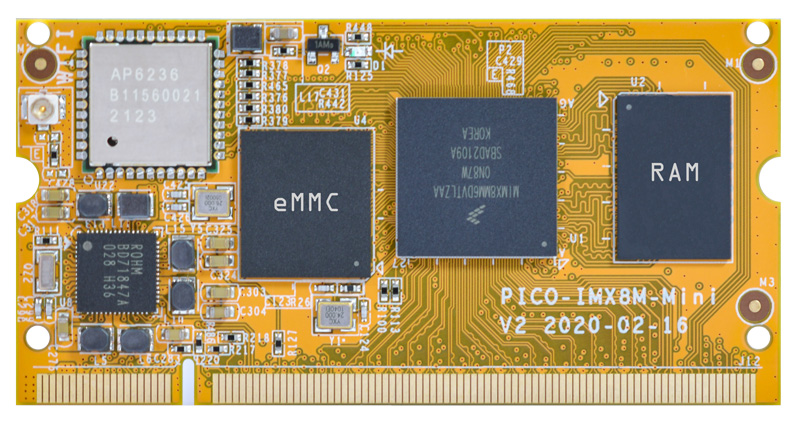

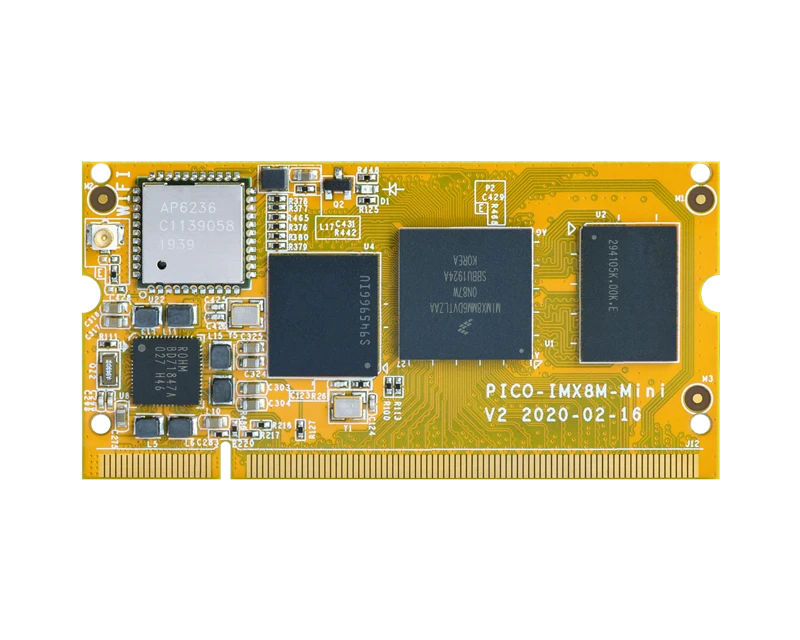

SOM-IMX8M-MINI

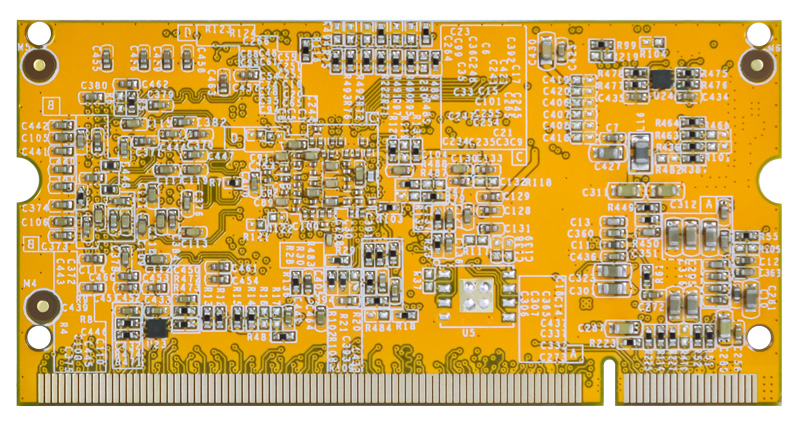

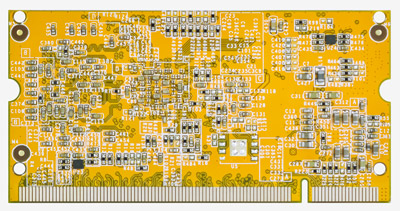

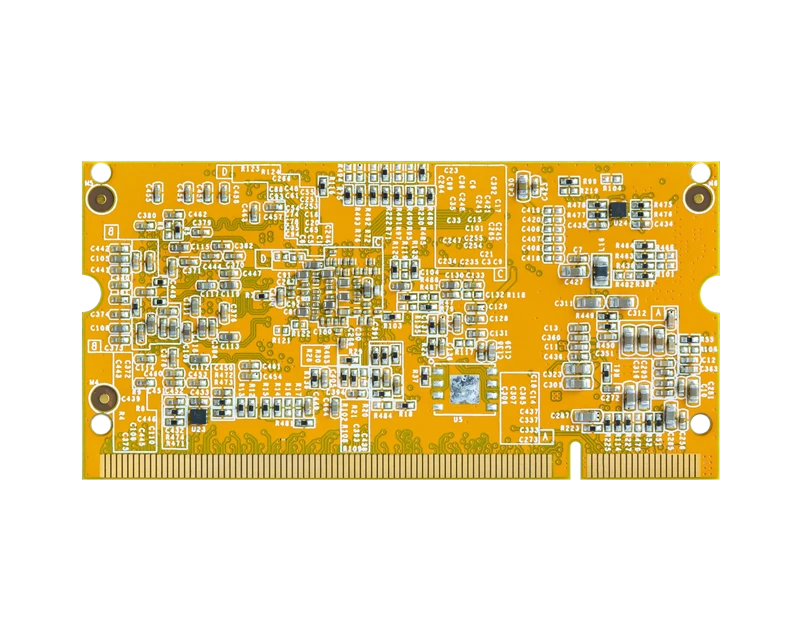

PICO-IMX8M-MINI-rear

Specifications
CPU	NXP i.MX8M Mini, 4x Cortex-A53 core, 1.8GHz, 1x Cortex-M4F
GPU	GCNanoUltra for 3D acceleration, GC320 for 2D acceleration
Memory	1/2/4GB LPDDR4
Storage	8/16/32/64/128GB eMMC
Supply Voltage	5V
Pin out	UART, USB Host, USB OTG, Gigabit Ethernet, MIPI CSI, MIPI DSI, PCIe, GPIO, SD, JTAG, I2C, SPI, SPDIF, SAI, etc

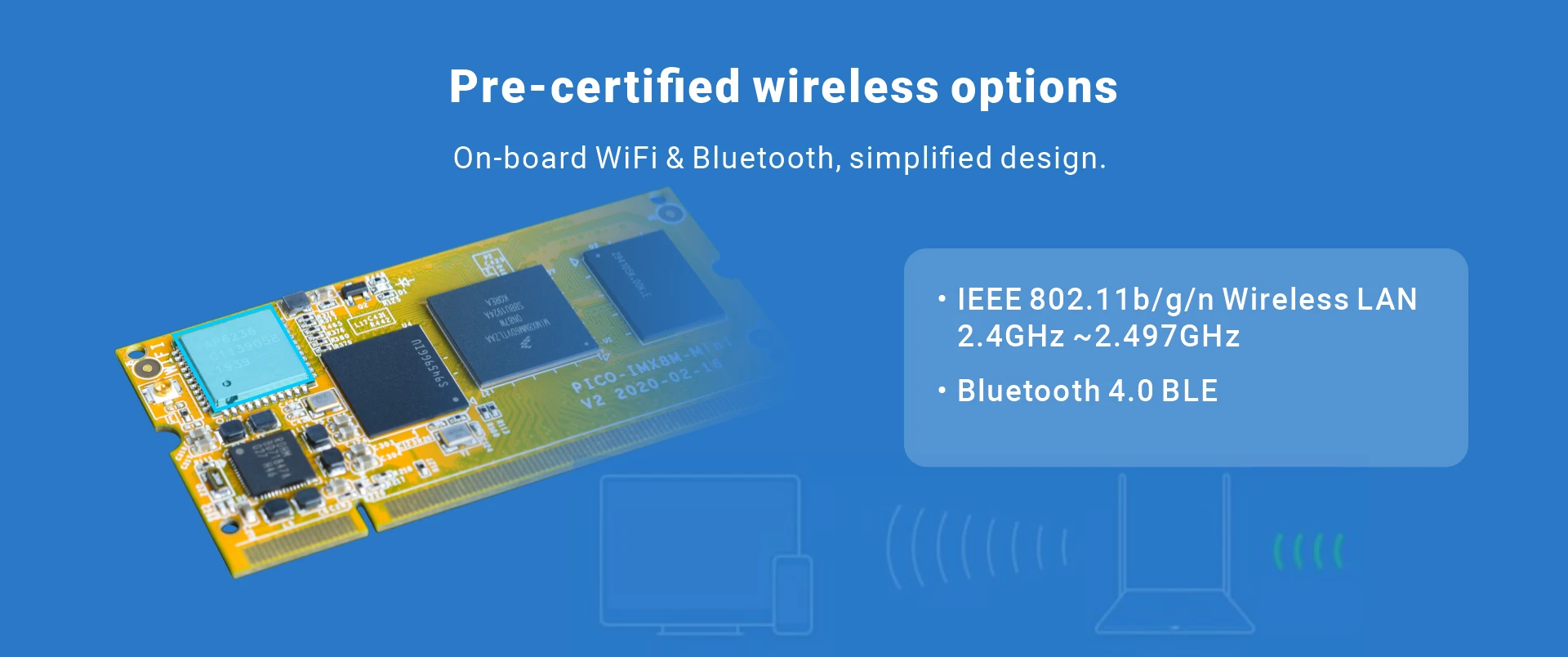

WiFi&Bluetooth	Certified 802.11b/g/n WiFi module, Bluetooth 4.0
Dimensions	67.6 x 34.3 mm
Layer	6
Connectors	200-pin SO-DIMM edge connector
Application	Advanced graphics, machine vision, and other media applications
Development Board	EM-IMX8M-MINI

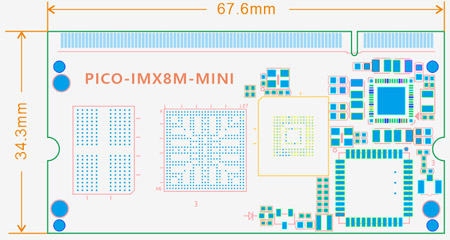

icon PCB Dimension

PICO-IMX8M-PCB

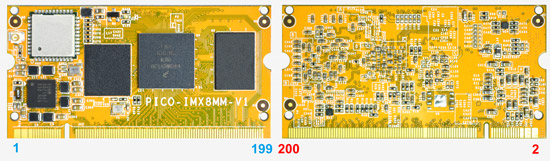

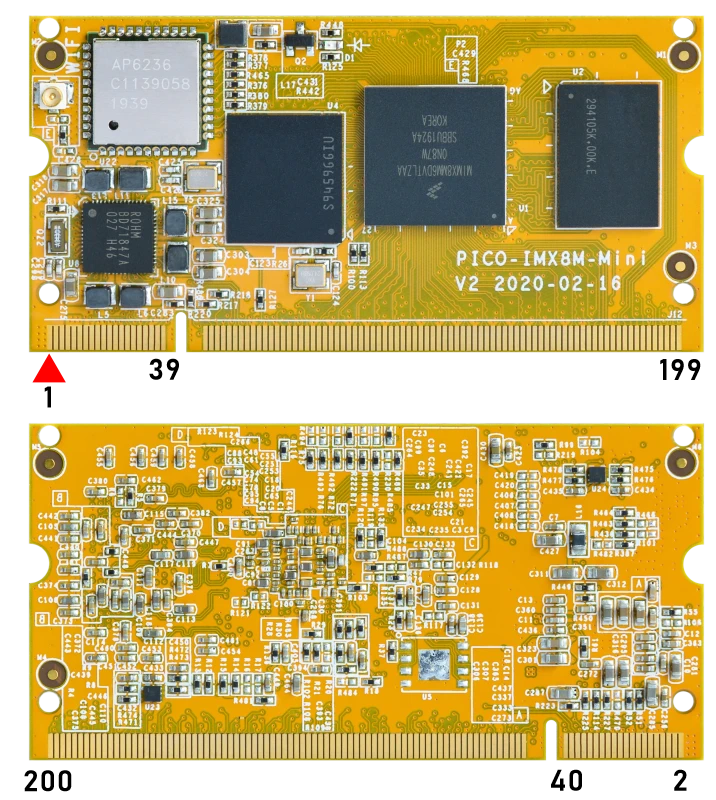

icon Pin Definition

i.mx8m mini

Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	GND	101	GND	2	GND	102	SD2_DATA1
3	GND	103	PCIE_RXP	4	GND	104	SD2_DATA2
5	GND	105	PCIE_RXN	6	GND	106	SD2_DATA3
7	VSYS_5V	107	GND	8	VSYS_5V	108	SD1_STROBE
9	VSYS_5V	109	CSI_DP3	10	VSYS_5V	110	BOOT_MODE1
11	VSYS_5V	111	CSI_DN3	12	VSYS_5V	112	BOOT_MODE0
13	GND	113	GND	14	GND	114	JTAG_TMS
15	GND	115	CSI_DP2	16	GND	116	JTAG_TDO
17	VDD_1V8	117	CSI_DN2	18	VDD_1V8	118	JTAG_TDI
19	VDD_1V8	119	GND	20	VDD_1V8	120	JTAG_TCK
21	GND	121	CSI_CKP	22	GND	122	JTAG_nTRST
23	VDD_3V3	123	CSI_CKN	24	VDD_3V3	124	CLKOUT1
25	VDD_3V3	125	GND	26	M.2_32K_OUT	126	CLKOUT2
27	SAI1_TXD7	127	CSI_DP1	28	SAI1_TXD6	128	CLKIN1
29	SAI1_TXD5	129	CSI_DN1	30	SAI1_TXD4	130	CLKIN2
31	SAI1_TXD3	131	GND	32	SAI1_TXD2	132	ONOFF
33	SAI1_TXD1	133	CSI_DP0	34	SAI1_TXD0	134	USB2_VBUS
35	GND	135	CSI_DN0	36	SAI1_TXC	136	USB1_VBUS
37	SAI1_RXC	137	GND	38	SAI1_TXFS	138	USB2_ID
39	SAI1_RXFS	139	DSI_DP3	40	GND	140	USB1_ID
41	SAI1_RXD7	141	DSI_DN3	42	SAI1_RXD6	142	UART4_TXD
43	SAI1_RXD5	143	GND	44	SAI1_RXD4	144	UART4_RXD
45	SAI1_RXD3	145	DSI_DP2	46	SAI1_RXD2	146	UART1_RTS
47	SAI1_RXD1	147	DSI_DN2	48	SAI1_RXD0	148	UART1_CTS
49	SAI5_RXFS	149	GND	50	GND	150	UART2_TXD
51	DM_CLK	151	DSI_CKP	52	PDM_DATA2	152	UART2_RXD
53	SAI5_MCLK	153	DSI_CKN	54	PDM_DATA3	154	UART1_TXD
55	PDM_DATA1	155	GND	56	GND	156	UART1_RXD
57	GND	157	DSI_DP1	58	PDM_DATA0	158	I2C4_SCL
59	SYS_nRST	159	DSI_DN1	60	SAI1_MCLK	160	I2C4_SDA
61	GND	161	GND	62	GND	162	I2C3_SCL
63	ENET_TXC	163	DSI_DP0	64	ENET_TX_CTL	164	I2C3_SDA
65	GND	165	DSI_DN0	66	ENET_TD0	166	I2C2_SCL
67	ENET_TD1	167	GND	68	ENET_TD2	168	I2C2_SDA
69	ENET_TD3	169	UART3_RXD	70	ENET_RX_CTL	170	ECSPI2_MOSI
71	ENET_RXC	171	UART3_TXD	72	GND	172	ECSPI2_MISO
73	ENET_RD0	173	UART3_CTS	74	ENET_RD1	174	ECSPI2_SCLK
75	PMIC_ON_REQ	175	UART3_RTS	76	ENET_RD2	176	ECSPI2_SS0
77	GND	177	GND	78	ENET_RD3	178	SAI3_TXD
79	USB2_DP	179	SAI3_TXC	80	ENET_MDC	180	SAI3_TXFS
81	USB2_DN	181	SAI3_RXD	82	ENET_MDIO	182	SAI3_MCLK
83	GND	183	SAI3_RXC	84	GND	184	GPIO1_IO13
85	USB1_DP	185	SAI3_RXFS	86	GND	186	GPIO1_IO10
87	USB1_DN	187	GPIO1_IO15	88	SD2_nCD	188	GPIO1_IO12
89	GND	189	GPIO1_IO14	90	SD2_WP	190	GPIO1_IO08
91	PCIE_CLKP	191	GPIO1_IO05	92	SD2_CMD	192	GPIO1_IO11
93	PCIE_CLKN	193	GPIO1_IO07	94	SD2_CLK	194	GPIO1_IO01
95	GND	195	GPIO1_IO09	96	SD2_nRST	196	SPDIF_EXT_CLK
97	PCIE_TXP	197	GPIO1_IO06	98	GND	198	SPDIF_RX
99	PCIE_TXN	199	GND	100	SD2_DATA0	200	SPDIF_TX

OS	Item	Feature	Description
Linux4.14.98	Bootloader	Boot	u-boot 2018.03
		Boot mode	Boot from eMMC
		Download	Download via USB OTG
	Kernel	Version	Linux 4.14.98
		File system format	Default support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system.
		LED	Support
		Serial	Support
		RTC	Support
		Ethernet	10/100M Ethernet Support
		CAN	Support
		RS485	Support
		WIFI	Support
		USB host	Support
		USB OTG	Support
		LCD	Support
		TOUCH	Touchscreen. Support
		eMMC	Support
		MMC/SD	MMC mode. Support
		GPIO	Support
		Audio I/O	Support
	Embedded GUI	Qt/Embedded	qt 5.0
	File system	TCP/IP	TCP/IP protocol
		Network ping	Check the network
		Ifconfig, route	For network configuration and related service application
	Basic tool	linux common cammands	cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, yes, insmod, lsmod, rmmod, dd, df, aplay
	Basic tool	Tools	DNW, CRT, uuu.rar
