* Processor: Rockchip RK3568 Quad-core Cortex-A55, 2.0GHz
* RAM: 3/4/5/6/7/8GB
* Storage: 8/16/32/64/128GB
* Pin out: 6x UART, USB2.0 OTG, USB3.0 Host, USB2.0 Host, HDMI, eDP, 2x MIPI DSI (or 1x MPI DSI, 1x LVDS), MIPI CSI, 2x GbE, PCIe3.0, PCIe2.1, 2x SATA3.0, SDMMC, CAN, I2C, ADC, GPIO, PWM, SPDIF, SPI, I2S, PDM, etc.
* Operating system: Debian 11

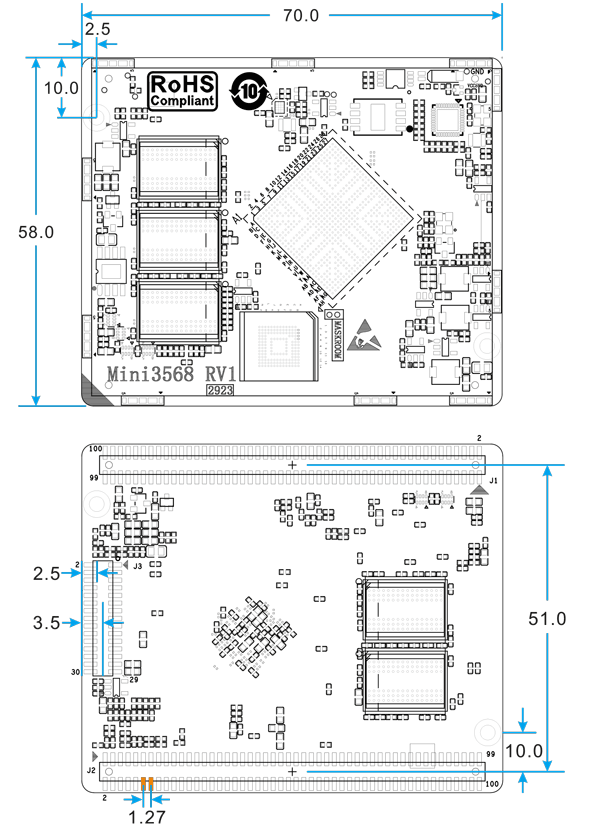

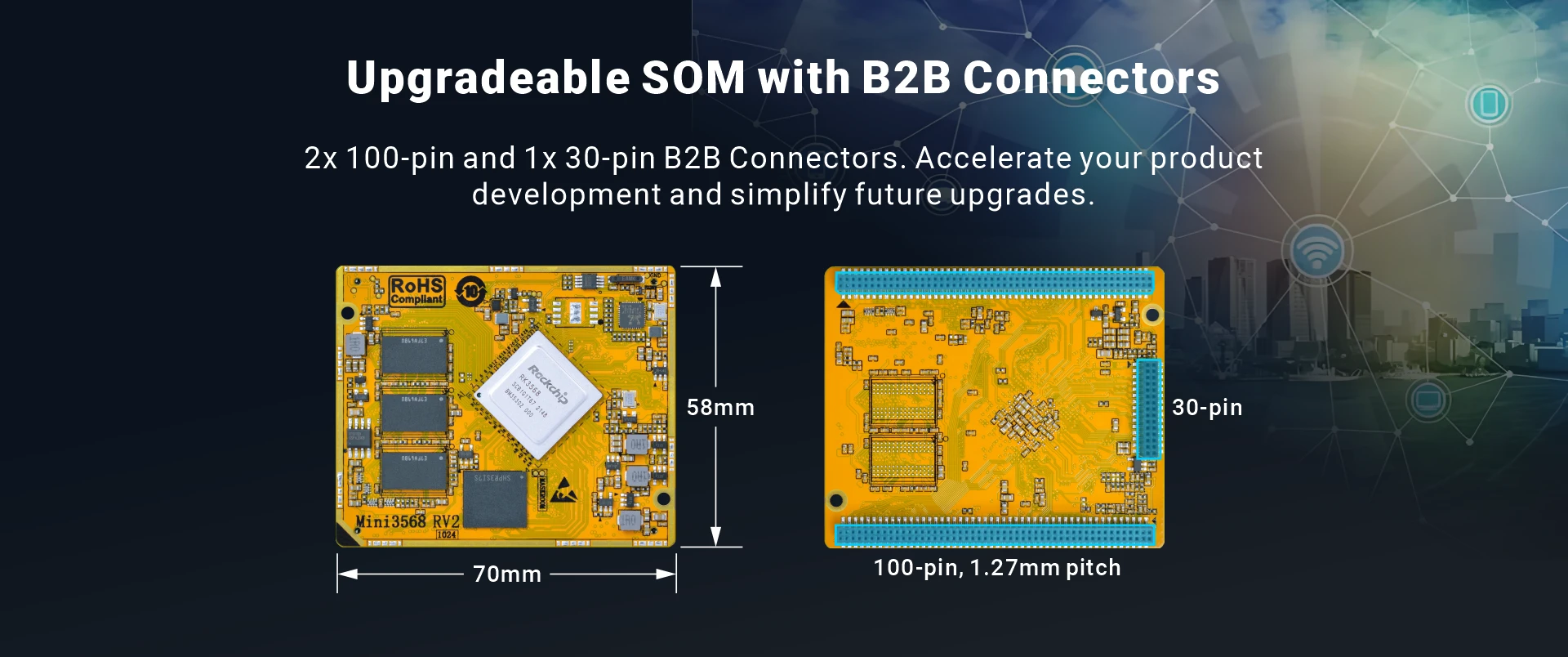

* Board size: 70 x 58mm

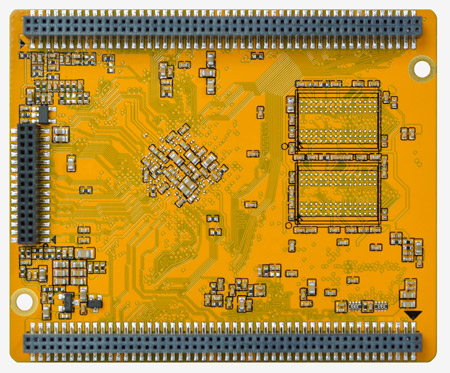

* Connectors: 1.27mm pitch, 100-/30-pin Female Pin Header

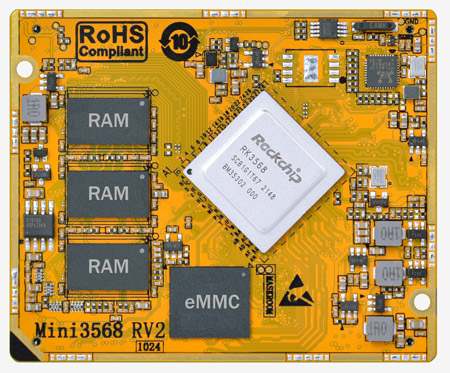

The MINI3568 system on module is a versatile solution designed based on Rockchip RK3568 processor. This quad-core SOM focuses on multimedia data processing, high-speed data transmission, machine vision, and high-reliability industrial automation, making it widely applicable in industrial scenarios such as security surveillance, medical equipment, IoT gateways, and digital signage.

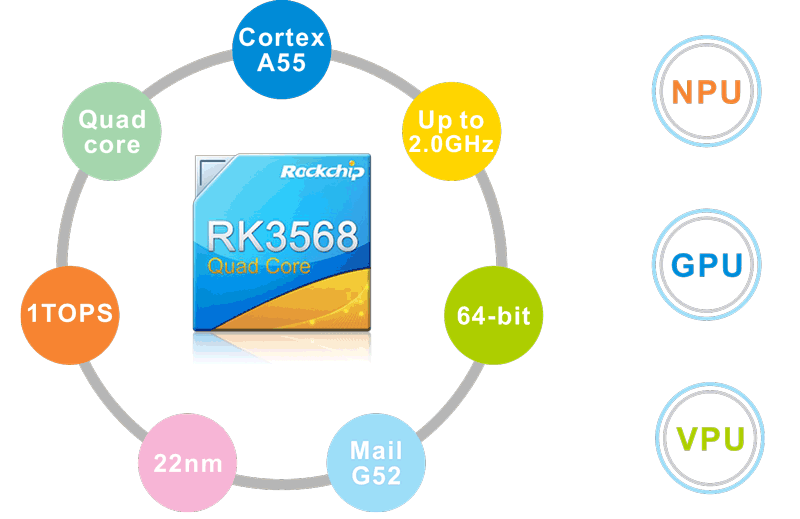

ImageHigh-performance Processor

Quad-core 64-bit Cortex-A55 architecture, clocked at up to 2.0GHz, integrated Mali-G52 GPU, 1TOPs NPU and 8M ISP with HDR.

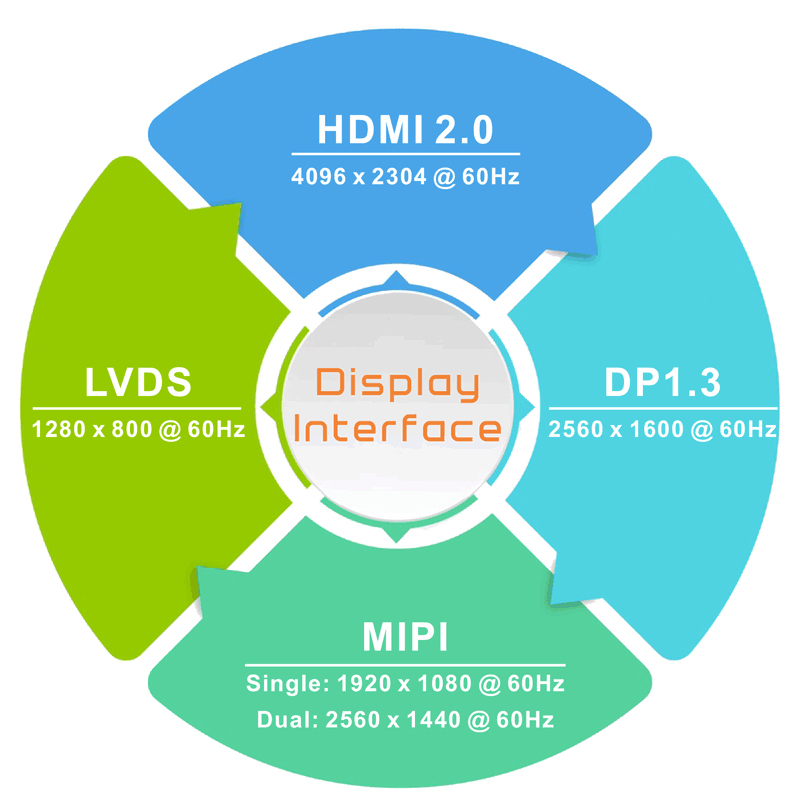

ImageMultiple Display

HDMI, LVDS, MIPI, RBG and eDP. Supports Triple display. 4K 60fps H.265/H.264/VP9 decoding and 1080P 60fps H.265/H.264 encoding.

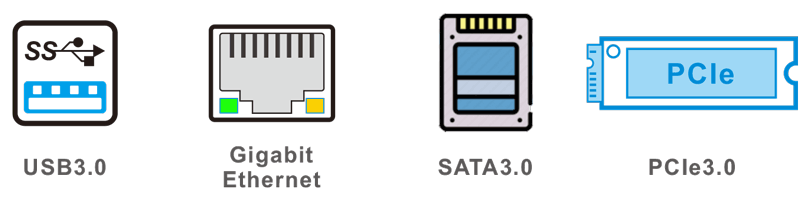

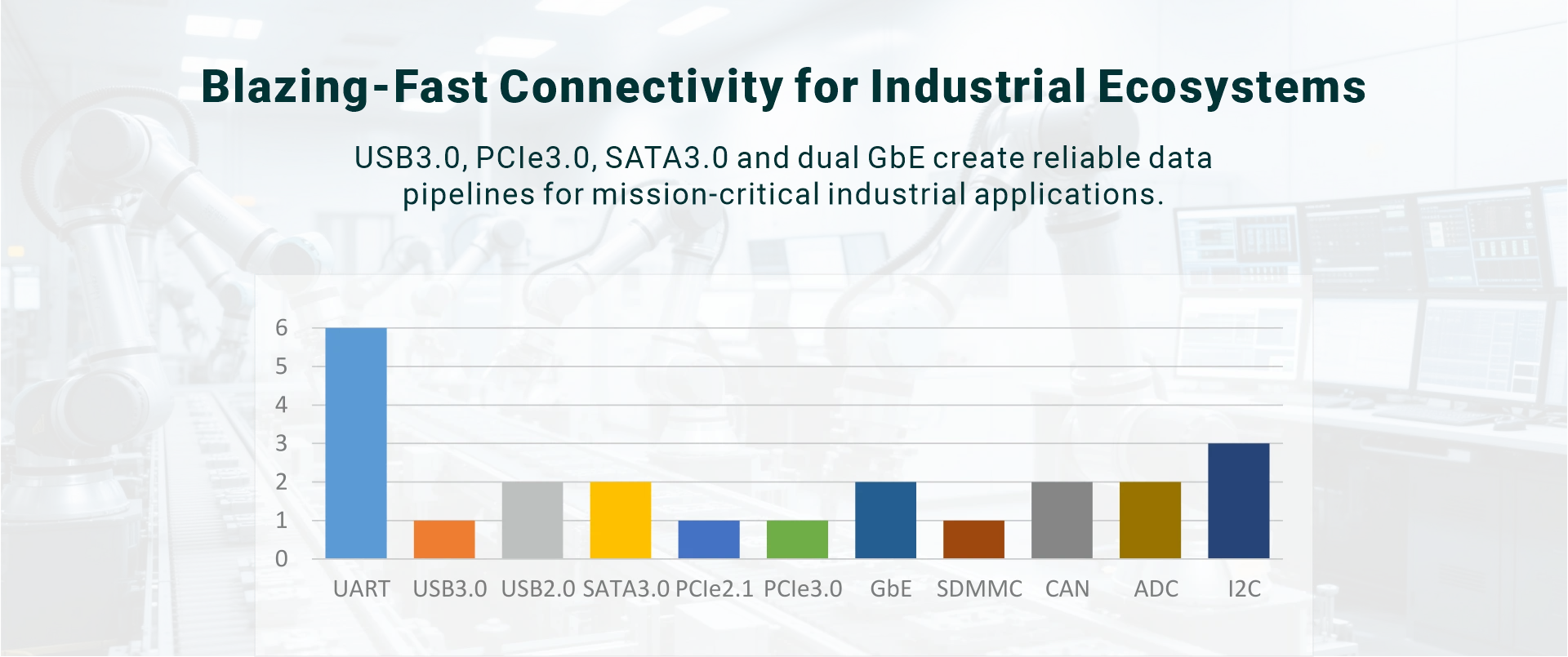

ImageHigh-Speed Connectivity

USB3.0, PCIe3.0, SATA3.0 and dual Gigabit Ethernet, reliable and efficient connectivity between devices.


ImageIndustrial/Commercial Option

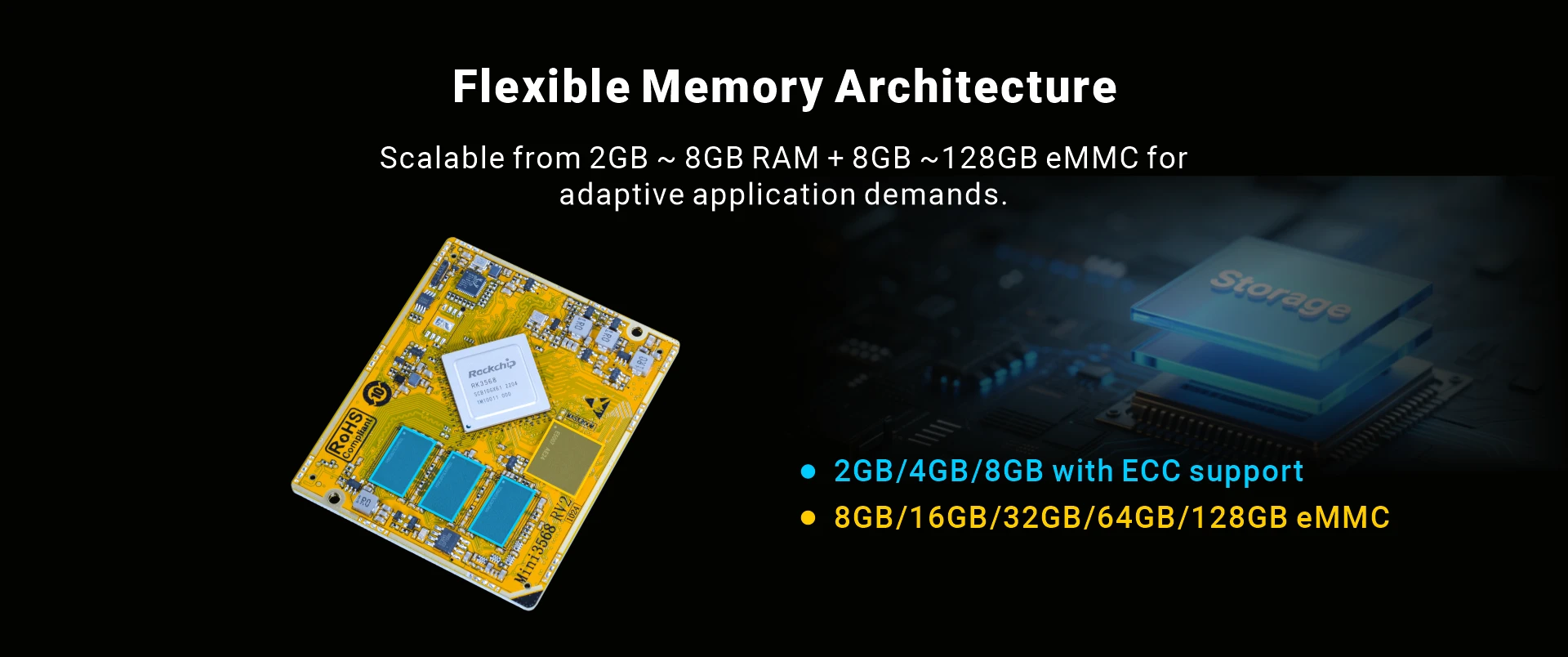

Available in both commercial and industrial temperature variants. 3GB to 8GB system memory with 8GB to 128GB storage, multiple configuration combinations to meet the demands of today's fast-paced and diverse computing environments.
