* Processor: Samsung ARM9 S3C2416X @400MHz
* RAM: 64MB/128MB
* Storage: 256MB/512MB/1GB optional

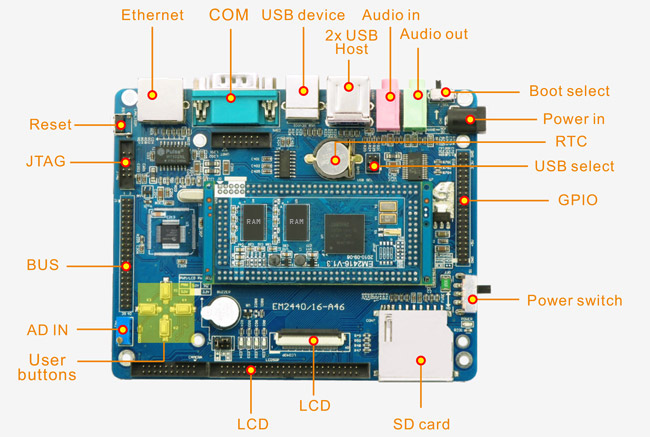

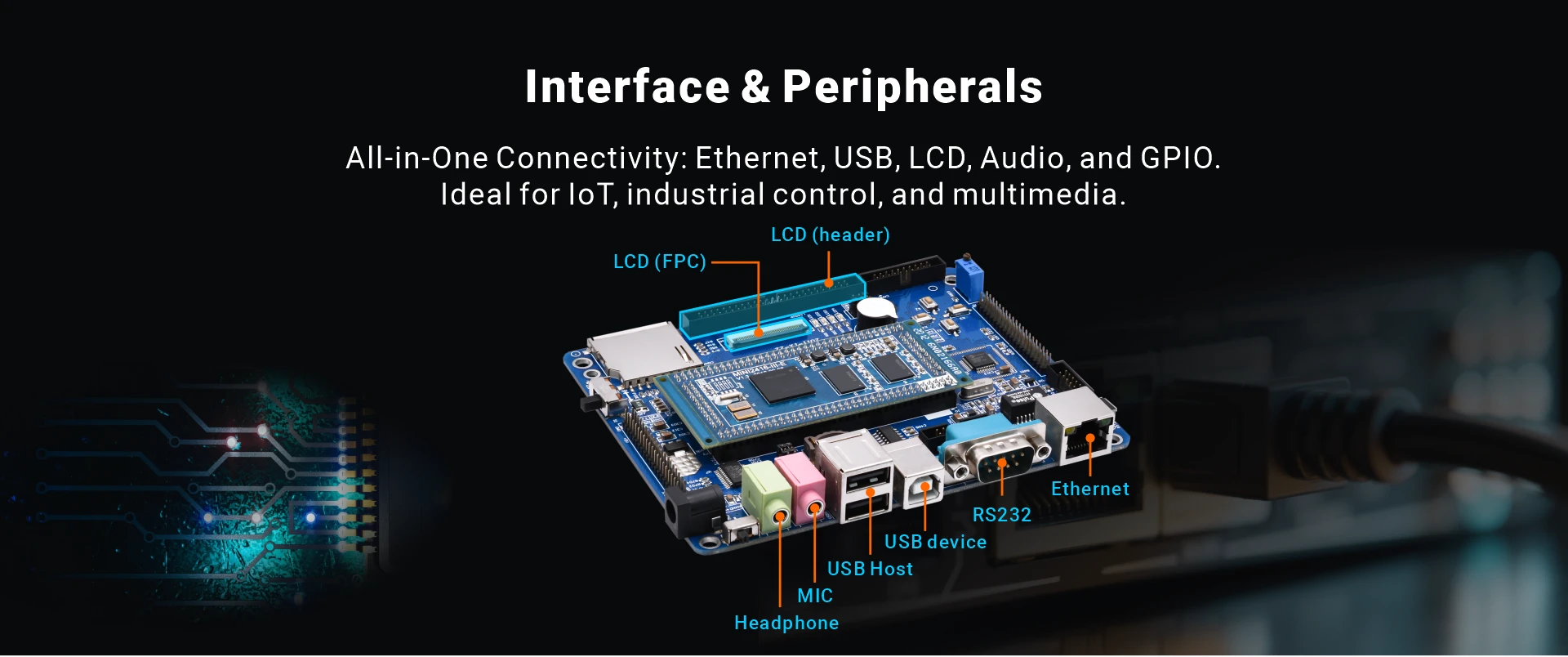

* Interface: 2x USB host, 1x USB Device, 3x RS232, LCD, Ethernet, JTAG, Audio, RTC, GPIO, SD
* Operating system: Linux2.6.21, WinCE6.0
* Board size: 105mm x 131mm
* Expansion Module: GPS, GPRS/GSM, WiFi, LCD

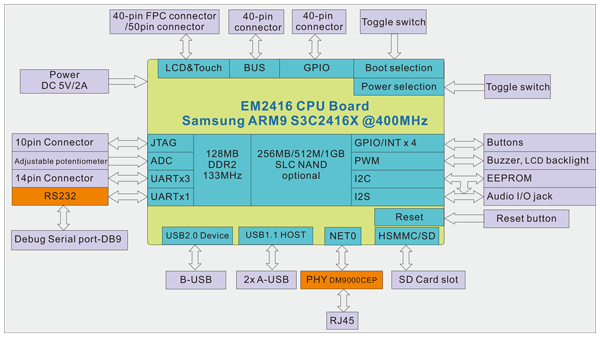

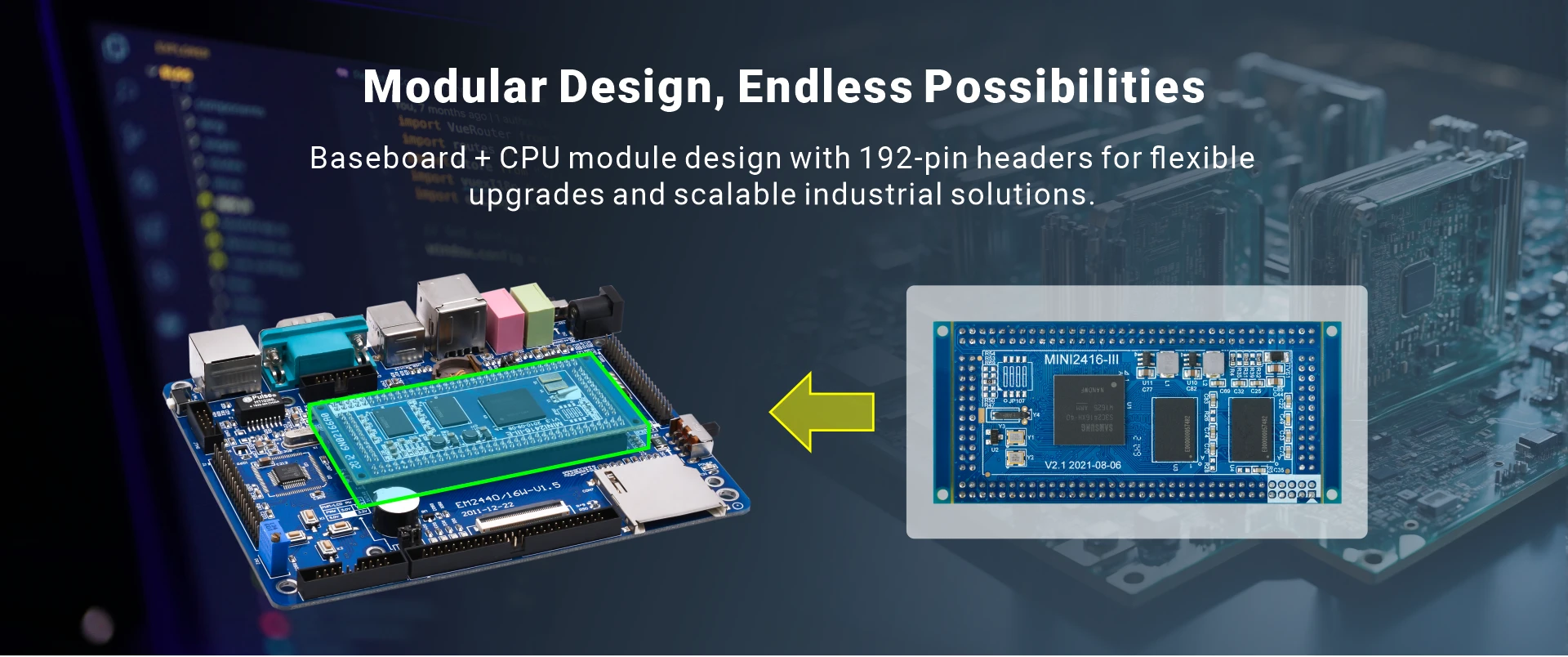

EM2416 Development Board offers true rapid development solutions by providing all the necessary ingredients to jump start embedded designs. The board includes the MINI2416-III SOM and Carrier Board (customized embedded motherboard), pre-installed Linux/WinCE6.0 OS. The mother board integrates a rich set of peripherals and interfaces including Ethernet, USB Host &Device, Serial ports, Audio, LCD, Keyboard, SD/MMC, Buttons, LEDs and etc. The board has complete electronic documentation, schematics, demo applications, and third party industry-standard C compilers and embedded development environments for evaluation.
Apart from the different processors, MINI2416-IIIMINI210-III and MINI2440 share the same motherboard.
Boardcon also backs up our kits with a Start-Up Guarantee. We invite you to make use of our free technical support until any start-up problem you might encounter is solved. The positive out-of-box experience with the Rapid Development Kit illustrates Boardcon's continuous commitment to providing customers with effective embedded solutions by offering a hands-on, industry-centric entry point for embedded developments, which is a key starting point for OEMs needing to have a complete solution up and running under very short development time constraints.
Boardcon provides custom computer services. If somewhere on the embedded computer hardware/software don't meet your specification of your project, we will modify the board for a semi-custom solution. When needed, we will develop a new embedded SBC or peripheral board to meet your requirements. Depending on the design agreement, you might maintain sole ownership of the final product, or we might add the product to our COTS product line.

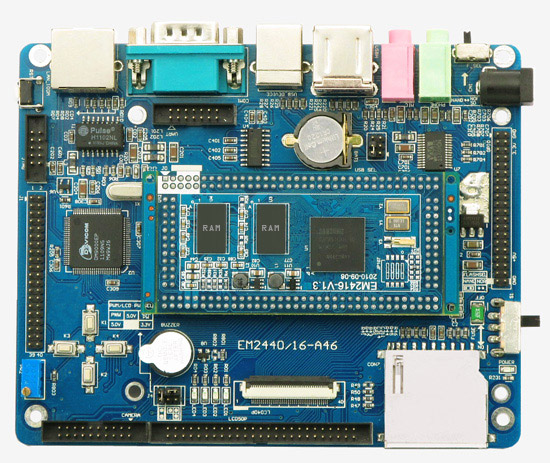

EM2416 SBC
