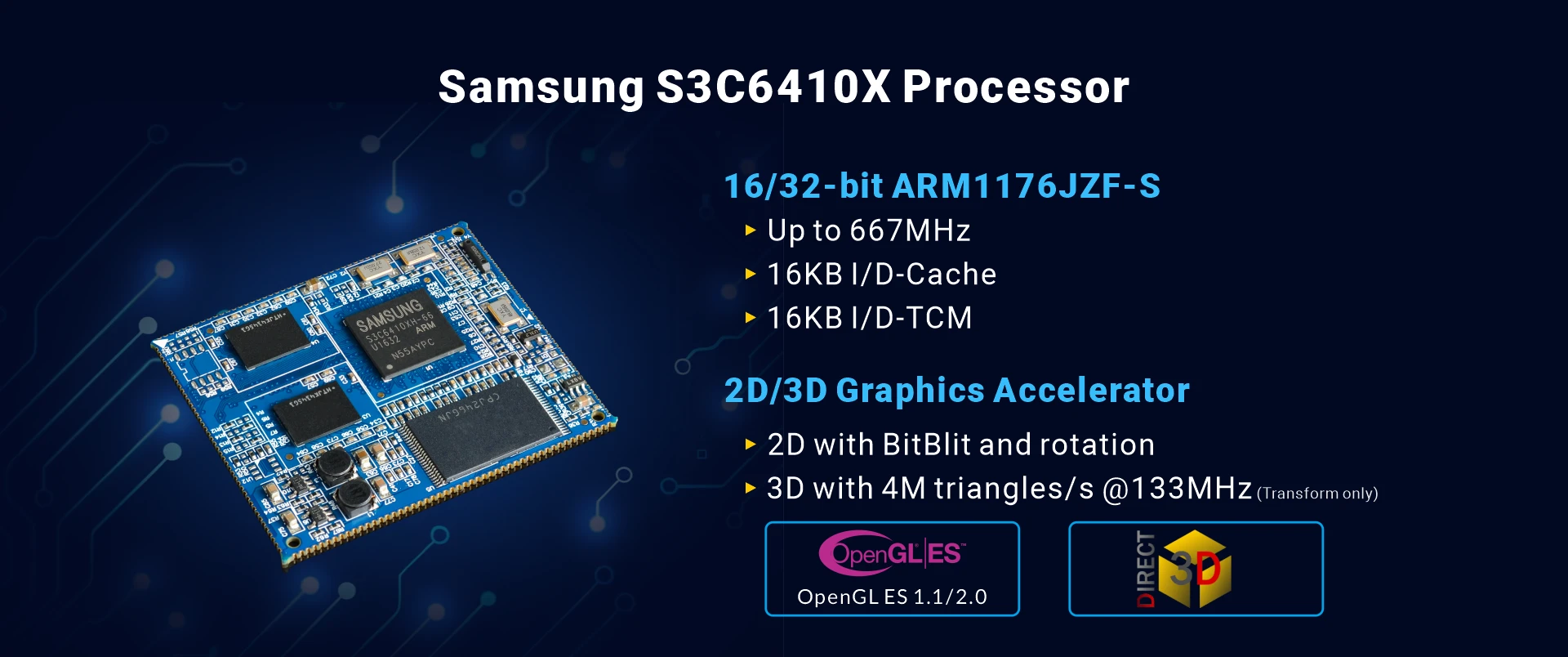

* Processor: Samsung S3C6410, ARM1176JZF-S @667MHz
* RAM:128/256MB
* Storage: 256MB/512MB/1GB
* Pin out: Ethernet, Camera, I2C, 16bit BUS, UART, LCD, Touch Screen, USB OTG, USB HOST, Matrix Keypad, ADC, DAC, SPI, SDIO, AC97, EXT INT, GPIO, etc.
* Operating system: Linux2.6.28, WinCE6.0, Android2.3

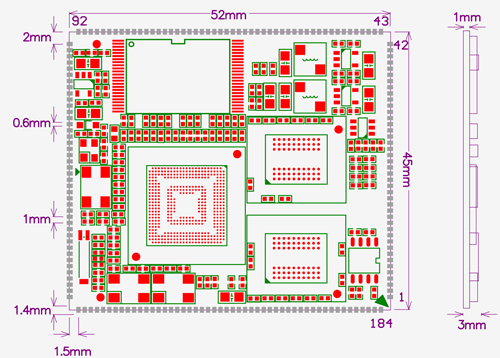

* Board size: 52mm x 45mm
* Package: 184-pin, 1.0mm pitch


Samsung's S3C6410 application processor is the power behind advanced multimedia and graphics-intensive consumer electronic devices. Developers have the flexibility to design-in the combinations of functionality such as wireless communications, GPS-enabled services, digital still picture and video applications, gaming, portable music/video play, and 2D/3D graphics into a single device.

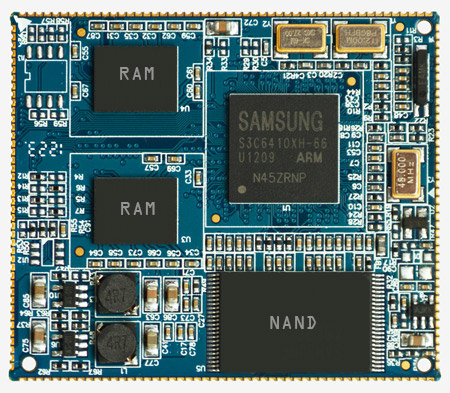

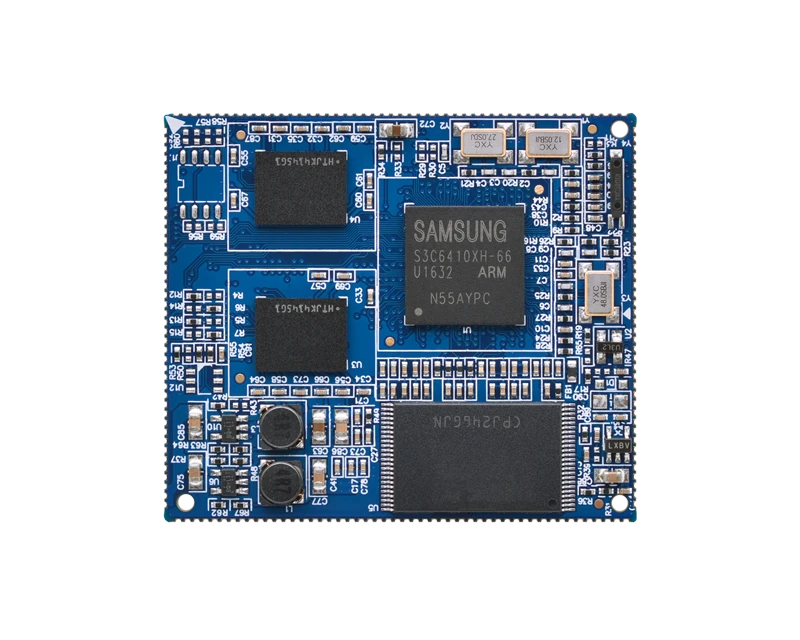

The MINI6410 System on Module is developed specifically for multimedia, graphic-intensive consumer electronics devices. The target markets are as wide as Automotive, Industrial, Test & Measurement and Medical.

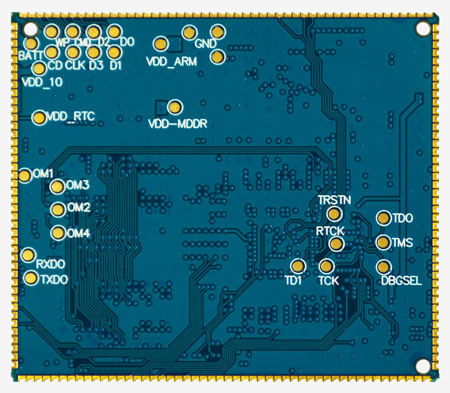

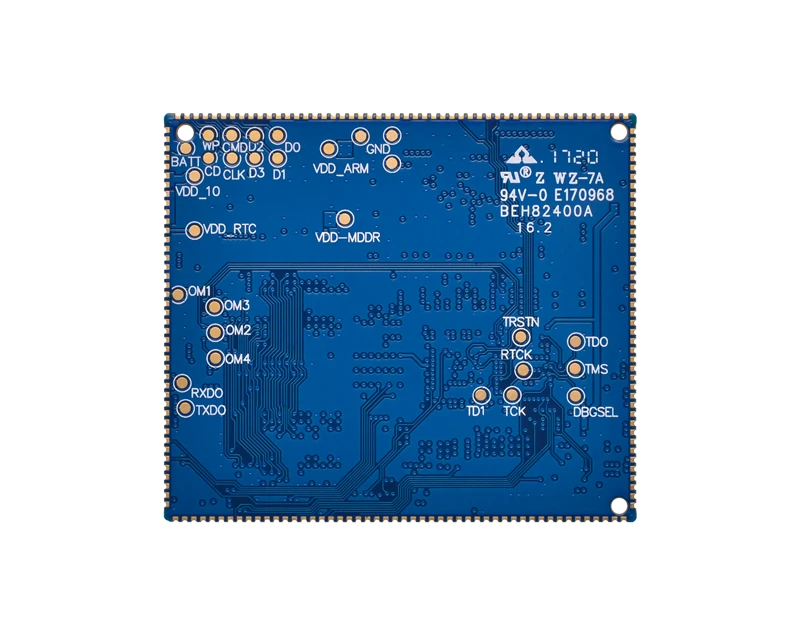

MINI6410  system on module rear view
